UDM-SE Dream Machine Special Edition All-in-one, Enterprise-grade UniFi OS Console and Security Gateway Full UniFi

Description

UDM-SE Dream Machine Special Edition All-in-one, Enterprise-grade UniFi OS Console and Security Gateway Full UniFi

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Includes full UniFi application suite for device management

3.5+ Gbps routing with IDS/IPS

(1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE

(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

(1) 3.5" NVR HDD bay

Built-in 128 GB SSD for NVR detection recordings

UniFi Power Backup ready

1.3" touchscreen

_{*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.}

_{Technical Specifications}

Mechanical
Dimensions	442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight	5 kg (10.9 lb)
Enclosure material	Aluminium CNC, SGCC steel
Mount material	SGCC steel
Hardware
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory	4 GB DDR4
On-board storage	16 GB eMMC Integrated 128 GB SSD
Management interface	Ethernet Bluetooth
Networking interface	LAN: (8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port
PoE interface	(6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput	3.5 Gbps* _{*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.}
Power method	(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A
Power supply	AC/DC, internal, 240W
Supported voltage range	100—240V AC
Max. power consumption	50W (Excluding PoE output)
PoE budget	180W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 15kV, contact: ± 8kV
LCM display	(1) 1.3" touchscreen

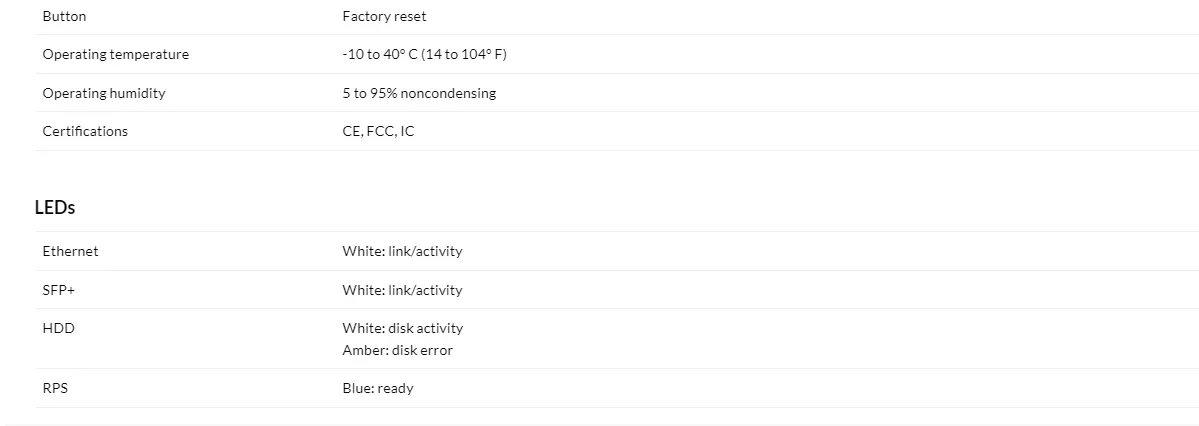

Button	Factory reset
Ambient operating temperature	-10 to 40° C (14 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security	Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking	License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support
LEDs
Ethernet	White: link/activity
SFP+	White: link/activity
HDD	White: disk activity Amber: disk error
RPS	Blue: ready

The Ubiquiti UDM-SE Dream Machine Special Edition All-in-one, Enterprise-grade UniFi OS Console and Security Gateway Full UniFi is the product you didn't think you need, but once you have it, something you won't want to live without.
