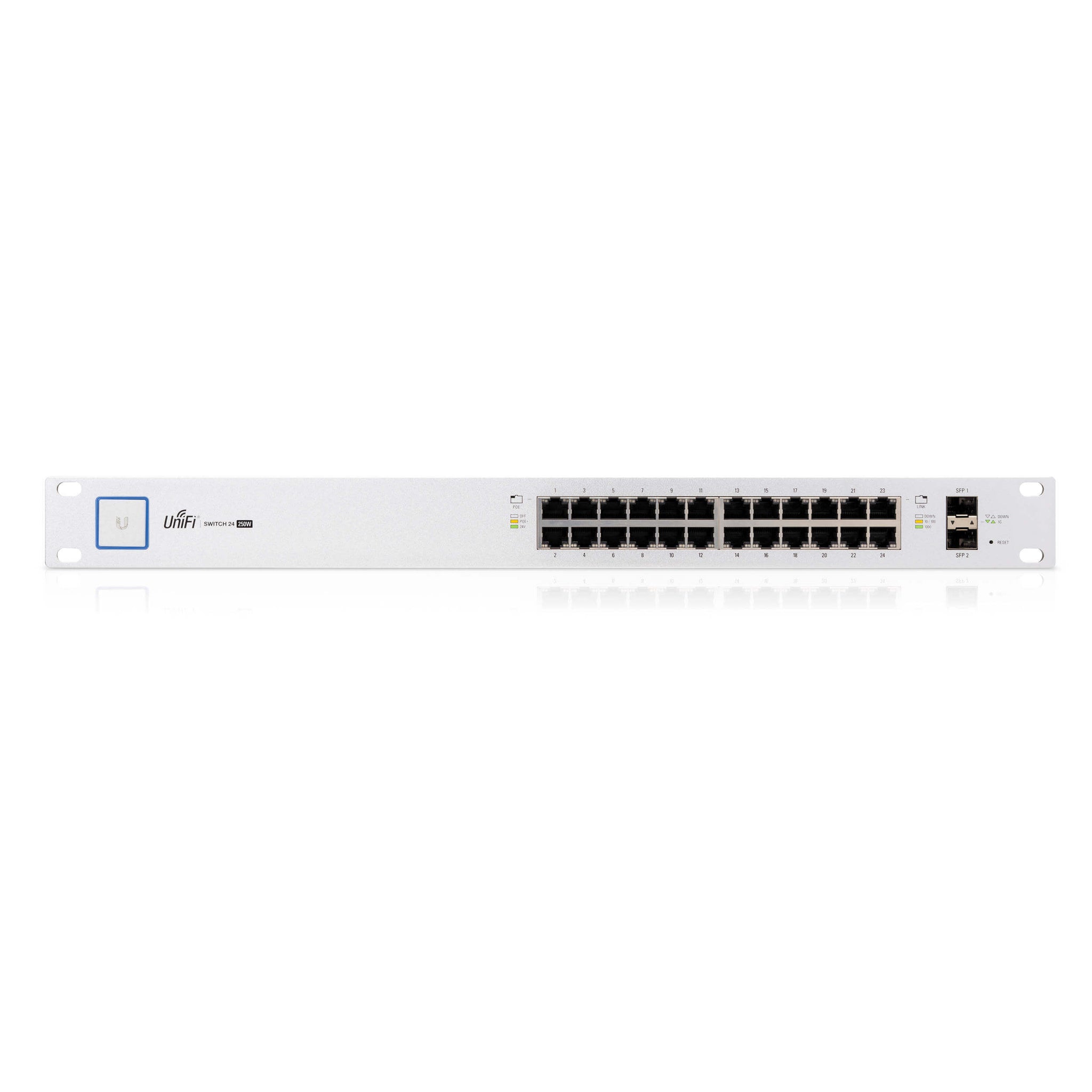

Ubiquiti UniFi - Switch, 24 ports with 250W PoE, US-24-250W

Description

Ubiquiti UniFi - Switch, 24 ports with 250W PoE, 24 Gigabit RJ45 Ports, 2 SFP Ports, Switching Capacity: 52 Gbps, Supports PoE+ IEEE 802.3at/af

Standard 24 PoE (Gen1)

US-24-250W (250W)
Layer 2, PoE switch with (24) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.

(24) GbE PoE+ ports

(2) 1G SFP ports

250W total PoE availability

Features

24 Gigabit RJ45 Ports; 2 SFP Ports; Switching Capacity: 52 Gbps; Supports PoE+ IEEE 802.3at/af

Technical Specifications

Mechanical
Dimensions 485 x 285 x 44 mm (19.1 x 11.2 x 1.7")
Weight 4.8 kg (10.6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
(1) RJ45 Serial port Out-of-Band
Networking interface (24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 2500W
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
250W (Including PoE output)
Total available PoE 250W
Max. PoE wattage per port by PSE 24V Passive PoE: 17W
PoE+: 34W
Voltage range PoE mode 24V Passive PoE: 20–27V
PoE+: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Sound level*
Fan level 0
Fan level 1
Fan level 2
Fan level 3
9.1 dBr
14.2 dBr
16.8 dBr
21.2 dBr
* Background noise level: 27.5 dBa.
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/Link/Activity
SFP Speed/Link/Activity
