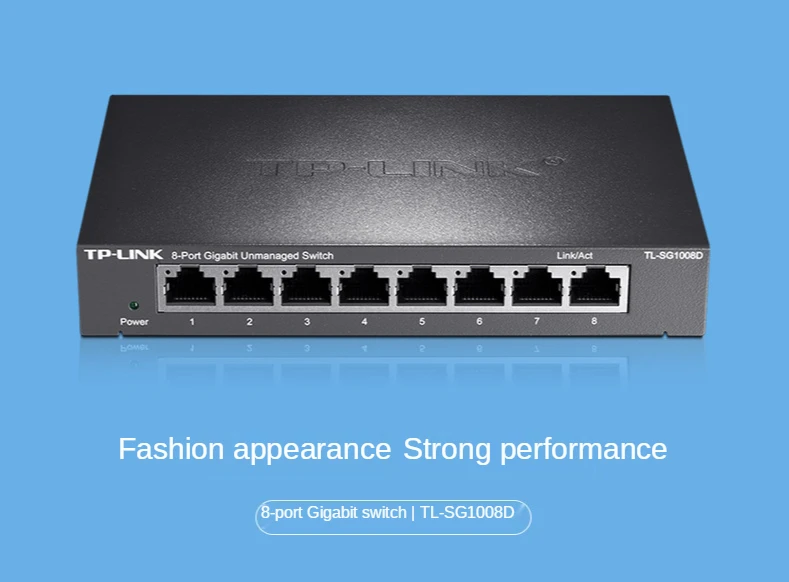

TP-Link TL-SG1008D 8Port Gigabit Ethernet Switch Smart Switcher 1000Mbps Ethernet Network Hub 1GE RJ45 1GB Internet LAN Splitter

TP-Link TL-SG1008D 8Port Gigabit Ethernet Switch Smart Switcher 1000Mbps Ethernet Network Hub 1GE RJ45 1GB Internet LAN Splitter

SPECIFICATIONS

Brand Name: TP-LINK

Function: SNMP

Number of Interfaces: 7

Certification: none

Switch Type: Ethernet

Package: Yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: TL-SG1008D

Transmission Rate: 10/100/1000Mbps

VLAN: no

Plug Type: US PLUG

Switch Capacity: 4K Mac Access

Choice: yes

semi_Choice: yes

Description

TL-SG1008D is a full Gigabit non-network tube switch product offering eight 10 / 100 / 1000M-adaptive RJ45 ports, all ports support line speed forwarding and MDI/MDIX automatic flip, plug and play.

Port performance

Provide 810 / 100 / 1000M adaptive RJ45 ports, all of which can realize line-speed forwarding;

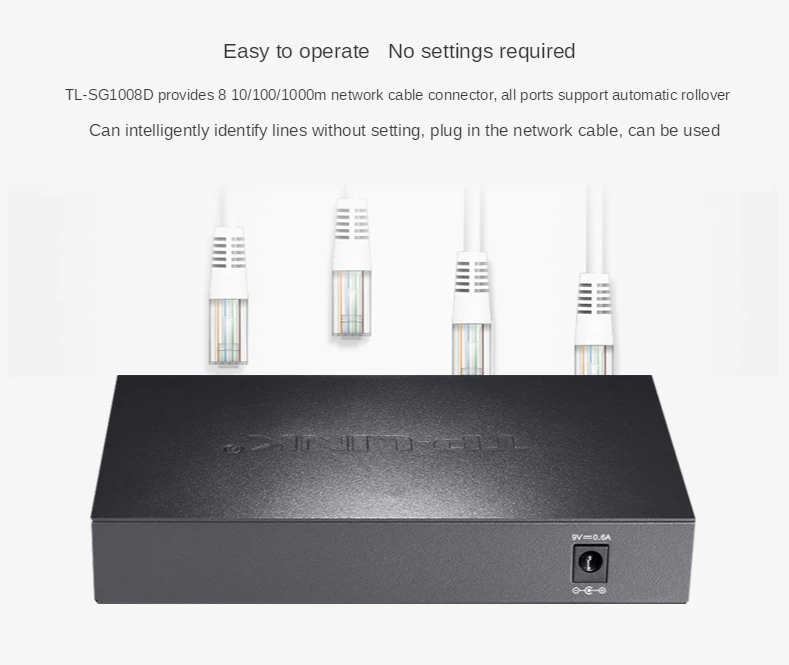

Each port supports MDI/MDIX automatic flip and duplex / rate self-negotiation;

Support for IEEE 802.3x full-duplex flow control and Backpressure semi-duplex flow control.

Simple to use

Plug and play without management; dynamic LED indicator, providing simple working status tips and troubleshooting.

Hardware specifications

Network standards:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Ports:

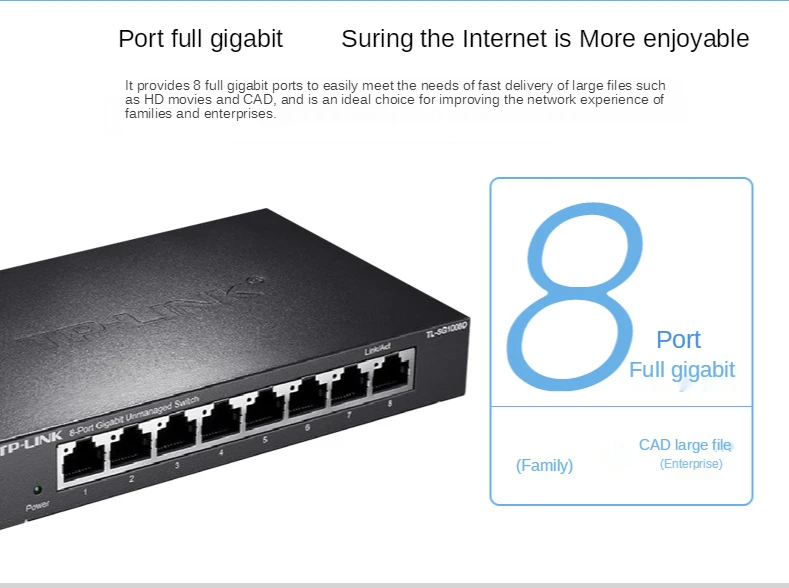

Eight 10 / 100 / 1000Mbps RJ45 ports

Lamlight:

Each port has a 1 Link/Ack indicator light

There is 1 Power indicator light per device

Performance

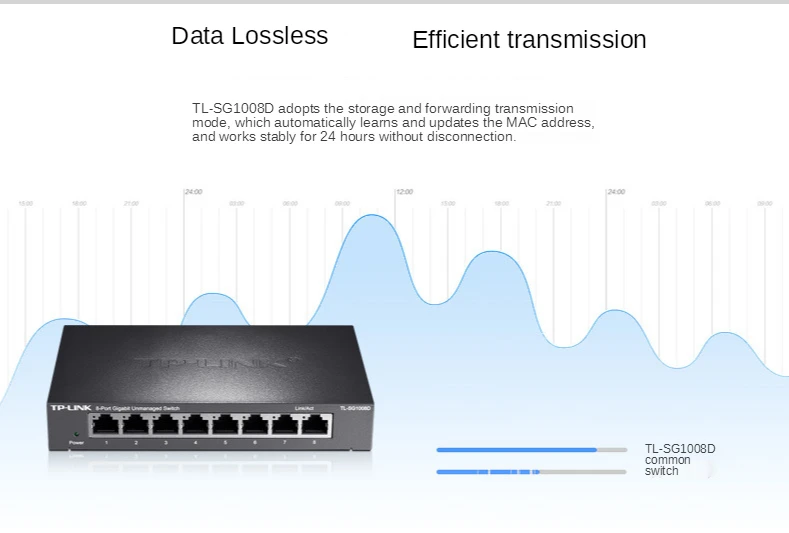

Store the forwarding

MAC address table depth supporting 4K

Use the environment

Operating temperature: 0℃ ~40℃

Storage temperature: -40℃ ~70℃

Operating humidity: 10%~90%RH, non-condensation

Storage humidity: 5%~90%RH, non-condensation

Enter the power supply.

9VDC/0.6A

Overall Size (L × W × H)

158mm x 100mm x 25mm
