Scodeno Industrial Ethernet Switch 8-Port Megabit 10/100Mbps Unmanaged -40 to 75°C DIN-Rail IP40, 8*10/100Base-T fixed ports, XPTN-9000-45-8TXm

SPECIFICATIONS

Authentication: CCC, CE, FCC, RoHS

Brand Name: Scodeno

Buffer: 2M

Bus topology: Support

CS: IEC 61000 4 6 Level 3 10V/m

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

DIP: IEC 61000 4 11 Level 3 10V

DIP Switch-1 C/D: Reserve

DIP Switch-2 LGY: Reserve

DIP Switch-3 VLAN: Port Isolation

DIP Switch-4 RST: Reset

EFT: IEC 61000 4 4 Level 3 1V/2V

ESD: IEC 61000 4 2 Level 4 8K/15K

Fixed port: 8*10/100Base-T

Flow control: Support

Forwarding delay: <5 µs

Free fall: 0.5m

Function: VLAN Support

High-concerned Chemical: None

Hybrid topology: Support

IP Level: IP40

Input voltage: DC 12 to 58V

Installation Method: DIN rail

Jumbo Frame: Support

LED Indicators: PWR OPT, NMC ALM

MAC address table: 16K

MDX/MIDX: Support

MTBF: 100,000 hours

Model Number: XPTN-9000-45-8TXm

Number of Interfaces: 9

Operating temperature: -40℃ to 75℃

PFMF: IEC 61000 4 8 Level 4 30A/m

Package: Yes

Packet forwarding rate: 19.34Mpps

Port Isolation: Support

Power interface: Phoenix terminal, redundant dual power supply

Product size: 143x104x48 mm

RS: IEC 61000 4 3 Level 3 10V/m

Relative humidity: 5%~95% non condensing

Ring topology: Unsupported

Spanning Tree Topology: Support

Star topology: Support

Storage temperature: - 40℃ to 85℃

Surge protection of Ethernet port: IEC 61000 4 5 Level X 4KV/ 4 KV 10/700us

Surge protection of Power: IEC 61000 4 5 Level X 6KV/ 6 KV 8/20us

Switch Capacity: 26G

Switch Type: Fast Switch

Switching capacity: 26G

Thermal methods: Fanless, natural cooling

Total Power consumption: <6 W

Transmission Rate: 10/100Mbps

Twisted pair: 0 to 100m CAT5e,CAT6

Voltage Alarm: Support

WatchDog: Support

Weight: 0.5KG around

Description

A cost-effective of entering the world of industrial ethernet technology

The unmanaged switches from Scodeno are a cost-effective way of entering the world of Industrial Ethernet technology without compromising on quality and reliability. All switches have been specially designed for use in harsh environments and come with all the necessary certifications. They are suitable for all applications in which switch management is unnecessary: at field level in industrial networks, for example, in smaller infrastructures, in outdoor IoT, citywide surveillance, transportation and general industrial applications.Whether you need a cost-effective, entry-level switch - or something more robust, with many customizable features - the Scodneo will meet your network's unique needs.


Features

  • 8 Fast ethernet ports 10/100Mbps

  • Operating temperature: from -40°C to 75°C

  • Protection class IP40 (aluminum enclosure)

  • Industrial solution to make sure faster speed, more stability and effective power.

Interface:

  • Fixed port: 8 * 10/100/1000 Base-T

  • Power interface: 3-contact Phoenix Terminal, redundant dual power supply

  • LED Indicators: PWR, Link/ACT

Cable Type & Transmission Distance:

  • Twisted-pair: 0-100m (CAT5e, CAT6)

Network Topology:

  • Ring topology: Unsupported

  • Star topology: Support

  • Bus topology: Support

  • Tree Topology: Support

  • Hybrid topology: Support

Power Parameters:

  • Input voltage: 12 to 58 VDC

  • Power consumption: <6 W

Switch Properties

  • Switching capacity: 1.8 G

  • Packet forwarding rate: 1.33 Mpps

  • MAC address table: 2 K

  • VLAN: Unsupported

  • Buffer: 512 K

  • Forwarding delay: <4 µs

  • MDI/MDIX: Yes

  • Flow control: Support

  • Jumbo Frame: Support 2048 Bytes

Environmental Limits:

  • Operating temperature: -30℃ ~ 75℃

  • Storage temperature: -30℃ ~ 75℃

  • Relative humidity: 5% ~ 95% non-condensing

  • Thermal methods: Fan-less, natural cooling

  • MTBF: 100,000 hours

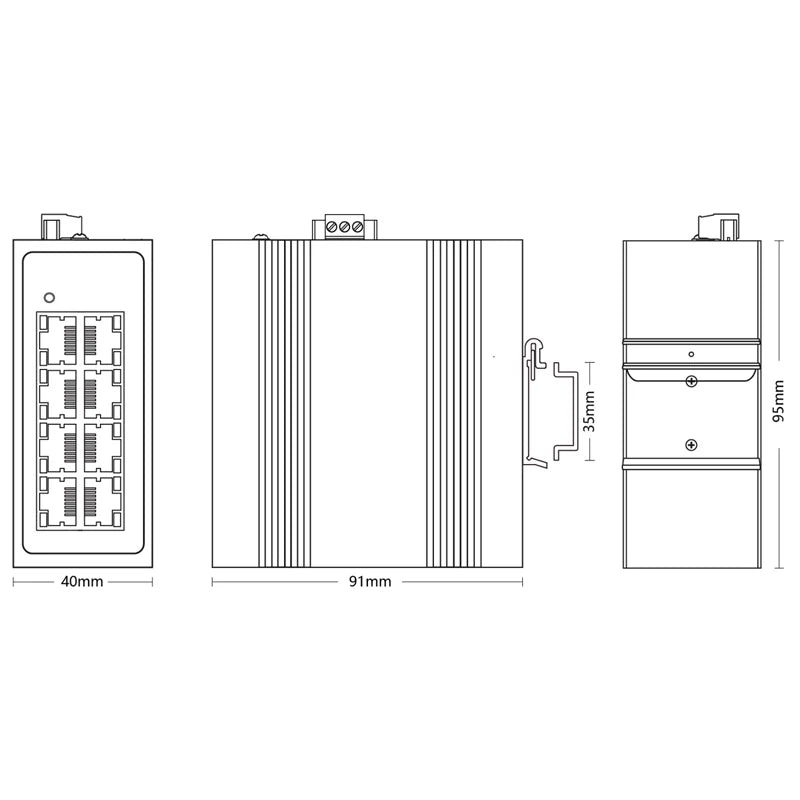

Physical characteristics

  • Dimensions: 95 x 91 x 41 mm

  • Installation: DIN-rail mounting

  • Weight: 0.37 Kg

Standards and Certifications

  • IP Level: IP40

  • EMI: FCC PART 15B CLASS A

  • EMS
    ● Surge protection of Power: IEC 61000-4-5 Level X (4 kV/2 kV) (8/20 µs)
    ● Surge protection of Ethernet port: IEC 61000-4-5 Level X (4 kV/2 kV) (10/700 µs)
    ● RS: IEC 61000-4-3 Level 3 (10 V/m)
    ● EFT: IEC 61000-4-4 Level 3 (1 V/2 V)
    ● CS: IEC 61000-4-6 Level 3 (10 V/m)
    ● PFMF: IEC 61000-4-8 Level 4 (30 A/m)
    ● DIP: IEC 61000-4-11 Level 3 (10 V)
    ● ESD: IEC 61000-4-2 Level 4 (8 K/15 K)

  • Freefall: 0.5 m

Authentication:

  • Certificates: CCC, CE, FCC, RoHS

  • Accessories: Scodeno Switch, Terminal Block, User Manual

Life is too short to live without the Scodeno Industrial Ethernet Switch 8-Port Megabit 10/100Mbps Unmanaged -40 to 75°C DIN-Rail IP40, 8*10/100Base-T ports. Be happy. Be Content. Be Satisfied.
