ONV Fiber Optic Equipment 48V Managed Gigabit 16Port industrial PoE Switch, with 16*WAN Port, 4*Cable Ports, 12*LAN Port, 368Gbps switching Capacity
16-Port 10G Uplink Managed Industrial PoE Switch
The ONV-IPS36168PFM is a 10G uplink managed industrial PoE fiber switch independently developed by ONV. it has 12*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Port 1-8 can support IEEE 802.3af/at standard POE, single port POE power up to 30W, and the maximum POE output power of the whole machine is 120W(at-240W).
Full gigabit port, 10G Uplink
- All series supports Ethernet port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply

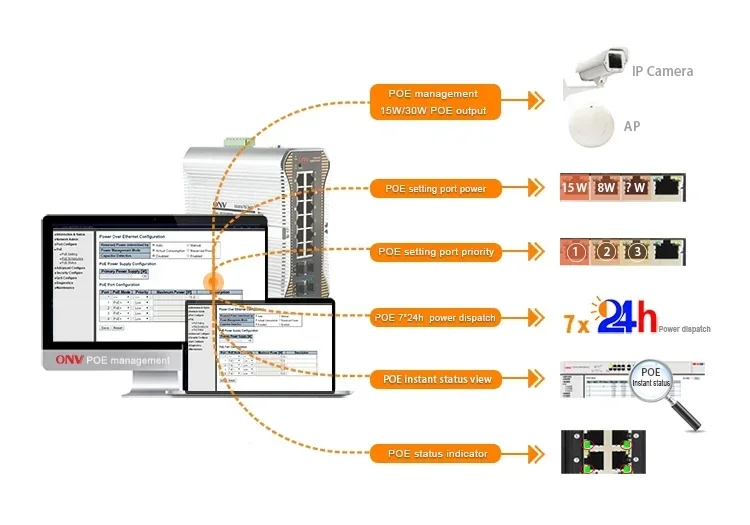

- 8*10/100/1000Base-T RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios. IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
Security
- 802.1X authentication.
- Port isolation,Storm control.
- IP-M AC-VLAN-Port binding.
Strong business processing capability

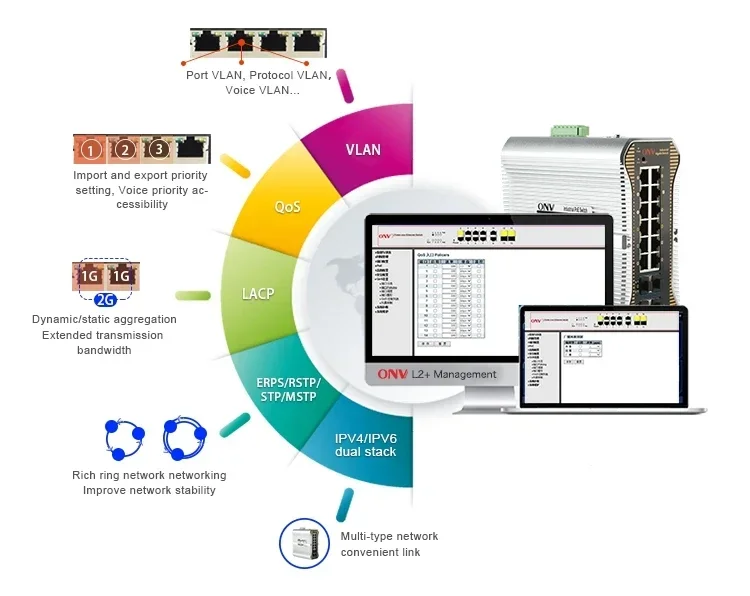

- IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.
- QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
- ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
- IGMP V1/V2 and IGMP Snooping.
- ERPS/STP/RSTP/MSTP.
- Static and dynamic aggregation.
Stable and reliable

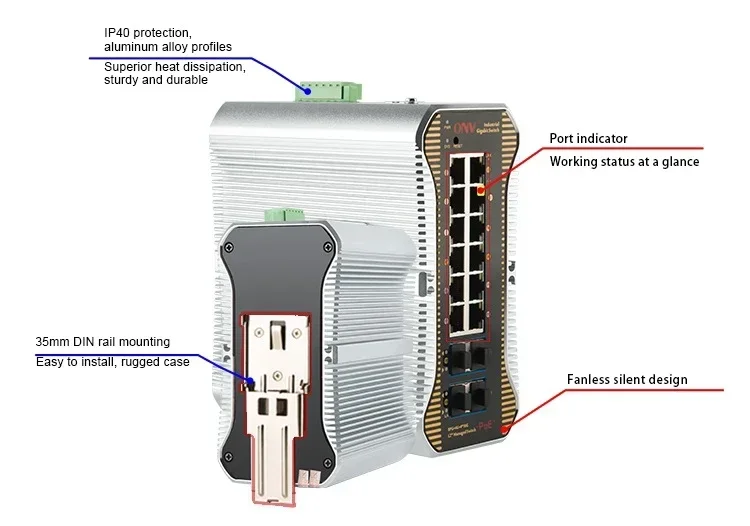

- Low power consumption, fan-less design, aluminum shell.
- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
- CE, FCC, RoHS.
- The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, PoE.
Easy operation and maintenance management
- Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
- HTTPS, SSLV3, and SSHV1/V2.
- RMON, system log, LLDP, and port traffic statistics.
- CPU monitoring, memory monitoring, Ping test, and cable diagnose.
Model |
ONV-IPS36168PFM |
ONV-IPS36168PFM-at |
||
Interface Characteristics |
|
|
||
8Fixed Port |
8*10/100/1000Base-T PoE ports (Data/Power) 4*10/100/1000Base-T uplink RJ45 ports (Data) 4*1/1G uplink SFP+ slot ports (Data) 2 sets of V+, V- redundant DC power interface (6 Pin Phoenix terminal) Power off alarm switch (FAULT) |
|
||
Ethernet Port |
Port 1-12 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
|
||
SFP Slot Port |
Gigabit SFP /10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single |
|
||
Chip Parameter |
|
|
||
Network Management Type |
L2+ |
|
||
Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; |
|
||
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
||
Switching Capacity |
598Gbps |
|
||
Forwarding Rate@64byte |
77.38Mpps |
|
||
M AC |
32K |
|
||
Buffer Memory |
32M |
|
||
Jumbo Frame |
9.6K |
|
||
PoE & Power |
|
|
||
PoE Port |
Port 1 to Port 8 |
|
||
Power Supply Pin |
Default: 1/2 (+), 3/6 (-) |
|
||
Max Power Per Port |
30W; IEEE802.3af/at |
|
||
Total PWR / Input Voltage |
120W (AC100-240V) |
240W (AC100-240V) |
||
Power Consumption |
Standby<15W; Full Load<120W |
Standby<16W;Full Load<240W |
||
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
||
LED Indicator |
Power/Systerm : SYS (green); Network: Link (yellow); SFP: L/F (green) ; |
|
||
Physical Parameter |
|
|
||
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
|
||
Optical Cable |
Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
|
||
Reset Switch |
Yes, One-button factory reset |
|
||
Operation TEMP / Humidity |
-40~+80°C;5%~90% R H Non condensing |
|
||
Storage TEMP / Humidity |
-40~+85°C;5%~95% R H Non condensing |
|
||
Dimension (L*W*H) |
166*149*74.5mm |
|
||
Net /Gross Weight |
<1.9kg / <2.8kg |
<1.9kg / <3.3kg |
||
Installation |
Desktop, DIN rail |
|
||
Certification & Warranty |
|
|
||
Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP30 |
|
||
Mechanical Properties |
IEC60068-2-6 (anti vibration),IEC60068-2-27 (anti shock),IEC60068-2-32 (free fall) |
|
||
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
|
||
Warranty |
5 years , lifelong maintenance. |
|
||
Network Management Features |
|
|
||
Interface |
Broadcast storm control based on port speed; IEEE802.3X (Full-duplex) The speed limit of the message flow in the access port. The minimum particle
size is 64Kbps.
setting |
|
||
PoE Management |
Total power limit of PoE power supply; PoE output power allocation, off& af &at |
|
||
Layer 3 Features |
L2+ Network management ; IPV4/IPV6 management; L3 soft routing
forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
|
||
VLAN |
4K VLAN based on port, IEEE802.1q; VLAN based on the protocol |
|
||
Port Aggregation |
LACP; Static aggregation; Max 8 aggregation groups and 8 ports per group. |
|
||
Spanning Tree |
STP (IEEE802.1d); RSTP (IEEE802.1w); MSTP (IEEE802.1s) |
|
||
Industrial Ring Network Protocol |
G.8032 (ERPS); Recovery time less than 20ms |
|
||
Multicast |
IGMP Snooping v1/v2/v3; Max 1024 multicast groups, Fast log out |
|
||
Port Mirroring |
Bidirectional data mirroring based on port |
|
||
QoS |
Diff-Serv QoS,Priority Mark/Remark; 8*Output queues of each port 802.1p/DSCP priority mapping; Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
||
ACL |
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on M AC, Port-based Issuing ACL, ACL based on port and VLAN
Destination M AC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP
Port, TCP/UDP Port Range, and VLAN, etc. |
|
||
Security |
User hierarchical management and password protection SSH 2.0,SSL,Port isolation,ARP message speed limit M ac black holes,IP source protection; AAA & RADIUS,M AC learning limit ARP inspection,Anti-DoS attack; IP-M AC-VLAN-Port binding
Broadcast storm control,Backup for host datum |
|
||
DHCP |
DHCP Client, DHCP Snooping , DHCP Server, DHCP Relay |
|
||
Management |
Console/AUX Modem/Telnet/SSH2.0 CLI; Web Management (HTTPS) Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 One-key recovery; NTP; System work log; Ping Test; Cable Diagnose; LLDP ONV NMS - Smart Network Management System Platform (LLDP+SNMP) CPU instant utilization status view |
|
||
System |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or
higher, Mic rosoft Internet Explorer10 or later; Category 5 Ethernet network cable
Windows, Linux, or M ac OS X) installed on each computer in a network |
|
Model |
Description |
|
||
ONV-IPS3618PFM |
L2+ managed industrial PoE fiber switch with 12*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ slot ports, Port 1-8 can support |
|
||
ONV-IPS36168PFM-at |
L 2+ managed industrial PoE fiber switch with 12*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ slot ports, Port 1-8 can support |
|
||
Note: Industrial PoE switch doesn't have the SFP optical module and power supply. |
|
|
PACKING LIST |
CONTENT |
|
QTY |
UNIT |
||||
|
16-Port 10G Uplink Managed Industrial PoE Switch |
|
1 |
SET |
||||
|
RJ45-DB9 Line |
|
1 |
PC |
||||
|
User Guide |
|
1 |
PC |
||||
|
Warranty Card |
|
1 |
PC |
||||
|
AC Power Cable |
|
1 |
PC |
||||
|
Mounting Kits |
|
1 |
PC |
||||
Note: Industrial PoE switch does not match the power supply and SFP module. |
|
|
|
|
