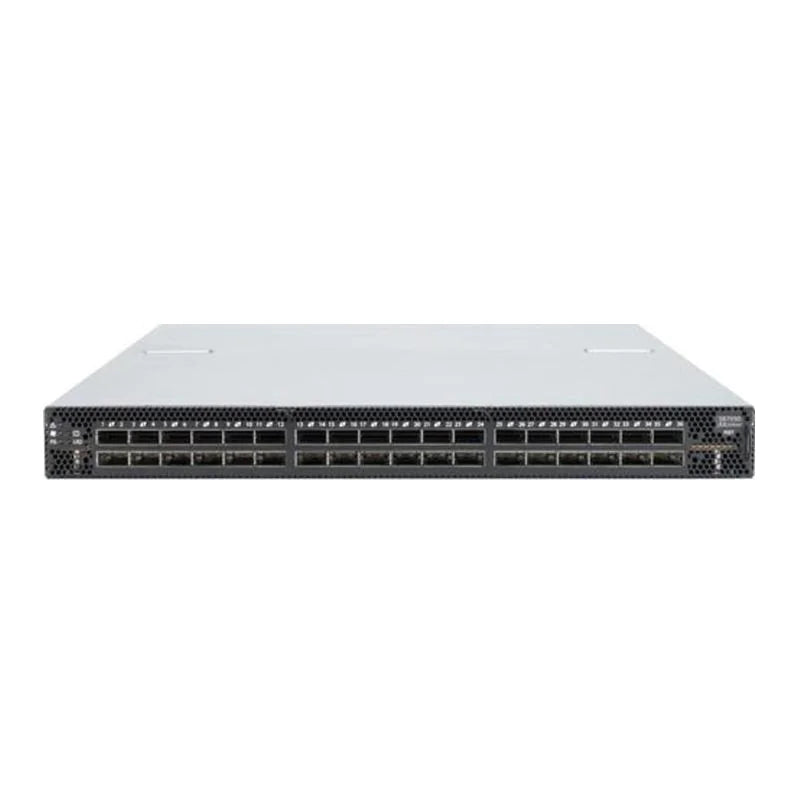

NVIDIA Mellanox Switch-IB 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2x AC, x86 dual core, P2C airflow, 100Gb/s MSB7800-ES2F

Regular price: R 259,183.03
Sale price: R 259,183.03
Regular price: ~~R 347,207.46~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

NVIDIA Mellanox MSB7800-ES2F Switch-IB 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2 Power Supplies (AC), x86 dual core, standard depth, P2C airflow, Rail Kit

Description

The NVIDIA Mellanox MSB7800-ES2F is a high-density enterprise-class switch purpose-built to enable rapid fabric deployment for data center and HPC environments. As a core InfiniBand switch, it delivers outstanding performance with a switching capacity of 7.2 Tbps and ultra-low latency critical for scalable cluster computing. With 36 high-speed network ports in a compact 1U form factor, it is engineered for top-of-rack leaf connectivity or building clusters of any size, making it an ideal solution for both demanding distributed workloads and massive data-driven applications. The advanced embedded x86 dual core processor ensures efficient management and operation, supporting robust InfiniBand integration and seamless scalability. Incorporating dual redundant power modules, hot-swappable fan module, and back-to-front airflow, the MSB7800-ES2F provides industry-leading reliability. Designed for NVIDIA Mellanox environments, it optimizes throughput and flexibility, empowering enterprise IT teams, integrators, and end-users across Asia, Europe, Africa, and North America with scalable performance. The switch’s integrated InfiniBand architecture ensures high-availability data pathways essential for today's high-throughput storage and compute tasks. Equipped with 4GB DDR3 RAM and 16GB SSD, it holds up under intensive data center operations where maximum uptime and consistent performance are paramount. Whether you are a distributor, a small to medium systems integrator, or an end-user requiring advanced networking capabilities, the NVIDIA Mellanox MSB7800-ES2F’s blend of dual core technology and 36 port scalability delivers the connectivity foundation for modern IT infrastructures.

Compare to Similar Items

Model	NVIDIA Mellanox MSB7800-ES2F	NVIDIA Mellanox MSN4700-WS2RO	920-9N42F-00RI-3C1	NVIDIA Mellanox MSN3420-CB2FC
Port Configuration	36x 100 Gigabit Ethernet QSFP28	32 x QSFP-DD	Ports #1-64: OSFP, Port #65: SFP28	48 x 10/25GbE; 12 x 100GbE
Switching Capacity	7.2 Tbps	12.8 Tbps	51.2Tb/s	4.8 Tbps
Forwarding Rate	n/a	n/a	n/a	n/a
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
MTEF-FANF-A	Mellanox hot-swappable fan module for MSB7800 Series, supports back-to-front airflow
MTEF-PSF-AC-A	Mellanox 460W AC redundant power supply for MSB7800 Series, back-to-front airflow
Q28-100G-AOC-20M	Mellanox 100GbE QSFP28 active optical cable (20m), compatible with MSB7800-ES2F ports

Features

Performance
- 36 x EDR 100Gb/s ports in a 1U switch
- 7.2Tb/s aggregate switch throughput
- 90ns switch latency
- 122W typical power consumption
Optimized design
- 1+1 redundant & hot-swappable power
- N+1 redundant & hot-swappable fans
- 80 gold+ and energy star certified power supplies
Advanced design
- Adaptive routing
- Congestion control
- VL2VL mapping
- Collective offloads (SHARP technology)

Specifications

Model: NVIDIA Mellanox MSB7800-ES2F

Brand: Mellanox

Network Ports: 36x 100 Gigabit Ethernet QSFP28

Management Ports: 1x 1 Gigabit Ethernet RJ45, 1x RS-232 DB9, 1x USB

Switch Version: MLNX-OS (Internally Managed) - InfiniBand

System Memory: 4GB DDR3 RAM, 16GB SSD

Airflow Direction: Back to Front (P2C / Power to Connector)

Fan Modules: 1x MTEF-FANF-A Hot Swappable, Back to Front Airflow

Power Supplies: 2x MTEF-PSF-AC-A Dual Redundant 460W, Back to Front Airflow

Switching Capacity: 7.2 Tbps

Use Case: Ideal for top-of-rack leaf connectivity or building clusters of any size

Depth: Standard

Product Family: Mellanox SB7800 Series

Latency: InfiniBand

CPU: Embedded x86 dual core

The NVIDIA Mellanox Switch-IB 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2x AC, x86 dual core, P2C airflow, 100Gb/s MSB7800-ES2F destined to impress, and priced at only R 259,183.03, for a limited time.
