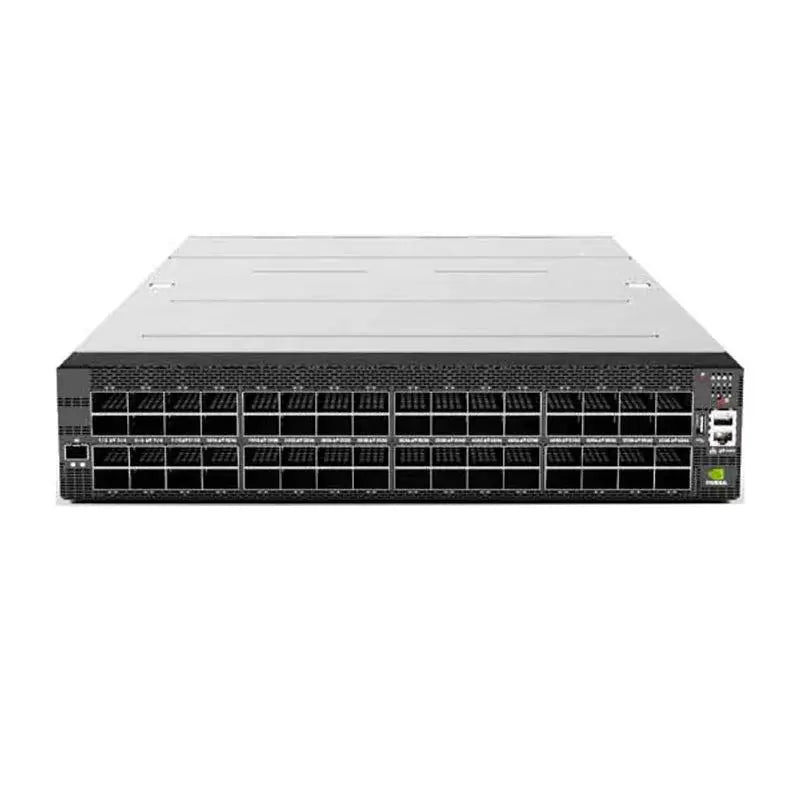

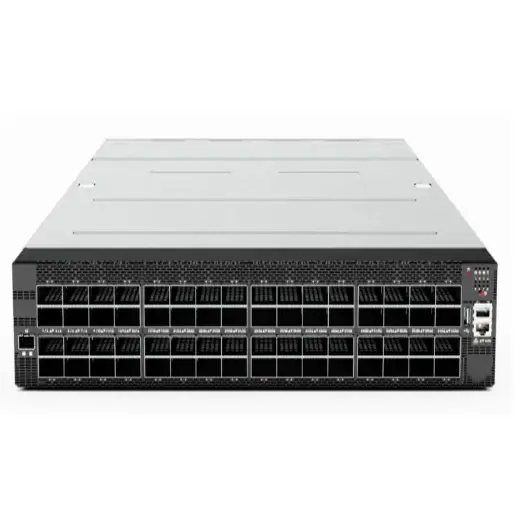

NVIDIA Mellanox Spectrum-4-based 800GbE 2U Ethernet switch with Cumulus Linux, 64*OSFP, 1*SFP28 port, 2xAC, x86 CPU, 920-9N42F-00RI-7C0

Description

NVIDIA Spectrum-4-based 800GbE 2U open Ethernet switch with Cumulus Linux authentication, 64x OSFP ports and 1x SFP28 port, 2x power supplies (AC), x86 CPU, secure boot, standard depth, connector-to-power airflow, tool-less rail kit

The 920-9N42F-00RI-7C0 is part of the Mellanox Switches series and is a powerful 2U open Ethernet switch with advanced features. Designed by Nvidia, this switch is based on the NVIDIA Spectrum-4 technology which ensures high-performance networking capabilities.

Product Features

The 920-9N42F-00RI-7C0 switch comes with a range of outstanding features:

- It offers 800GbE connectivity, providing fast and reliable network speeds.

- The switch has a total of 64x OSFP ports and 1x SFP28 port, allowing for flexible network configurations.

- It is equipped with 2x power supplies (AC) for redundancy and reliability.

- The built-in x86 CPU enhances the switch's processing power and overall performance.

- With secure boot functionality, the switch ensures a secure and trusted boot process.

- Its standard depth and tool-less rail kit design make installation and maintenance a breeze.

Key Advantages

- Reliable and high-performance networking capabilities.

- Flexible network configurations with a wide range of port options.

- Enhanced processing power for efficient data transfer.

- Secure boot functionality ensures a trusted boot process.

Product Applications

The 920-9N42F-00RI-7C0 switch is ideal for various network applications:

- Data centers: It provides efficient and reliable networking solutions for data center environments.

- High-performance computing: The switch enables fast and seamless data transfer for HPC systems.

- Cloud computing: It offers excellent connectivity and performance for cloud-based applications.

Configuration and Management

The 920-9N42F-00RI-7C0 switch can be easily configured and managed through its intuitive management interface. Users can access and customize network settings, monitor performance, and perform firmware updates with ease.

Specification

NVIDIA Spectrum-4-based 800GbE 2U open Ethernet switch with Cumulus Linux authentication, 64x OSFP ports and 1x SFP28 port, 2x power supplies (AC), x86 CPU, secure boot, standard depth, connector-to-power airflow, tool-less rail kit

item

value

Brand

Mellanox
Brand

NVIDIA Mellanox

transmission rate

10/100/1000Mbps

communication mode

Full-Duplex & Half-Duplex

private mold

NO

products status

Stock

model number

920-9N42F-00RI-7C0

Model

920-9N42F-00RI-7C0

power consumption

Typical power with passive cables (ATIS): 940W

Support speed

Ports #1-64: 10/25/40/50/100/200/400/800GbE Port #65: 1G/10G/25GbE

system memory

32GB RAM DDR4, 160GB SSD

operating system

Cumulus Linux

CPU

Intel x86 Xeon, Hexa-core Coffee Lake E-2276ME w/ secured-boot

port type

Ports #1-64:OSFP Port #65:SFP28

wind direction

connector-to-power (C2P)

Warranty

1year
The NVIDIA Mellanox Spectrum-4-based 800GbE 2U Ethernet switch Cumulus Linux, 64*OSFP, 1*SFP28 port, 2xAC, x86 CPU, 920-9N42F-00RI-7C0 is the product you didn't think you need, but once you have it, something you won't want to live without.
