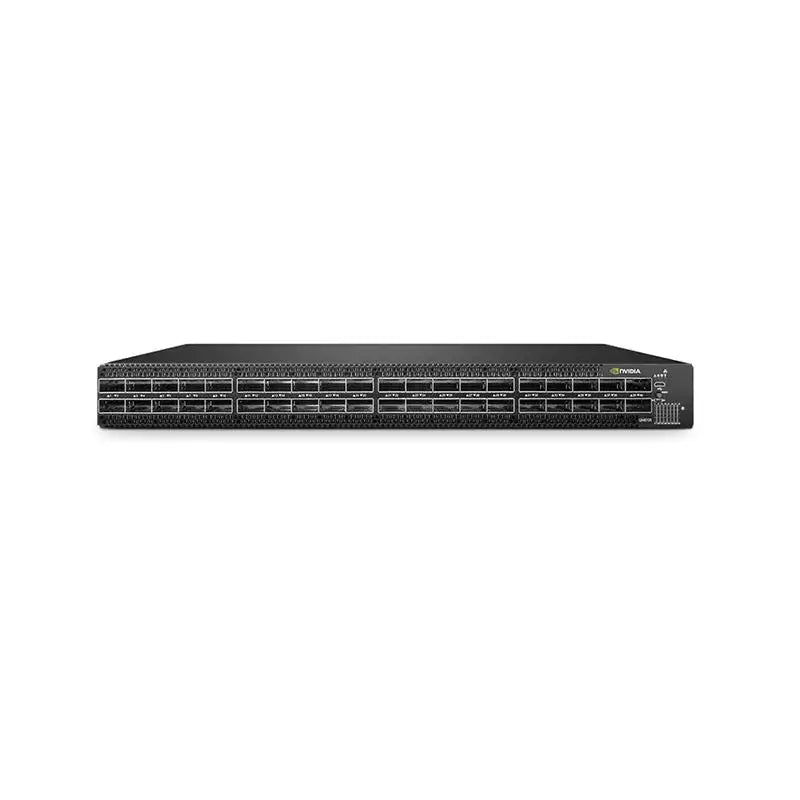

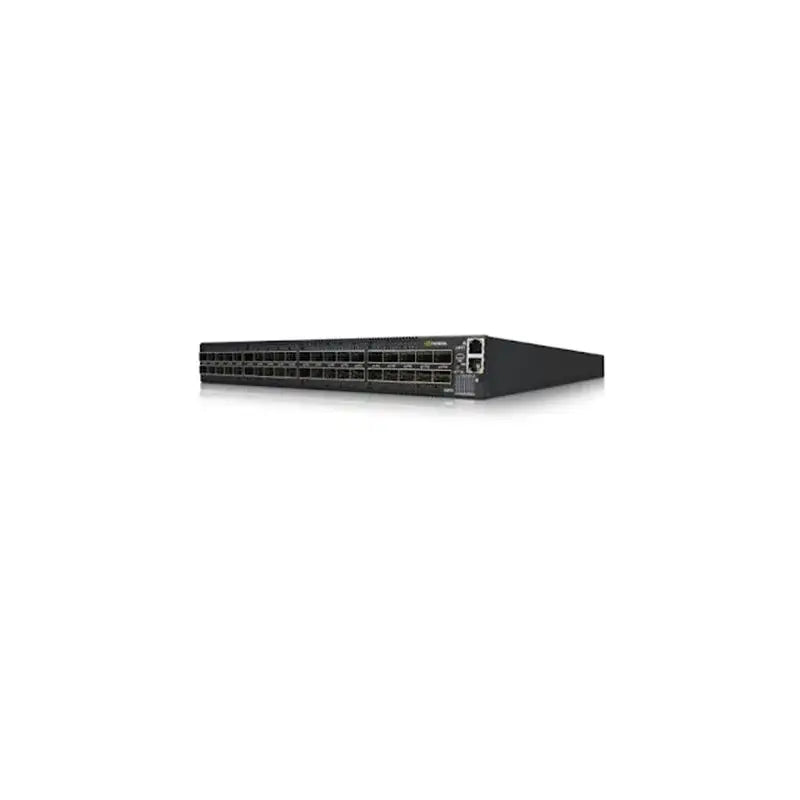

NVIDIA Mellanox Quantum QM8790 Data Center Switch with 40 ports, smart rack-mountable MQM8790-HS2F HDR 200Gb/s InfiniBand Enterprise Switch

Regular price: R 967,720.41
Sale price: R 967,720.41
Regular price: ~~R 1,138,494.60~~
Unit price: per

Shipping calculated at checkout.

color

Quantity must be 1 or more

Description

Built with Quantum InfiniBand switch device, Mellanox MQM8790-HS2F provides 40x HDR 200G QSFP56 ports, and each QSFP56 port can be configured as 2x HDR100 100G via breakout cables. The switch provides the highest performing fabric solution in a 1U form factor by delivering up to 16Tb/s of non-blocking bandwidth with sub 130ns port-to-port latency. MQM8790-HS2F enables efficient computing with features such as static routing, adaptive routing, congestion control and enhanced VL mapping to enable modern topologies (SlimFly, Dragonfly+, 6DT). These ensure the maximum effective fabric bandwidth by eliminating congestion hot spots.

Benefits

①Industry-leading switch platform in performance, power, and density

②Designed for energy and cost savings

③Collective communication acceleration

④Maximizes performance by removing fabric congestions

⑤Backward compatible to previous speeds

⑥Quick and easy setup and management

Key Features

Performance

①40 x HDR 200Gb/s ports in a 1U switch

②80 x HDR100 100Gb/s ports (using splitter cables)

③16Tb/s aggregate switch throughput

④Sub-130ns switch latency

Optimized design

①1+1 redundant & hot-swappable power

② N+1 redundant & hot-swappable fans

③80 gold+ and energy star certified power supplies

Advanced design

①Adaptive routing

②Congestion control

③Collective offloads (SHARP technology)

④VL mapping (VL2VL)

Product Highlights

High Availability And Multi-Service Support

①Overcome link failures and achieves network recovery 5,000X faster than any software-based solution
②Quickly resolve network issues due to specific port failures
③SHIELD greatly reduces troubleshooting time
④Support EDR, HDR and subsequent technologies
⑤Deliver up to 16Tb/s of non-blocking bandwidth with extremely low latency
⑥Scale-out data centers with HDR 200G infiniband
⑦Support 200GBASE-SR4, CSR4, LX4, LR4, PLR4, PIR4, ER4 transceivers
⑧Support 200G QSFP56 DAC and AOC cables
⑨Support 200G QSFP56 to 2x100G QSFP28 DAC and AOC cables

Error-Free Network Configuration

①Support NVIDIA Mellanox Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)

②Offload collective communication operations from the CPU to the switch network by aggregating large data vectors at wire rate

③Accelerate HPC, deep learning algorithm performance

④Lowest latency for Inter-GPU communication across nodes

Secure And Simplified Access for Users And IoT

①Build networks with MLNX-OS

②Enable scaling to thousands of compute and storage nodesnodes

③Provide monitoring and provisioning capabilities

Compare to Similar Items

Cisco Nexus 93180YC-EX	Fewer port options, higher price
Arista 7280SR-48C6	Similar port density, higher power consumption
Juniper QFX5120	Less switching capacity, comparable price

Features

NVIDIA Quantum MQM8790-HS2F HDR 200Gb/s InfiniBand Switch

Built with Quantum InfiniBand switching appliances, the QM8790 offers up to 40 200Gb/s ports, each with full bidirectional bandwidth. These stand-alone switches are ideal for top-of-rack leaf connectivity or building small to very large clusters for high-performance computing (HPC) environments and enterprise data centers (EDCs).

Product Parameters

* Model name
MQM8790-HS2F

* Port rate
40 QSFP56 200Gb/s

* throughput
16Tb/s

* CPU
x86 ComEx Broadwell D-1508

* operating system
/

* Device height
1U

* Support rate
200G HDR/100G EDR/56G FDR/40G QDR

* Delay
130ns

* System memory
8GB

* How it's managed
Non-administrative

* Dimensions (H x W x D)
1.7"(H) x 17"W) x23.2"(D)，（43.6mm (H) x 433.2mm (W) x 590.6mm (D)）

Technical Specifications

MQM8790-HS2F Specification
Model	MQM8790-HS2F
Ports	40x 200G QSFP56
Switching Capacity	16 Tbps
CPU	Broadwell ComEx D-1508 2.2GHZ
Forwarding Rate	7,200 Mpps
Software	MLNX-OS
System Memory	Single 8GB
Typical Power Consumption	224W
Latency	130ns
Max. Power Consumption	740W

The NVIDIA Mellanox Quantum QM8790 Data Center Switch with 40 ports, smart rack-mountable MQM8790-HS2F HDR 200Gb/s InfiniBand Enterprise Switch is far and away, one of our most popular items. People can't seem to get enough of it.
