NVIDIA Mellanox MSN2700-CS2FC Spectrum Based 32-Port Ethernet L3 Data Center Switch, 32×100Gb QSFP28, Cumulus Linux, 6.4Tb/s Switching

NVIDIA Mellanox MSN2700-CS2FC Spectrum Based 32-Port Ethernet L3 Data Center Switch, 32 x 100Gb QSFP28, Cumulus Linux

Specifications

Brand Name: Mellanox

Number of Interfaces: 32

Certification: CE

Certification: FCC

Switch Type: Ethernet

Package: Yes

Communication Mode: Full-Duplex

Model Number: MSN2700-CS2FC

Transmission Rate: 100000 Mbps

VLAN: Yes

Plug Type: US PLUG

Switch Capacity: 6.4 Tb/s

Description

MSN2700-CS2FC, NVIDIA Mellanox Spectrum Based 32-Port Ethernet L3 Data Center Switch, 32 x 100Gb QSFP28, Cumulus Linux, Support for 1 Year, P2C Airflow

The SN2700 switch is an ideal spine and top-of-rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.

Powered by the Spectrum ASIC and packed with 32 ports running at 100GbE, the SN2700 carries a whopping throughput of 6.4Tb/s with a landmark 4.76Bpps processing capacity in a compact 1RU form factor.

Specifications

Manufacturer: Mellanox

Jumbo Frames: 9,216

Ports: 32x 100G QSFP28

CPU: Dual-corex 86

Max. 100GbE Ports: 32

Switching Capacity: 6.4 Tb/s

Max. 50GbE Ports: 64

Packet Buffer: 16MB

Max. 40GbE Ports: 32

Airflow: Back-to-Front

Max. 25GbE Ports: 64

System Memory: 8GB

Max. 10GbE Ports: 64

Forwarding Rate: 4.76 Bpps

Latency: 300ns

SSD Memory: 32GB

MAC Address: 256K

Typical Power (ATIS) : 150W

Power Supply: 2 (1+1 Redundancy) Hot-swappable

Fan Number: 4 (N+1 Redundancy) Hot-swappable

Dimensions (HxWxD): 1.72"x 16.84"x 27" (43.8x 427.8x 686mm)

Weight: 11.1kg (24.5lb)

Overview

EVPN-VXLAN Achieves Layer 2 Virtual Network Fabric Dynamically

EVPN-VXLAN expands the potential number of Layer 2 domains, achieving services such as multi-tenant hosting and migration of virtual machines, etc.

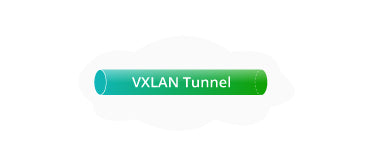

Tunnel of Layer 2 Overlay Virtual Network

Multi-tenant Hosting

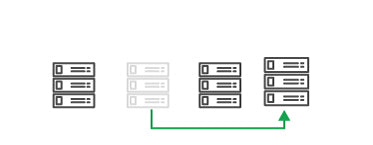

Migration of Virtual Machines

MLAG Realizes Uninterrupted Services

The switch running MLAG can be upgraded without disrupting MLAG traffic. During the upgrade, another switch in the system takes over traffic forwarding to ensure uninterrupted services.
