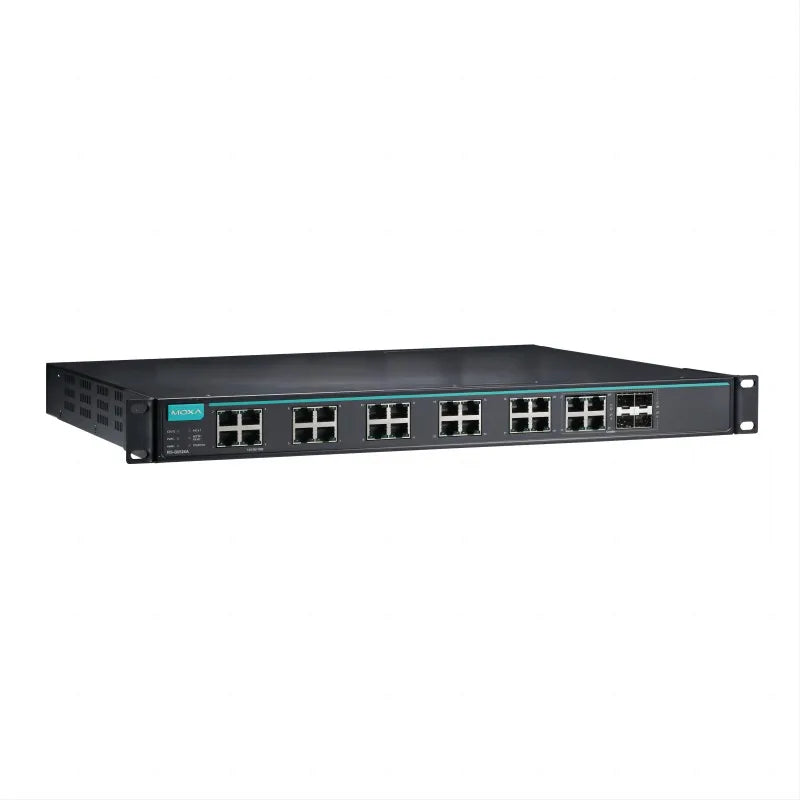

IKS-G6524A-4GTXSFP-HV-HV

IKS-G6524A Series

Layer 2 full Gigabit managed Ethernet switch with 20 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), 0 to 60°C operating temperature

Input/Output Interface

• Alarm Contact Channels

  • Relay output with current carrying capacity of 2 A @ 30 VDC

• Digital Inputs

  • +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector)

  • 20

• Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

  • 4

• Standards

  • IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

• Management

  • ARP
    Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    IPv4/IPv6
    LLDP
    Port Mirror
    RMON
    SCP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP
    SMTP
    RARP
    Flow control

• Filter

  • 802.1Q
    BPDU Filter
    BPDU Guard
    GMRP
    GVRP
    IGMP v1/v2/v3

• Redundancy Protocols

  • Link Aggregation
    MRP
    MSTP
    RSTP
    Turbo Chain
    Turbo Ring v1/v2
    V-ON

• Security

  • Access control list
    Broadcast storm protection
    HTTPS/SSL
    MAB authentication
    Sticky MAC
    NTP authentication
    Port Lock
    RADIUS
    SSH
    TACACS+

• Time Management

  • NTP Server/Client
    SNTP

• Industrial Protocols

  • EtherNet/IP
    Modbus TCP
    PROFINET

• MIB

  • Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

Switch Properties

• DRAM

  • 128 MB

• Flash

  • 16 MB

• IGMP Groups

  • 4096

• Jumbo Frame Size

  • 9.6 KB

• MAC Table Size

  • 16 K

• Max. No. of VLANs

  • 256

• Packet Buffer Size

  • 12 Mbits

• VLAN ID Range

  • VID 1 to 4094

• Priority Queues

  • 8

USB Interface

• Storage Port

  • USB Type A

Serial Interface

• Console Port

  • USB-serial console (Type B connector)

Power Parameters

• Input Voltage

  • 110 to 240 VAC
    Redundant dual inputs

• Operating Voltage

  • 85 to 264 VAC

• Input Current

  • Max. 0.66 A @ 110 VAC
    Max. 0.39 A @ 220 VAC

• Power Consumption

  • Max. 37.83 W @ 110 VAC
    Max. 40.15 W @ 220 VAC

• Overload Current Protection

  • Supported

• Reverse Polarity Protection

  • Supported

Physical Characteristics

• IP Rating

  • IP30

• Dimensions

  • 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

• Weight

  • 5100 g (11.25 lb)

• Installation

  • Rack mounting

Environmental Limits

• Operating Temperature

  • -10 to 60°C (14 to 140°F)

• Storage Temperature (package included)

  • -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• Safety

  • UL 62368-1
    IEC 62368-1
    UL 61010-2-201
    EN 61010-2-201

• EMC

  • EN 55032/35
    EN 61000-6-2/-6-4

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Railway

  • EN 50121-4

• Traffic Control

  • NEMA TS2

• Freefall

  • IEC 60068-2-32

• Shock

  • IEC 60068-2-27

• Vibration

  • IEC 60068-2-6

MTBF

• Time

  • 697,302 hrs

• Standards

  • Telcordia (Bellcore), GB

Warranty

• Warranty Period

  • 5 years

Features and Benefits

- 24 GbE ports

- Up to 24 optical fiber connections (SFP slots)

- Fanless, -40 to 75°C operating temperature range (T models)

- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), STP/RSTP/MSTP for network redundancy

- Isolated redundant power inputs with universal 110/220 VAC power supply range

- Supports MXstudio for easy, visualized industrial network management

- V-ON ensures millisecond-level multicast data and video network recovery
