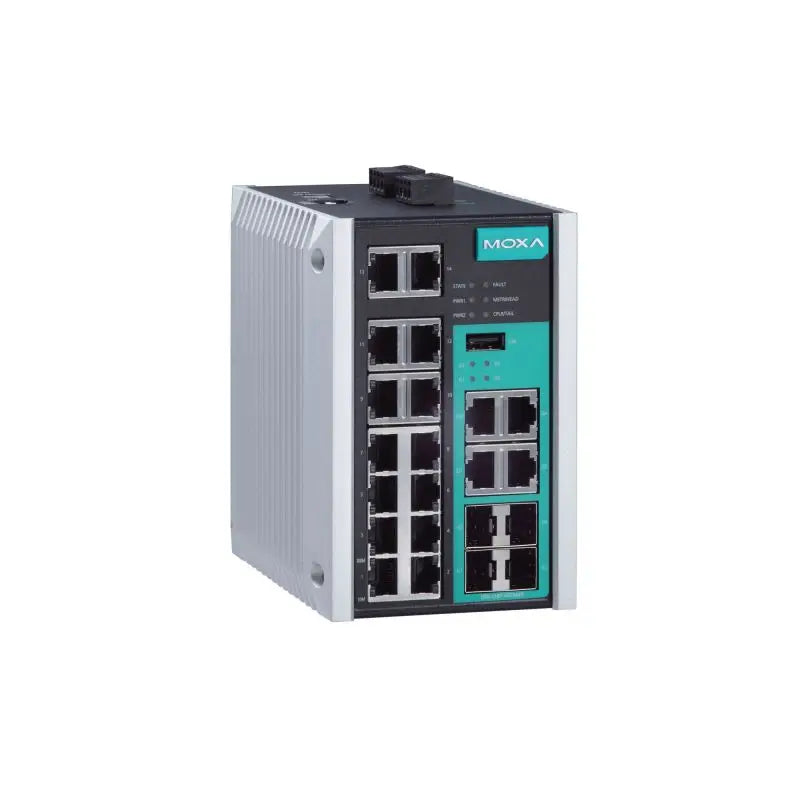

MOXA EDS-518E-4GTXSFP Original Gigabit Managed Industrial Ethernet Switch with 4 combo Gigabit ports with built-in RJ45/SFP, 14 fast Ethernet ports

Regular price: R 62,716.24
Sale price: R 62,716.24
Regular price: ~~R 79,220.51~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

MOXA EDS-518E-4GTXSFP Original Gigabit Managed Industrial Ethernet Switch with 4 combo Gigabit ports with built-in RJ45/SFP, 14 fast Ethernet ports EDS-518E Series

SPECIFICATION

Brand Name: MOXA

Model: EDS-518E-4GTXSFP

Certificate: CE ROHS

Condition: Original

Cross Reference: Standard

DIY Supplies: Electrical

Description: Standard

Features: Standard

High-concerned Chemical: None

MOQ: 1PCS

Manufacturing Date Code: Standard

Model Number: Module

Mounting Type: Surface Mount

Package / Case: Module

Packaging Type: Standard

Quality: Original and Brand New

Series: integrated circuit

Service: One Stop Bom Service

Type: integrated circuit

Products Description

Introduction

The EDS-518E standalone, compact 18-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 14 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-518E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the system reliability and availability of your network backbone. The EDS-518E also supports advanced management and security features.

In addition, the EDS-518E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.

Specifications

Features and Benefits

● 4 Gigabit plus 14 fast Ethernet ports for copper and fiber

● Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy

● RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security

● Security features based on IEC 62443

● EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring

● Fiber Check—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports

● Supports MXstudio for easy, visualized industrial network management

● V-ON ensures millisecond-level multicast data and video network recovery

Input/Output Interface

Alarm Contact Channels	1, Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons	Reset button
Digital Input Channels	1
Digital Inputs	+13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	EDS-518E-4GTXSFP:14 EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 12 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-Xconnection
Combo Ports (10/100/1000BaseT(X) or100/ 1000BaseSFP+)	4
10/100/1000BaseT(X) Ports (RJ45 connector)	Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection

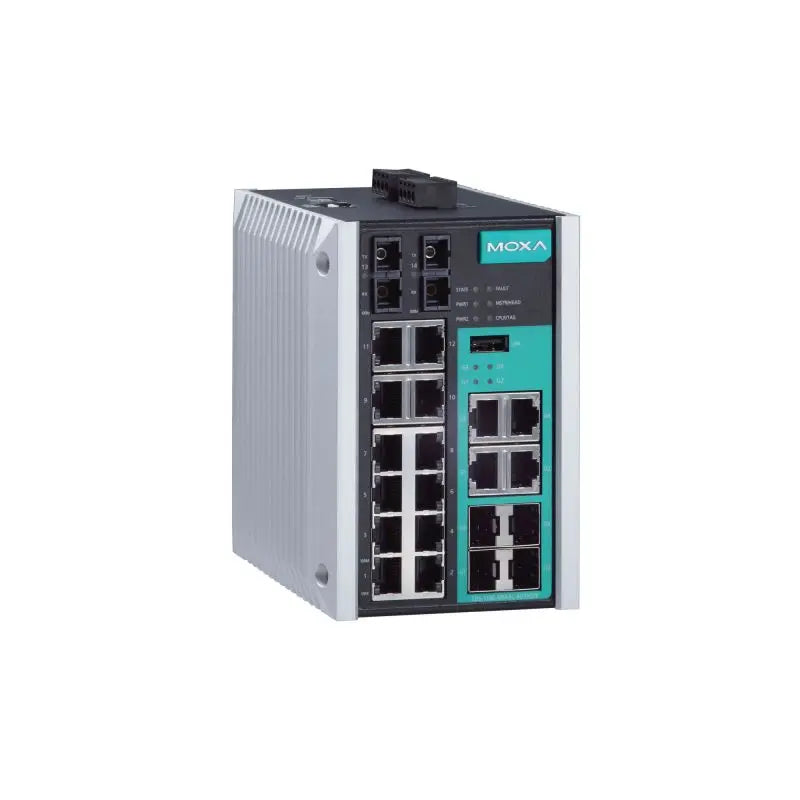

100BaseFX Ports (multi-mode SC connector)	EDS-518E-MM-SC-4GTXSFP Series: 2

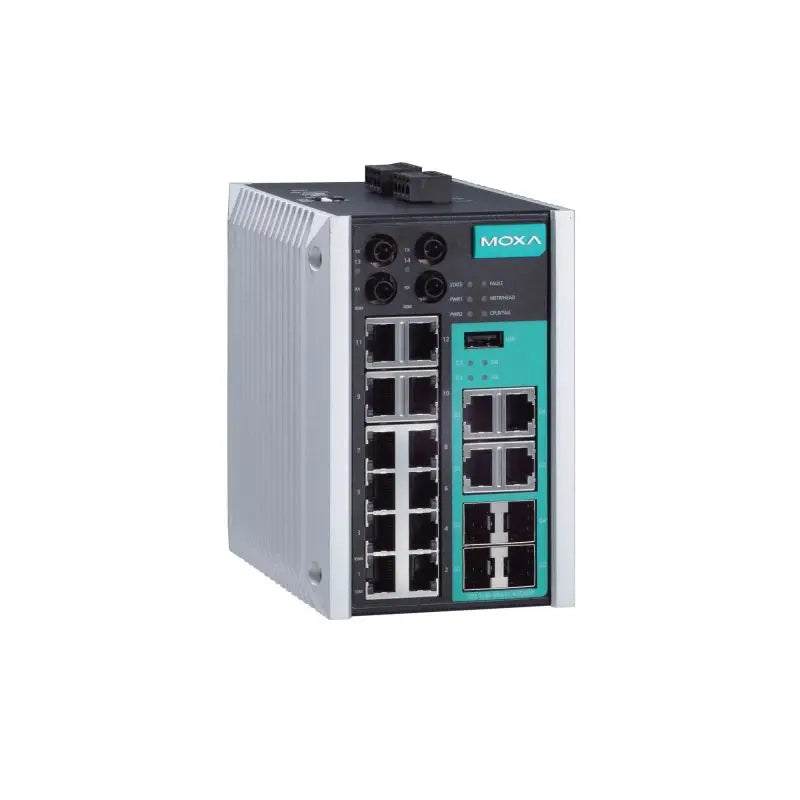

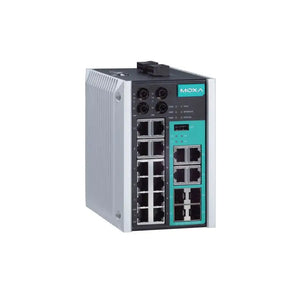

100BaseFX Ports (multi-mode ST connector)	EDS-518E-MM-ST-4GTXSFP Series: 2
100BaseFX Ports (single-mode SC connector)	EDS-518E-SS-SC-4GTXSFP Series: 2

Power Parameters

Connection	2 removable 4-contact terminal block(s)
Input Current	EDS-518E-4GTXSFP Series: 0.37 A@24 VDC EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 0.41 A@24 VDC
Input Voltage	12/24/48/-48 VDC, Redundantdual inputs
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	94x135x137 mm (3.7 x 5.31 x 5.39 in)
Weight	1518g(3.35 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	Standard Models: -10 to 60°C (14to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

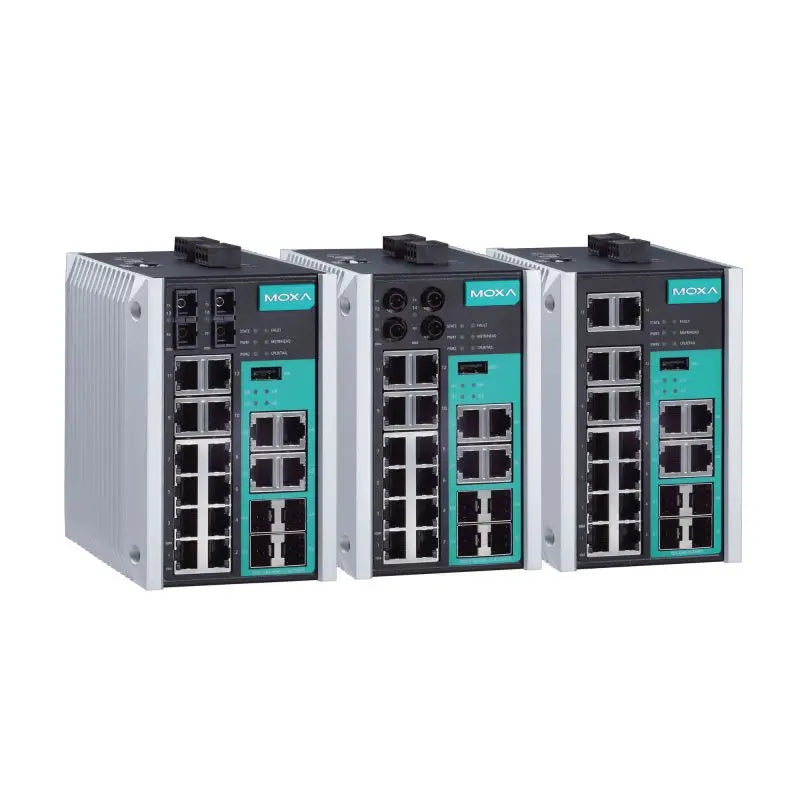

MOXA EDS-518E-4GTXSFP Available Models

Model1	MOXA EDS-518E-4GTXSFP
Model2	MOXA EDS-518E-MM-SC-4GTXSFP
Model3	MOXA EDS-518E-MM-ST-4GTXSFP
Model4	MOXA EDS-518E-SS-SC-4GTXSFP
Model5	MOXA EDS-518E-4GTXSFP-T
Model6	MOXA EDS-518E-MM-SC-4GTXSFP-T
Model7	MOXA EDS-518E-MM-ST-4GTXSFP-T
Model8	MOXA EDS-518E-SS-SC-4GTXSFP-T

The MOXA EDS-518E-4GTXSFP Original Gigabit Managed Industrial Ethernet Switch with 4 combo Gigabit ports with built-in RJ45/SFP, 14 fast Ethernet ports is evocative, to say the least, but that's why you're drawn to it in the first place.
