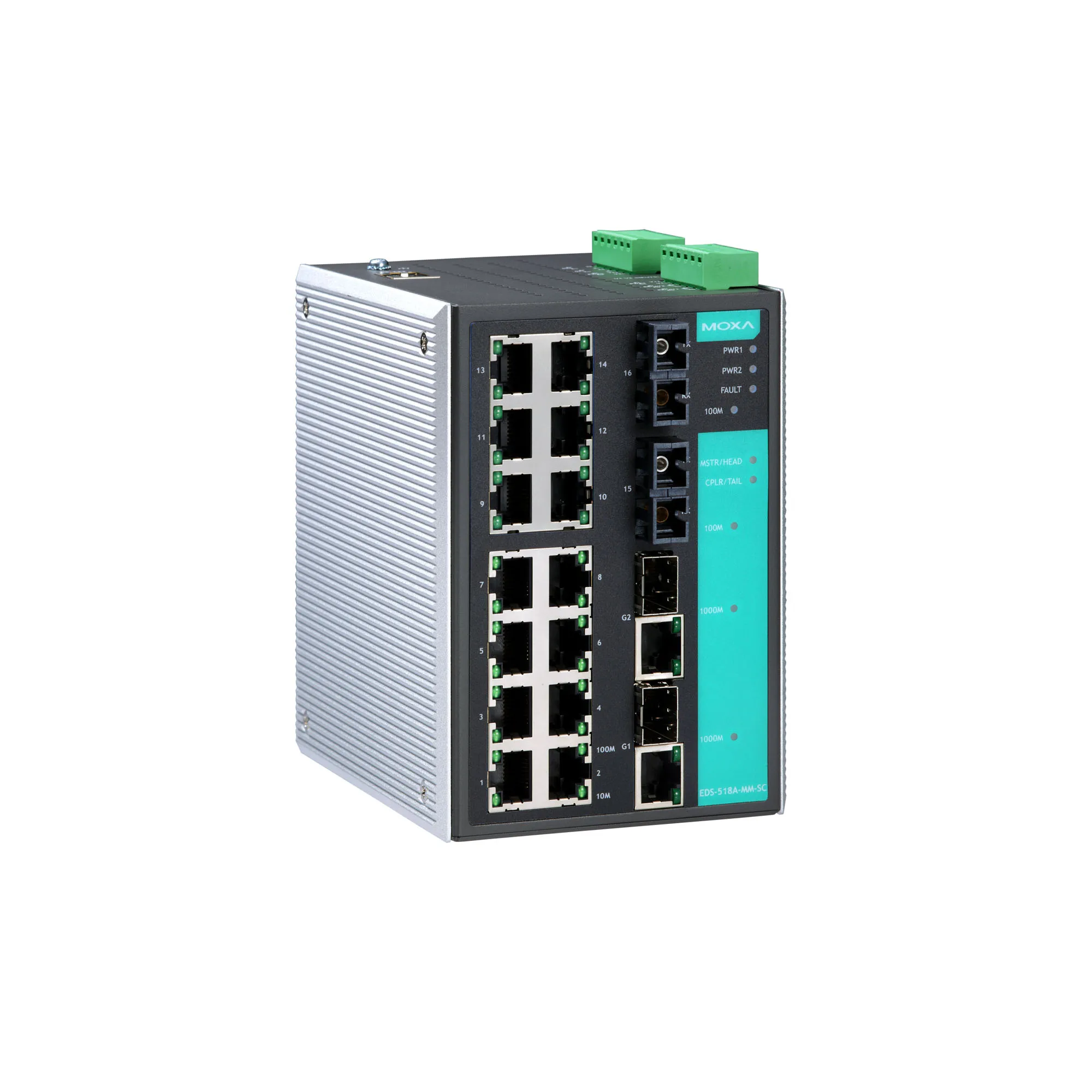

MOXA EDS-516A-MM-SC Industrial Switch, Turbo Ring & Turbo Chain Supports MXstudio for easy, visualized industrial network management

MOXA EDS-516A-MM-SC Industrial Switch, Turbo Ring & Turbo Chain Supports MXstudio for easy, visualized industrial network management

SPECIFICATIONS

Brand Name: MOXA

Connector Type: SC/APC

Model Number: EDS-516A-MM-SC

Port Morphology: *

Power Input: 48V

Type: Enterprise Switch

Use: Networking

Description

The EDS-516A standalone 16-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-516A switches suitable for any harsh industrial environment.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

• Compatible with PROFINET protocol for transparent data transmission

• Lock port function for blocking unauthorized access based on MAC address

• IGMP snooping and GMRP for filtering multicast traffic

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• RMON for proactive and efficient network monitoring

• SNMPv1/v2c/v3 for different levels of network management

• Bandwidth management to prevent unpredictable network status

• Automatic warning by exception through email and relay output

Features and Benefits

•  Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
•  TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
•  Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
•  Supports MXstudio for easy, visualized industrial network management
