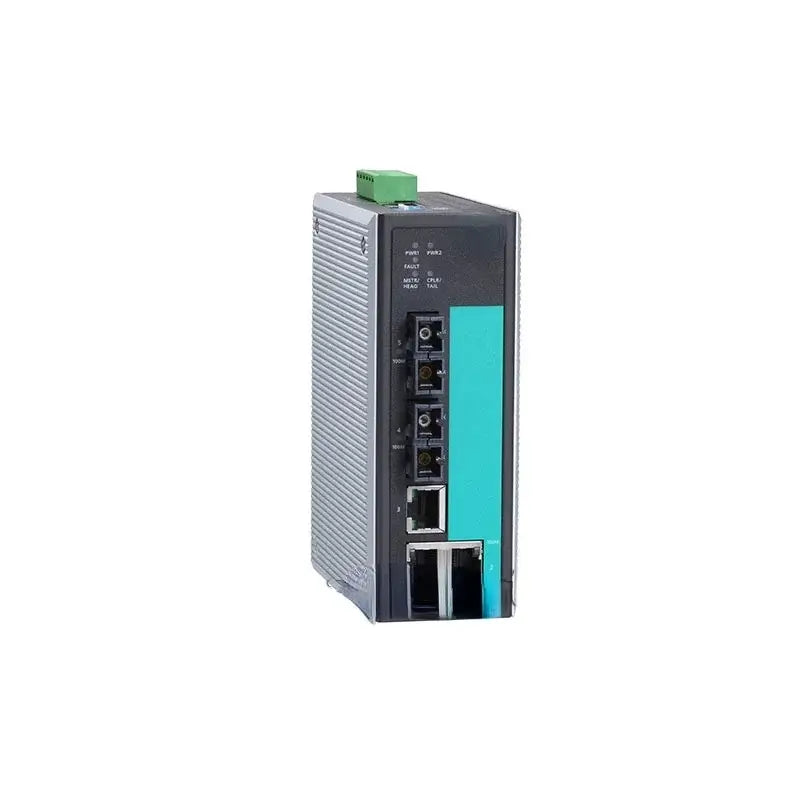

Moxa EDS-405A industrial switch 10/100BaseT(X) Ports (RJ45 connector), Turbo Ring, Turbo Chain (recovery time < 20ms @ 250 switches)

Moxa EDS-405A industrial switch with 5*10/100BaseT(X) Ports (RJ45 connector), Turbo Ring and Turbo Chain (recovery time < 20ms @ 250 switches)

Introduction

The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

Additional Features and Benefits

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP, Modbus TCP and PROFINET  protocols for device management and monitoring

• EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available

• PROFINET GSDML file and SIMATIC STEP 7 device icons available

• Port mirroring for online debugging

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism

• RMON for proactive and efficient network monitoring

• SNMPv1/v2c/v3 for different levels of network management security

• Bandwidth management to prevent unpredictable network status

Features and Benefits

•  Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
•  IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
•  Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
•  PROFINET or EtherNet/IP enabled by default (PN or EIP models)
•  Supports MXstudio for easy, visualized industrial network management

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

  EDS-405A, 405A-EIP/PN/PTP models: 5
  EDS-405A-MM-SC/MM-ST/SS-SC models: 3

  All models support:
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection

• 100BaseFX Ports (multi-mode SC connector)

  EDS-405A-MM-SC models: 2

• 100BaseFX Ports (multi-mode ST connector)

  EDS-405A-MM-ST models: 2

• 100BaseFX Ports (single-mode SC connector)

  EDS-405A-SS-SC models: 2

Optical Fiber

• Standards

  IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features

• Filter

  802.1Q VLAN
  GMRP
  GVRP
  IGMP v1/v2
  Port-based VLAN

• Industrial Protocols

  EtherNet/IP  , Modbus TCP
  EDS-405A-PN models: PROFINET IO Device (Slave)

• Management

  Back Pressure Flow Control
  BOOTP
  DHCP Option 66/67/82
  DHCP Server/Client
  Flow control
  IPv4/IPv6
  LLDP
  Port Mirror
  RARP
  RMON
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP

• MIB

  Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB

• Redundancy Protocols

  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2

• Security

  Broadcast storm protection
  HTTPS/SSL
  NTP authentication
  Port Lock
  SNMPv3
  SSH
  Trust access control

• Time Management

  All models: NTP Server/Client, SNTP
  EDS-405A-PTP models: IEEE 1588v2 PTP (hardware-based)

Switch Properties

• IGMP Groups

  256

• MAC Table Size

  EDS-405A, EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC models: 2 K
  EDS-405A-PTP models: 8 K

• Max. No. of VLANs

  64

• Packet Buffer Size

  1 Mbits

• Priority Queues

  4

• VLAN ID Range

  VID 1 to 4094

Serial Interface

• Console Port

  RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

• Ethernet Interface

  Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

• Alarm Contact Channels

  Relay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters

• Input Voltage

  12/24/48 VDC
  Redundant dual inputs

• Operating Voltage

  9.6 to 60 VDC

• Input Current

  EDS-405A, 405A-EIP/PN/MM-SC/MM-ST/SS-SC models:
  0.594 A @ 12 VDC
  0.286 A @ 24 VDC
  0.154 A @ 48 VDC

  EDS-405A-PTP models:
  0.23 A @ 24 VDC

• Overload Current Protection

  Supported

• Reverse Polarity Protection

  Supported

• Connection

  1 removable 6-contact terminal block(s)

Physical Characteristics

• Housing

  Metal

• IP Rating

  IP30

• Dimensions

  53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

• Weight

  EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC models: 650 g (1.44 lb)
  EDS-405A-PTP models: 820 g (1.81 lb)

• Installation

  DIN-rail mounting
  Wall mounting (with optional kit)

Standards and Certifications

• Safety

  All models: UL 508
  Non-PTP models: UL 60950-1, EN 62368-1

• EMC

  EN 55032/35

• EMI

  CISPR 32, FCC Part 15B Class A
