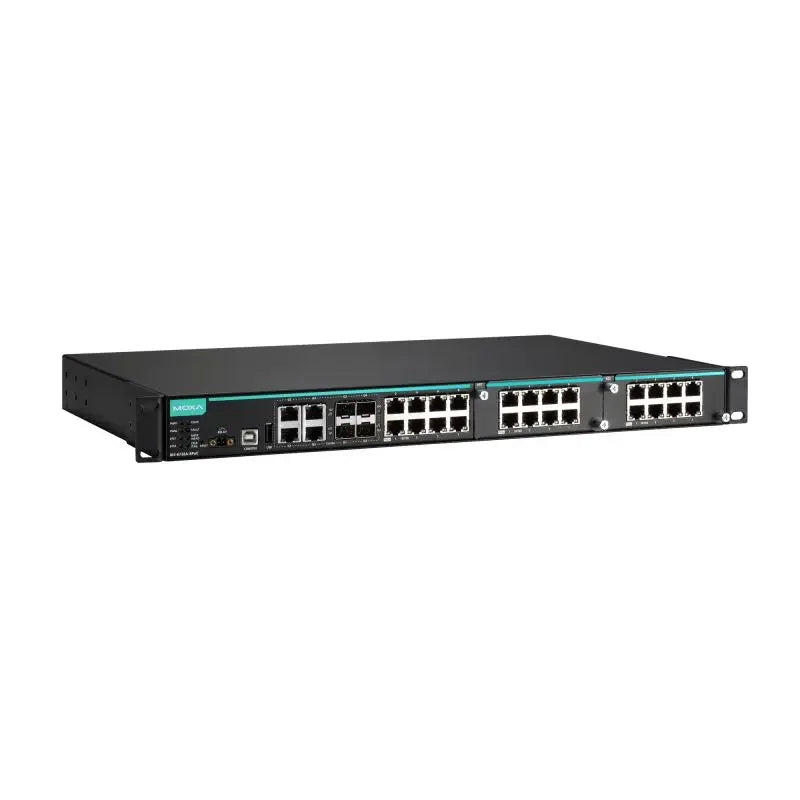

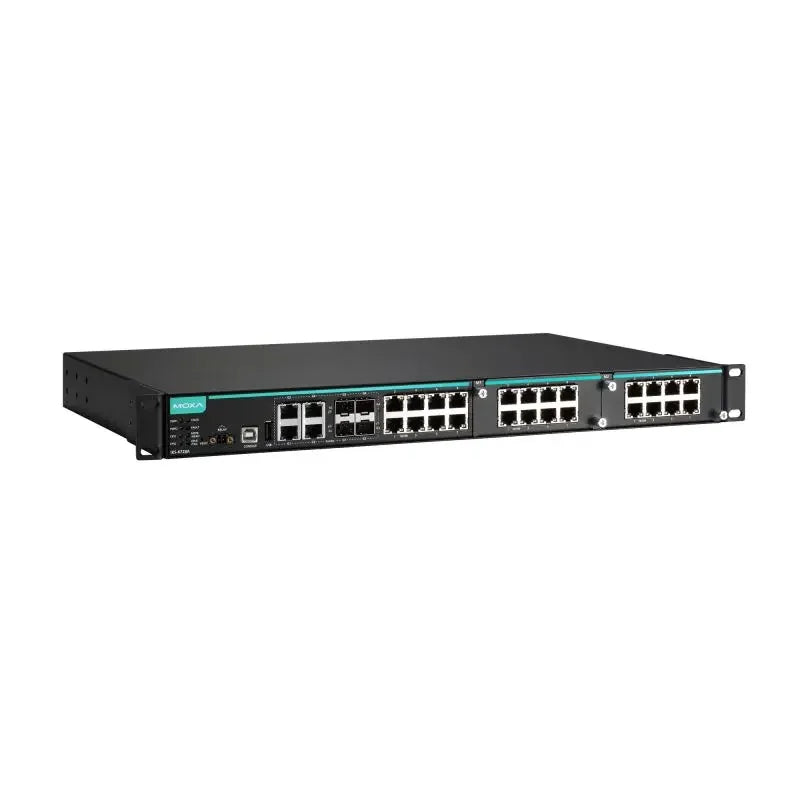

MOXA 4*4G Port Gigabit Modular Managed Ethernet switch, 8*10/100BaseT(X) ports 4*10/100/1000BaseT(X) or 100/1000BaseSFP combo, 2*PoE

MOXA 4*4G Port Gigabit Modular Managed Ethernet switch, 8*10/100BaseT(X) ports 4*10/100/1000BaseT(X) or 100/1000BaseSFP combo, 2*slots Ethernet Modules, IKS-6728A-4GTXSFP-HV-HV-T

Description

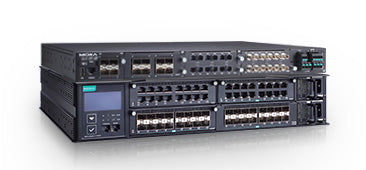

Rackmount Switches

Industrial rackmount switches provide modular flexibility with 24 to 64-port routing and up to 10GbE switching capabilities, security features based on the IEC 62443 standard, and millisecond-level, fast multicast traffic redundancy to strengthen IIoT infrastructure such as power, transportation, manufacturing, and surveillance applications.

IKS-6728A-4GTXSFP-HV-T

IKS-6728A Series

Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 1 isolated power supply (85 to 264 VAC), -40 to 75°C operating temperature

Features

Brand Name: MOXA

High-concerned Chemical: None

Type: Hand Tool Parts

IKS-6728A-4GTXSFP-HV-T

IKS-6728A Series

Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 1 isolated power supply (85 to 264 VAC), -40 to 75°C operating temperature

Specifications

Input/Output Interface

• Alarm Contact Channels

  • 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

  • 8

• Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

  • 4

• Module

  • 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE+, or 100Base SFP

• Standards

  • IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

• Management

  • Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    Flow control
    IPv4/IPv6
    LLDP
    Port Mirror
    RARP
    RMON
    SCP
    SMTP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP

• Filter

  • 802.1Q
    BPDU Filter
    BPDU Guard
    GMRP
    GVRP
    IGMP v1/v2/v3

• Redundancy Protocols

  • Link Aggregation
    MRP
    MSTP
    RSTP
    STP
    Turbo Chain
    Turbo Ring v1/v2
    V-ON

• Security

  • Access control list
    Broadcast storm protection
    HTTPS/SSL
    MAB authentication
    NTP authentication
    Port Lock
    RADIUS
    SSH
    TACACS+

• Time Management

  • NTP Server/Client
    SNTP

• Industrial Protocols

  • EtherNet/IP
    Modbus TCP
    PROFINET

• MIB

  • Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

Switch Properties

• IGMP Groups

  • 2048

• Jumbo Frame Size

  • 9.6 KB

• MAC Table Size

  • 16 K

• Max. No. of VLANs

  • 64

• Packet Buffer Size

  • 12 Mbits

• Priority Queues

  • 4

• VLAN ID Range

  • VID 1 to 4094

USB Interface

• Storage Port

  • USB Type A

Serial Interface

• Console Port

  • USB-serial console (Type B connector)

Power Parameters

• Input Voltage

  • 110/220 VAC

• Operating Voltage

  • 85 to 264 VAC

• Input Current

  • 1.1/0.6 A @ 24/48 VDC
    0.46/0.31 A @ 110/220 VAC
    Note: These are the input current ratings for the device with the maximum number of modules installed.

• Power Consumption (Max.)

  • 26.4/28.8 W @ 24/48 VDC
    29.28/31.92 W @ 110/220 VAC
    Note: These are the power consumption ratings for the device with the maximum number of modules installed.

• Total PoE Power Budget

  • IKS-6728A-PoE series: Maximum 720 W @ 48 VDC

• Overload Current Protection

  • Supported

• Reverse Polarity Protection

  • Supported

Physical Characteristics

• IP Rating

  • IP30

• Dimensions

  • 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)

• Weight

  • 4100 g (9.05 lb)

• Installation

  • Rack mounting

Environmental Limits

• Operating Temperature

  • -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• Safety

  • EN 60950-1
    UL 60950-1

• EMC

  • EN 55032/24

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Railway

  • EN 50121-4

• Maritime

  • ABS
    LR
    NK
    DNV

• Freefall

  • IEC 60068-2-32

• Shock

  • IEC 60068-2-27

• Vibration

  • IEC 60068-2-6

MTBF

• Time

  • 927,981 hrs

• Standards

  • Telcordia (Bellcore), GB

Warranty

• Warranty Period

  • 5 years
