MikroTik RouterBOARD RB1100DX4 Dude Edition Rackmount 1U router, 13x Gigabit Ethernet ports & 60GB M.2 drive for Dude database, RouterOS L6, Dual PSU

R 13,248.30
R 13,248.30
Sold out
Shipping calculated at checkout.

MikroTik RouterBOARD RB1100DX4 Dude Edition, 13x GB LAN, 60GB M.2 drive, RouterOS L6, 1U rackmount case, Dual PSU

Description

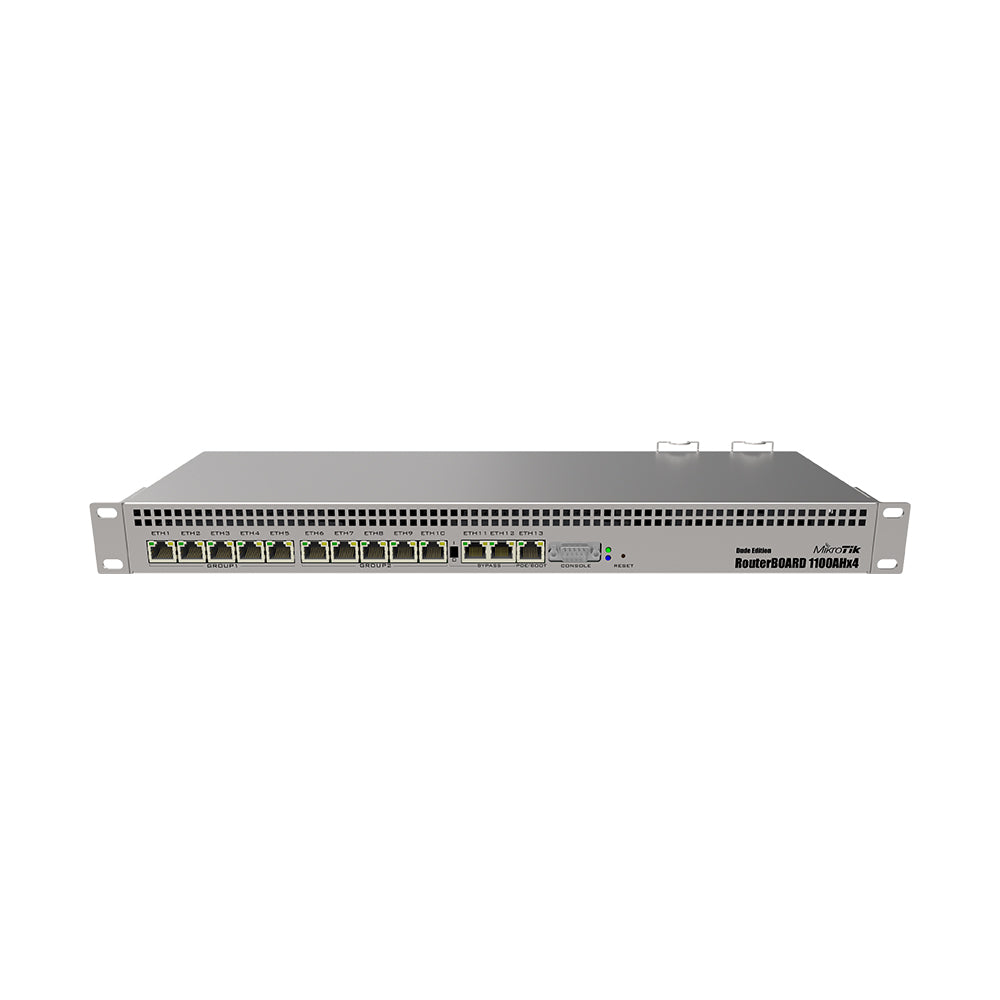

RB1100DX4 Dude Edition Rack mount (1U) router with 13 x Gigabit Ethernet ports & 60GB M.2 drive for Dude database

MikroTik RouterBOARD RB1100DX4 Dude Edition Rackmount 1U router, 13x Gigabit Ethernet ports & 60GB M.2 drive for Dude database, RouterOS L6, Dual PSU

Features:

  • CPU: AL21400 with 4 x cores
  • CPU nominal frequency: 1.4 GHz
  • RAM: 1GB
  • IPsec hardware acceleration
  • Operating system: RouterOS (License Level 6)
  • 10/10/1000 Ethernet ports: 13
  • Memory cards: 1 (microSD)
  • Extended storage: 60GB M.2 SSD included
  • M.2 slots: 2
  • SATA Ports: 2 x SATA 3

Benefits:

  • Powerful CPU with maximum throughput of up to 7.5Gbit
  • IPsec hardware acceleration (up to 2.2Gbps with AES128)
  • 13 x Gigabit Ethernet ports
  • 1U rack mount case
  • Dual redundant power supplies
  • Serial Port (RS232)
  • Dude Edition with 60GBm.2 SSD included
  • 2 x M.2 Slots
  • SATA ports : 2 x SATA3

Specifications

Details
Product code RB1100DX4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Switch chip model RTL8367
Dimensions 443 x 148 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price N/A

Powering

Details

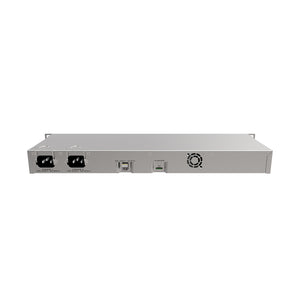

Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 20-57 V

Ethernet

Details
10/100/1000 Ethernet ports 13

Peripherals

Details
Memory card type microSD
Memory Cards 1
Serial console port RS232

Other

Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

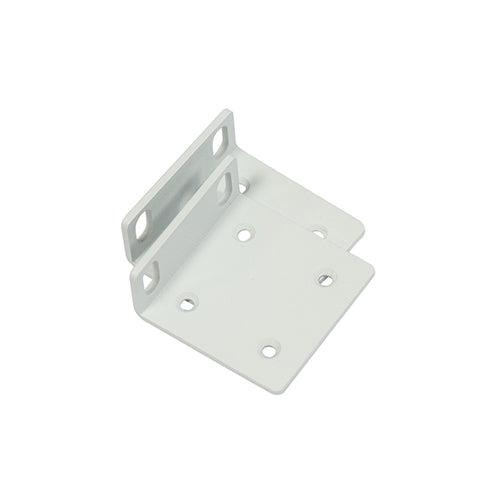

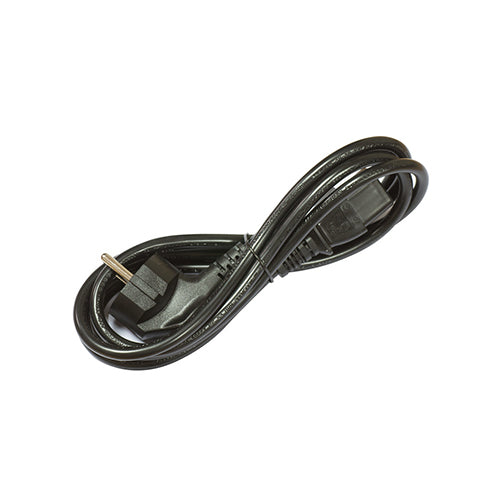

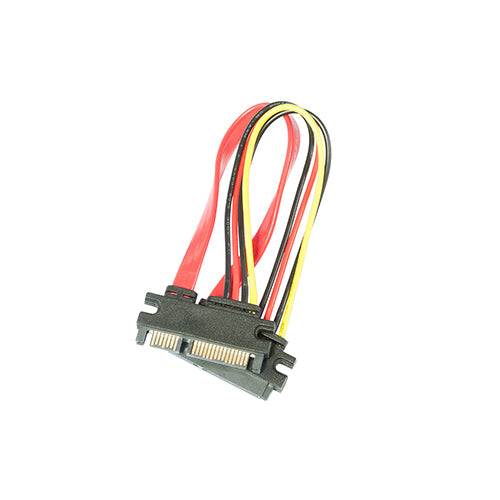

Included parts

The MikroTik RouterBOARD RB1100DX4 Dude Edition Rackmount 1U router, 13x Gigabit Ethernet ports & 60GB M.2 drive for Dude database, RouterOS L6, Dual PSU was built with people like you in mind. Something to keep you happy. Every. Single. Day.
