MikroTik RouterBOARD RB1100AHx4, 13x GB LAN, RouterOS L6, 1U Rackmount case, Dual PSU

Description

RB1100AHx4

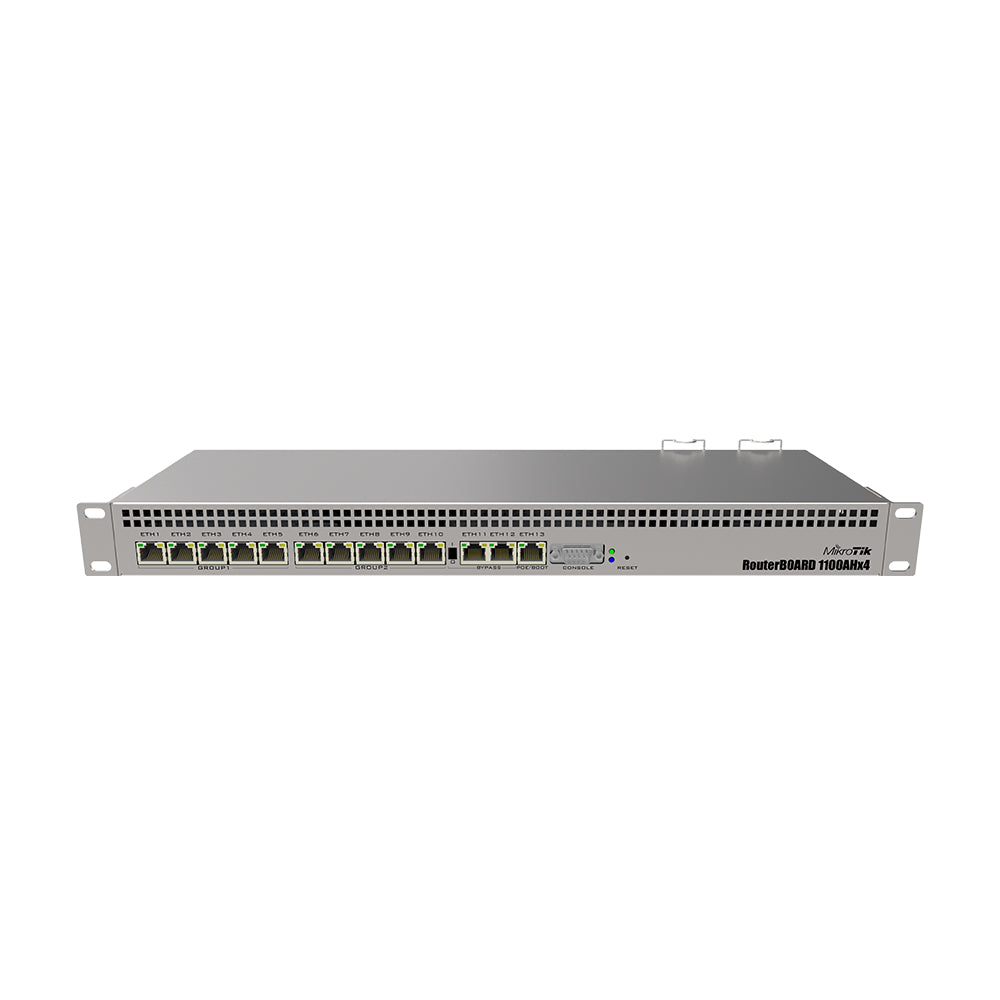

Powerful 1U rackmount router with 13x Gigabit Ethernet ports

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

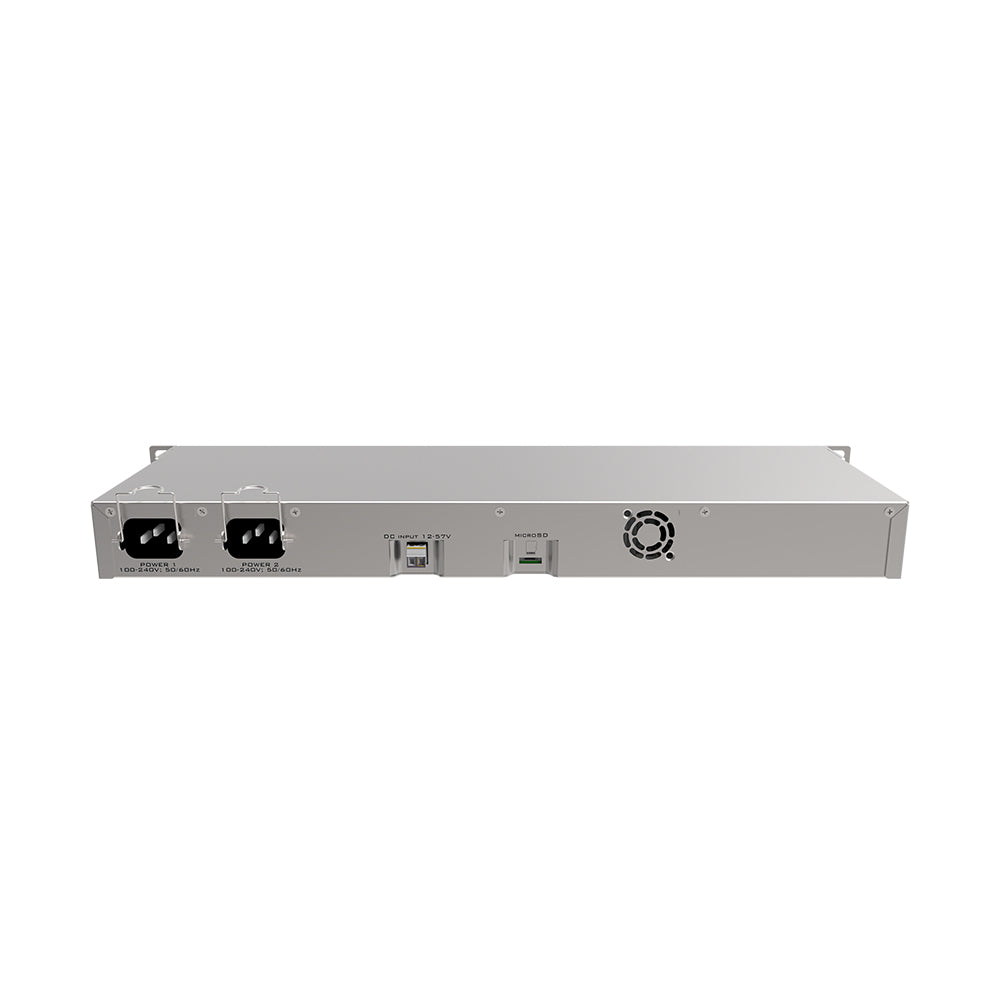

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

The powerful 1U rackmount router with 13 x Gigabit Ethernet ports, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

Features:

  • CPU: AL21400 with 4 x cores
  • CPU nominal frequency: 1.4 GHz
  • RAM: 1GB
  • IPsec hardware acceleration
  • Operating system RouterOS (License Level 6)
  • 10/10/1000 Ethernet ports: 13
  • Memory cards: 1 (microSD)

Benefits:

  • Powerful CPU with maximum throughput of up to 7.5Gbit
  • IPsec hardware acceleration (up to 2.2Gbps with AES128)
  • 13 x Gigabit Ethernet ports
  • 1U rackmount case
  • Dual redundant power supplies
  • Serial port (RS232)

Specifications

Details
Product code RB1100x4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Switch chip model RTL8367
Dimensions 443 x 148 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price N/A

Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 20-57 V

Ethernet

Details
10/100/1000 Ethernet ports 13

Peripherals

Details
Memory card type microSD
Memory Cards 1
Serial console port RS232

Other

Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Included parts

The MikroTik RouterBOARD RB1100AHx4, 13x Gigabit LAN, RouterOS L6, 1U Rackmount case, Dual PSU, AL21400 with 4 x cores CPU, 1 (microSD), IPsec hardware was built with people like you in mind. Something to keep you happy. Every. Single. Day.
