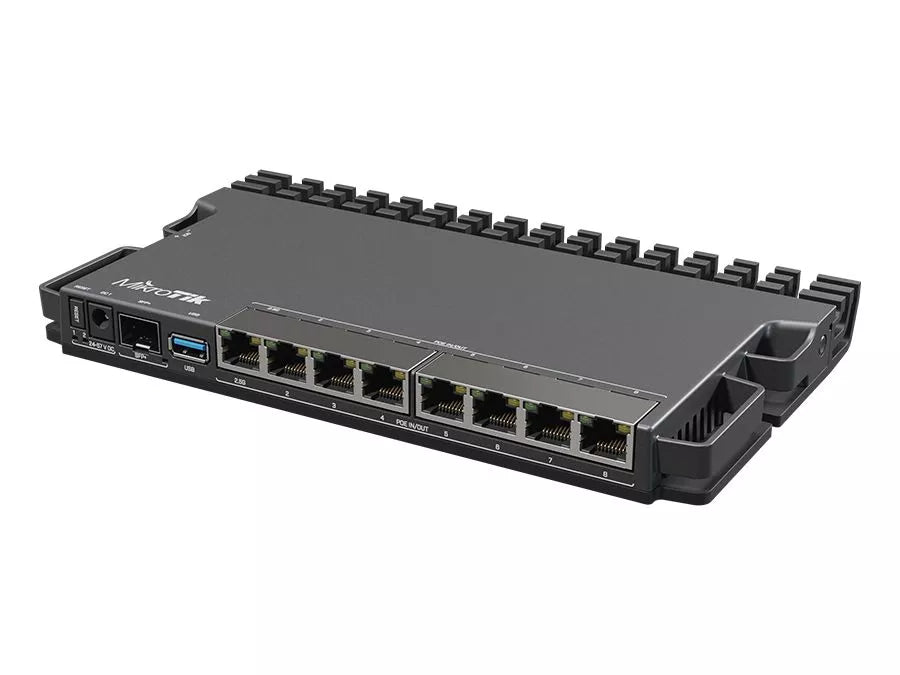

Mikrotik RB5009UG+S+IN Enterprise-grade 10G 9Port home smart wired router switch with 7*10/100/1000 Ethernet, 1*2.5G Ethernet, 1*SFP+

Mikrotik RB5009UG+S+IN Enterprise-grade 10G 9Port home smart wired router switch with 7*10/100/1000 Ethernet, 1*2.5G Ethernet, 1*SFP+

Description

RB5009

A: RB5009UG + S + IN (does not support PoE output)

B: RB5009UPr + S + IN (support PoE output)

C: bracket K-79

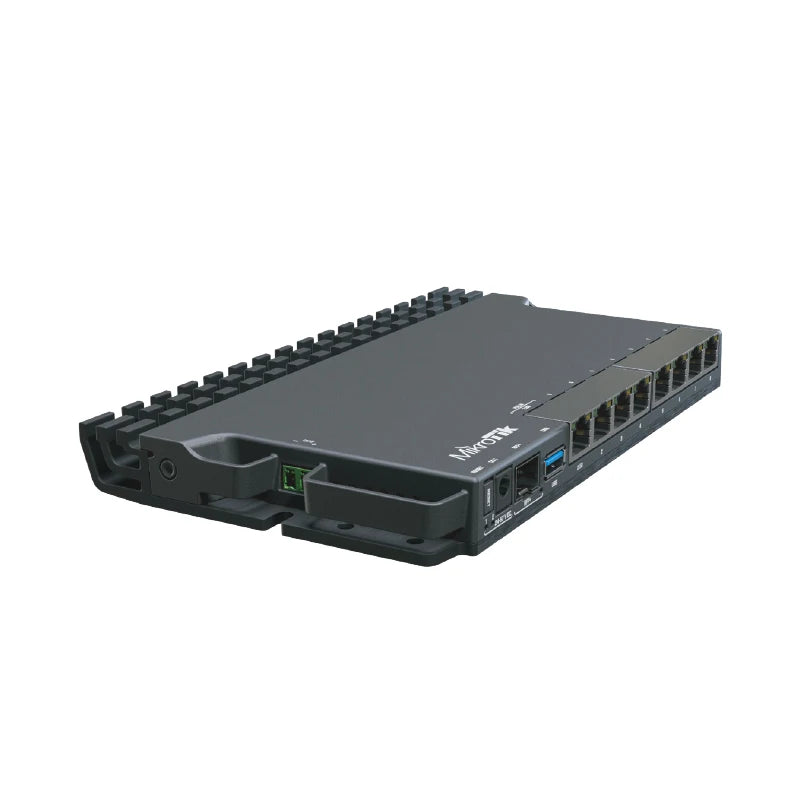

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

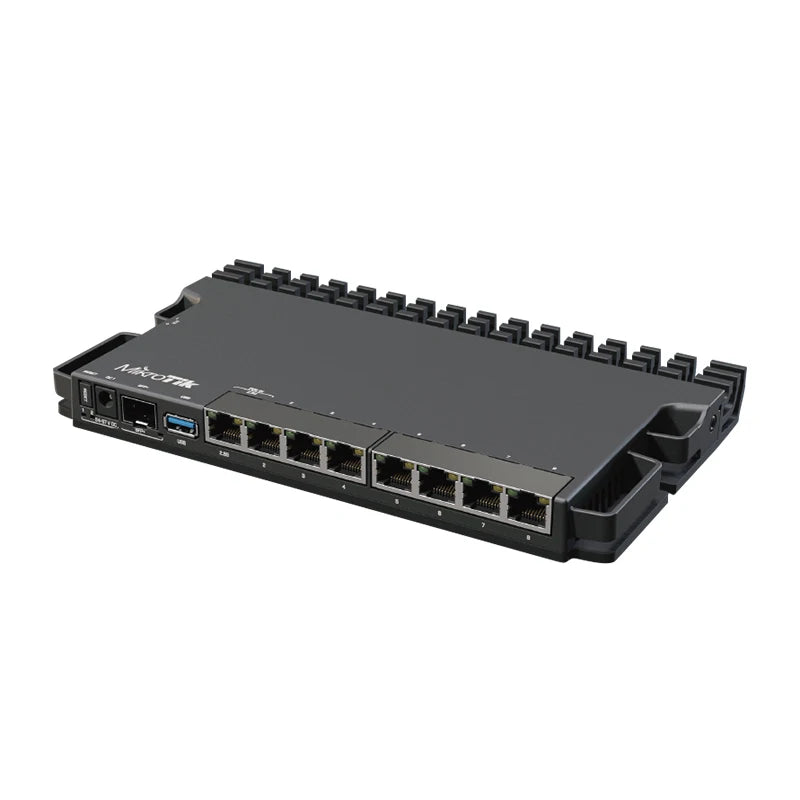

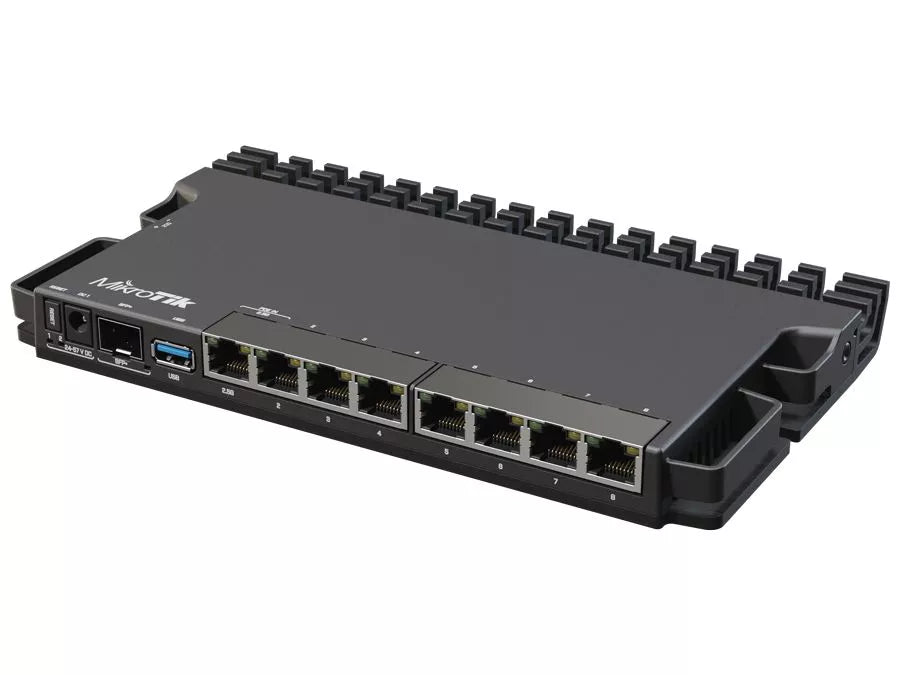

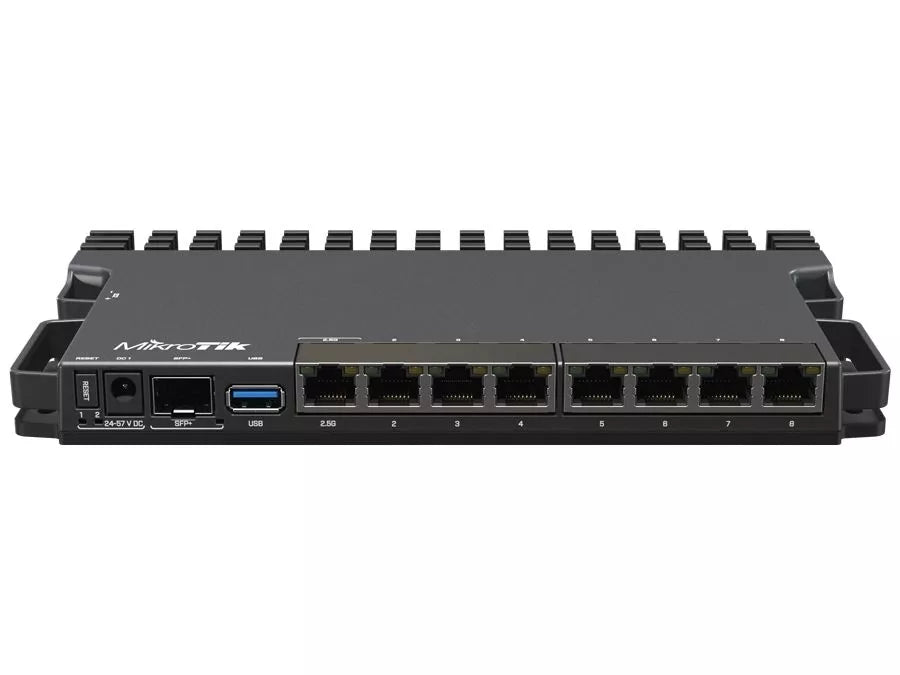

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

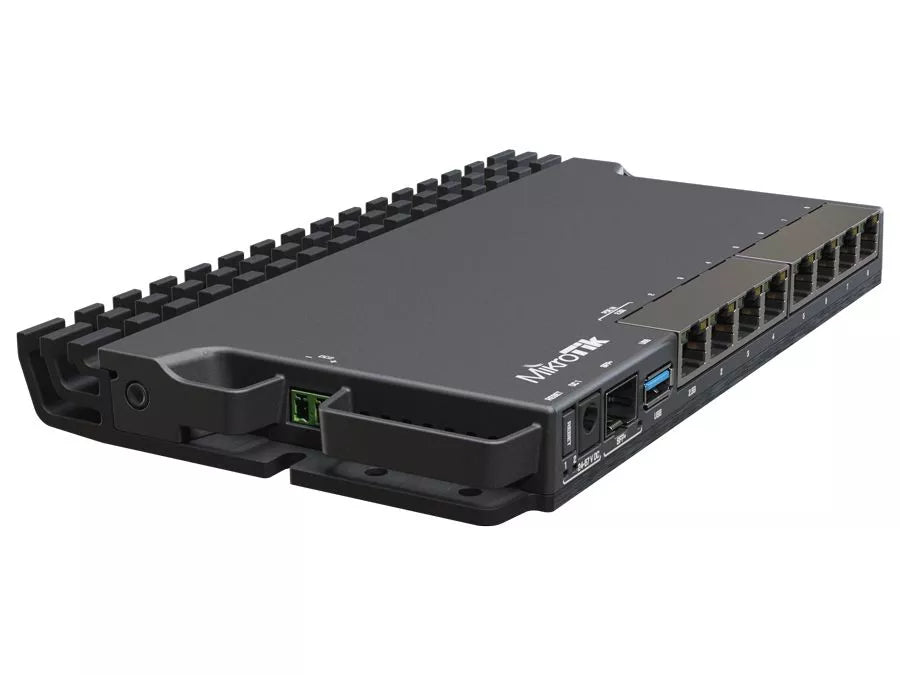

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

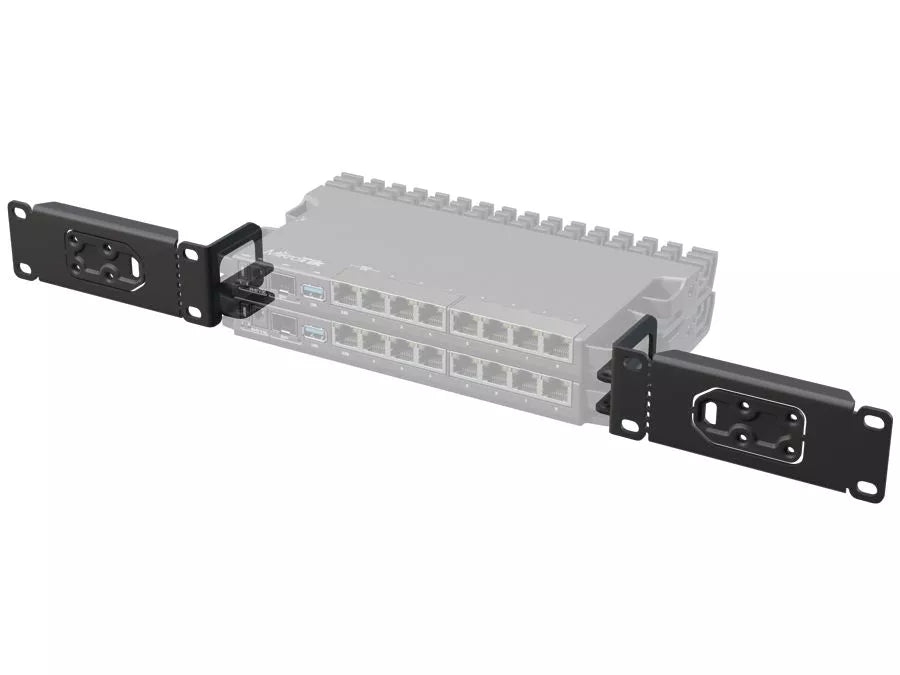

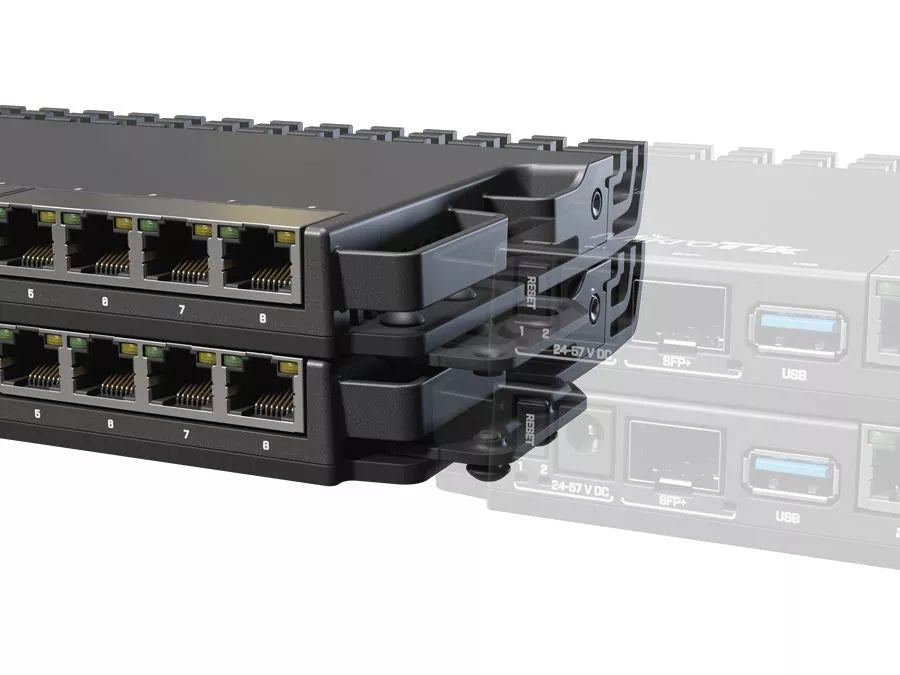

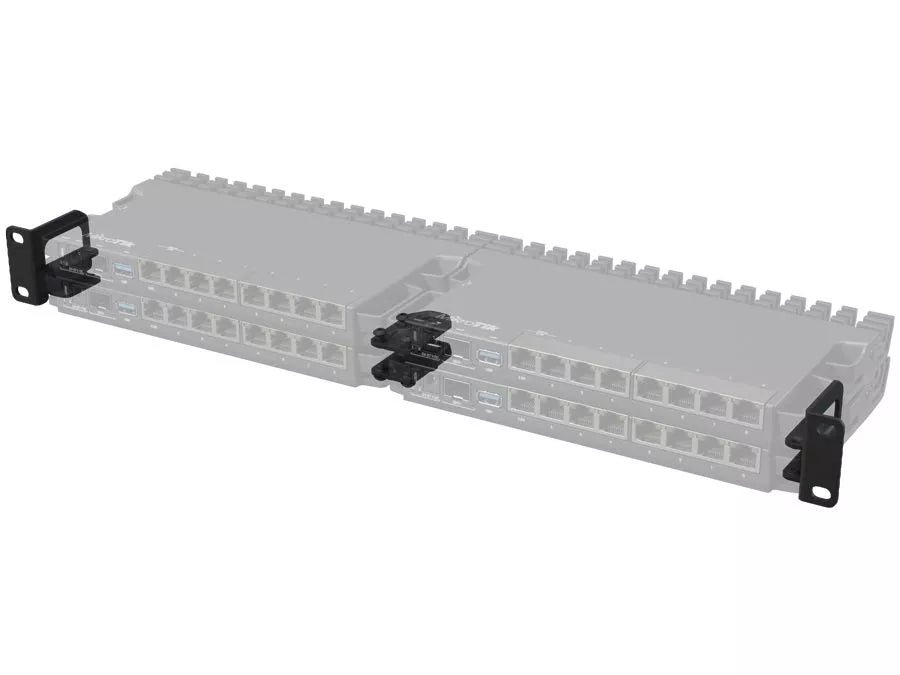

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

SPECIFICATIONS

Brand Name: MikroTik

High-concerned Chemical: None

Oscilloscope Parts u0026 Accessories Type: Oscilloscope Parts

Certification: CE

Certification: RoHS

Technical Specifications

Powering

Ethernet

Fiber

Peripherals

Other

Certification & Approvals
