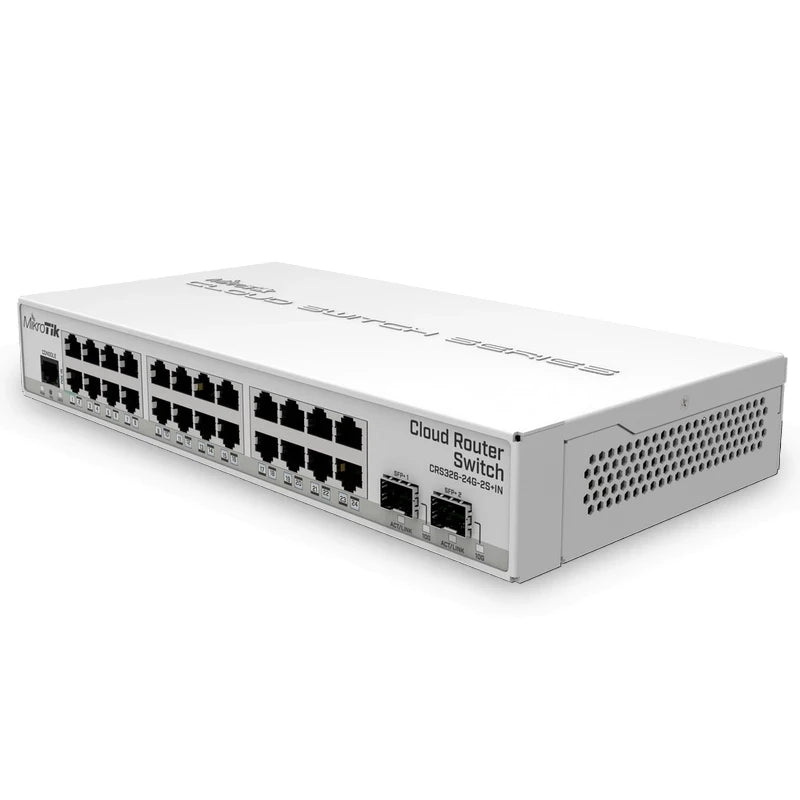

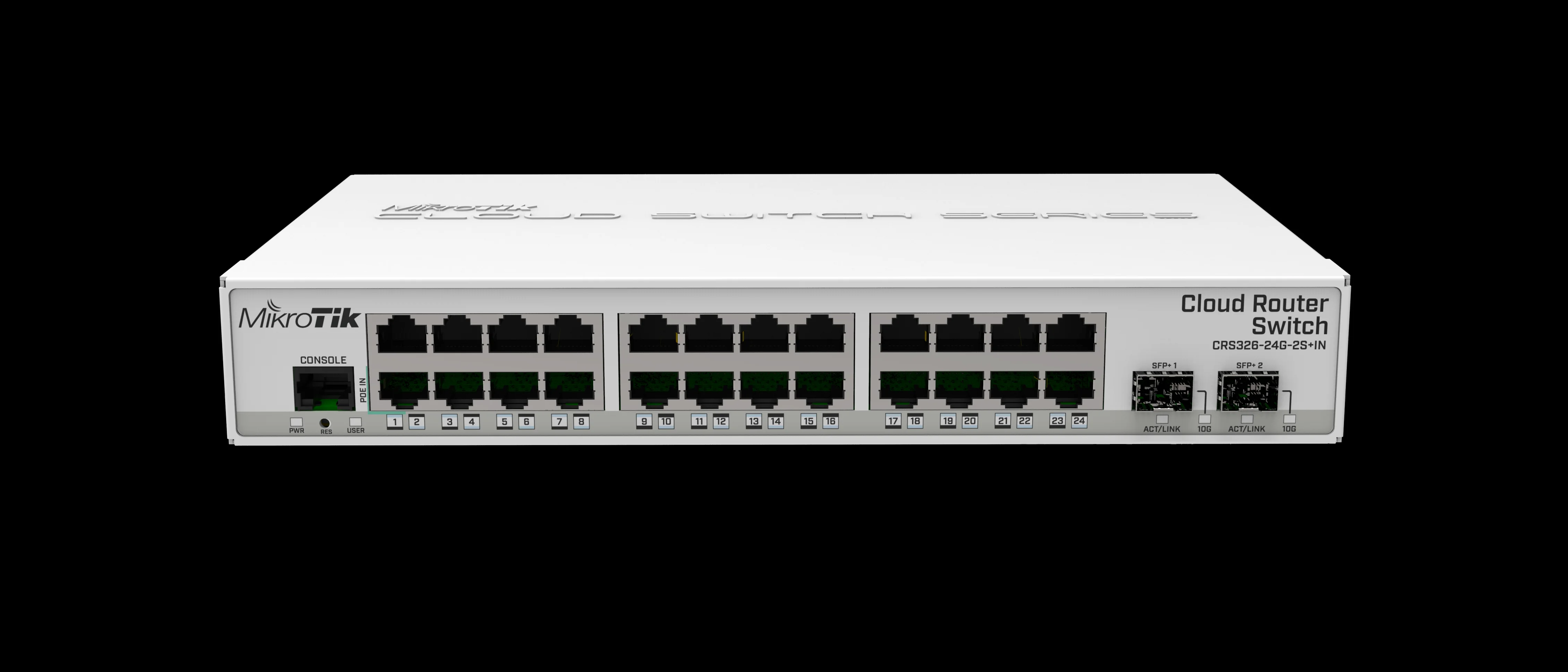

MikroTik CRS326-24G-2S+IN Cloud Router Switch with 24× 10/100/1000Mbps Gigabit Ethernet ports, 2 SFP+ Cages, RouterOS / SwitchOS
Description
A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!
Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.
SPECIFICATIONS
Brand Name: MikroTik
High-concerned Chemical: None
Certification: CE
Certification: FCC
Working Frequency: 800 MHz
Port Number: 24
Model Number: CRS326-24G-2S+IN
SFP ports: 2
Architecture: ARM 32bit
Serial port: English Firmware
Size of RAM: 512 MB
Storage size: 16 MB
10/100/1000 Ethernet ports: 24
Transmission Rate: 10/100/1000Mbps
CPU: 98DX3236
CPU nominal frequency: 800 MHz
Quantity: 1PCS
Technical Specifications
MikroTik CRS326-24G-2S+IN 2 SFP+ cages Cloud Router Switches 24 Gigabit ports switch
Details |
|
Product code |
CRS326-24G-2S+IN |
Architecture |
ARM 32bit |
CPU |
98DX3236 |
CPU core count |
1 |
CPU nominal frequency |
800 MHz |
Dimensions |
285 x 144 x 44 mm |
RouterOS license |
5 |
Operating System |
RouterOS / SwitchOS |
Size of RAM |
512 MB |
Storage size |
16 MB |
Storage type |
FLASH |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-40°C to 60°C |
|
|
Powering
Details |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
10-30 V |
Max power consumption |
21 W |
Cooling type |
Passive |
PoE in |
Passive PoE |
PoE in input Voltage |
10-30 V |
Ethernet
Details |
|
10/100/1000 Ethernet ports |
24 |
Fiber
Details |
|
SFP+ ports |
2 |
Peripherals
Details |
|
Serial console port |
RJ45 |
Certification & Approvals
Details |
|
Certification |
CE, EAC, ROHS |
IP |
IP20 |
Inventory Last Updated: Aug 29, 2025
