MikroTik Cloud Router Switch CRS317-1G-16S+RM, 1x Gb LAN, 16x SFP+ Cages, RouterOS L6 or SwitchOS (Dual Boot), Passive Cooling 1U Rack-Mount Enclosure

Regular price: R 19,465.00
Sale price: R 19,465.00
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

MikroTik Cloud Router Switch CRS317-1G-16S+RM, 1x Gigabit LAN, 16x SFP+ Cages, RouterOS L6 OR SwitchOS (Dual Boot)

Description

MikroTik Cloud Router Switch CRS317-1G-16S+RM, 1x Gigabit LAN, 16x SFP+ Cages, RouterOS L6 or SwitchOS (Dual Boot), Passive Cooling 1U Rack-Mount Enclosure, Dual Redundant PSU

The MikroTik CRS317-1G-16S+RM is a Layer 3 switch designed for efficient routing and network segmentation, making it ideal for connecting diverse network segments or VLANs. Paired with its 10GbE capability, it ensures fast data transmission rates, making it suitable for data-intensive tasks. Whether you're overseeing a data center, managing high-volume computational tasks, or streaming high-definition content, this switch provides both the speed and routing functionality needed for optimal performance.

The MikroTik CRS317 is not just an advanced networking solution with its 16 SFP+ ports designed for 10GbE connections, catering to the needs of growing businesses; it also brings in enhanced protection and true professional performance for demanding networks with new features like the hardware-based Spanning Tree Protocol (MSTP) and Link Aggregation (LACP). Additionally, the switch includes a 1GbE copper port for efficient network management. Its versatility makes it suitable for both small offices and large data centers, providing the speed and reliability required for cloud computing and real-time analytics.

Equipped with the efficient 98DX8216 chipset and a dual-core processor running at 800 MHz, the CRS317 ensures swift operations and promises optimal multitasking capabilities, especially being coupled with its abundant 1 GB of RAM. This robust memory allocation guarantees the seamless handling of extensive data traffic and ensures seamless execution of complex security measures.

This device is equipped with dual redundant power supplies, a feature often seen in rigorous environments such as data centers and medical facilities. Boasting two independent power sources, its reliability is amplified. If one source encounters an issue, the second ensures uninterrupted functioning. This configuration not only extends the equipment's longevity but also manages power inconsistencies effectively. For enhanced protection, each power supply connects to distinct circuits. While the device primarily relies on passive cooling, its fans engage in higher temperatures to guarantee optimal operation.

The "Dual boot" functionality in the MikroTik CRS317 provides users with the option to select between two distinct operating systems based on their specific needs. Users can opt for RouterOS, renowned for its comprehensive routing features, or SwOS, tailored for switch-specific functions. This feature allows users to precisely configure functions ranging from basic port-to-port forwarding to more complex adjustments in MAC and IP headers.

CRS317-1G-16S+RM

Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies

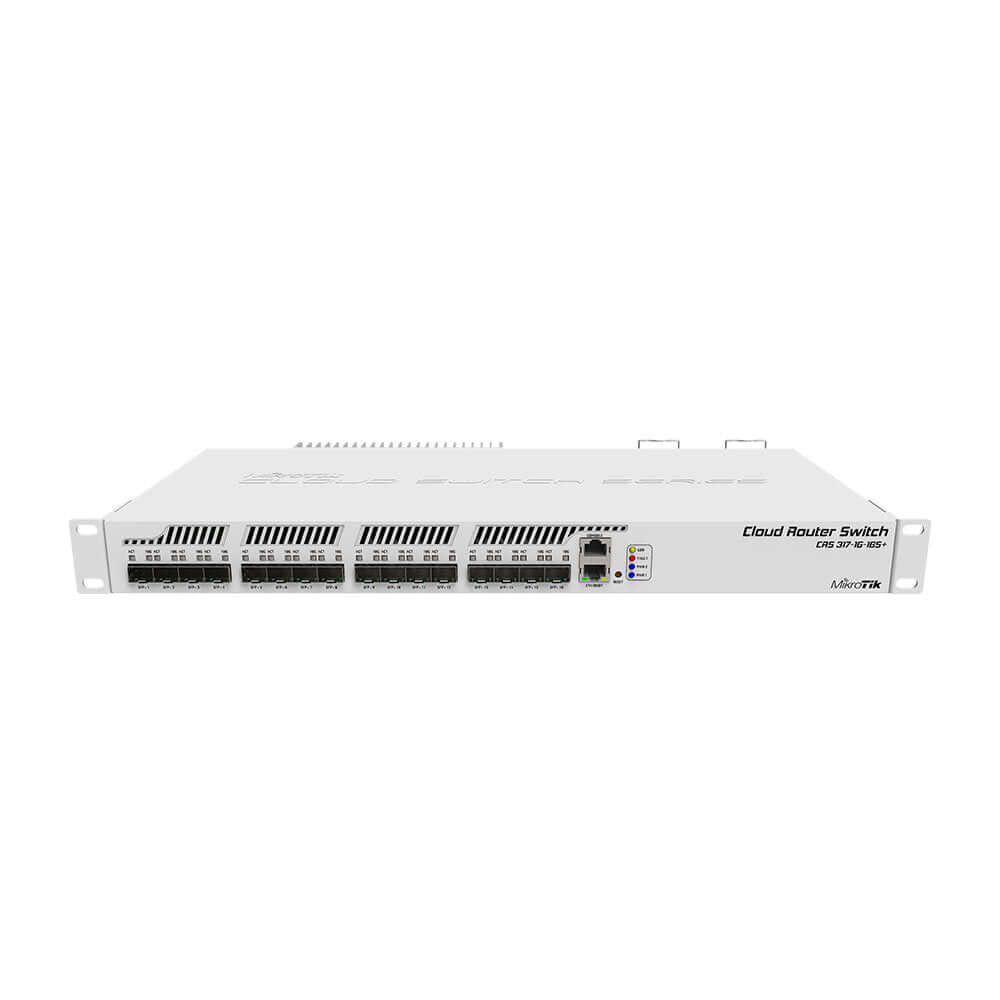

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

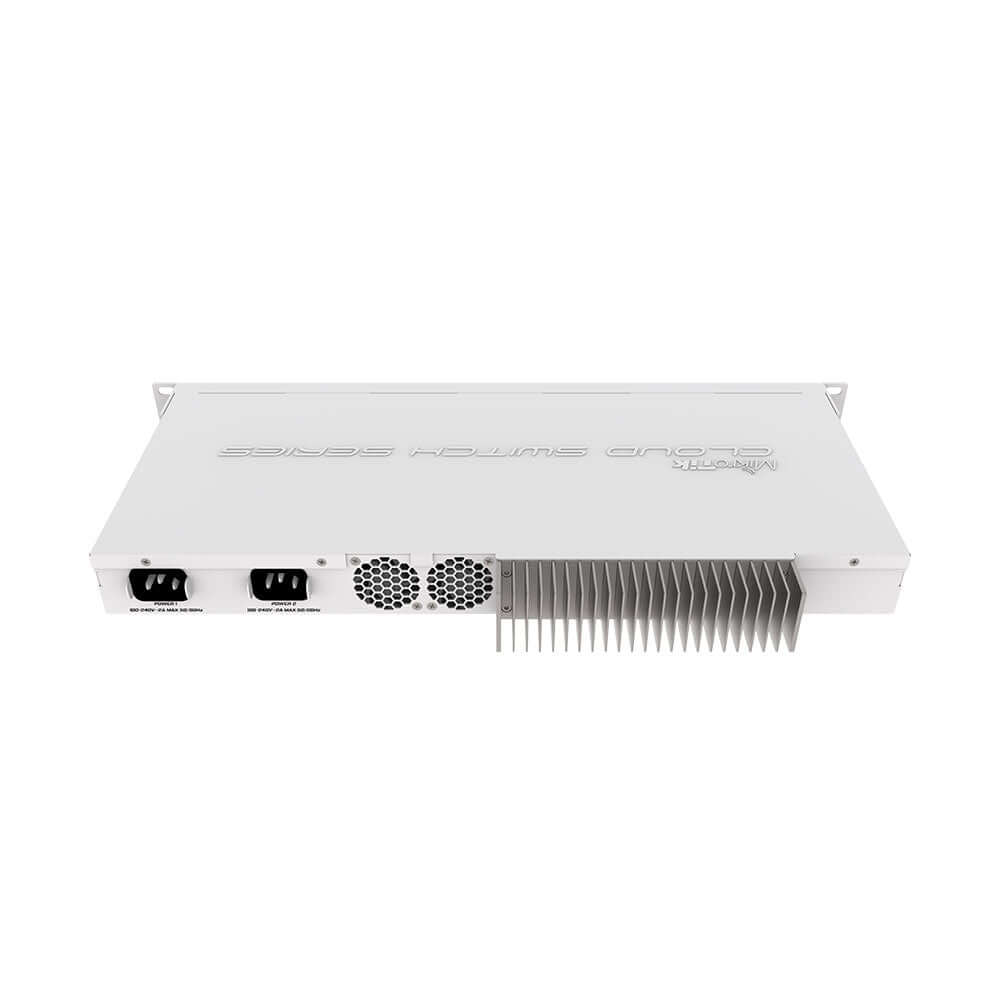

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.

Specifications

Details
Product code	CRS317-1G-16S+RM
Architecture	ARM 32bit
CPU	98DX8216
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX8216
Dimensions	443 x 224 x 44 mm
RouterOS license	6
Operating System	RouterOS / SwitchOS
Size of RAM	1 GB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
Suggested price	N/A

Powering

Details
Number of AC inputs	2
AC input range	100-240
Max power consumption	44 W
Cooling type	2 fans

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	16

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS

Included parts
