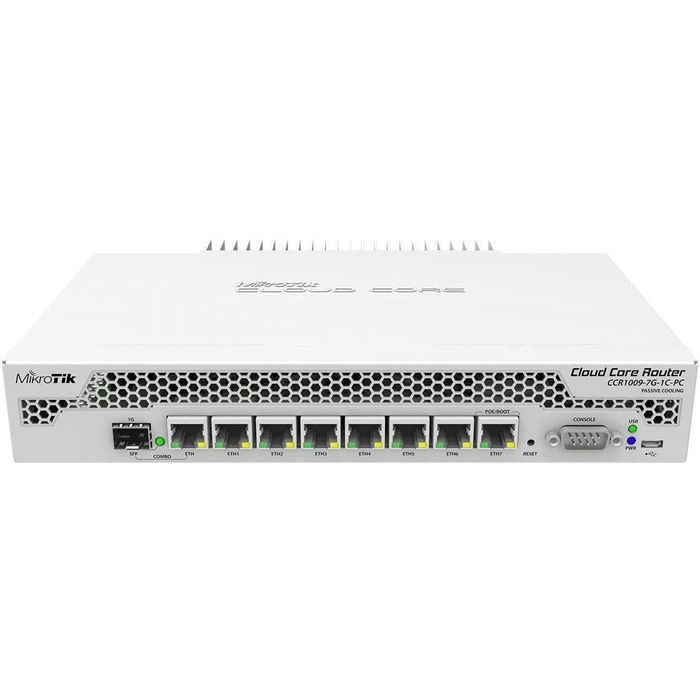

MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router with Passive Cooling, 7 x GbE, 1 x Combo port (SFP or GbE), 1 x SFP+ cage, 9 cores x 1GHz CPU, 2GB RAM

Regular price: R 20,687.50
Sale price: R 20,687.50
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router with Passive Cooling

Description

MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router with Passive Cooling, 7 x GbE, 1 x Combo port (SFP or GbE), 1 x SFP+ cage, 9 cores x 1GHz CPU, 2GB RAM

CCR1009-7G-1C-1S+PC

7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

Unit also includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.

Specifications

Details
Product code	CCR1009-7G-1C-1S+PC
Architecture	TILE
CPU	TLR4-00980
CPU core count	9
CPU nominal frequency	1 GHz
Dimensions	272 x 190 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	2 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	N/A

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	18-57 V
Max power consumption	38 W
Max power consumption without attachments	33 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-57 V

Ethernet

Details
10/100/1000 Ethernet ports	7
Ethernet Combo ports	1

Fiber

Details
SFP+ ports	1

Peripherals

Details
Number of SIM slots	1 Smart card (Mini SIM)
Memory card type	microSD
Memory Cards	1
Serial console port	RS232
Number of USB ports	1
USB Power Reset	Yes
USB slot type	microUSB type AB
Max USB current (A)	1

Other

Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

The MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router with Passive Cooling, 7 x GbE, 1 x Combo port (SFP or GbE), 1 x SFP+ cage, 9 cores x 1GHz CPU, 2GB RAM was built with people like you in mind. Something to keep you happy. Every. Single. Day.
