Mikrotik CCR2116-12G-4S+ Router 16-core ARM CPU based CCR 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot

Regular price: R 89,925.38
Sale price: R 89,925.38
Regular price: ~~R 113,589.96~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Description

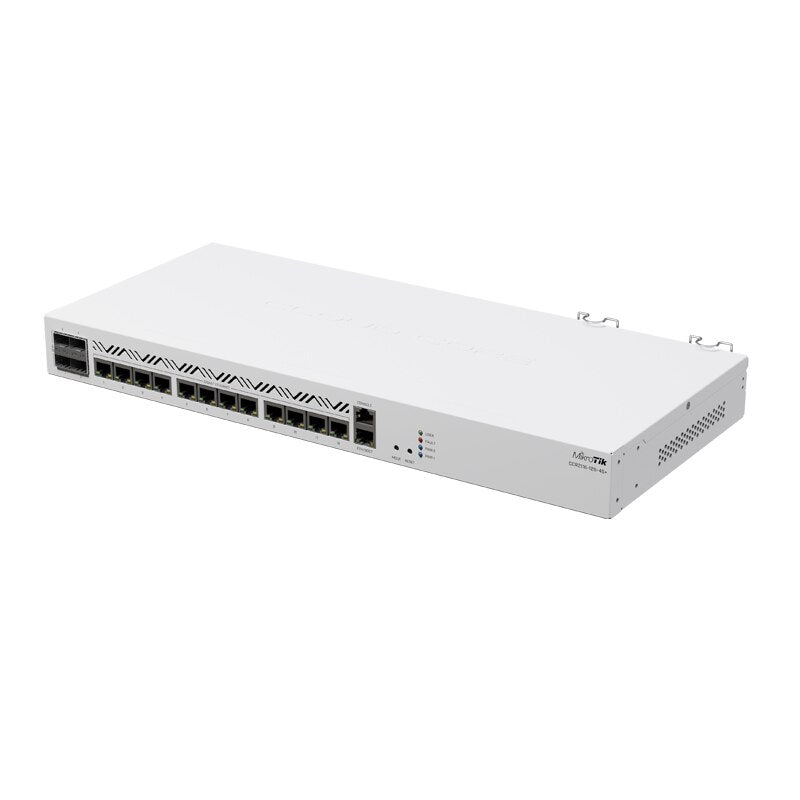

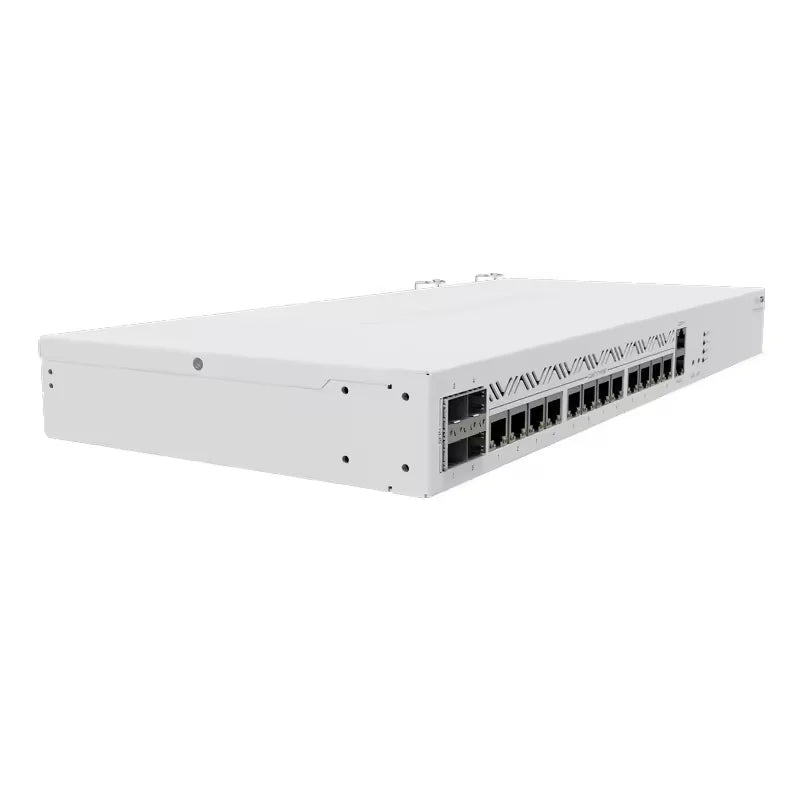

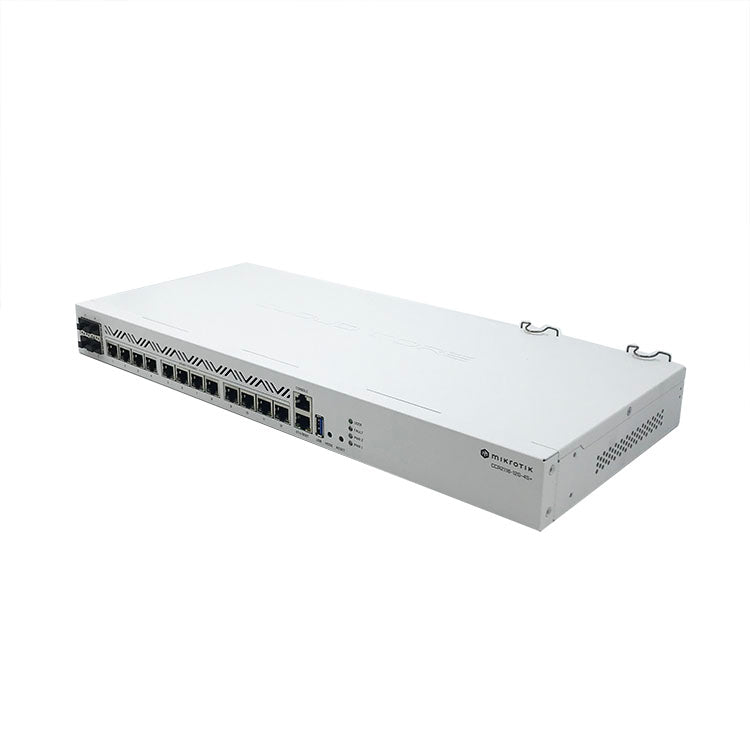

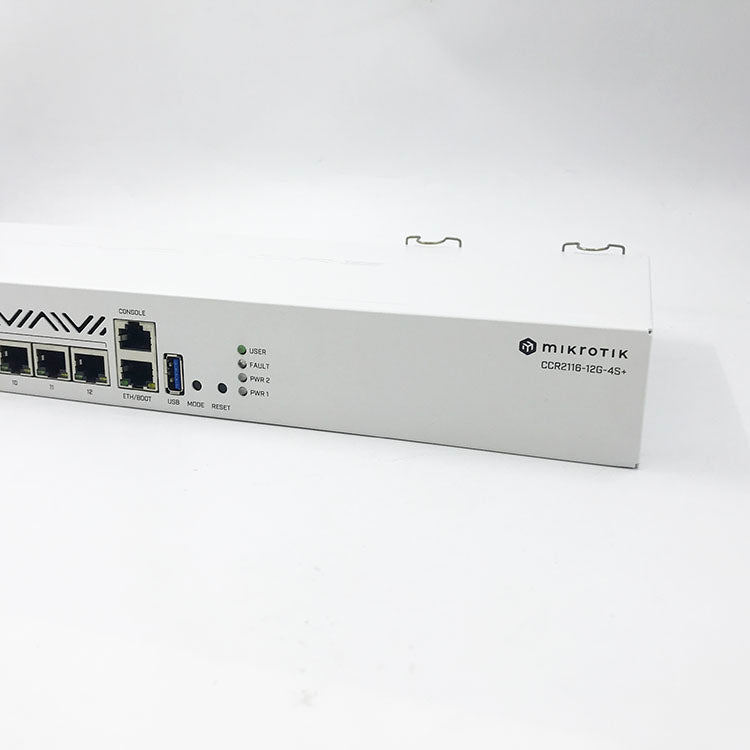

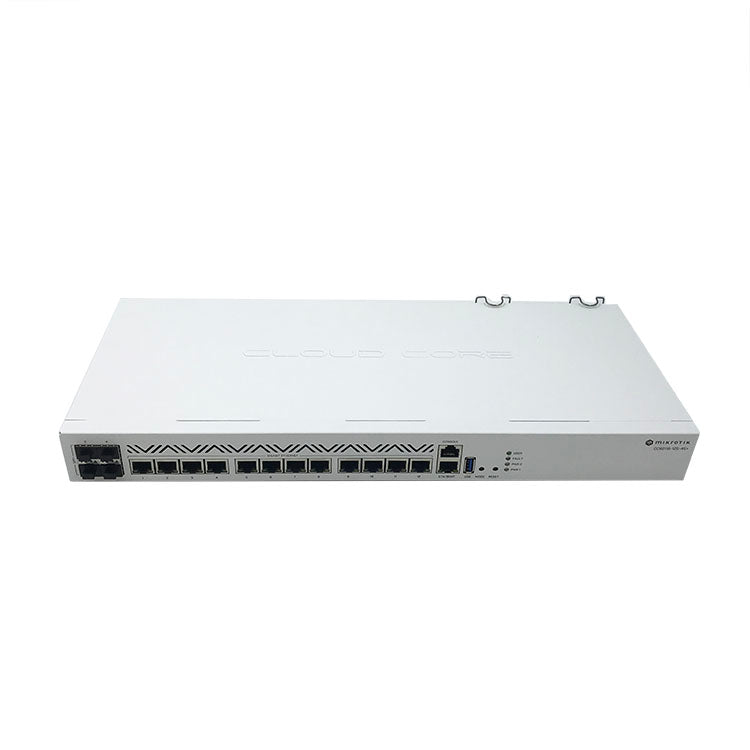

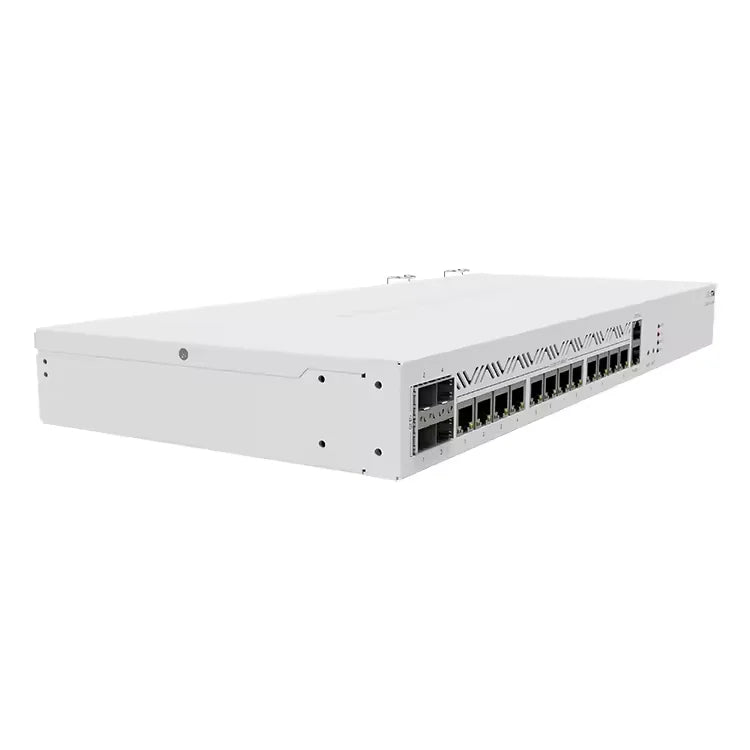

CCR2116-12G-4S+

Forget about CPU limitations in 10G setups with this powerful 16-core ARM CPU based CCR. Double the performance of our previous 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot.

CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.

But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading!

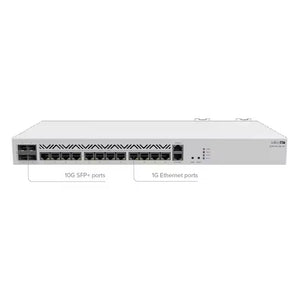

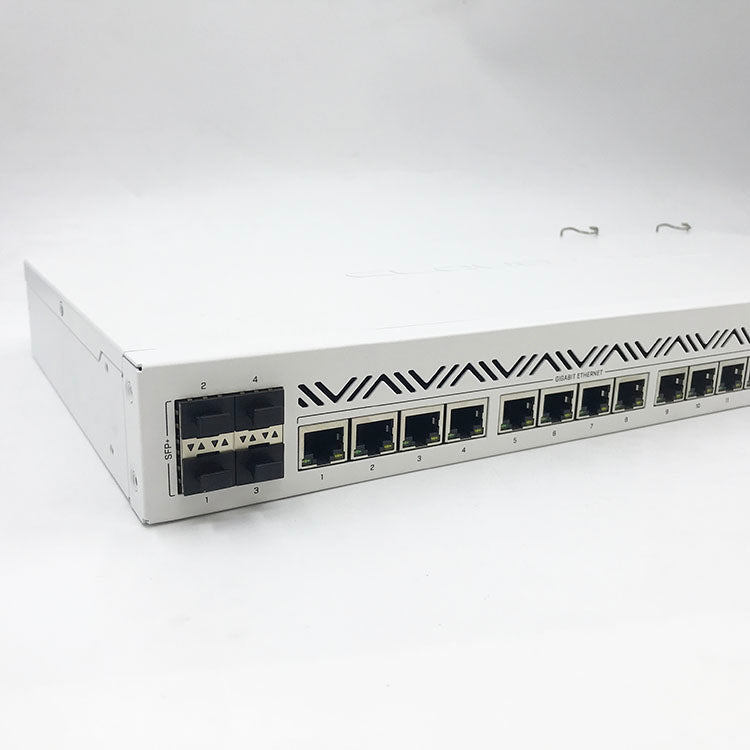

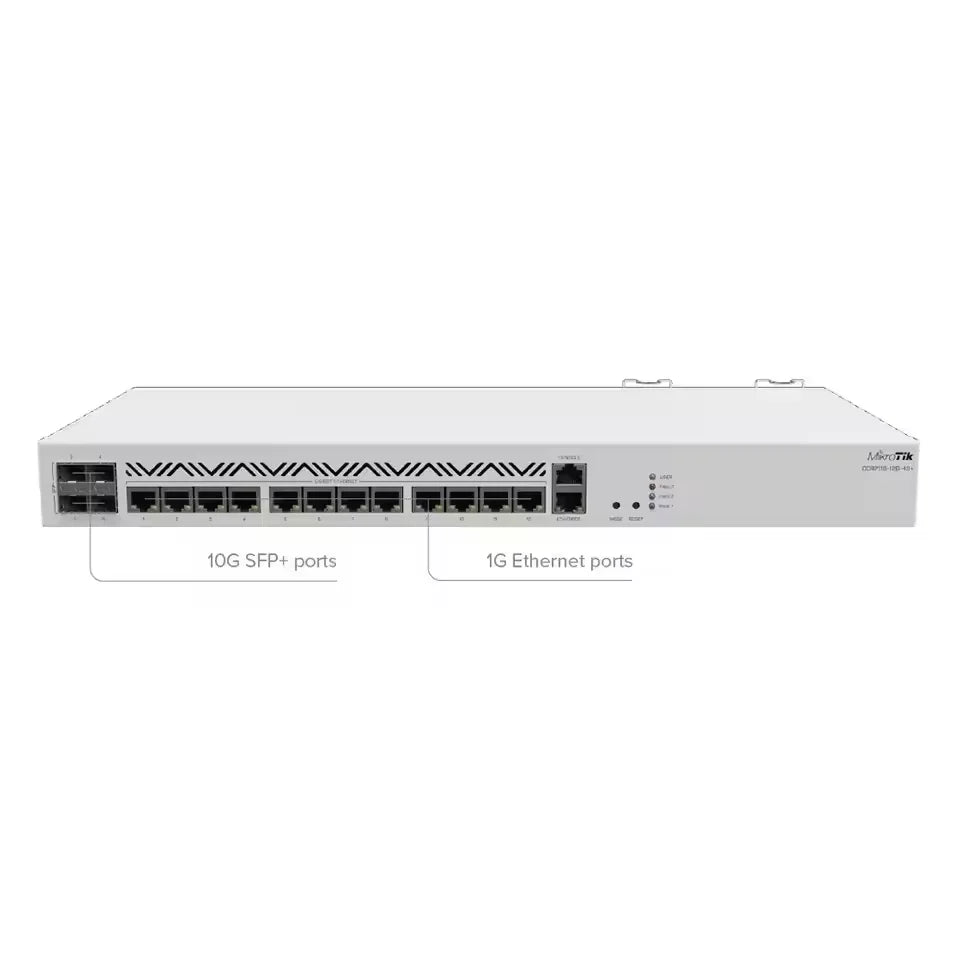

Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.

Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.

If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.

CCR2116-12G-4S+: technology tested by time, built for the future.

Specifications

With Modem Function: No

Wired Transfer Rate: 10/100/1000Mbps

Type: WIRED

Package: Yes

Model: CCR2116-12G-4S+

Certification: CE

Certification: FCC

Brand Name: MikroTik

Specifications

Details
Product code	CCR2116-12G-4S+
Architecture	ARM 64bit
CPU	AL73400
CPU core count	16
CPU nominal frequency	2000 MHz
Switch chip model	98DX3255
Dimensions	443 x 199 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	16 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	N/A

Powering

Details

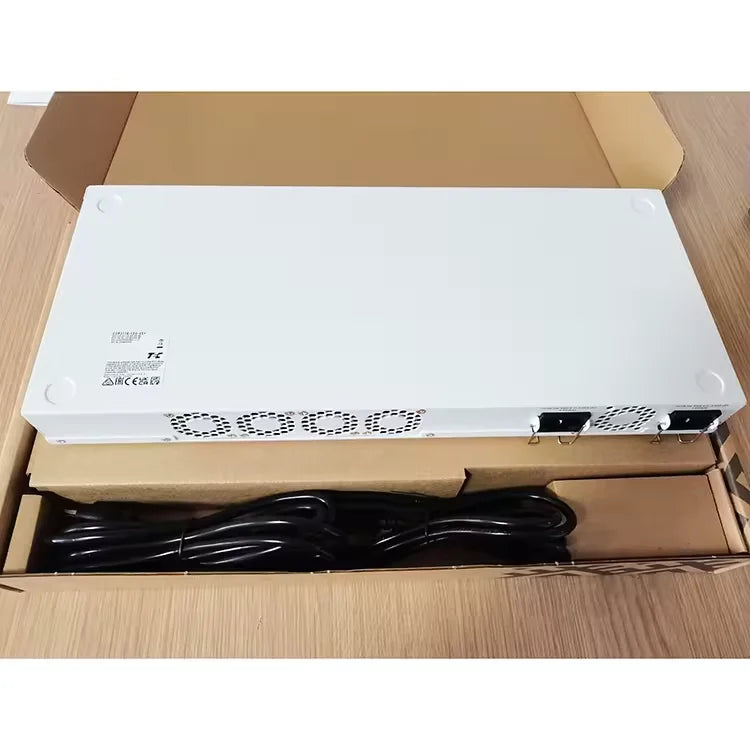

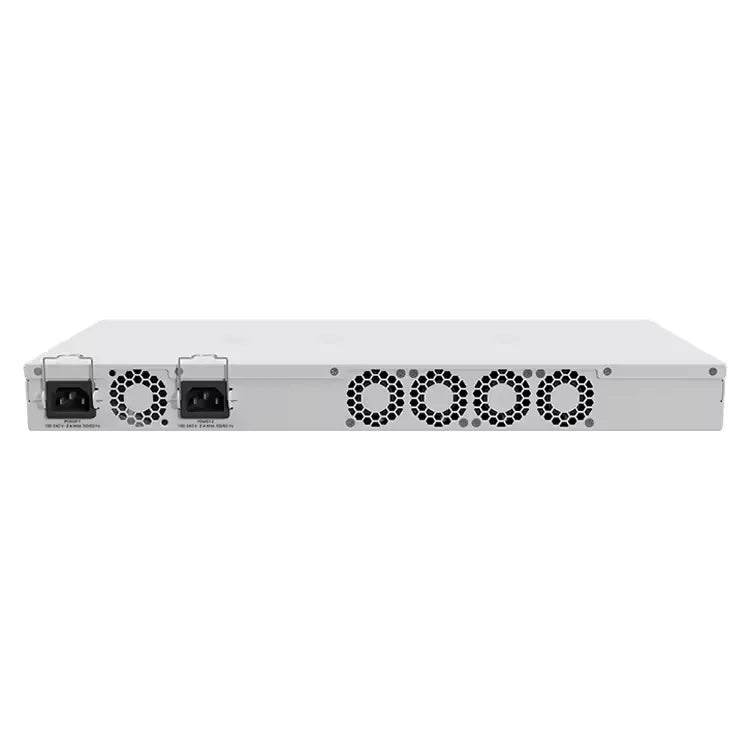

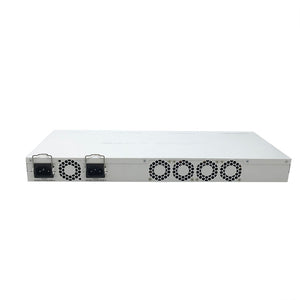

Number of AC inputs	2
AC input range	100-240
Frequency (Hz)	47-63
Max power consumption	83 W
Max power consumption without attachments	60 W
Cooling type	4 fans

Ethernet

Details
10/100/1000 Ethernet ports	13

Fiber

Details
SFP+ ports	4

Peripherals

Details
Serial console port	RJ45
Number of M.2 slots	1

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS

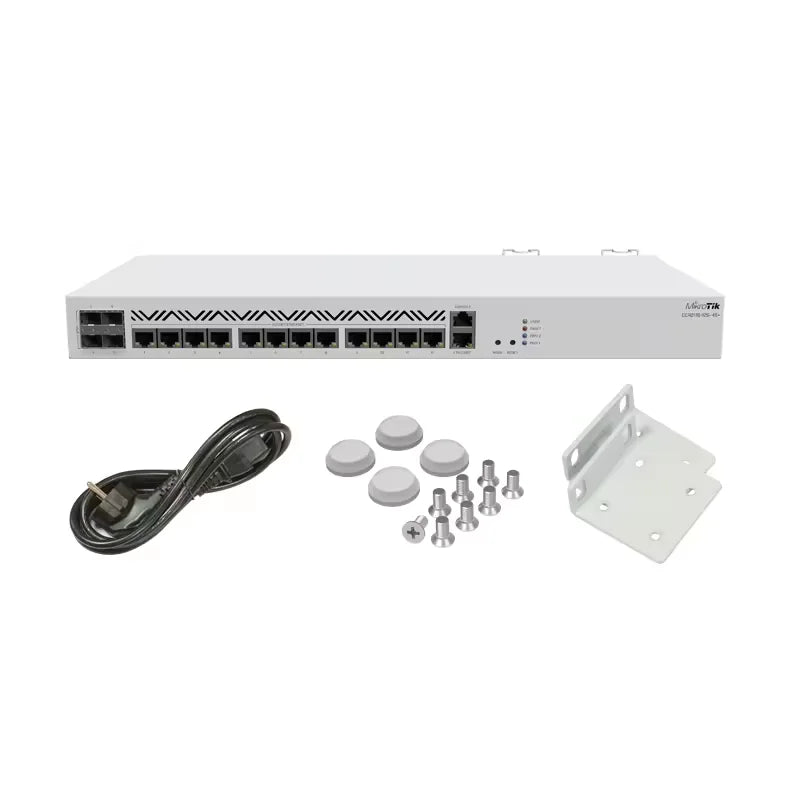

Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

On the fence about this Mikrotik CCR2116-12G-4S+ Router 16-core ARM CPU based CCR 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot? Don't be. Let our satisfaction guarantee address your concerns.
