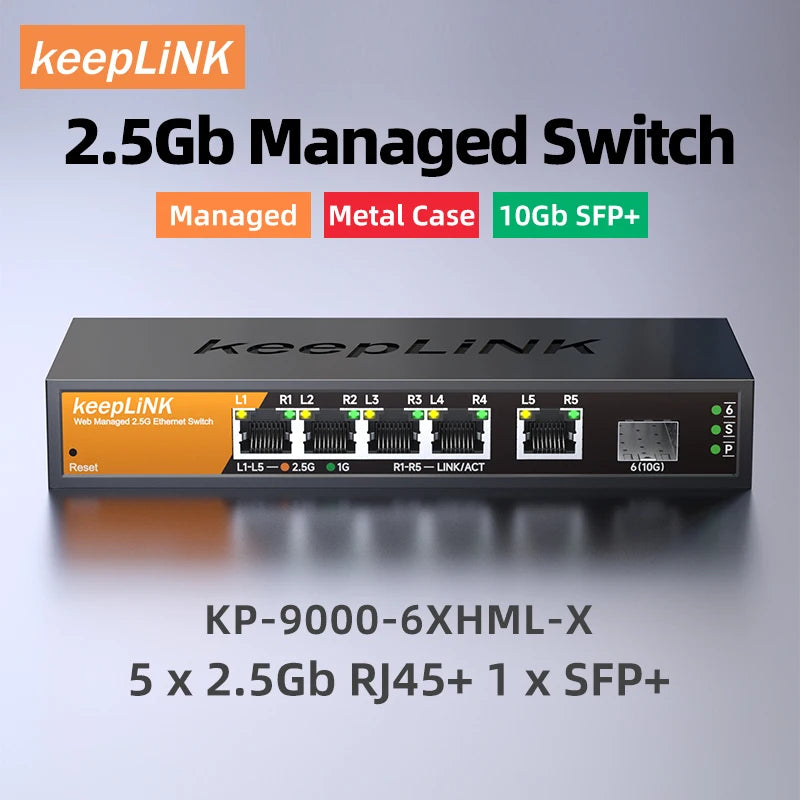

keepLINK KP-9000-6XHML-X 2.5Gb Managed Switch with 5× 2.5Gb Ethernet ports, 1× 10G SFP+ Port, 2.5Gb Cat Stick, 45Gbps Switching

keepLINK 2.5Gb Managed Switch with 5-port 2.5Gb Ethernet 1-port 10GB SFP 2.5Gb Cat Stick

SPECIFICATIONS

Brand Name: keepLiNK

Number of Interfaces: 7

Certification: CE

Certification: FCC

Certification: RoHS

Switch Type: Gigabit Switch

Package: Yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: KP-9000-6XHML-X

Transmission Rate: 10000 Mbps

VLAN: YES

Switch Capacity: 45Gbps

1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G): 5

10G SFP+ Port: 1

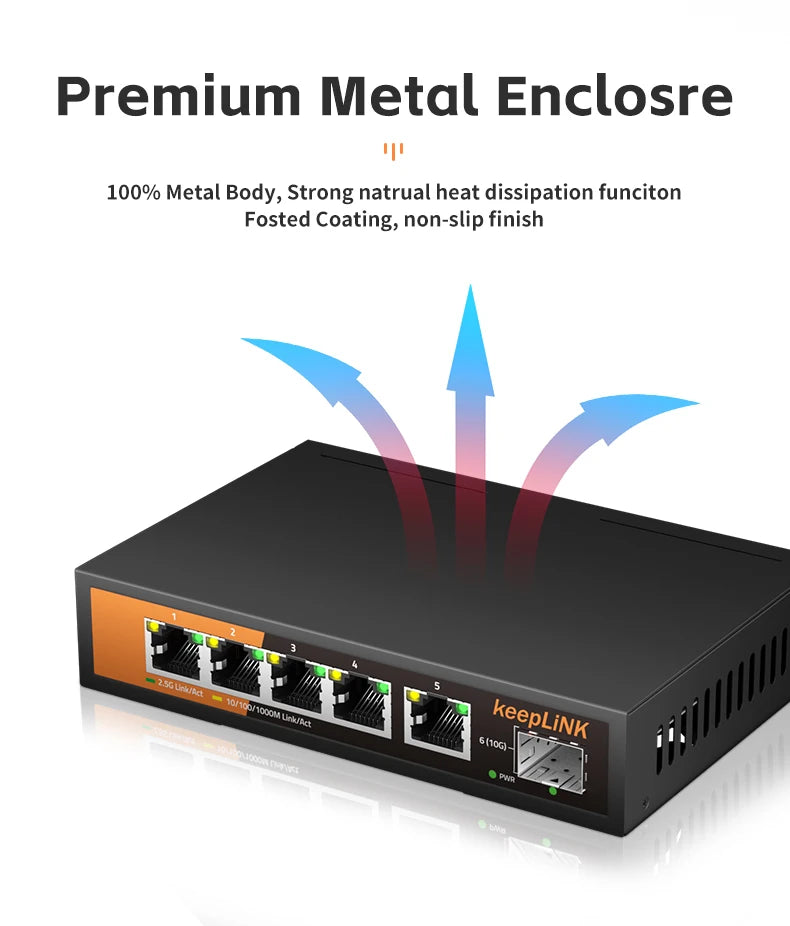

Enclosure: Metal

Connector Type: Metal

Form-Factor: Desktop/Wall mount

Bandwidth: 45Gbps

Max MAC entries: 4K

Buffer Size: 8.1MB

Energy Efficient Ethernet (IEEE 802.3az) compliant: Yes

Jumbo frame support: 10,000 bytes

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12): 0

Auto MDI/MDI-X Cable Detection: Yes

Auto-sensing Half/Full Duplex Switched Ports: Yes

Non Head-of-Line Blocking Architecture: Yes

Mean Time Between Failures (MTBF) @ 25° C: Yes

Mean Time Between Failures (MTBF) @ 25° C: 1,401,743 hrs (159.9 yrs)

802.1p-based QoS/CoS Supported: Yes

Honors DSCP (DiffServ) Tags: Yes

DC Input/Power In: External (12V/1.0A)

Power Consumption (Max and Standby): 9.24W (Max)/4.60W Min/Standby (no PoE)

Heat Dissipation (Max and Standby) (BTU/Hr): 31.545BTU/15.704BTU

IEEE 802.3az (Energy Efficient Ethernet): Yes

Auto Power Down: Yes

Short Cable Detection/Power Saving: Yes

Fan/Fanless: Fanless

Dimensions (W x D x H): 175 x 73 x 28 mm

Weight: 0.4 kg

Operating Temperature: 32° to 104°F (0° to 40°C)

Humidity (relative): 90% maximum relative humidity (RH), non-condensing

Altitude: 10,000 ft (3,000 m) maximum

Storage Temperature: -4° to 158°F (-20° to 70°C)

Humidity (relative): 95% maximum relative humidity (RH), non-condensing

Altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Certifications and Compliance: CE, FCC part 15 Class B

Safety Certifications: CE LVD

Hardware warranty: 1-year warranty

Package Contents: KeepLink Unmanaged Switch Power Adapter User Manual

Choice: yes

semi_Choice: yes

Product Overview

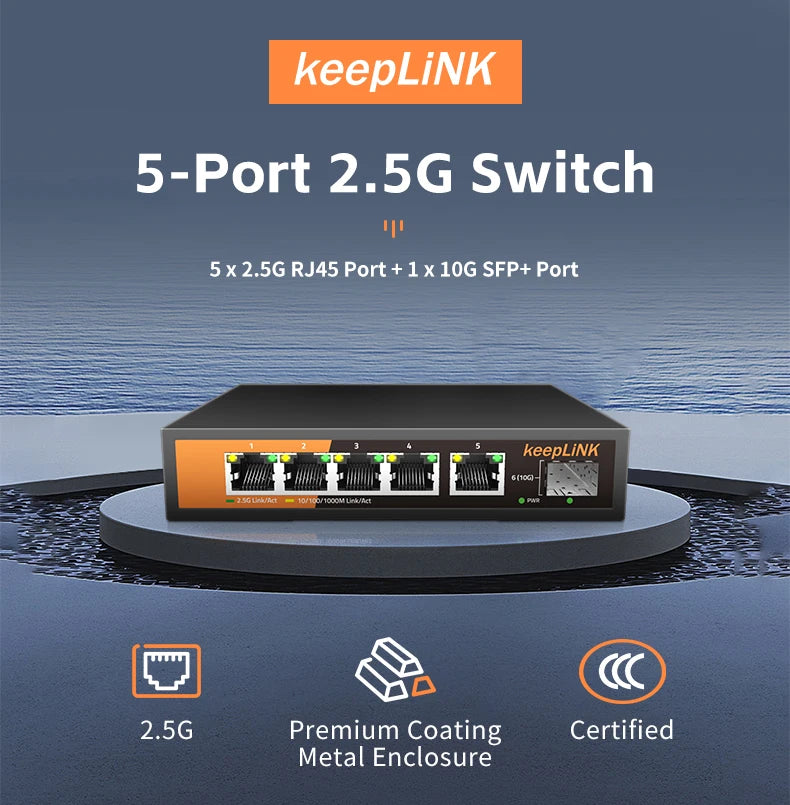

2.5Gb Managed Switch with 5-port 2.5Gb Ethernet 1-port 10GB SFP 2.5Gb Cat Stick

The KeepLink 5-port Multi-Gigabit Managed Switch, KP-9000-6XHML-X, helps businesses cost effectively expand their networks with multi-gig speeds. The KP-9000-6XH-X Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports and one (1) 10G SFP+ port in a metal case and can be placed on a desk or mounted on a wall with the included wall-mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Product Highlights

• Simple set up with no software or configuration needed.

• Flexible desktop or wall placement.

• Easy monitoring through per port LEDs for port activity and speed.

• Energy Efficient Ethernet (IEEE802.3az) support for maximum power savings.

• 5 ports of multi-gig 1G/2.5G speeds to connect devices instantly and give them each exactly the speed they need: 1G or 2.5G automatically.

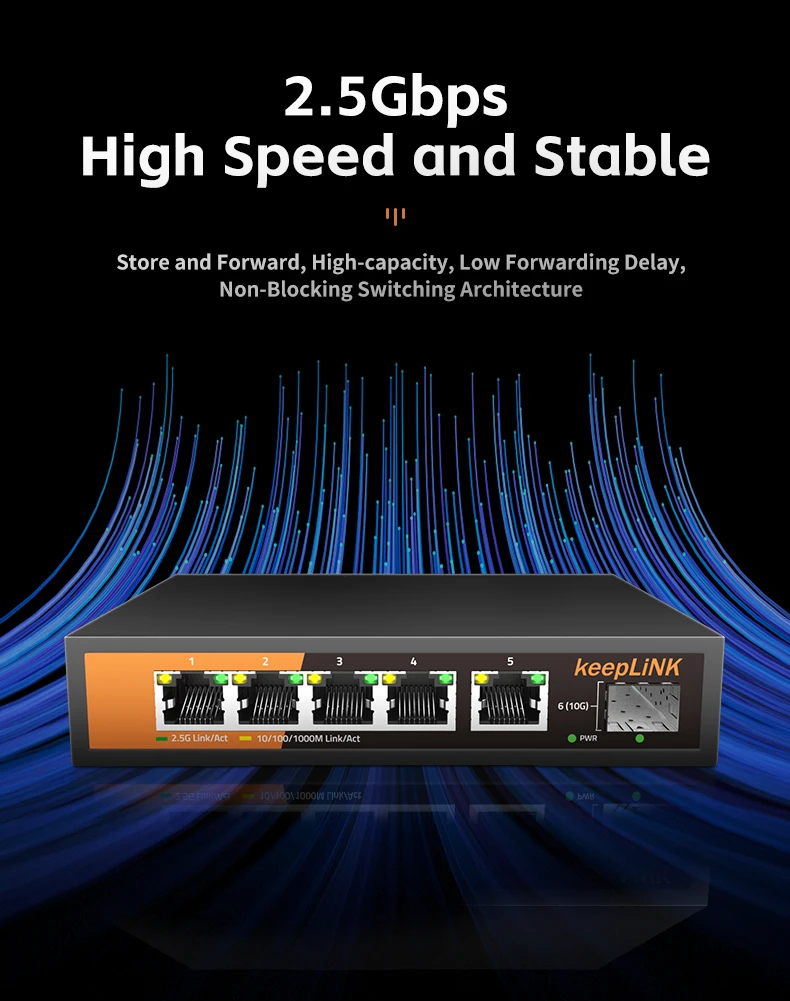

• Non-blocking switching architecture for maximum throughput at wire speed.

• Fanless,silent operation with desktop and wall mounting options.
