KeepLiNK KP-9000-65-2GX8GP Industrial 10-Port Gigabit Switch with 8-PoE Port and 2-SFP Uplink DIN Rail Mounting IP40 rating VLAN

Regular price: R 15,604.73
Sale price: R 15,604.73
Regular price: ~~R 20,327.22~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Ambient Relative Humidity: 5 to 95% (non-condensing)

BSR: Supported

Brand Name: keepLiNK

Caese Material: Aluminum

Certification: CE,FCC,RoHS

Choice: yes

Communication Mode: Full-Duplex & Half-Duplex

Compliance Mark: CE RoHS FCC

Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Dimensions: 143*104*48 mm (5.63*4.09*1.89 in)

EMC: EN 55032/24

EMI: FCC Part 15B Class A

Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V

Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV

Flow Control: supported

Forwarding delay: <5us

Freefall: IEC 60068-2-31 Class T2.3(1m drop)

Function: POE

IP Rating: IP40

Input Voltage: 12 to 58 VDC, Redundant dual inputs

Installation: DIN Rail Mounting

Jumbo Frame: Support 10kbits

Lighting/Surge immunity (Surge): IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV

MAC Table Size: 16K

MDX/MIDX: Supported

Model Number: KP-9000-65-2GX8GP

Number of Interfaces: 10

Operating Temperature: -40°C to 75°C (-40o 167°F)

Overload Current Protection: Supported

Package: Yes

Packet Buffer Size: 2M

Packet Forwarding Rate: 19.34Mpps

Port-Isolation: Supported

Power Connection: 1 removable 3-contact terminal Block(s)

Processing Type: Store and Forward

Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m

Reverse Polarity Protection: Supported

Shock (01): IEC60068-2-27: operational: 15g 11ms, half sine

Shock (02): MIL-STD-810G, 2008: operational: 15g 11ms, half sine

Storage Temperature: -40°C to 75°C (-40o 167°F)

Switch Capacity: 10G

Switch Type: Gigabit Switch

Thermal Methods: Fanless

Total Power Consumption: <6W

Transmission Rate: 10/100/1000Mbps

VLAN: Support

Vibration (01): IEC60068-2-6 operational: 1g@10-150Hz

Vibration (02): MIL-STD-810G, 2008

Watch dog: Supported

Weight: 500g (1.10lb)

semi_Choice: yes

Description

KeepLink Ruggedized KP-9000-65-2GX8GP industrial unmanaged switch provides enduring performance in harsh environments, such as those found in outdoor IoT and industrial applications.

Overview

The KeepLink KP-9000-65-2GX8GP multipurpose unmanaged Layer 2 switch is idea for Smart Cites applications, harsh industrial environments, and any situation where tough and reliable devices are required.
With a wide operating temperature range of between -40°C and 75°C, the KP-9000-65-2GX8GP tolerates demanding environments, such as those found in industrial and outdoor deployments.

Performance

This high-performing, cost-effective switch meets the stringent performance requirements of todays industrial networks. Featuring support for up to 16K MAC addresses, the KP-9000-65-2GX8GP is ideal for edge networking.

Power Over Ethernet (PoE)

The KP-9000-65-2GX8GP is a Power over Ethernet Power Sourcing Equipment (PoE PSE) device, which is compliant with IEEE802.3af and IEEE802.3at standards.
Each port supplies either 15.40W PoE or 30.00W PoE+
PoE sourcing is the ideal solution to support many devices, including:
1. Pan, Tilt and Zoom (PTZ) cameras with heating/cooling fans for outdoor applications
2. Enhanced infrared lighting
3. Lighting controllers
4. LED lighting fixtures
5. Remote Point of Sale (POS) kiosks

Features

1. Ruggedized design that meets industrial standards for temperature, vibration and electrical noise
2. Flexible deployment with a compact design, and wide operating temperature, supporting external building and other outdoor and public-space environments
3. Connect and power surveillance cameras, and other IoT devices with a single Ethernet connection
4. Simple plug-and-play deployment for easy network edge expansion
5. Highly affordable industrial PoE solution

Benefits

1. Wide operating temp range: -40°C to 75°C supports outdoor operation
2. Fanless, with air convection cooling for high reliability
3. 8 x 10/100/1000T fixed ports + 2 x SFP Gigabit slot, with PoE available on 8 ports
4. PoE sourcing up to 30W (PoE+) per port, with an overall power budget of 250W
5. Dual power input with reverse polarity and current overload protection
6. IP40 Protection
7. Aluminum Case

Dedicated to Industrial Networking Solution.

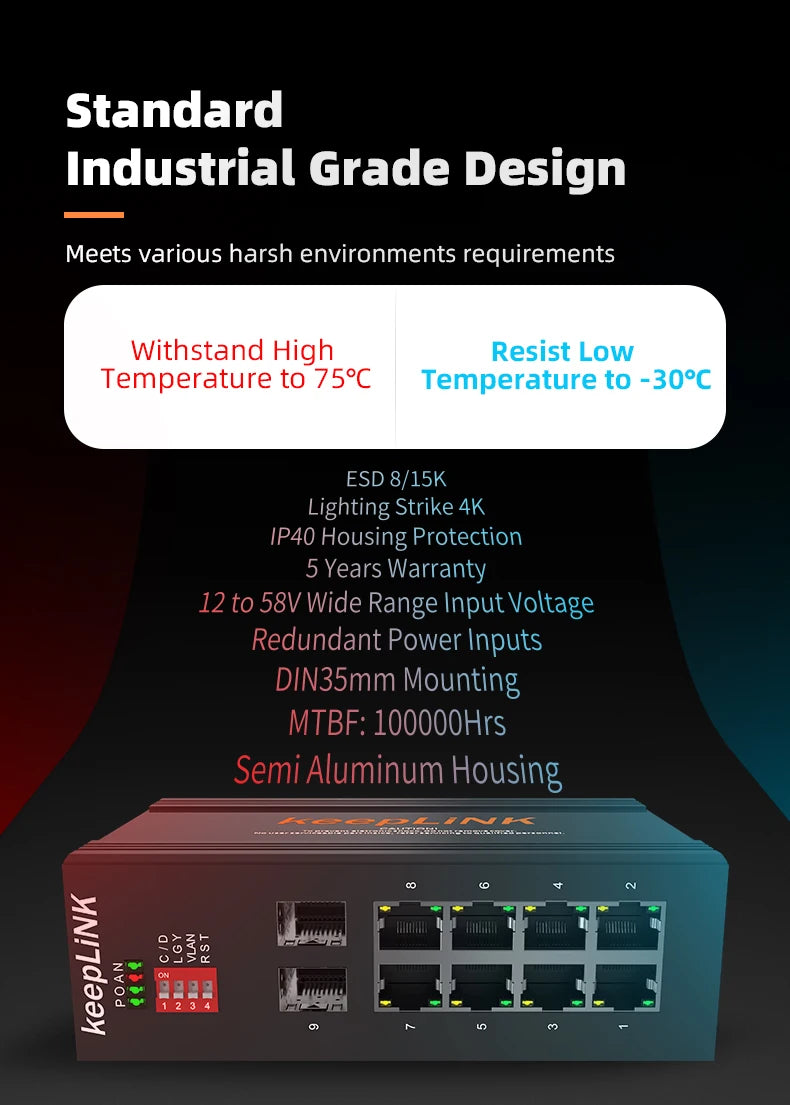

Standard Industrial Grade Design

Meets various harsh environments requirements.

16 Testing Procedures

Attention to details, Test every step of the way

Multiple Industrial Testing Certifications

Comply with CCC, FCC, CE and RoHS Standards

Industrial-grade Intelligent Chip

Equipped with Marvell Industrial-grade Chip to move, store, process and secure the data faster and more reliably than anyone else

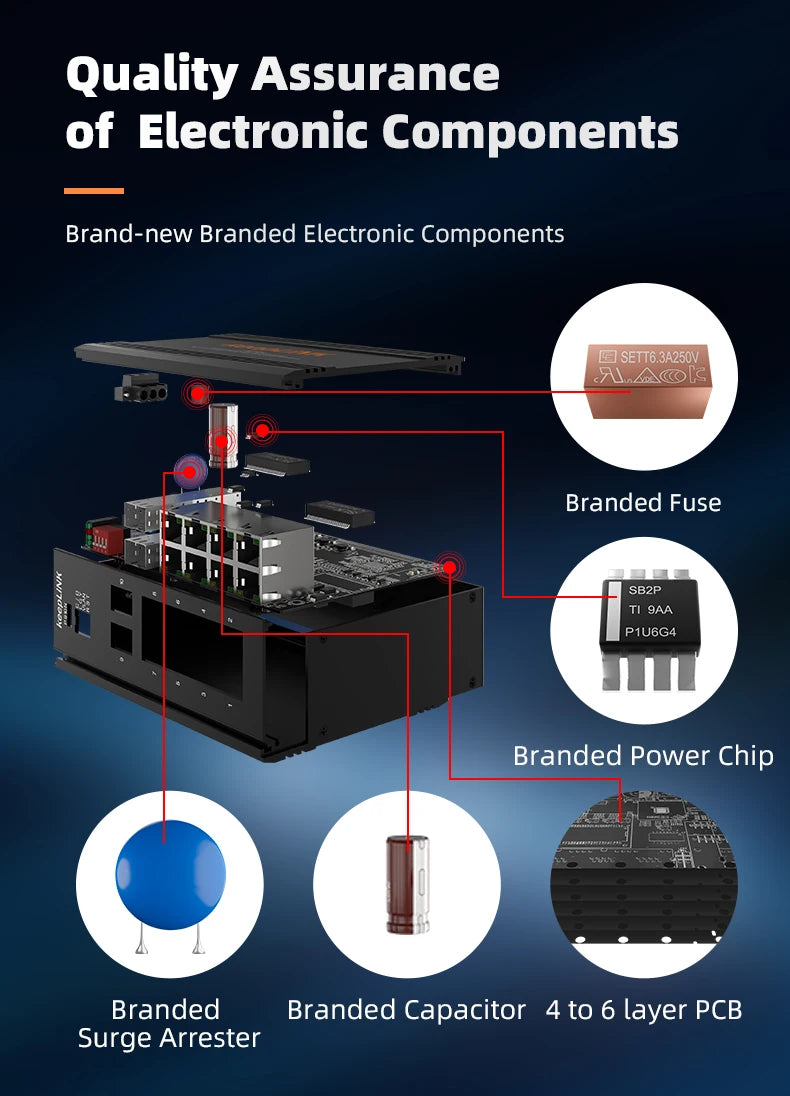

Quality Assurance of Electronic Components

Brand-new Branded Electronic Components

Redundant Power Supply

Ensure the Reliability of DC Supply System

Provide Solution Services for Networking Applications

Skilled Tech Support Team, Offer Free Design For Networking Applications

Industrial-grade Strong Compatibility

Compatible with brands of PLC and Ethernet Switches

Product Display

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector): Support Auto negotiation speed, Full/half duplex mode
1000BaseX Ports (SFP): Support Full/half duplex mode
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT
IEEE 802.3z for 1000BaseX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet plus (PoE+)
IEEE 802.3x Flow control (FDX)
PoE Pinout: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A), support remote PD Restart, Support Standard & Non-Standard PoE

Switch Properties

MAC Table Size: 16K
Switching Capacity: 26G
Packet Forwarding Rate: 19.34Mpps
Packet Buffer Size: 2M
Forwarding delay: <5us
Jumbo Frame: Support 10kbits
Processing Type: Store and Forward
Flow Control: supported
BSR: Supported
Port-Isolation: Supported
MDX/MIDX: Supported
Watch dog: Supported

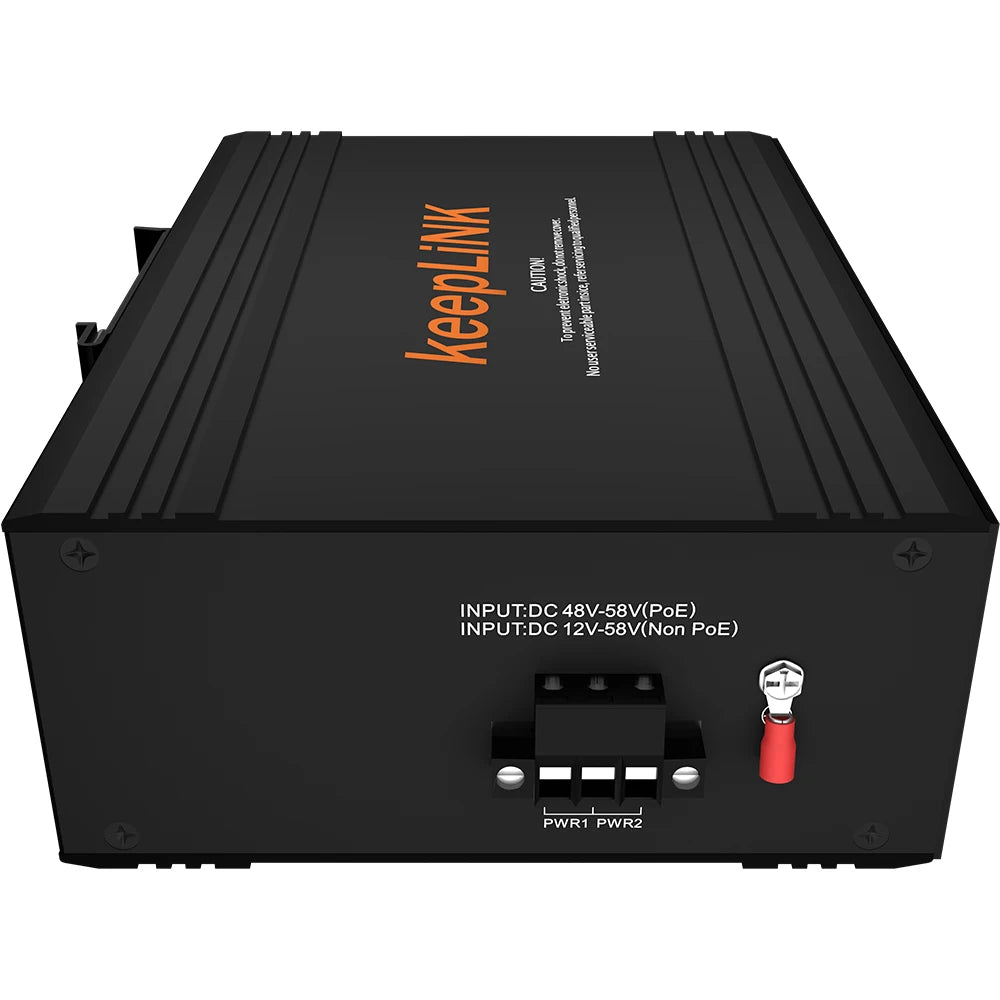

Power Parameters

Connection: 1 removable 3-contact terminal Block(s)
Input Voltage: 12 to 58 VDC (Non PoE), 48VDC to 58VDC (PoE), Redundant dual inputs
Total Power Consumption: <6W(Non PoE); <246W (PoE)
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Voltage Alarm: Support

DIP Switch Configuration

C/D: Remote PD Reset
LGY: Standard/Non-standard PoE Mode
VLAN: Port Isolation
RST: Reset

Physical Characteristics

Housing: Aluminum
IP Rating: IP40
Dimensions:　143*104*48 mm (5.63*4.09*1.89 in)
Weight:　500g (1.10lb)

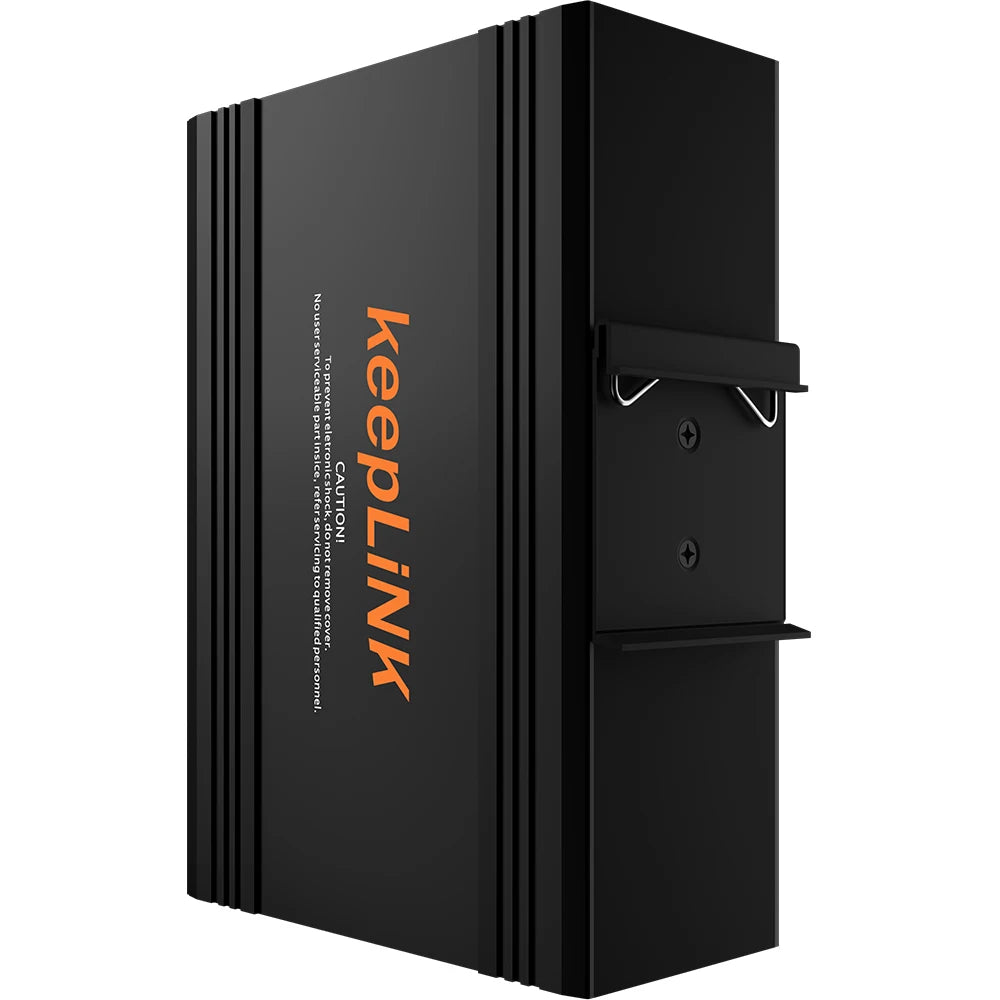

Installation: DIN Rail Mounting

Environmental Limits

Operating Temperature: -40°C to 75°C (-40o 167°F)
Storage Temperature (package included): -40°C to 75°C (-40o 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Thermal Methods: Fanless

Standards and Certifications

Compliance Mark: CE RoHS FCC
EMC: EN 55032/24
EMI: FCC Part 15B Class A
Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV
Lighting/Surge immunity (Surge) : IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV
Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m
Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V
Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Freefall: IEC 60068-2-31 Class T2.3(1m drop)
Shock: IEC60068-2-27: operational: 15g 11ms, half sine
MIL-STD-810G, 2008: operational: 15g 11ms, half sine
Vibration: IEC60068-2-6 operational: 1g@10-150Hz
MIL-STD-810G, 2008: operational: Procedure 1, Category 4, per Figure 514.6C-1

MTBF

Time: 100,000hrs

Life is too short to live without the KeepLiNK KP-9000-65-2GX8GP Industrial 10-Port Gigabit Switch with 8-PoE Port and 2-SFP Uplink DIN Rail Mounting IP40 rating VLAN. Be happy. Be Content. Be Satisfied.
