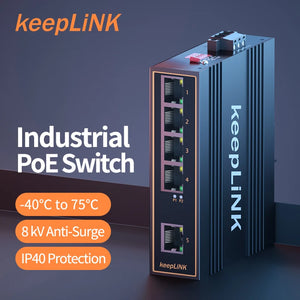

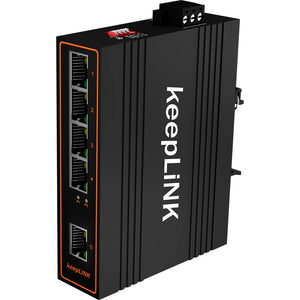

keepLiNK KP-9000-45-5TP Industrial 5Port Gigabit Ethernet Switch with 4*PoE and 1*RJ45 Uplink IP40 DIN-Rail Unmanaged Plug&Play

keepLiNK KP-9000-45-5TP Industrial 5Port Gigabit Ethernet Switch with 4*PoE and 1*RJ45 for Uplink IP40 DIN-Rail Unmanaged Plug&Play

SPECIFICATIONS

Brand Name: keepLiNK

High-concerned Chemical: None

Function: POE

Number of Interfaces: 7

Certification: CE

Certification: FCC

Certification: RoHS

Switch Type: Gigabit Switch

Package: Yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: KP-9000-45-5TP

Transmission Rate: 10/100Mbps

Switch Capacity: 1G

Description

keepLiNK KP-9000-45-5TP Industrial 5 Port Gigabit Ethernet Switch with 4*PoE and 1*RJ45 for Uplink IP40 DIN-Rail Unmanaged Plug and Play

The KP-9000-45-5GP 5-port industrial Ethernet switches supports IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The KP-9000-45-5GP has 12-58 VDC redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), that comply with FCC, RoHS, and CE standards.

The KP-9000-45-5GP switch is available with a wide operating temperature range from -30 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the KP-9000-45-5TX switch has DIP switches for enabling or disabling broadcast storm protection and enabling port-isolation or disabling port-isolation, providing another level of flexibility for industrial applications.

Features and Benefits

• 10/100/1000BaseT(X) (RJ45 connector)
• IEEE802.3/802.3u Support
• Broadcast storm protection
• DIN-rail mounting ability
• -40 to 75°C wide operating temperature range
• IP40 Protection

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector): Support Auto negotiation speed, Full/half duplex mode
Standards: IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)

Switch Properties

MAC Table Size: 2K
Switching Capacity: 1G
Packet Forwarding Rate: 0.744Mpps
Packet Buffer Size: 768kbits
Forwarding delay: <5us
Jumbo Frame: Support 2kbits
Processing Type: Store and Forward
Flow Control: Unsupported
BSR: Supported
Port-Isolation: Supported
MDX/MIDX: Supported

Power Parameters

Connection: 1 removable 3-contact terminal Block(s)
Input Voltage: 12 to 58 VDC, Redundant dual inputs
Total Power Consumption: <5W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
MDX/MIDX: Supported

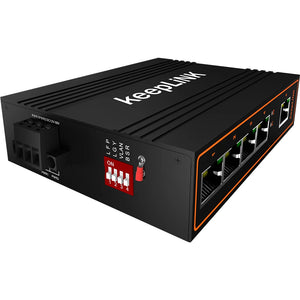

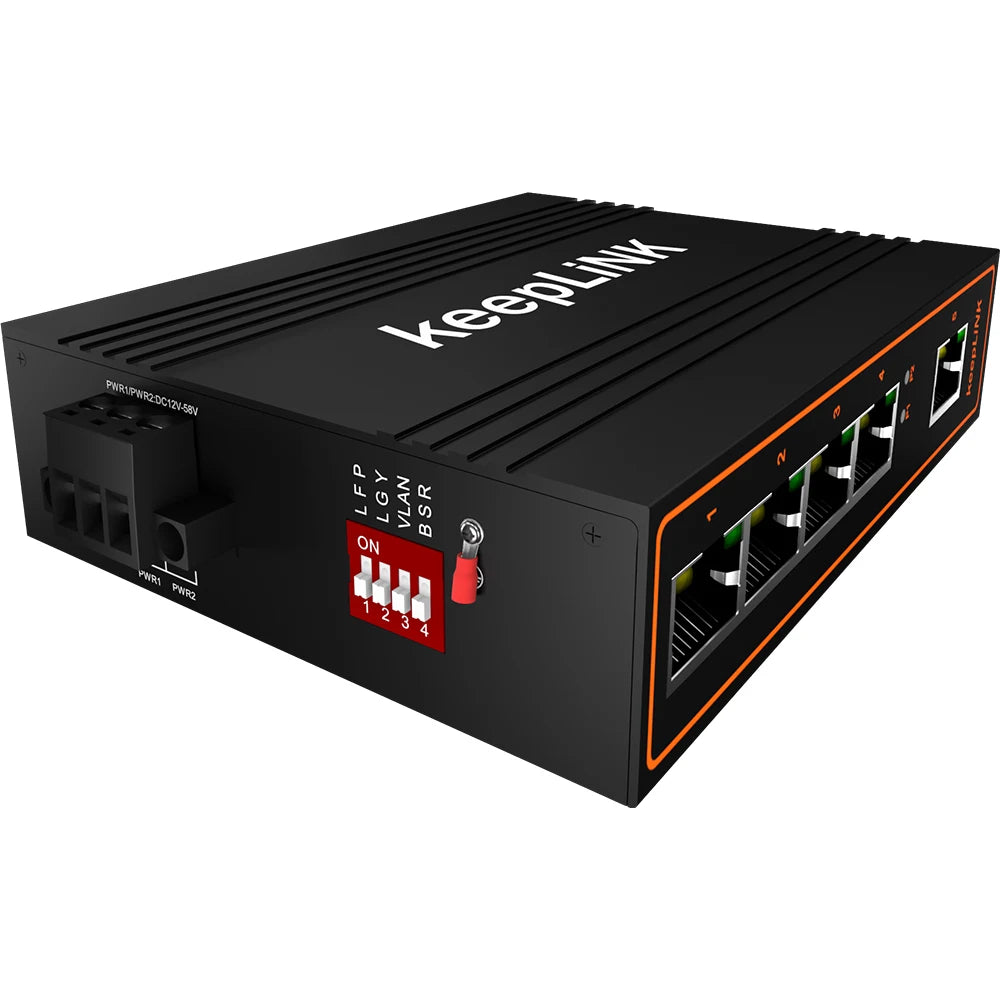

DIP Switch Configuration

LFP: NONE
LGY: NONE
VLAN: Port Isolation
BSR: Broadcast Storm Protection

Physical Characteristics

Housing: Aluminum+ Metal
IP Rating: IP40

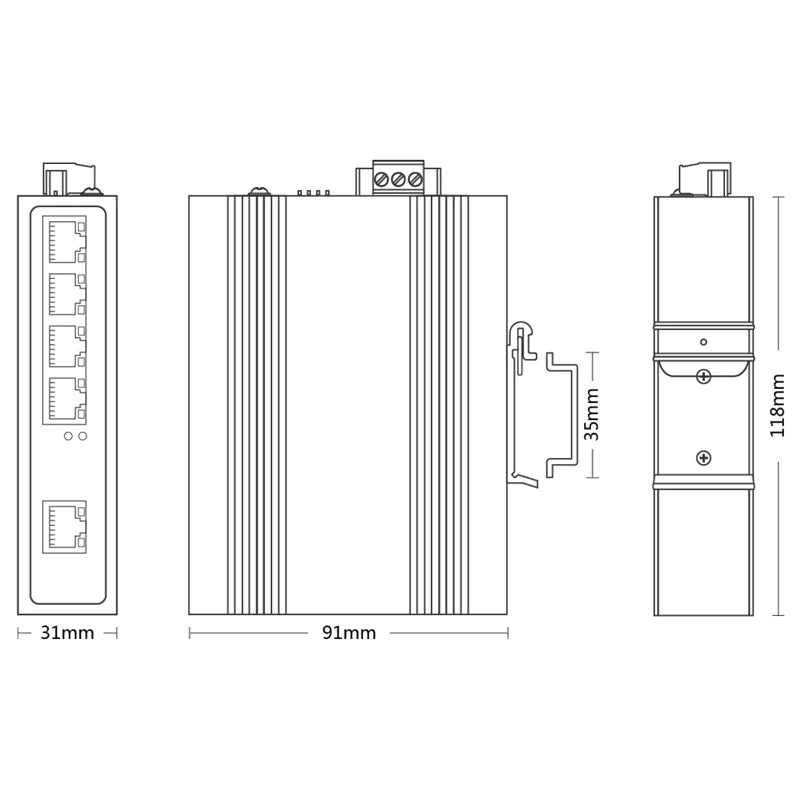

Dimensions:　91*118*31 mm (3.58*4.65*1.22 in)
Weight:　360g (0.79lb)

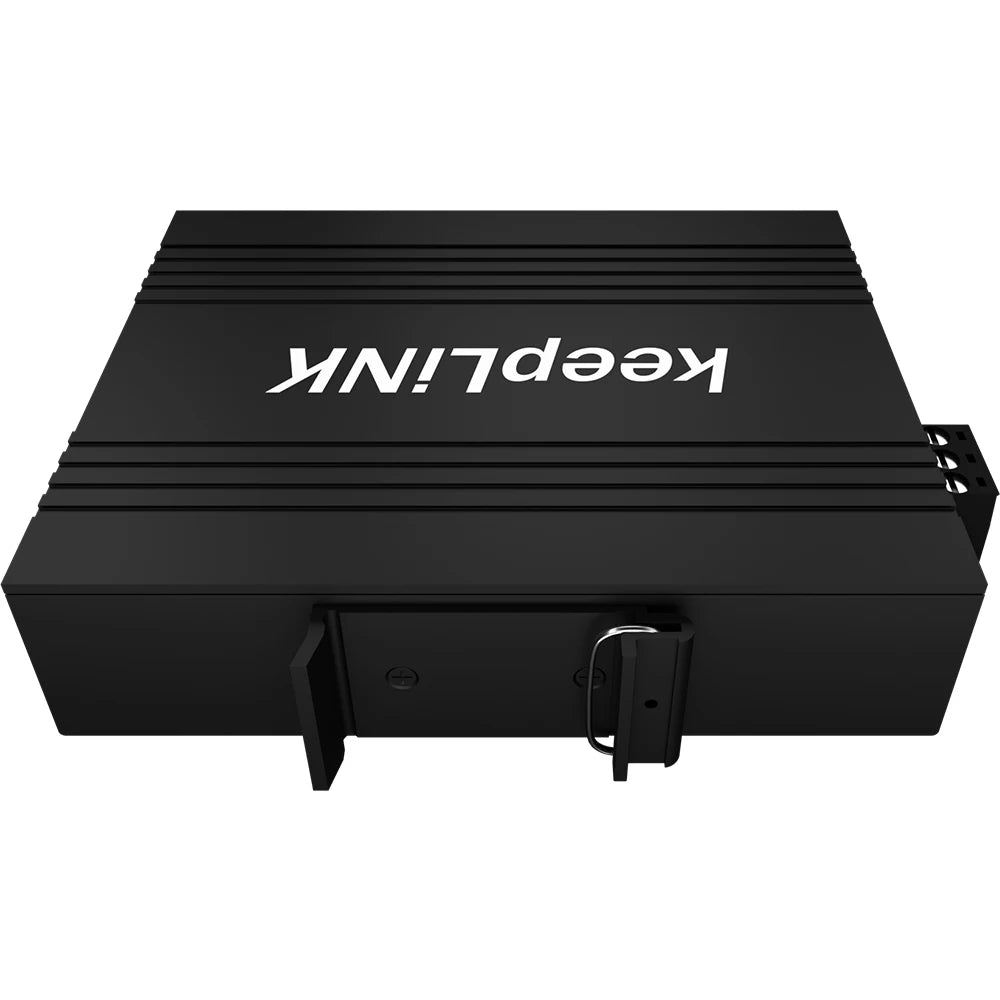

Installation: DIN Rail Mounting

Environmental Limits

Operating Temperature: -40 to 75°C (-22 to 167°F)
Storage Temperature (package included): -40 to 75°C (-22 to 167°F)
Ambient Relative Humidity: 10 to 90% (non-condensing)
Thermal Methods: Fanless

Standards and Certifications

EMC: EN 55032/24
EMI: FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Level 4, Contact: 8 kV; Air: 15 kV
IEC 61000-4-5 Surge: Level 3, Power: 4 kV; Signal: 2 kV
Freefall: IEC 60068-2-31

MTBF

Time: 100,000hrs
