KeepLiNK Industrial Ethernet Switch 2-port Gigabit Fiber SFP 8-port Gigabit RJ45 Unmanaged DIN-RAIL 12 to 58 VDC KP-9000-65-2GX8GT

Regular price: R 8,680.95
Sale price: R 8,680.95
Regular price: ~~R 11,188.78~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Ambient Relative Humidity: 5 to 95% (non-condensing)

BSR: Supported

Brand Name: keepLiNK

Caese Material: Aluminum

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

Compliance Mark: CE RoHS FCC

Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Dimensions: 143*104*48 mm (5.63*4.09*1.89 in)

EMC: EN 55032/24

EMI: FCC Part 15B Class A

Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V

Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV

Flow Control: supported

Forwarding delay: <10us

Freefall: IEC 60068-2-31 Class T2.3(1m drop)

Function: VLAN Support

High-concerned chemical: None

IP Rating: IP40

Input Voltage: 12 to 58 VDC, Redundant dual inputs

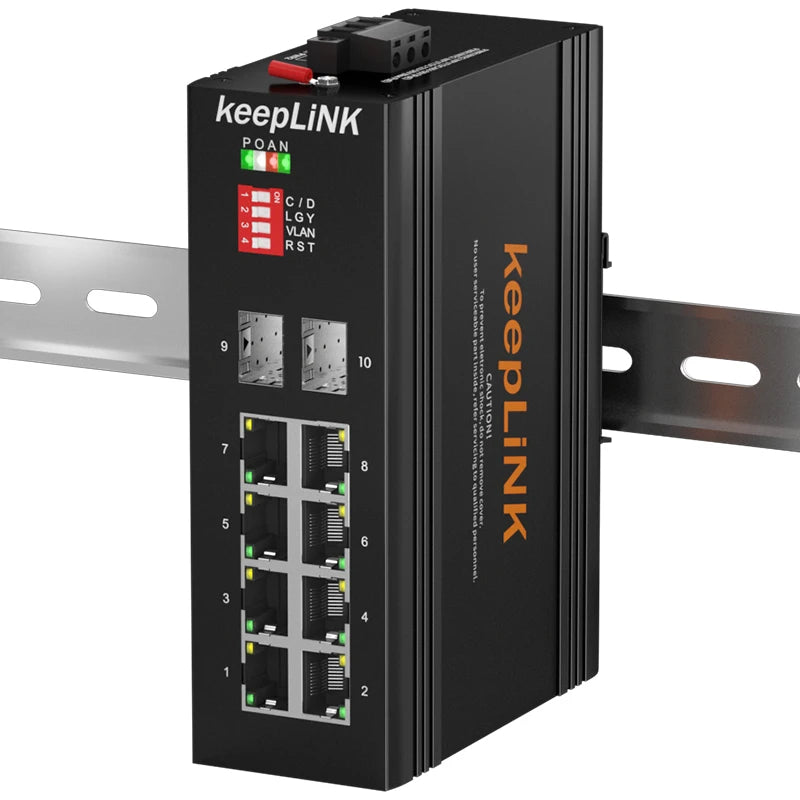

Installation: DIN Rail Mounting

Jumbo Frame: Support 10kbits

Lighting/Surge immunity (Surge): IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV

MAC Table Size: 16K

MDX/MIDX: Supported

Model Number: KP-9000-65-2GX8GT

Number of Interfaces: 10

Operating Temperature: -40°C to 75°C (-40o 167°F)

Overload Current Protection: Supported

Package: Yes

Packet Buffer Size: 12M

Packet Forwarding Rate: 19.34Mpps

Port-Isolation: Supported

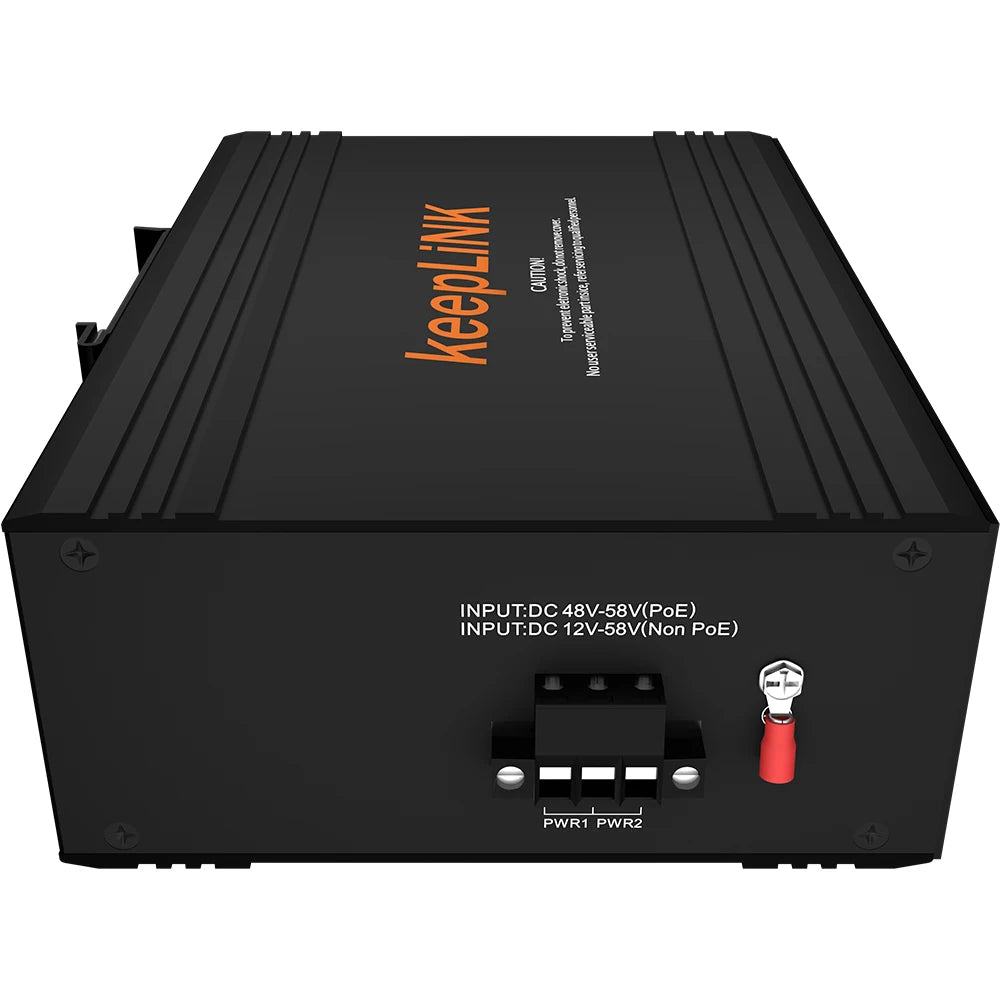

Power Connection: 1 removable 3-contact terminal Block(s)

Processing Type: Store and Forward

Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m

Reverse Polarity Protection: Supported

Shock (01): IEC60068-2-27: operational: 15g 11ms, half sine

Shock (02): MIL-STD-810G, 2008: operational: 15g 11ms, half sine

Storage Temperature: -40°C to 75°C (-40o 167°F)

Switch Capacity: 36G

Switch Type: Gigabit Switch

Thermal Methods: Fanless

Total Power Consumption: <6W

Transmission Rate: 10/100/1000Mbps

VLAN: Support

Vibration (01): IEC60068-2-6 operational: 1g@10-150Hz

Vibration (02): MIL-STD-810G, 2008

Watch dog: Supported

Weight: 500g (1.10lb)

Description

The KeepLink KP-9000-65-2GX8GT multipurpose unmanaged Layer 2 switch is idea for Smart Cites applications, harsh industrial environments, and any situation where tough and reliable devices are required.

With a wide operating temperature range of between -40°C and 75°C, the KP-9000-65-2GX8GT tolerates demanding environments, such as those found in industrial and outdoor deployments.

This high-performing, cost-effective switch meets the stringent performance requirements of today's industrial networks. Featuring support for up to 16K MAC addresses, the KP-9000-65-2GX8GT is ideal for edge networking.

Features

Ruggedized design that meets industrial standards for temperature, vibration and electrical noise
Flexible deployment with a compact design, and wide operating temperature, supporting external building and other outdoor and public-space environments
Connect and power surveillance cameras, and other IoT devices with a single Ethernet connection
Simple plug-and-play deployment for easy network edge expansion
Highly affordable industrial PoE solution

Benefits

Wide operating temp range: -40°C to 75°C supports outdoor operation
Fanless, with air convection cooling for high reliability
8 x 10/100/1000T fixed ports + 2 x SFP Gigabit slot
Dual power input with reverse polarity and current overload protection
IP40 Protection
Aluminum Case

Dedicated to Industrial Networking Solution.

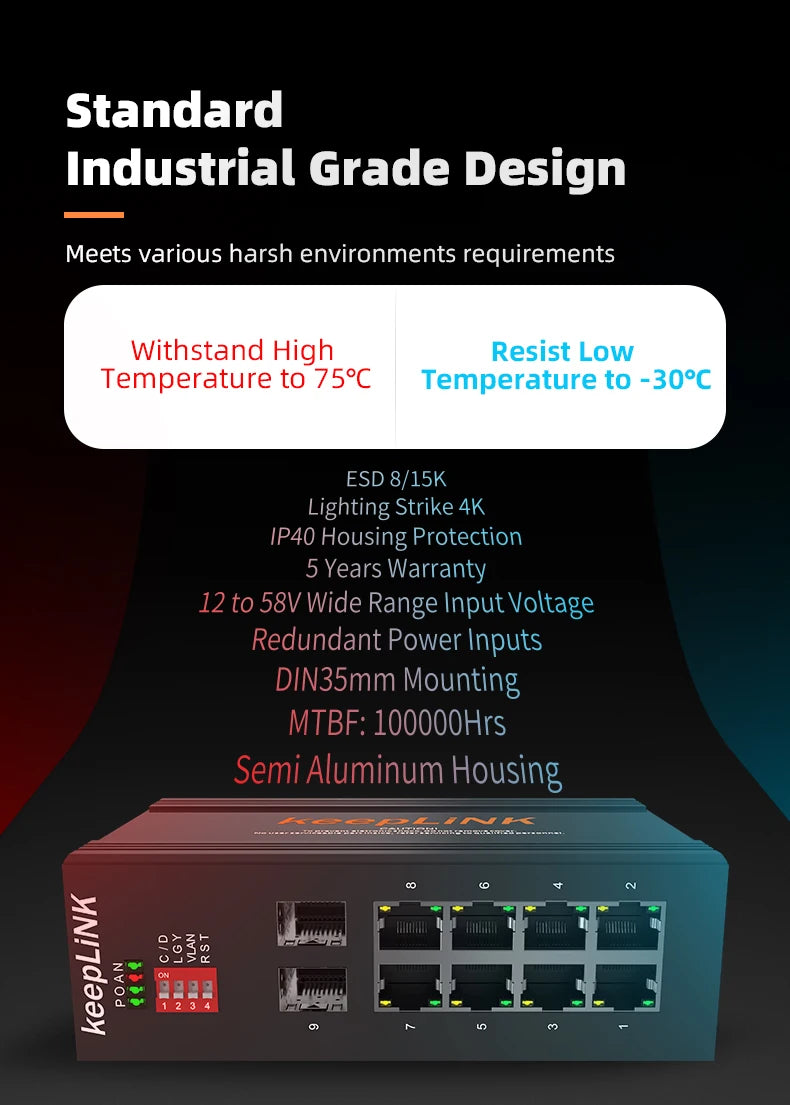

Standard Industrial Grade Design

Meets various harsh environments requirements.

16 Testing Procedures

Attention to details, Test every step of the way

Multiple Industrial Testing Certifications

Comply with CCC, FCC, CE and RoHS Standards

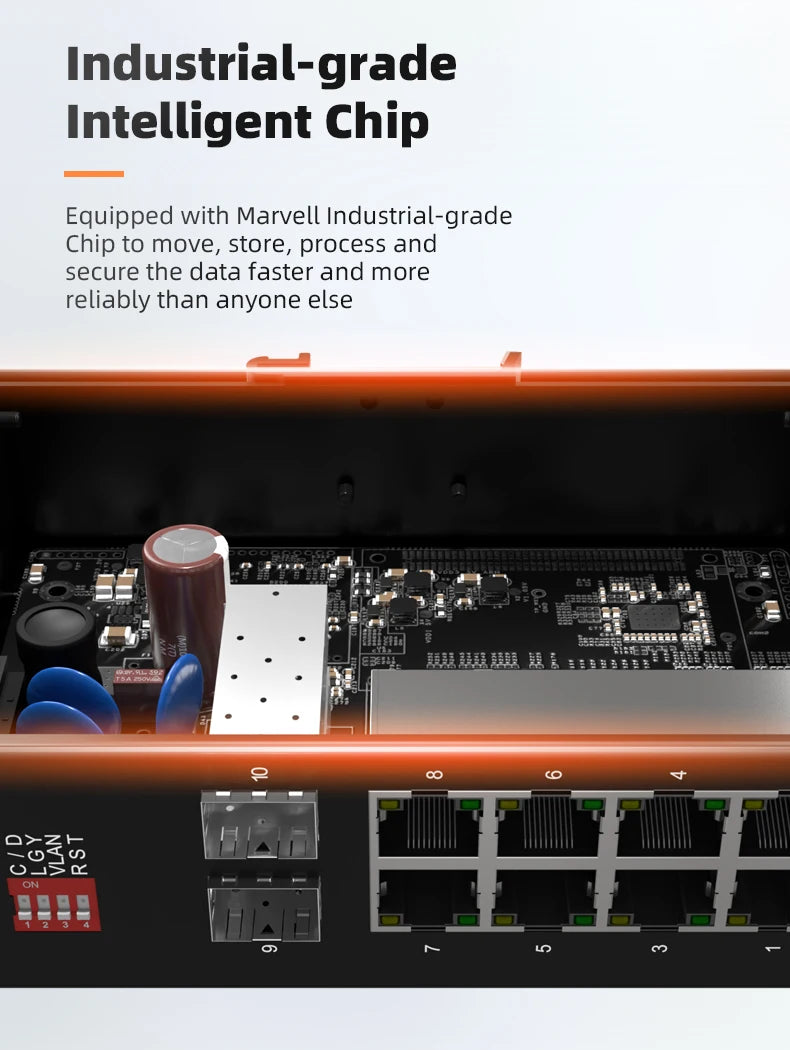

Industrial-grade Intelligent Chip

Equipped with Marvell Industrial-grade Chip to move, store, process and secure the data faster and more reliably than anyone else

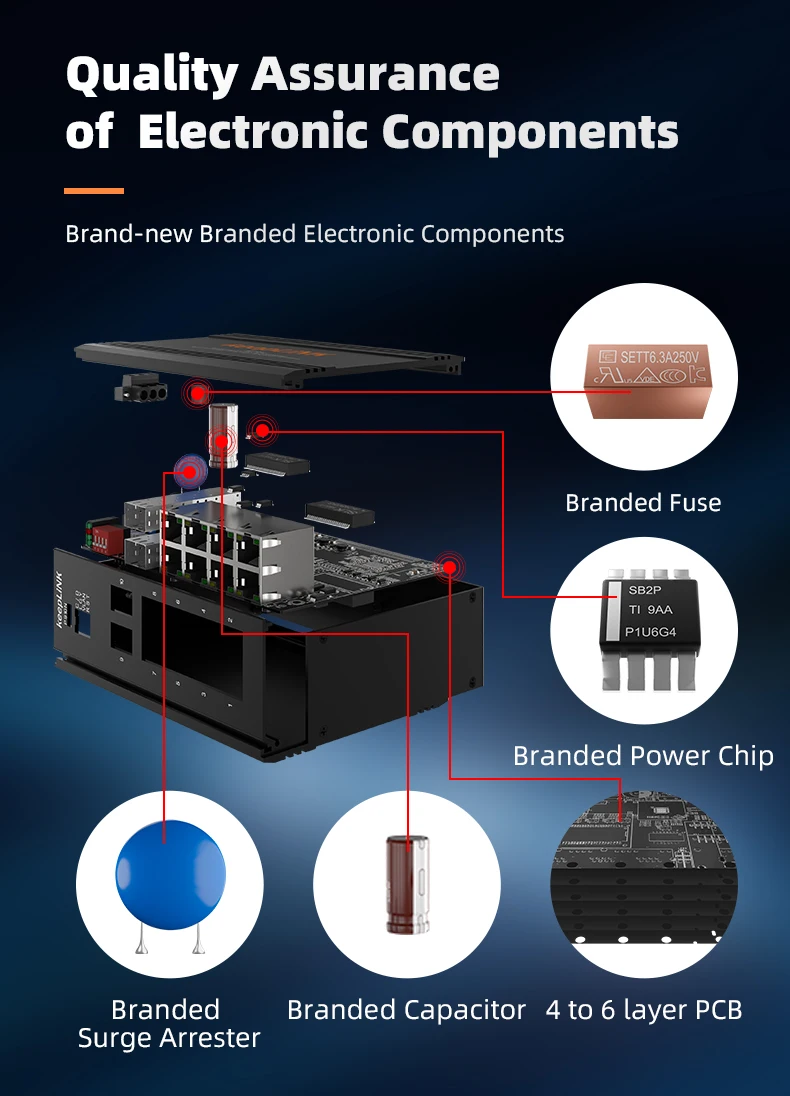

Quality Assurance of Electronic Components

Brand-new Branded Electronic Components

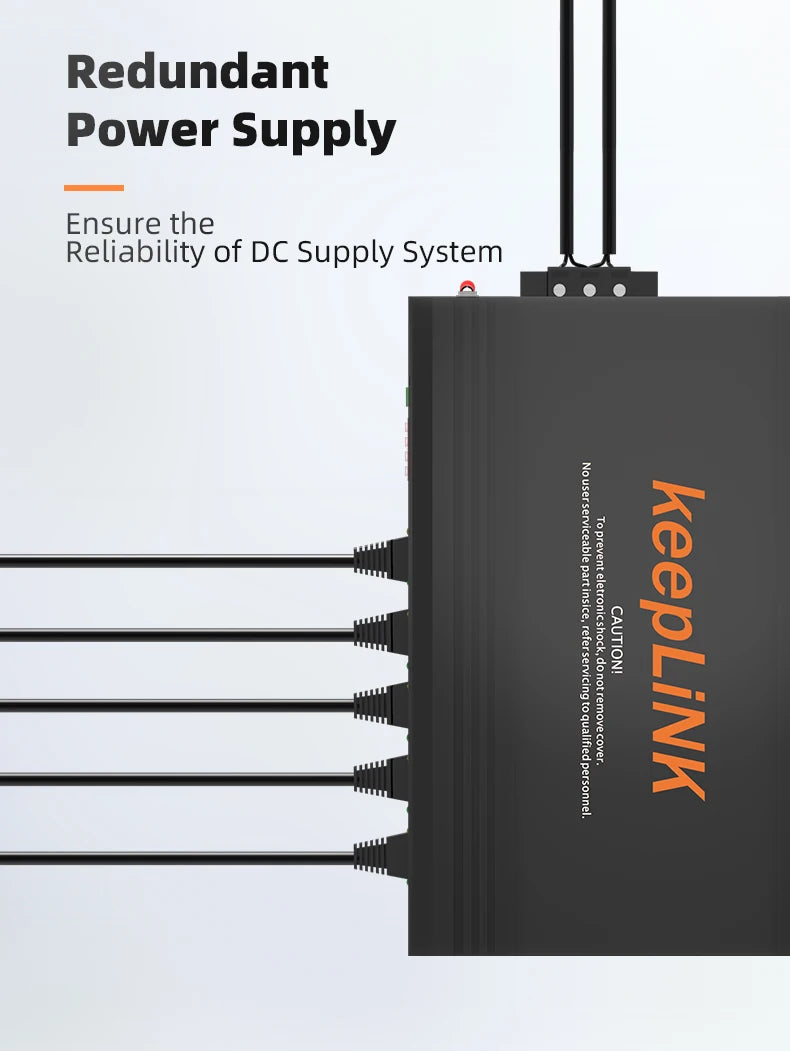

Redundant Power Supply

Ensure the Reliability of DC Supply System

Provide Solution Services for Networking Applications

Skilled Tech Support Team, Offer Free Design For Networking Applications

Industrial-grade Strong Compatibility

Compatible with brands of PLC and Ethernet Switches

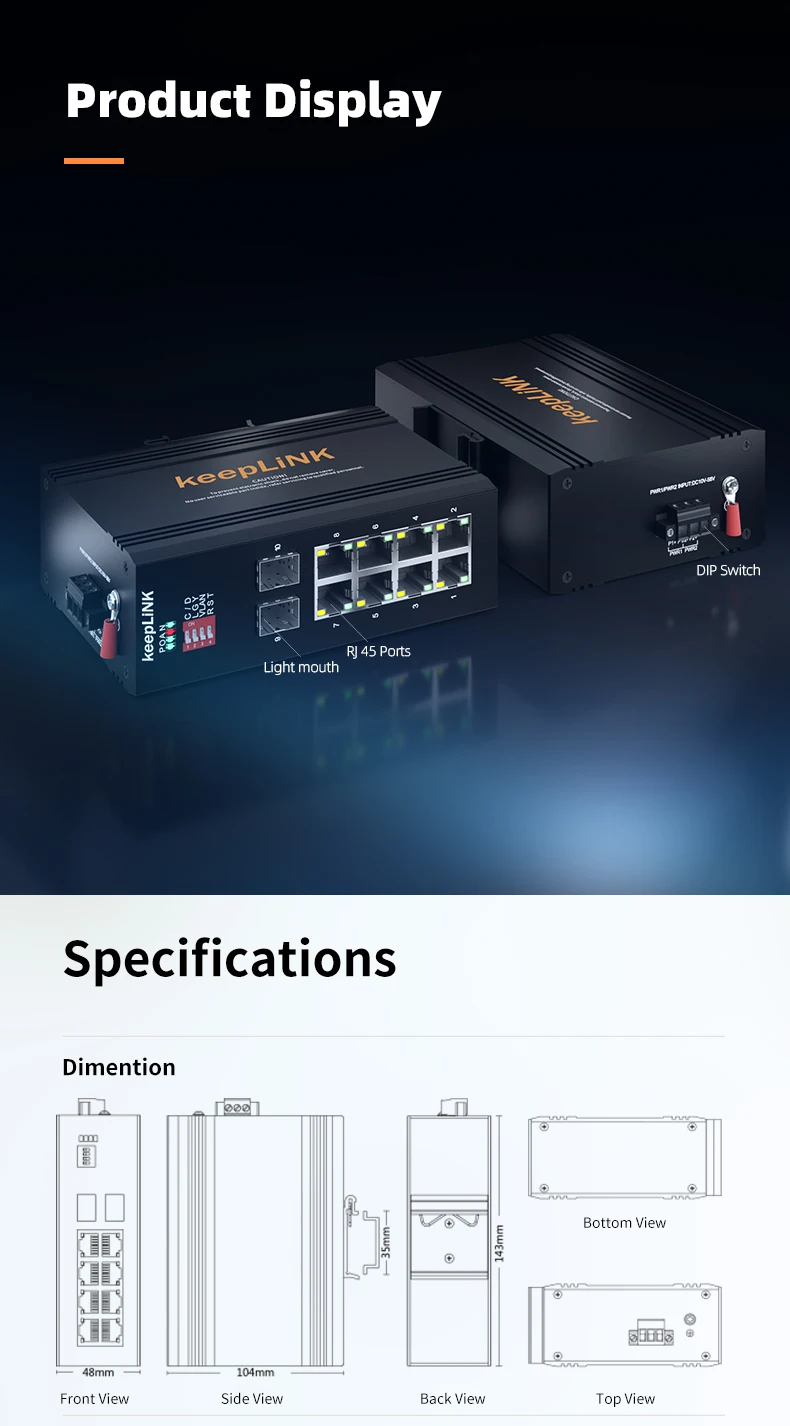

Product Display

On the fence about this KeepLiNK Industrial Ethernet Switch 2-port Gigabit Fiber SFP 8-port Gigabit RJ45 Unmanaged DIN-RAIL 12 to 58 VDC KP-9000-65-2GX8GT? Don't be. Let our satisfaction guarantee address your concerns.
