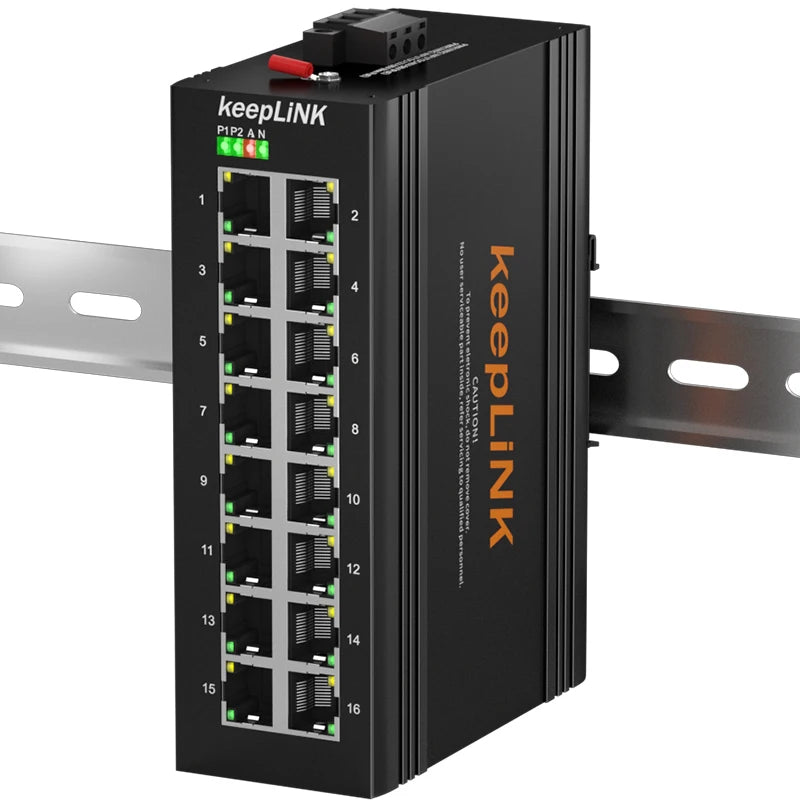

keepLiNK Industrial Ethernet Switch 16-Port Gigabit 100/1000Mpbs Unmanaged with IP40 rating Ethernet Network Switch KP-9000-65-16GT

Regular price: R 13,795.91
Sale price: R 13,795.91
Regular price: ~~R 17,970.99~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

keepLiNK Industrial Ethernet Switch 16-Port Gigabit 100/1000Mpbs Unmanaged with IP40 protection rating Ethernet Network Switch KP-9000-65-16GT

SPECIFICATIONS

Ambient Relative Humidity: 5 to 95% (non-condensing)

BSR: Supported

Brand Name: keepLiNK

Caese Material: Aluminum

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

Compliance Mark: CE RoHS FCC

Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Dimensions: 143*104*48 mm (5.63*4.09*1.89 in)

EMC: EN 55032/24

EMI: FCC Part 15B Class A

Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V

Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV

Flow Control: supported

Forwarding delay: <5us

Freefall: IEC 60068-2-31 Class T2.3(1m drop)

Function: LACP,QoS,SNMP,VLAN Support

IP Rating: IP40

Input Voltage: 12 to 58 VDC, Redundant dual inputs

Installation: DIN Rail Mounting

Jumbo Frame: Support 10kbits

Lighting/Surge immunity (Surge): IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV

MAC Table Size: 8K

MDX/MIDX: Supported

Model Number: KP-9000-65-16GT

Number of Interfaces: 17

Operating Temperature: -40°C to 75°C (-40o 167°F)

Overload Current Protection: Supported

Package: Yes

Packet Buffer Size: 2M

Packet Forwarding Rate: 19.34Mpps

Port-Isolation: Supported

Power Connection: 1 removable 3-contact terminal Block(s)

Processing Type: Store and Forward

Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m

Reverse Polarity Protection: Supported

Shock (01): IEC60068-2-27: operational: 15g 11ms, half sine

Shock (02): MIL-STD-810G, 2008: operational: 15g 11ms, half sine

Storage Temperature: -40°C to 75°C (-40o 167°F)

Switch Capacity: 32G

Switch Type: Gigabit Switch

Thermal Methods: Fanless

Total Power Consumption: <6W

Transmission Rate: 10/100/1000Mbps

VLAN: Support

Vibration (01): IEC60068-2-6 operational: 1g@10-150Hz

Vibration (02): MIL-STD-810G, 2008

Watch dog: Supported

Weight: 800g (1.10lb)

Features and Benefits

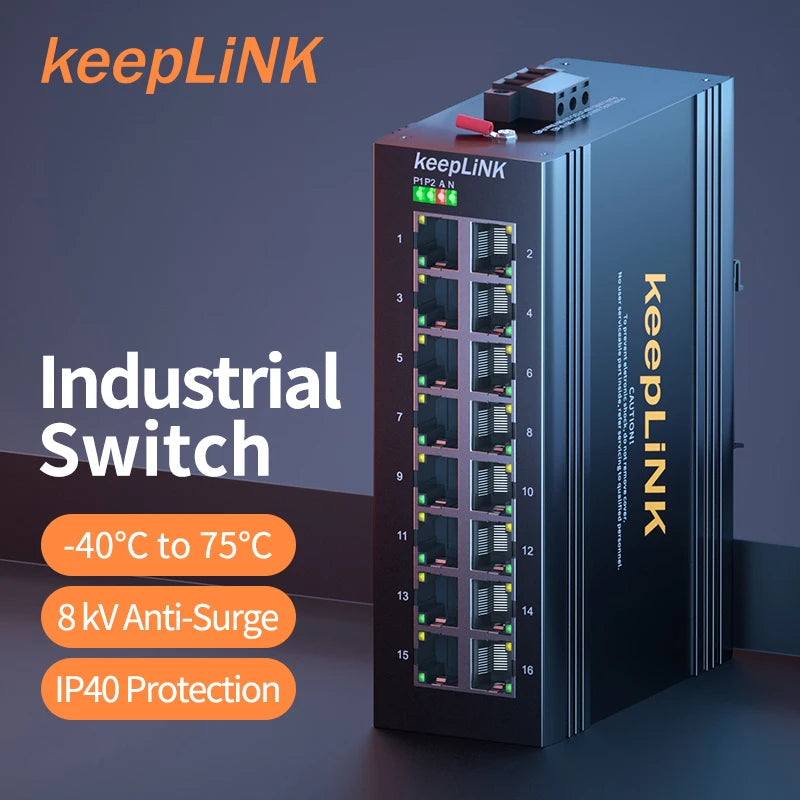

Wide operating temp range: -40°C to 75°C supports outdoor operation
Fanless, with air convection cooling for high reliability
Dual power input with reverse polarity and current overload protection
IP40 Protection
Aluminum Case

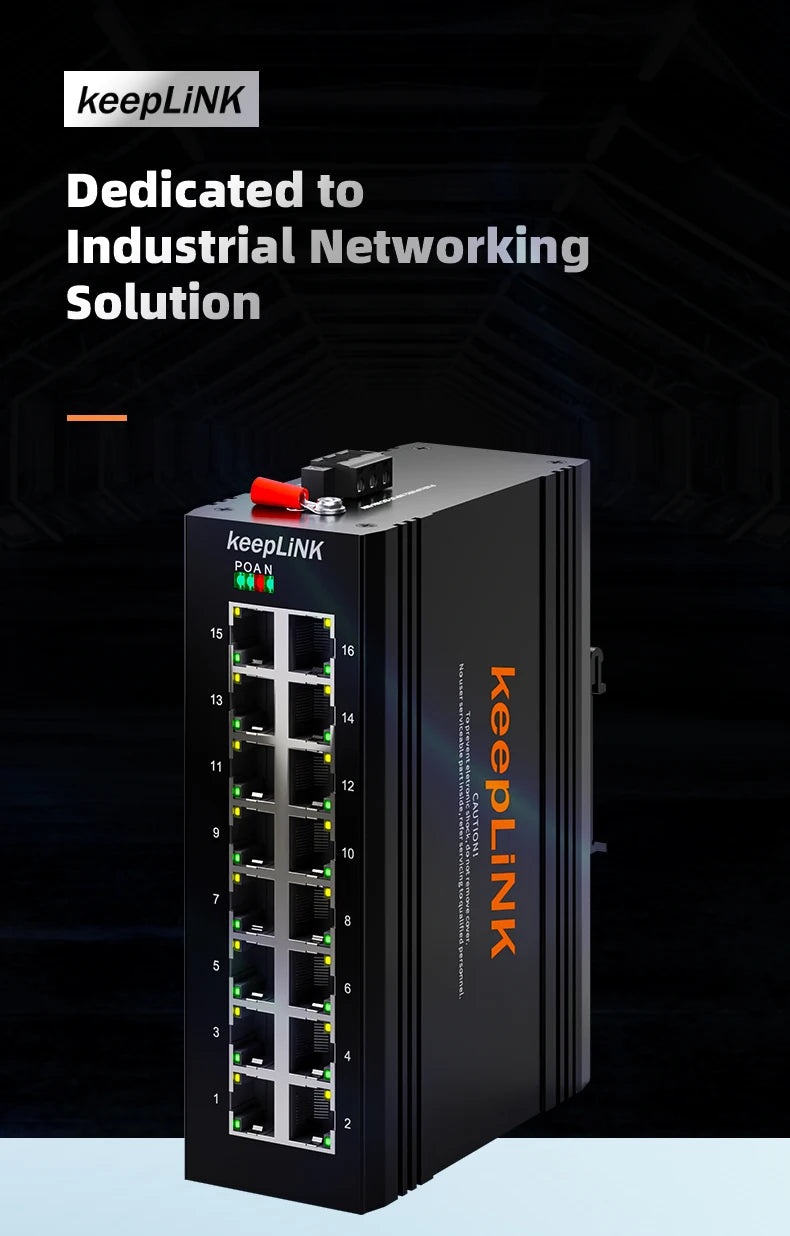

Dedicated to Industrial Networking Solution.

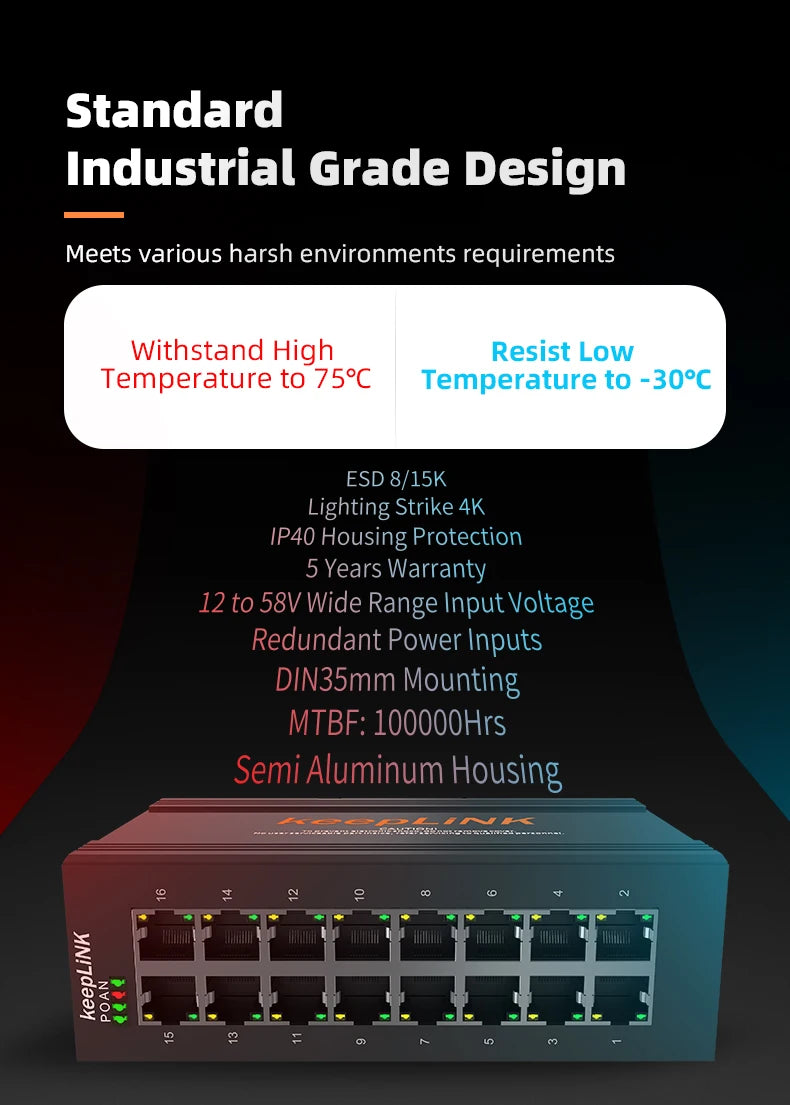

Standard Industrial Grade Design

Meets various harsh environments requirements.

16 Testing Procedures

Multiple Industrial Testing Certifications

Comply with CCC, FCC, CE and RoHS Standards

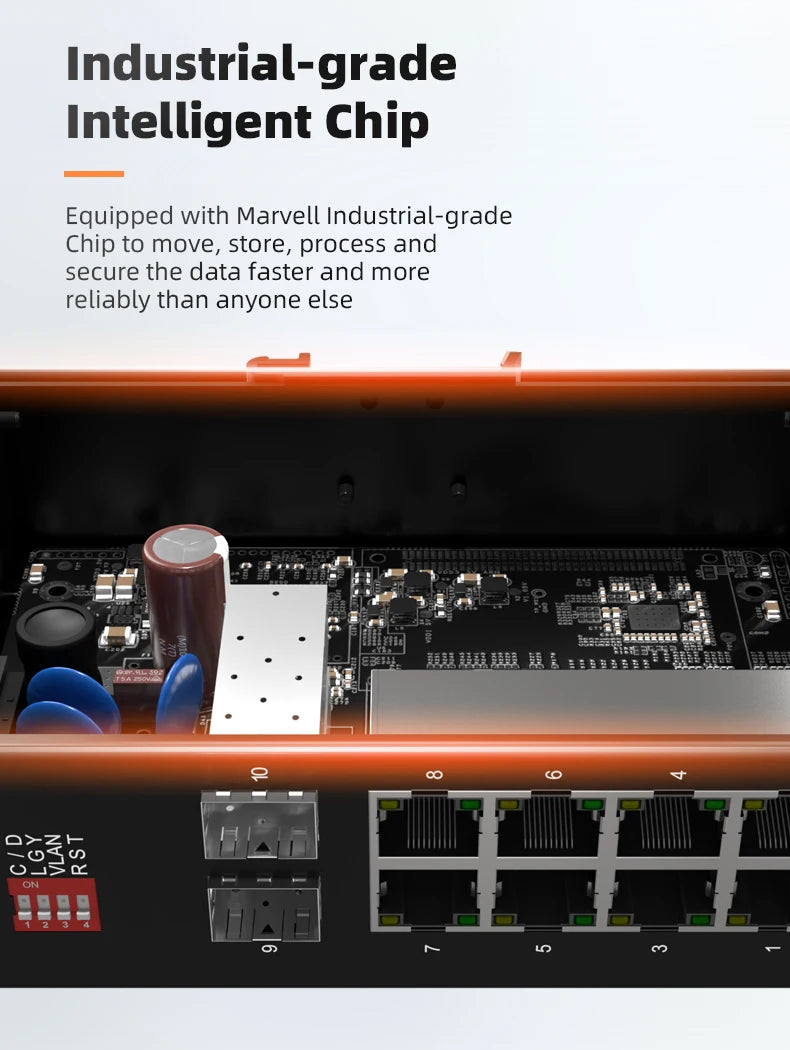

Industrial-grade Intelligent Chip

Equipped with Marvell Industrial-grade Chip to move, store, process and secure the data faster and more reliably than anyone else

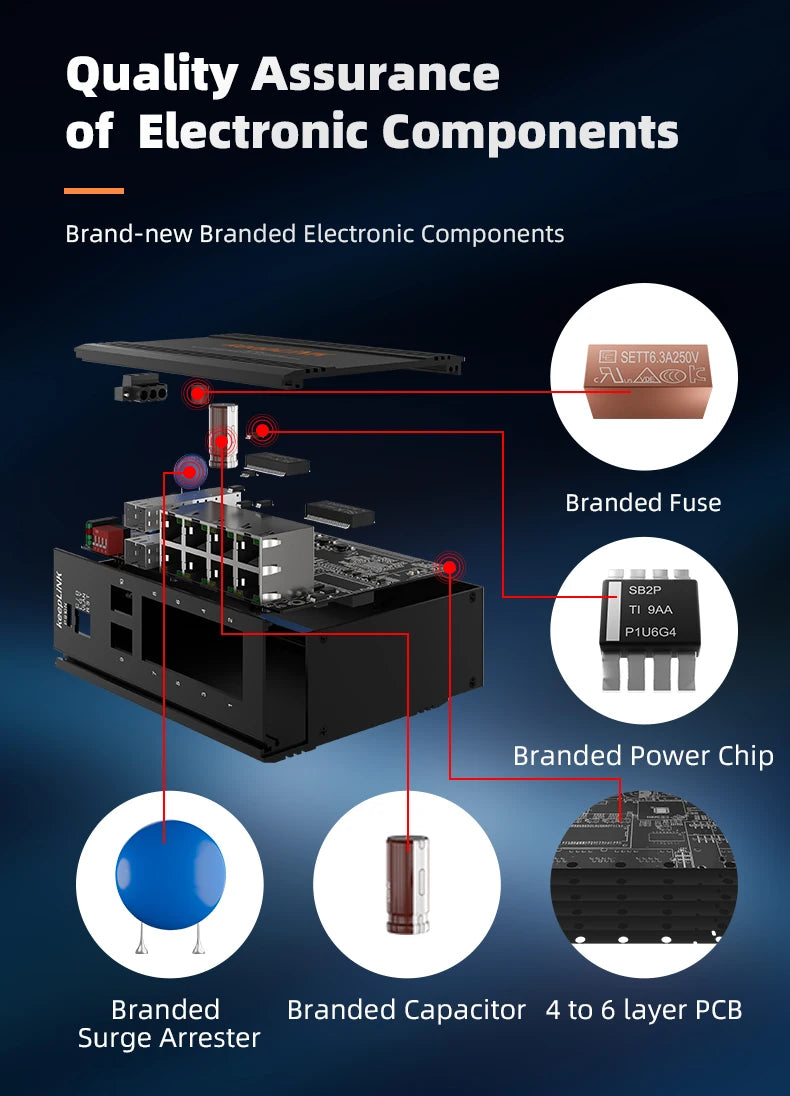

Quality Assurance of Electronic Components

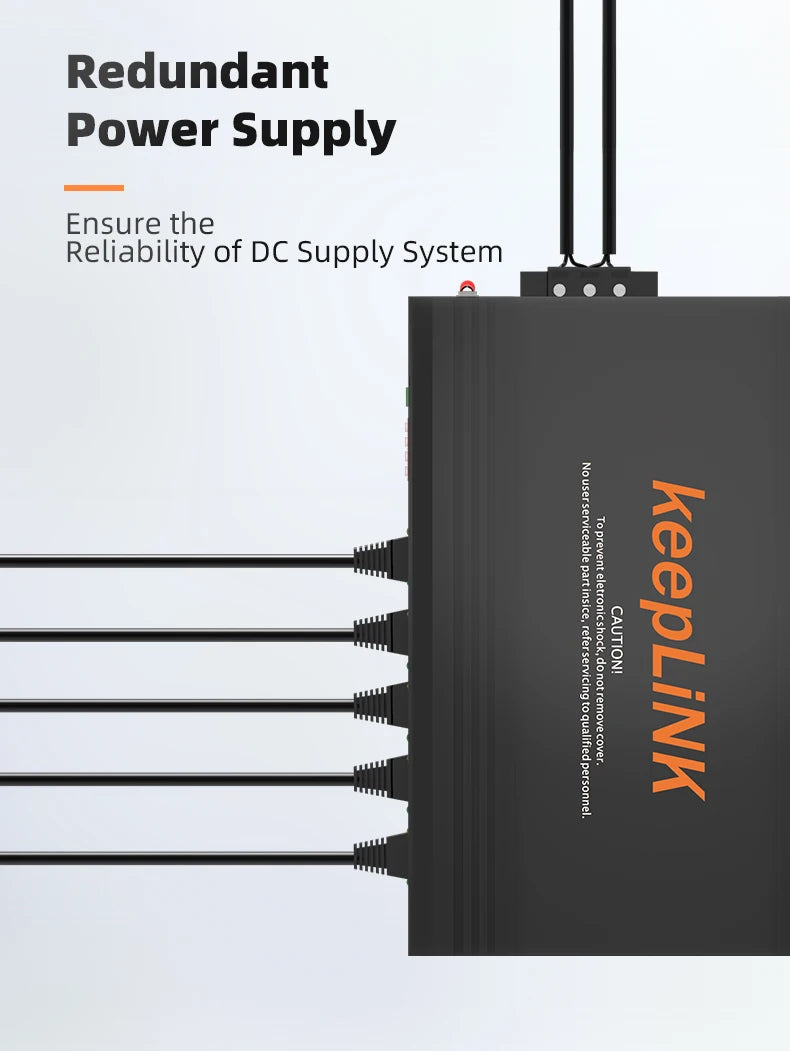

Redundant Power Supply

Ensure the Reliability of DC Supply System

Provide Solution Services for Networking Applications

Skilled Tech Support Team, Offer Free Design For Networking Applications

Industrial-grade Strong Compatibility

Compatible with brands of PLC and Ethernet Switches

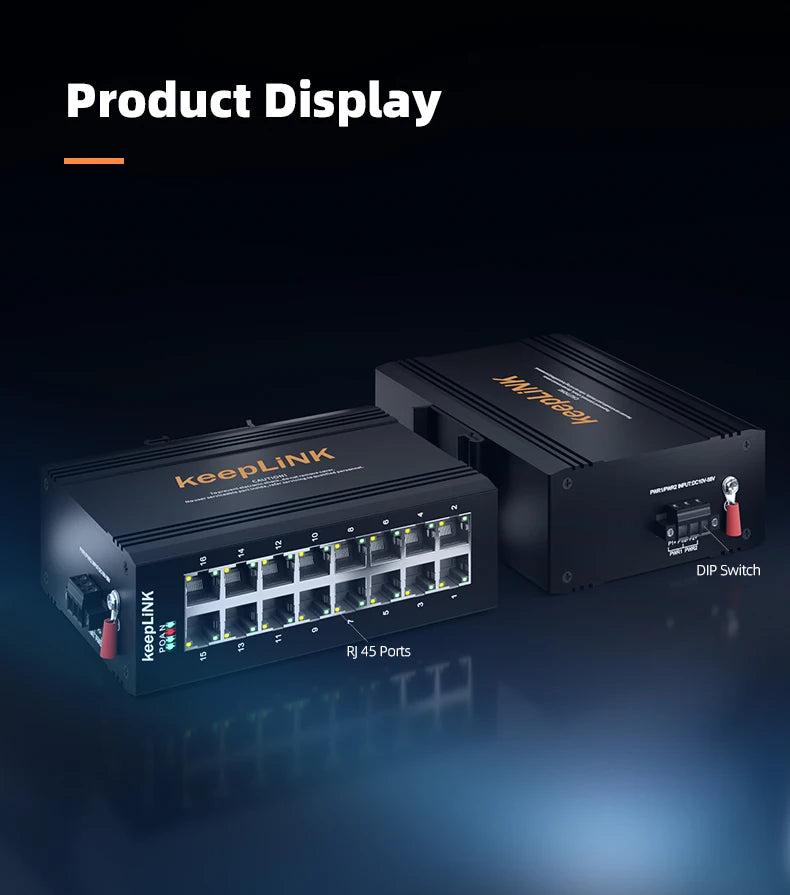

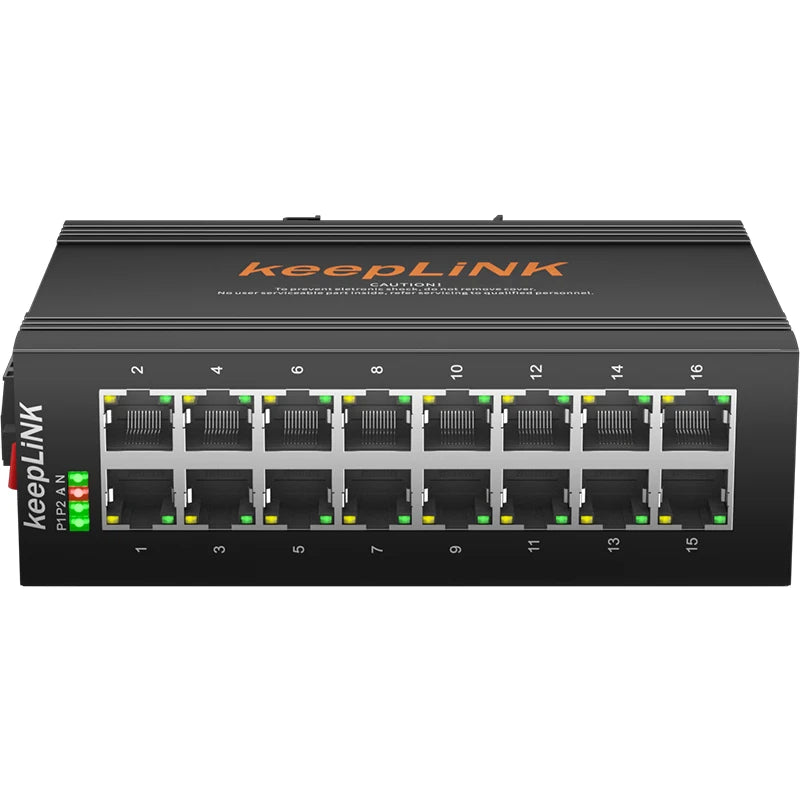

Product Display

Dimention

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector): Support Auto negotiation speed, Full/half duplex mode
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT

Switch Properties

MAC Table Size: 8K
Switching Capacity: 32G
Packet Forwarding Rate: 23.8Mpps
Packet Buffer Size: 2M
Forwarding delay: <10us
Jumbo Frame: Support 10kbits
Processing Type: Store and Forward
Flow Control: supported
BSR: Supported
Port-Isolation: Supported
MDX/MIDX: Supported
Watch dog: Supported

Power Parameters

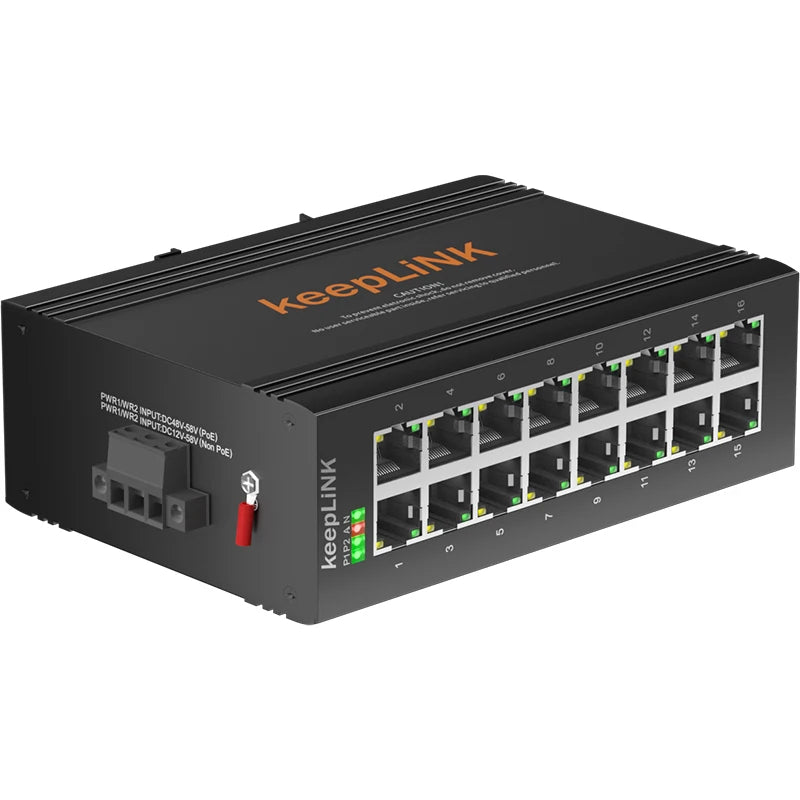

Connection: 1 removable 3-contact terminal Block(s)
Input Voltage: 12 to 58 VDC, Redundant dual inputs
Total Power Consumption: <6W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported

DIP Switch Configuration

LFP: Reserve
LGY: Reserve
VLAN: Port Isolation
RST: Reset

Physical Characteristics

Housing: Aluminum
IP Rating: IP40
Dimensions:　143*104*48 mm (5.63*4.09*1.89 in)
Weight:　800g

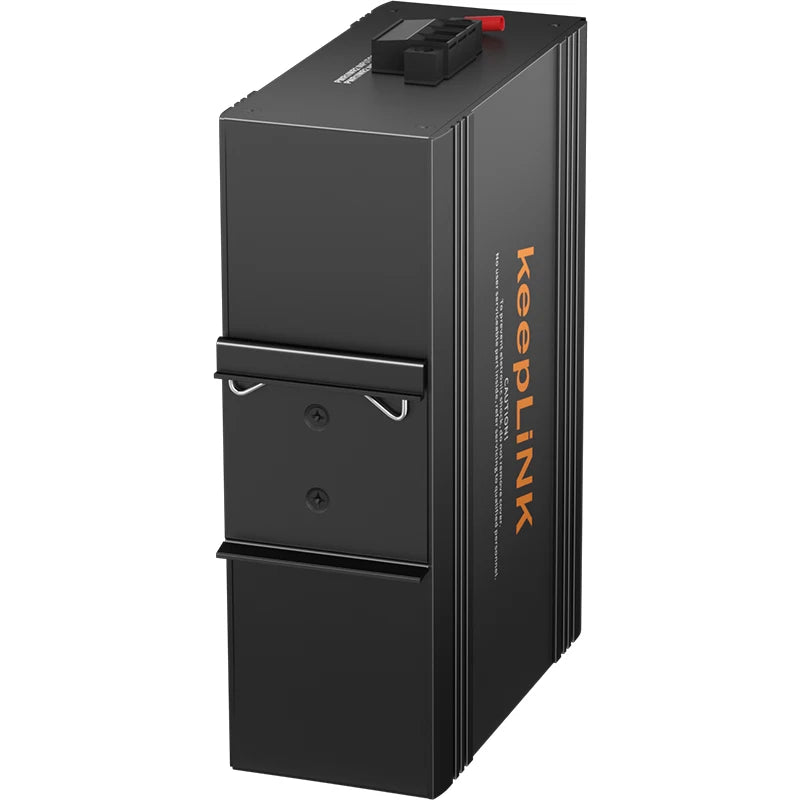

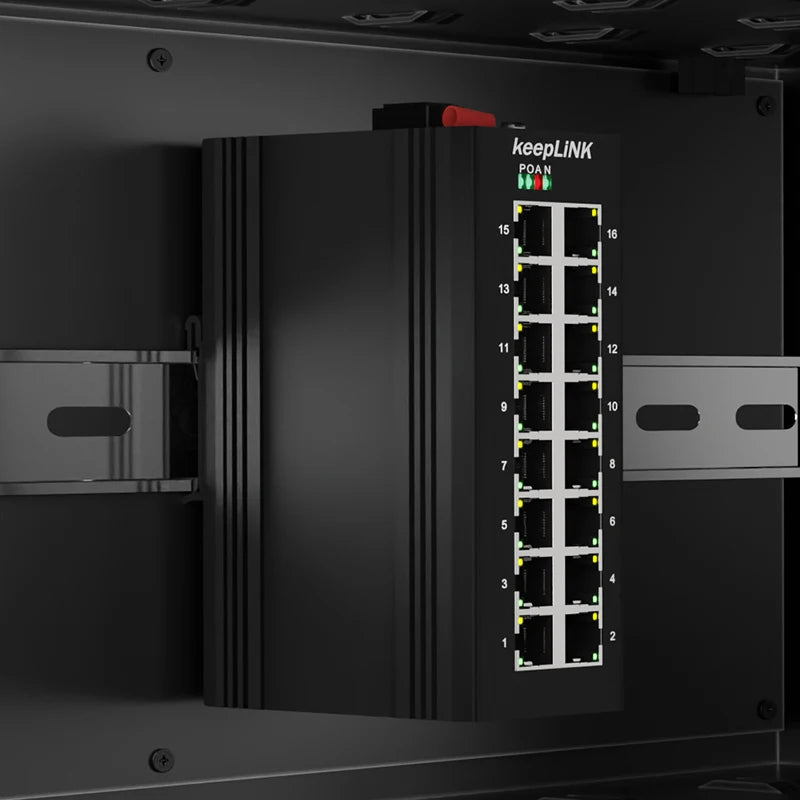

Installation: DIN Rail Mounting

Environmental Limits

Operating Temperature: -40°C to 75°C (-40o 167°F)
Storage Temperature (package included): -40°C to 75°C (-40o 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Thermal Methods: Fanless

Standards and Certifications

Compliance Mark: CE RoHS FCC
EMC: EN 55032/24
EMI: FCC Part 15B Class A
Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV
Lighting/Surge immunity (Surge) : IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV
Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m
Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V
Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Freefall: IEC 60068-2-31 Class T2.3(1m drop)
Shock: IEC60068-2-27: operational: 15g 11ms, half sine
MIL-STD-810G, 2008: operational: 15g 11ms, half sine
Vibration: IEC60068-2-6 operational: 1g@10-150Hz
MIL-STD-810G, 2008: operational: Procedure 1, Category 4, per Figure 514.6C-1

MTBF

Time: 100,000hrs

The keepLiNK Industrial Ethernet Switch 16-Port Gigabit 100/1000Mpbs Unmanaged with IP40 rating Ethernet Network Switch KP-9000-65-16GT is the yin, to your yang. You've found what you're looking for.
