KeepLink Industrial 5-Port Switch 10/100Mbps Fast Gigabit Din-Rail Metal IP40 Unmanaged Ethernet Network Switch KP-9000-45-5TX

Regular price: R 4,520.85
Sale price: R 4,520.85
Regular price: ~~R 5,605.85~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: keepLiNK

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

Function: VLAN Support

High-concerned chemical: None

Model Number: KP-9000-45-5TX

Number of Interfaces: 7

Package: Yes

Switch Capacity: 1G

Switch Type: Fast Switch

Transmission Rate: 10/100Mbps

VLAN: No

Description

The KP-9000-45-5TX 5-port industrial Ethernet switches supports IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The KP-9000-45-5TX has 12-58 VDC redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), that comply with FCC, RoHS, and CE standards.

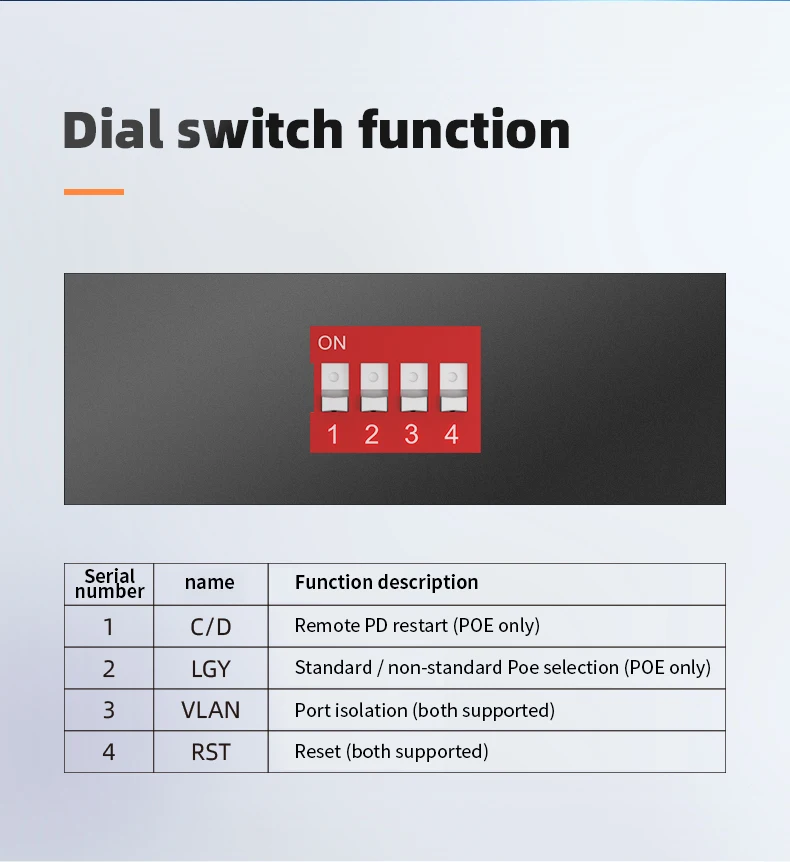

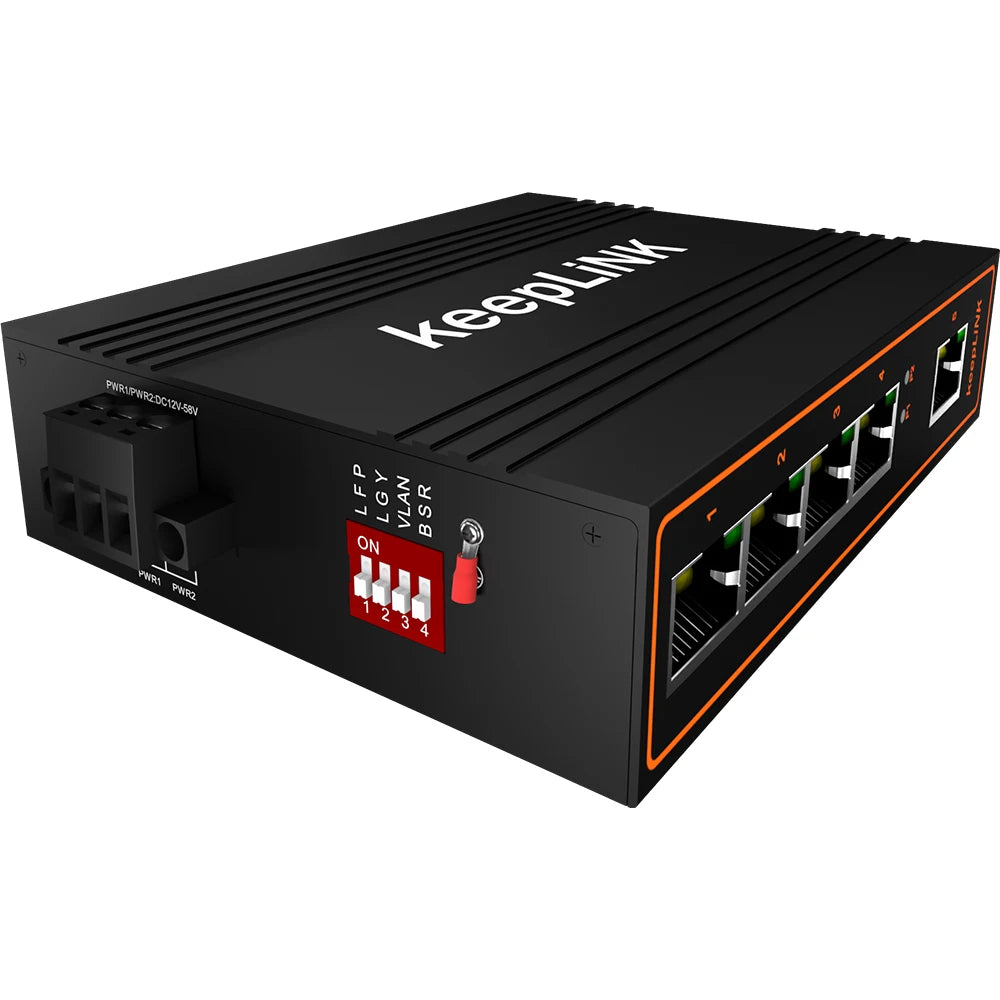

The KP-9000-45-5TX switch is available with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the KP-9000-45-5TX switch has DIP switches for enabling or disabling broadcast storm protection and enabling port-isolation or disabling port-isolation, providing another level of flexibility for industrial applications.

Features and Benefits

10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u Support
Broadcast storm protection

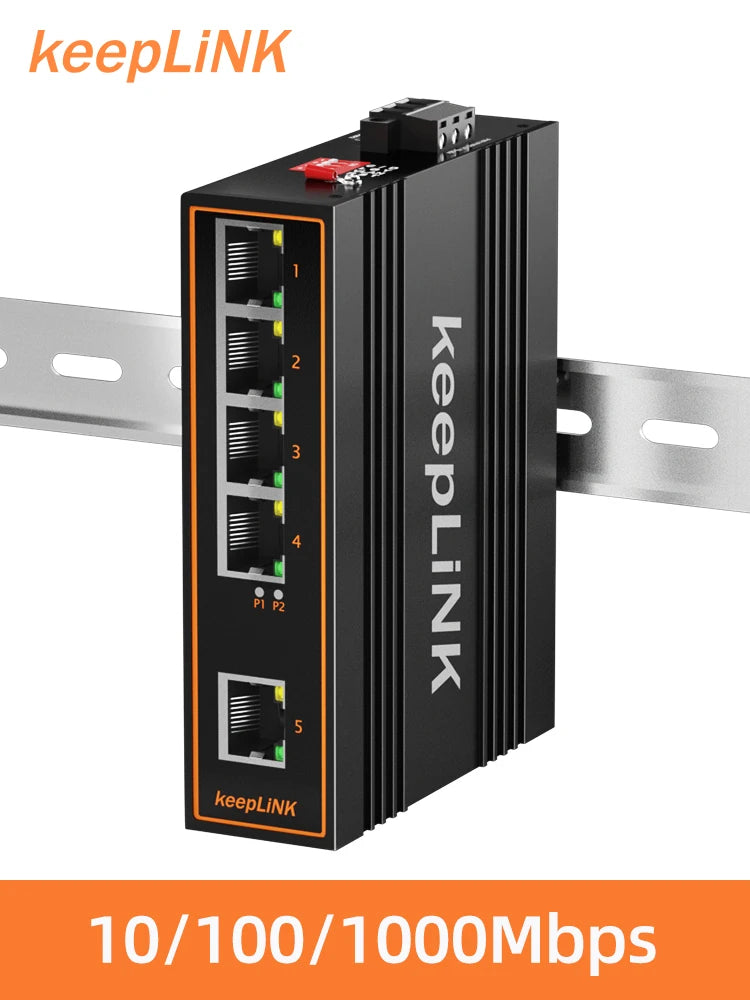

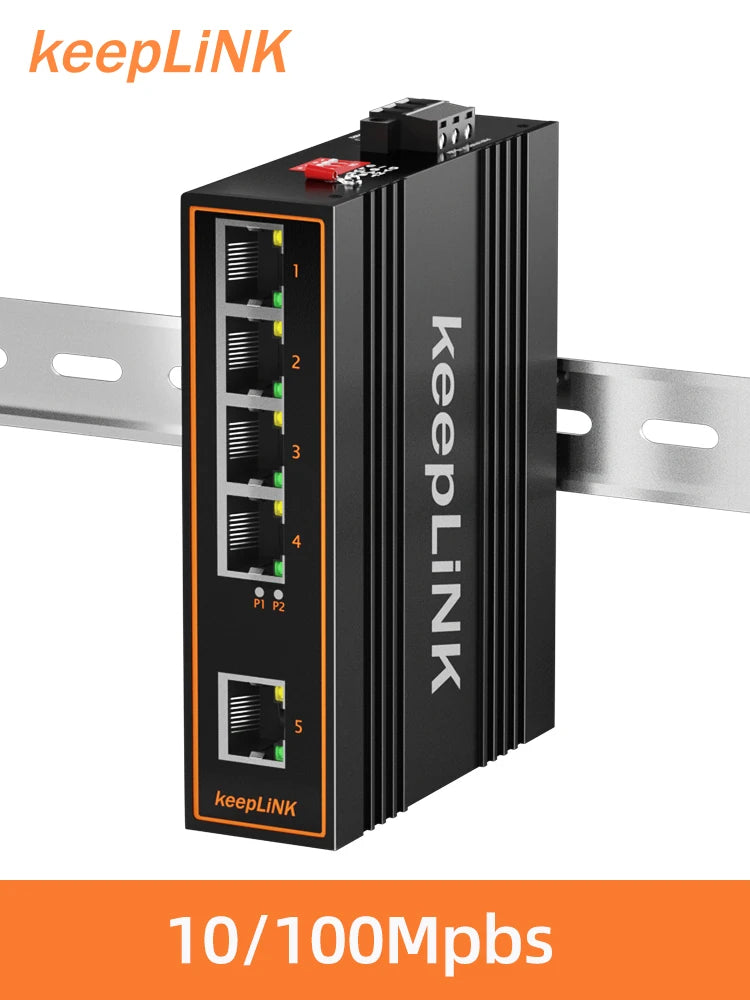

DIN-rail mounting ability.

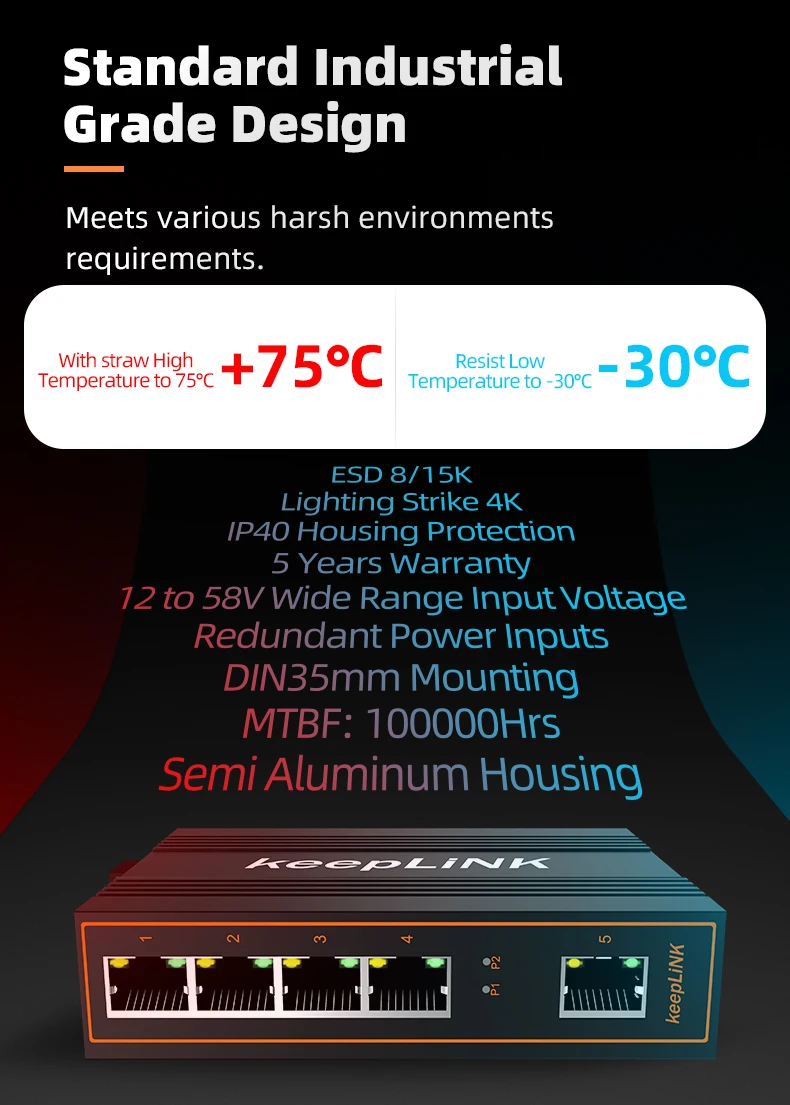

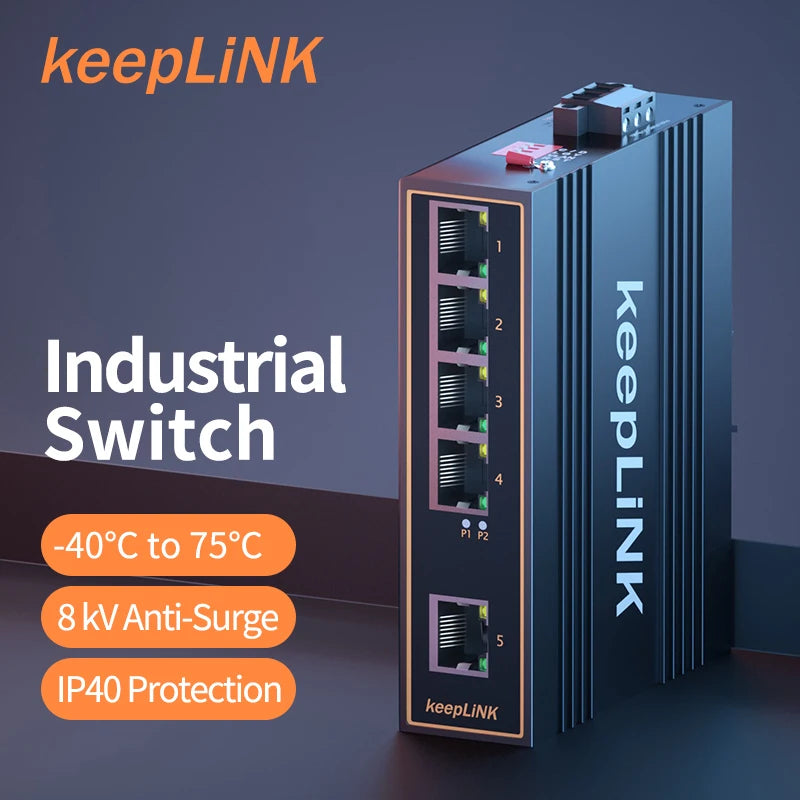

-40 to 75°C wide operating temperature range
IP40 Aluminum and Metal Shelf Housing

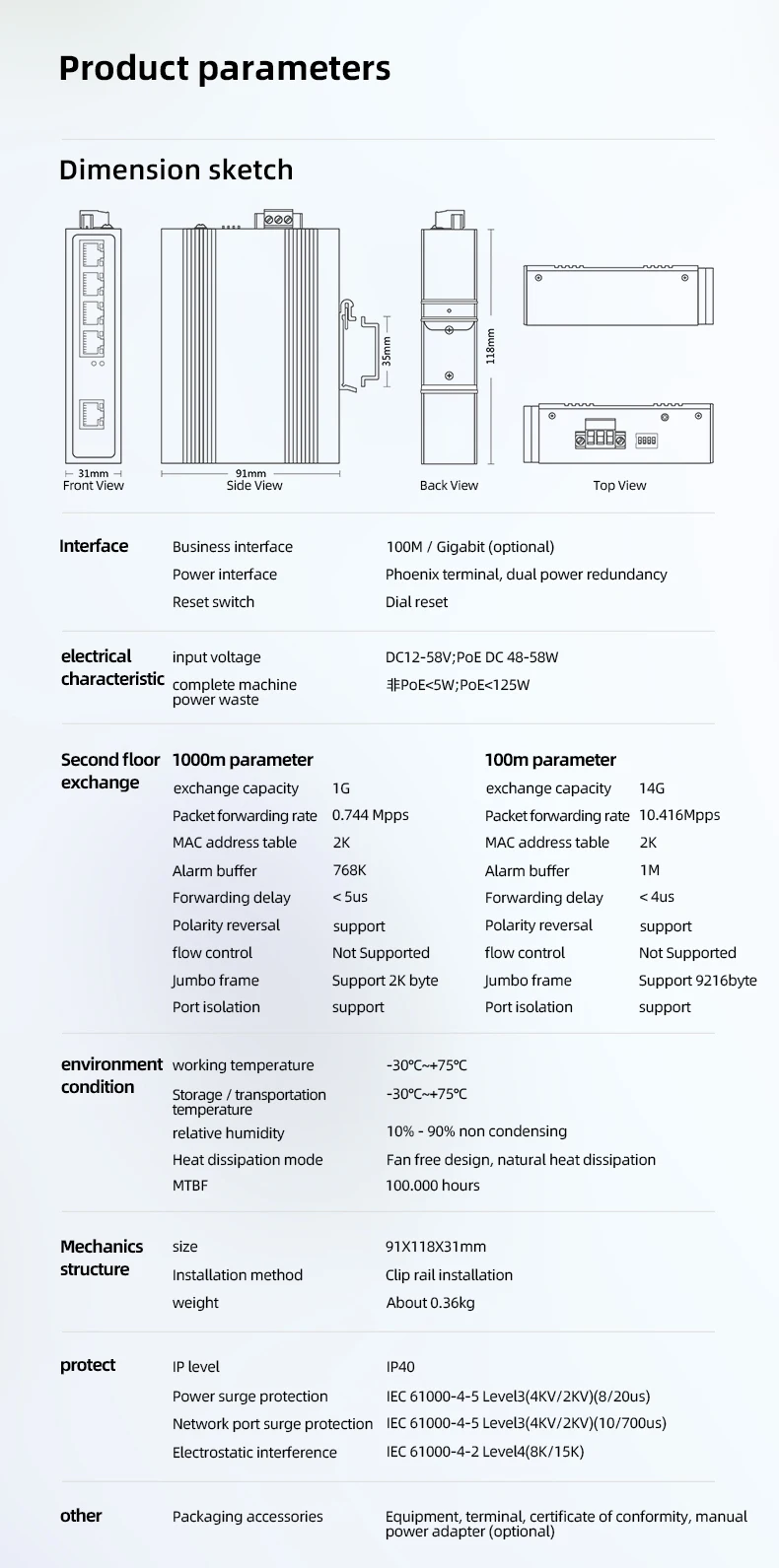

Switching Properties

Switching Capacity: 1G

Packet Forwarding Rate: 0.744Mpps

Packet Buffer Size: 768kbits

Forwarding delay: <5us

Jumbo Frame: Support 2kbits

Mac Table Size: 2K

Processing Type: Store and Forward

Flow Control: No

BSR: Yes

Port-Isolation: Yes

MDI/MDIX: Yes

Power Parameters

Power Connection: 3-contact terminal Block

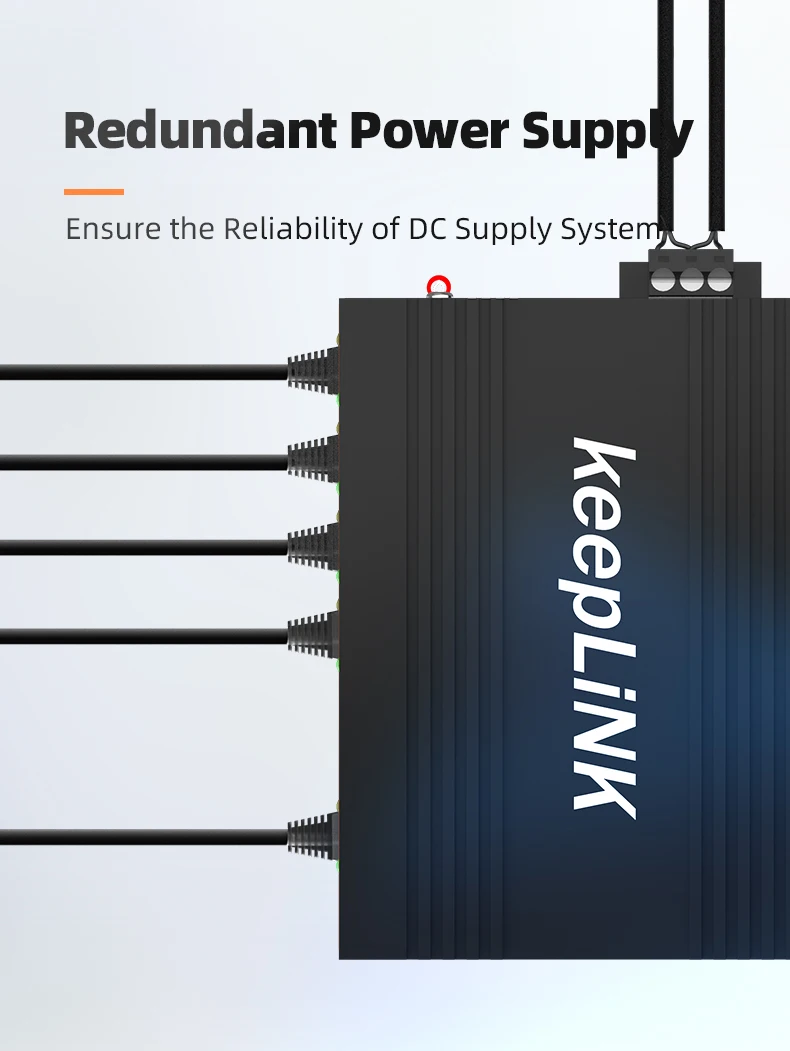

Input Voltage: 12 to 58 VDC, Redundant dual inputs

Power Budget: 5W

Overload Current Protection: Yes

Reverse Polarity Protection: Yes

Physical Characteristics

Housing: Aluminum And Metal

IP Rating: IP40

Dimensions: 91*118*31 mm (3.58*4.65*1.22 in)

Weight: 360g (0.79lb)

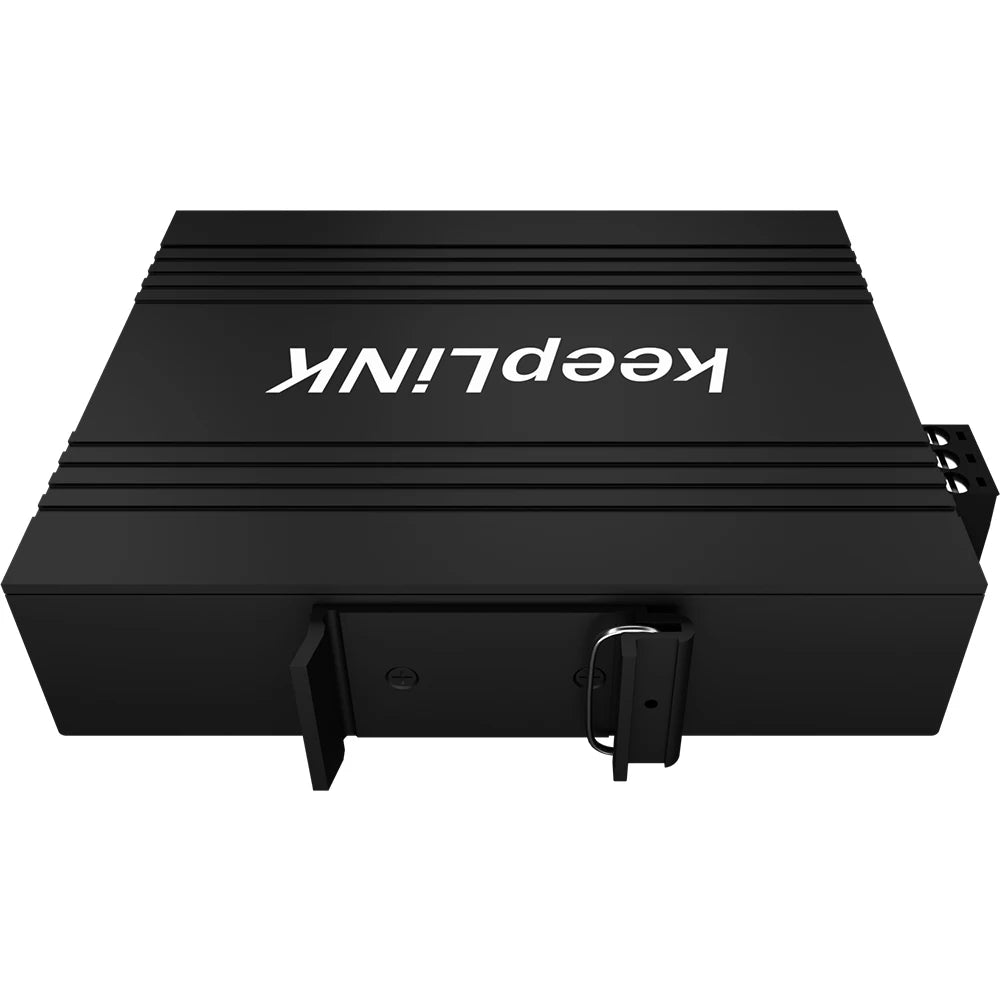

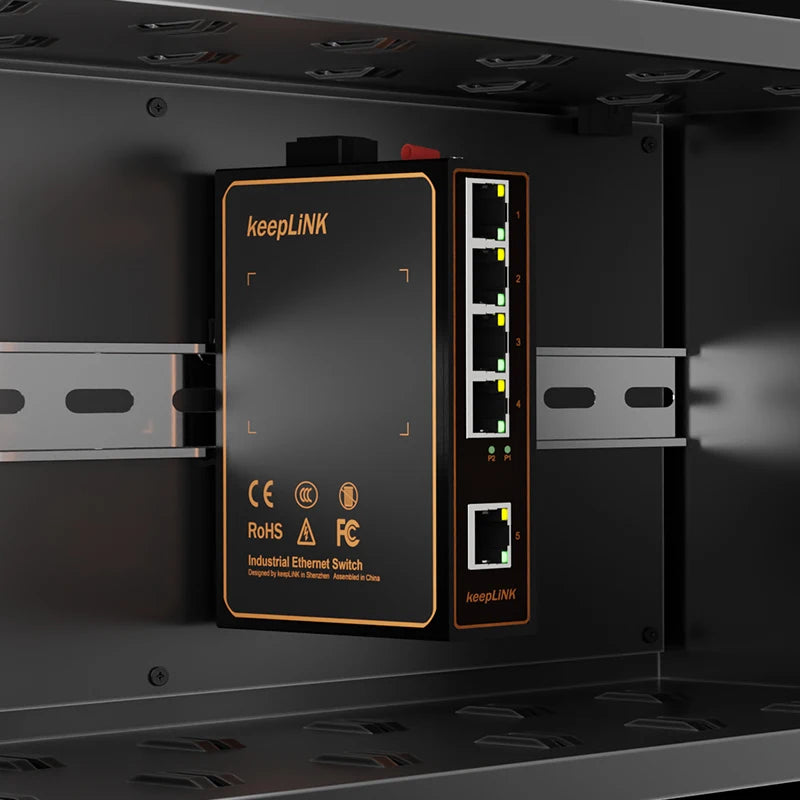

Installation: DIN Rail Mounting

Environmental Limits

Operating Temperature: -40 to 75°C (-22 to 167°F)

Storage Temperature (package included): -40 to 75°C (-22 to 167°F)

Ambient Relative Humidity: 10 to 90% (non-condensing)

Thermal Methods: Fan-less

Standards and Certifications

EMC: EN 55032/24

EMI: FCC Part 15B Class A

EMS:

IEC 61000-4-2 ESD: Level 4, Contact: 8 kV;
Air: 15 kV

IEC 61000-4-5 Surge: Level 3, Power: 4 kV;
Signal: 2 kV

Freefall: IEC 60068-2-31

MTBF: 100,000hrs

The KeepLink Industrial 5-Port Switch 10/100Mbps Fast Gigabit Din-Rail Metal IP40 Unmanaged Ethernet Network Switch KP-9000-45-5TX is a sensational customer favorite, and we hope you like it just as much.
