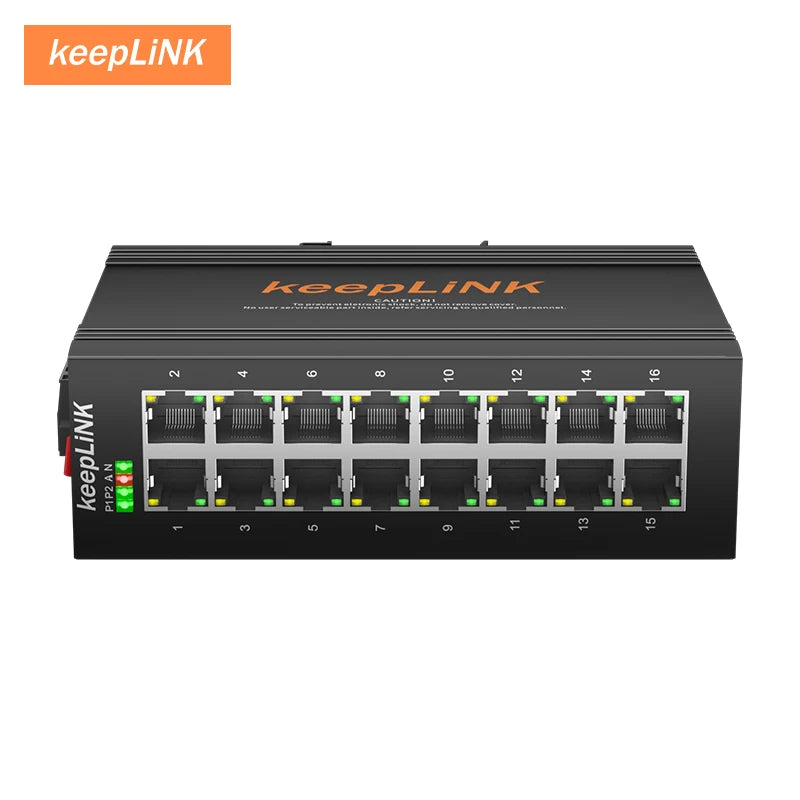

KeepLiNk Industrial 16-Port 10/100M Megabit DIN-Rail Ethernet Switch, Fanless, dual-power input, IP40 32G switching, KP-9000-45-16TX

Regular price: R 7,027.65
Sale price: R 7,027.65
Regular price: ~~R 8,433.18~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: keepLiNK

Certification: CE,FCC,RoHS

Choice: yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: KP-9000-45-16TX

Package: Yes

Switch Capacity: 32G

Switch Type: Gigabit Switch

Transmission Rate: 10/100Mbps

VLAN: Support

Description

Intended for use in outdoor IoT, citywide surveillance, transportation and general industrial applications, the KP-9000-45-16TX unmanaged switch is engineered for simple operation, easy deployment, and reliable operation in harsh environment.

Overview

Ruggedized design that meets industrial standards for temperature, vibration and electrical noise
Flexible deployment with a compact design, and wide operating temperature, supporting external building and other outdoor and public-space environments
Connect and power surveillance cameras, and other IoT devices with a single Ethernet connection
Simple plug-and-play deployment for easy network edge expansion

Features and Benefits

Wide operating temp range: -40°C to 75°C supports outdoor operation
Fanless, with air convection cooling for high reliability
Dual power input with reverse polarity and current overload protection
IP40 Protection
Aluminum Case

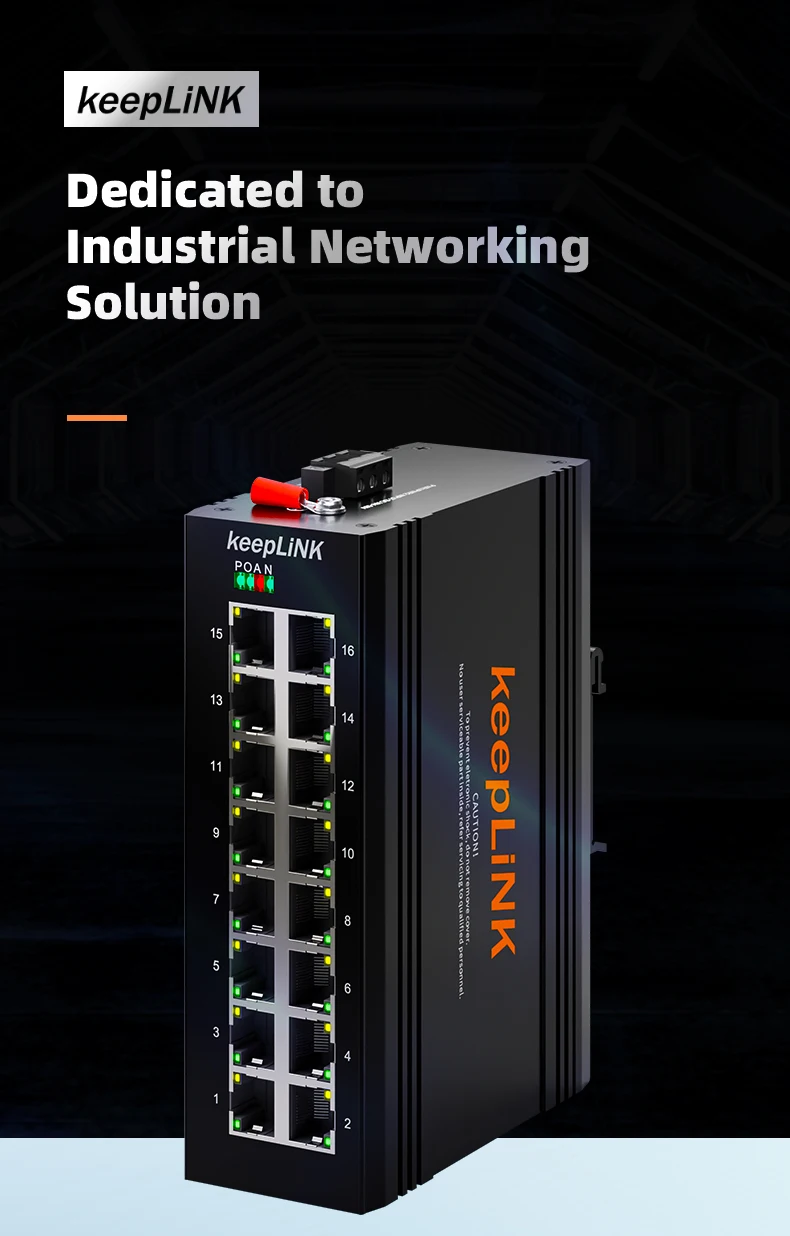

Dedicated to Industrial Networking Solution.

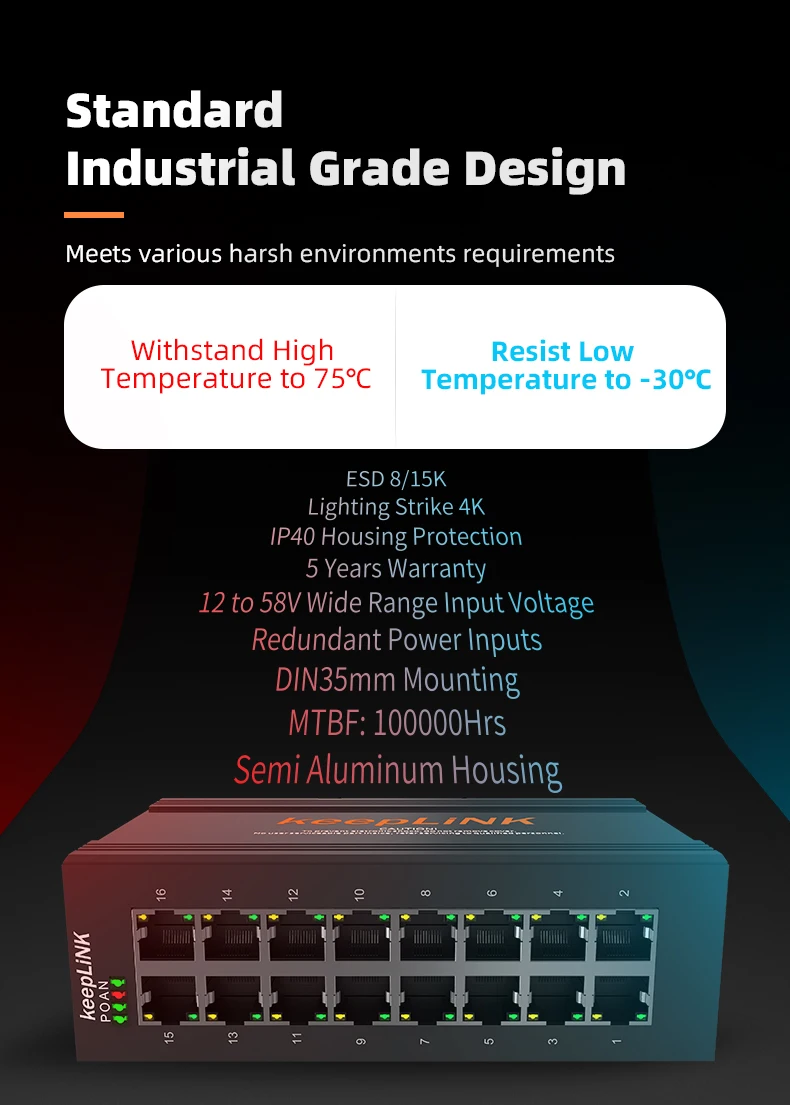

Standard Industrial Grade Design

Meets various harsh environments requirements.

16 Testing Procedures

Attention to details, Test every step of the way

Multiple Industrial Testing Certifications

Comply with CCC, FCC, CE and RoHS Standards

Industrial-grade Intelligent Chip

Equipped with Marvell Industrial-grade Chip to move, store, process and secure the data faster and more reliably than anyone else

Quality Assurance of Electronic Components

Brand-new Branded Electronic Components

Redundant Power Supply

Ensure the Reliability of DC Supply System

Provide Solution Services for Networking Applications

Industrial-grade Strong Compatibility

Compatible with brands of PLC and Ethernet Switches

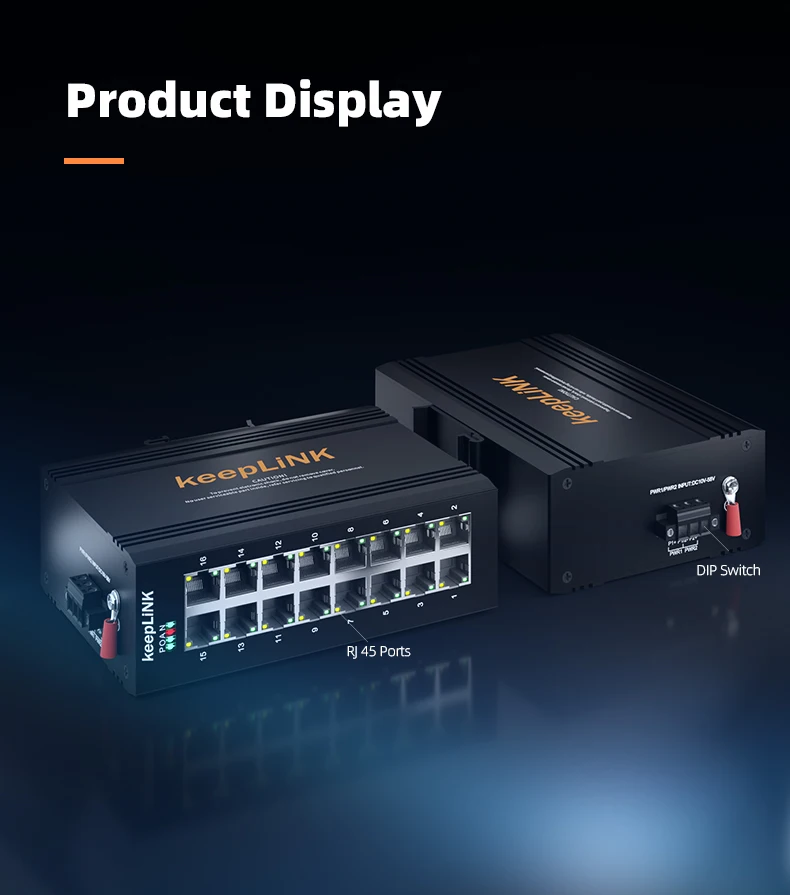

Product Display

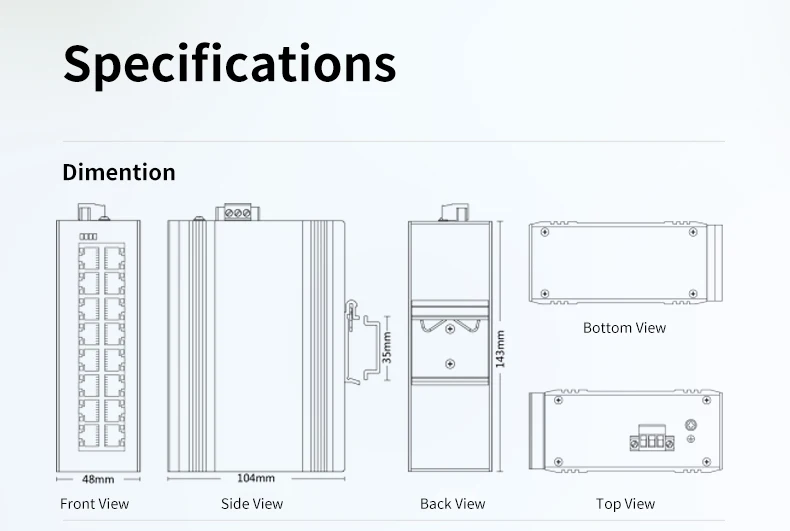

Dimention

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector): Support Auto negotiation speed, Full/half duplex mode
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT

Switch Properties

MAC Table Size: 8K
Switching Capacity: 32G
Packet Forwarding Rate: 23.8Mpps
Packet Buffer Size: 2M
Forwarding delay: <10us
Jumbo Frame: Support 10kbits
Processing Type: Store and Forward
Flow Control: supported
BSR: Supported
Port-Isolation: Supported
MDX/MIDX: Supported
Watch dog: Supported

Power Parameters

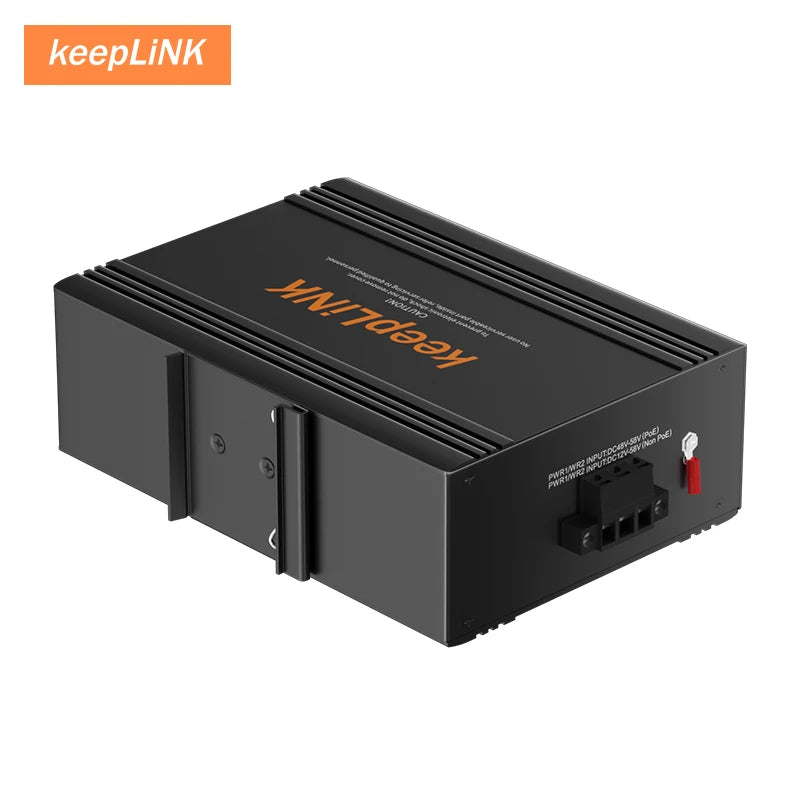

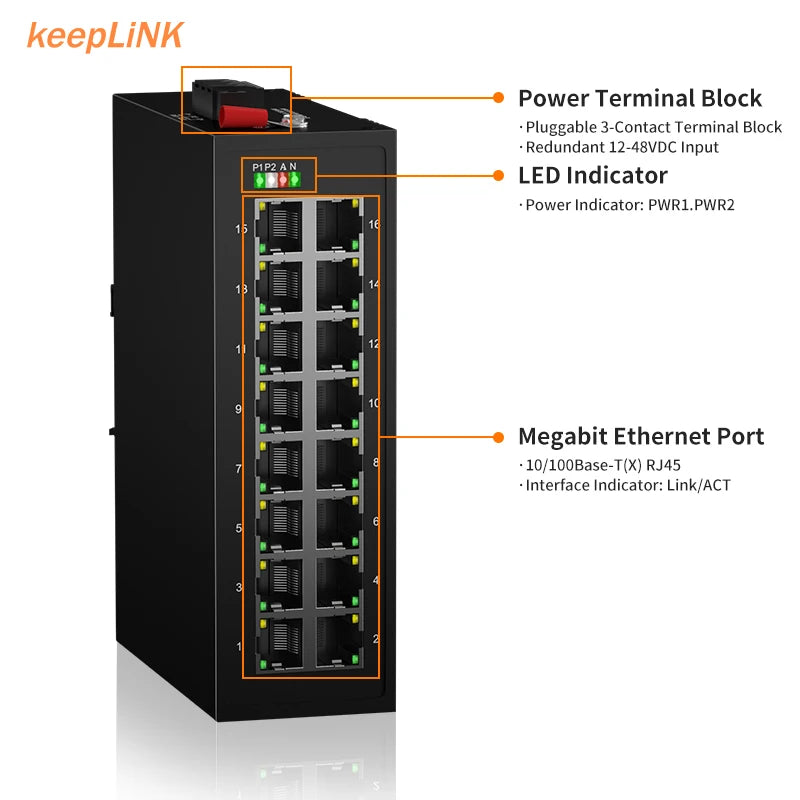

Connection: 1 removable 3-contact terminal Block(s)
Input Voltage: 12 to 58 VDC, Redundant dual inputs
Total Power Consumption: <6W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported

DIP Switch Configuration

LFP: Reserve
LGY: Reserve
VLAN: Port Isolation
RST: Reset

Physical Characteristics

Housing: Aluminum
IP Rating: IP40
Dimensions:　143*104*48 mm (5.63*4.09*1.89 in)
Weight:　800g

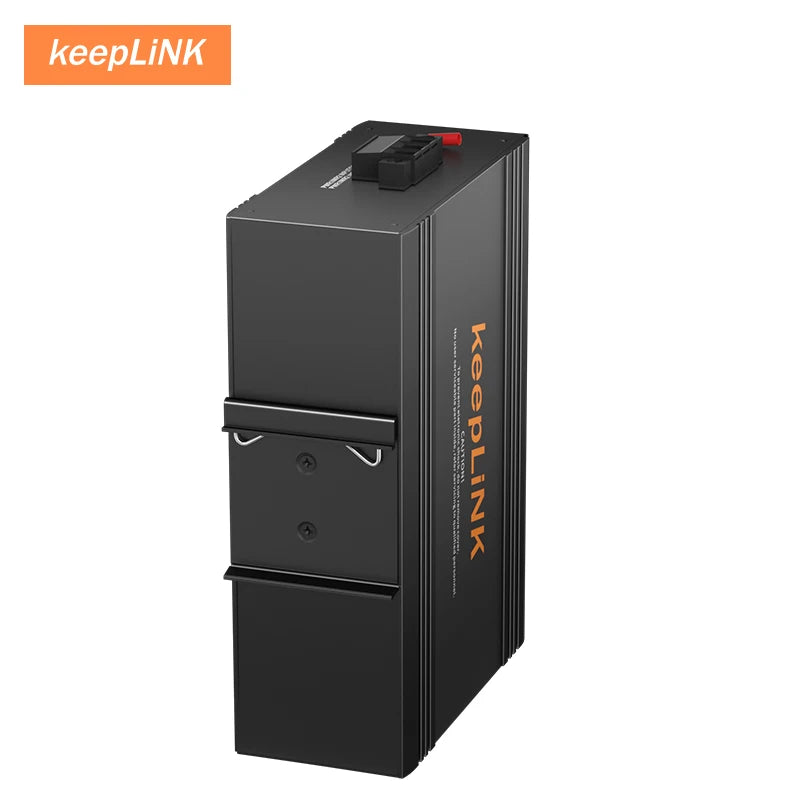

Installation: DIN Rail Mounting

Environmental Limits

Operating Temperature: -40°C to 75°C (-40o 167°F)
Storage Temperature (package included): -40°C to 75°C (-40o 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Thermal Methods: Fanless

Standards and Certifications

Compliance Mark: CE RoHS FCC
EMC: EN 55032/24
EMI: FCC Part 15B Class A
Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV
Lighting/Surge immunity (Surge) : IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV
Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m
Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V
Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Freefall: IEC 60068-2-31 Class T2.3(1m drop)
Shock: IEC60068-2-27: operational: 15g 11ms, half sine
MIL-STD-810G, 2008: operational: 15g 11ms, half sine
Vibration: IEC60068-2-6 operational: 1g@10-150Hz
MIL-STD-810G, 2008: operational: Procedure 1, Category 4, per Figure 514.6C-1

MTBF

Time: 100,000hrs

The KeepLiNk Industrial 16-Port 10/100M Megabit DIN-Rail Ethernet Switch, Fanless, dual-power input, IP40 32G switching, KP-9000-45-16TX is a sensational customer favorite, and we hope you like it just as much.
