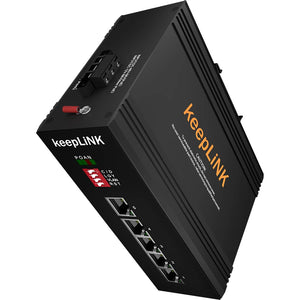

keepLINK 12/24V DC Powered 802.3 AF/AT 5-port 10/100Mbps Unmanaged DIN RAIL IP40 Industrial Ethernet PoE Switch 10G switching

keepLINK 12/24V DC Powered 802.3 AF/AT 5-port 10/100Mbps Unmanaged DIN RAIL IP40 Industrial Ethernet PoE Switch 10G switching

SPECIFICATIONS

Brand Name: keepLiNK

Function: VLAN Support

Number of Interfaces: 7

Certification: CE

Certification: FCC

Certification: RoHS

Switch Type: Gigabit Switch

Package: Yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: KP-9000-65-5TP-DZ

Transmission Rate: 10/100/1000Mbps

VLAN: Support

Switch Capacity: 10G

IP Rating: IP40

Caese Material: Aluminum

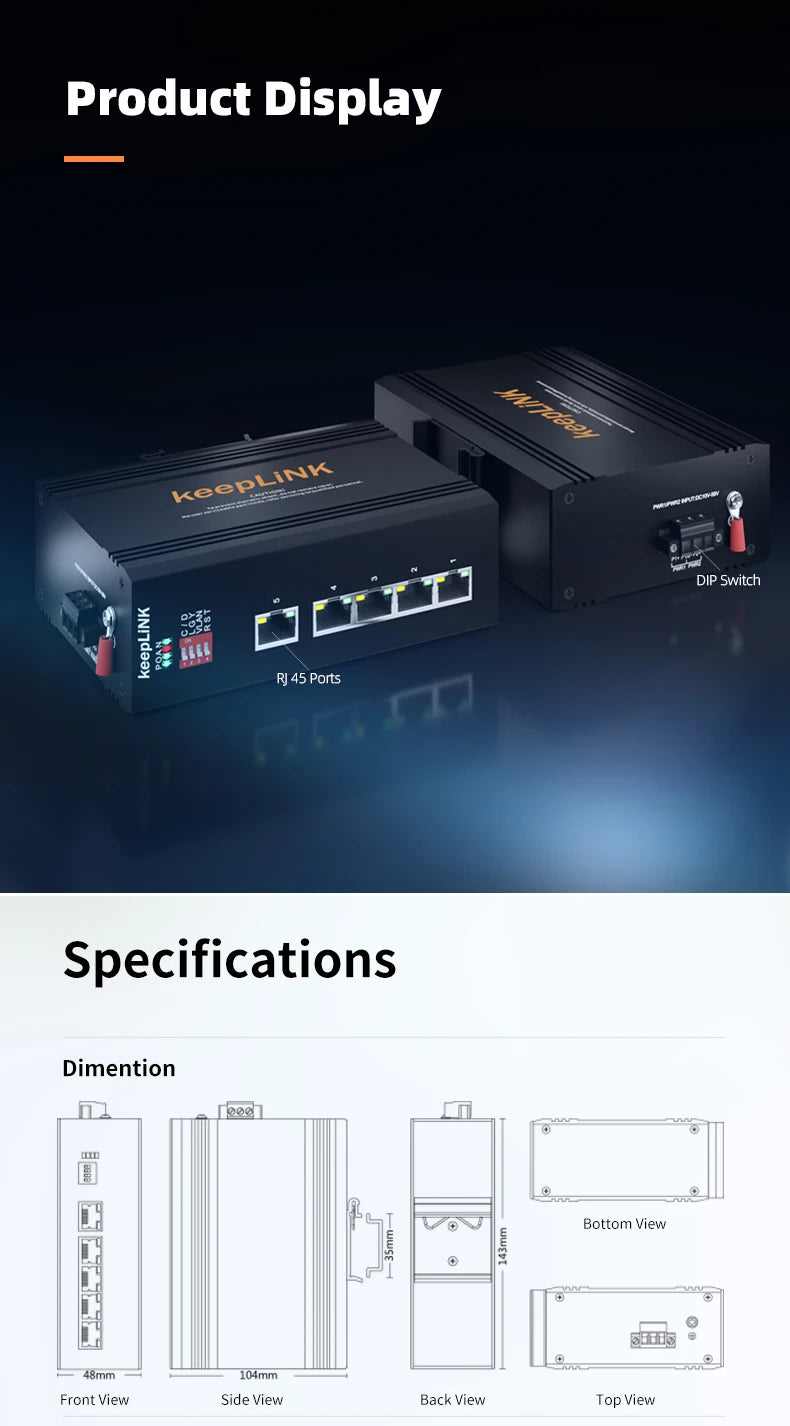

Dimensions: 143*104*48 mm (5.63*4.09*1.89 in)

Weight: 450g (0.99lb)

Installation: DIN Rail Mounting

MAC Table Size: 8K

Packet Forwarding Rate: 7.44Mpps

Packet Buffer Size: 1M

Forwarding delay: <5us

Jumbo Frame: Support 10kbits

Processing Type: Store and Forward

Flow Control: supported

BSR: Supported

Port-Isolation: Supported

MDX/MIDX: Supported

Watch dog: Supported

Power Connection: 1 removable 3-contact terminal Block(s)

Input Voltage: 12 to 58 VDC, Redundant dual inputs

Total Power Consumption: <6W

Overload Current Protection: Supported

Reverse Polarity Protection: Supported

Operating Temperature: -40°C to 75°C (-40o 167°F)

Storage Temperature: -40°C to 75°C (-40o 167°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Thermal Methods: Fanless

Compliance Mark: CE RoHS FCC

EMC: EN 55032/24

EMI: FCC Part 15B Class A

Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV

Lighting/Surge immunity (Surge): IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV

Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m

Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V

Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Freefall: IEC 60068-2-31 Class T2.3(1m drop)

Shock (01): IEC60068-2-27: operational: 15g 11ms, half sine

Shock (02): MIL-STD-810G, 2008: operational: 15g 11ms, half sine

Vibration (01): IEC60068-2-6 operational: 1g@10-150Hz

Vibration (02): MIL-STD-810G, 2008

Description

keepLINK 12/24V DC Powered 802.3 AF/AT 5-port 10/100Mbps Unmanaged DIN RAIL IP40 Industrial Ethernet PoE Switch 10G switching

Low Voltage PoE Plus switches for 12/24V Applications

It integrates a 5 port 10/100 Industrial Ethernet switch with the capability to convert a 12V to 30V DC supply into a 120-watt IEEE 802.3af/at compliant power source.

Featuring Plug and Play designed to be installed in heavy industrial demanding environment, Scodeno KP-9000-65-5TP-12V is an Industrial-grade, DIN-RAIL mounting Unmanaged Fast Ethernet PoE+ Switch with 4 x 10/100BASE-T featuring IEEE 802.3 af/at PoE and 1 x 10/100BASE-T for uplink connection.

Features:

➢ Input Voltage: DC 12 to 30 V

➢ Operating Temp.: -40℃ to 75℃

➢ Enclosure: IP40, Aluminum

➢ ESD: 8 kV to 15 kV

➢ Redundant power system

➢ MTBF: 100000H

➢ Certificate: CE/CCC/RoHS/FCC/EMC

Dedicated to Industrial Networking Solution.

Standard Industrial Grade Design

Meets various harsh environments requirements.

16 Testing Procedures

Attention to details, Test every step of the way

Multiple Industrial Testing Certifications

Comply with CCC, FCC, CE and RoHS Standards

Industrial-grade Intelligent Chip

Equipped with Marvell Industrial-grade Chip to move, store, process and secure the data faster and more reliably than anyone else

Quality Assurance of Electronic Components

Brand-new Branded Electronic Components

Redundant Power Supply

Ensure the Reliability of DC Supply System

Provide Solution Services for Networking Applications

Skilled Tech Support Team, Offer Free Design For Networking Applications

Industrial-grade Strong Compatibility

Compatible with brands of PLC and Ethernet Switches
