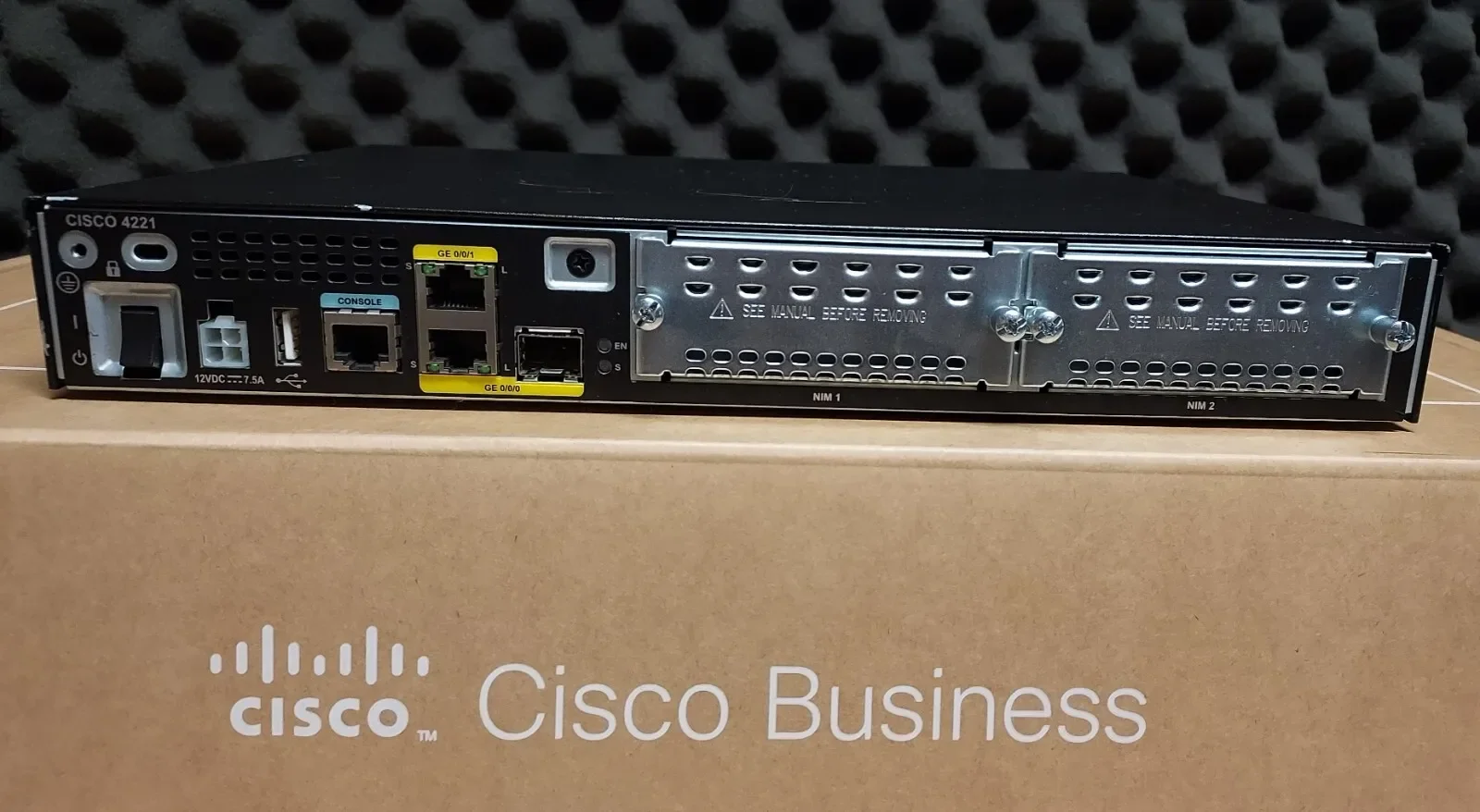

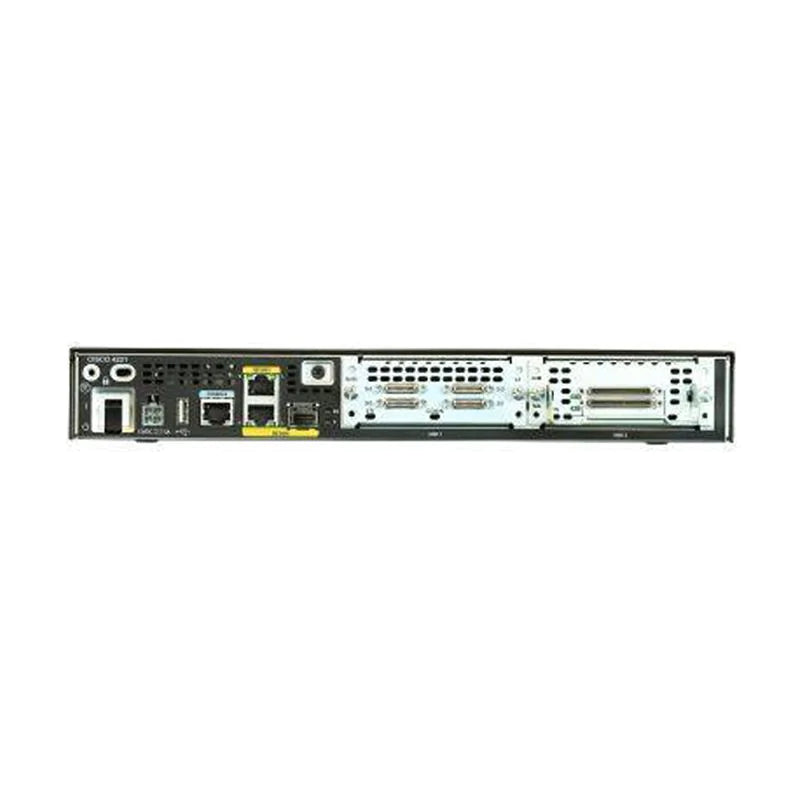

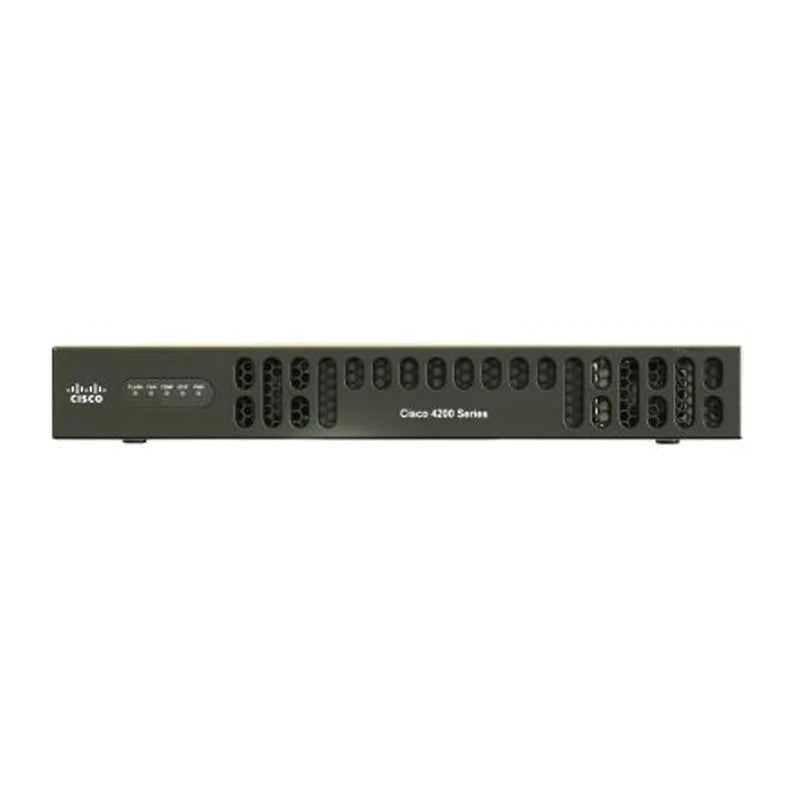

ISR4221/K9 4200 Series Gigabit ethernet router ISR 4221 with 2 onboard GE, 2NIM slots, 1 ISC slot, 8GB Flash Memory default, 4GB DRAM

Product Code

Cisco ISR4221/K9

Aggregate Throughput

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

NIM (Network Interface Modules) slots

2

Onboard ISC slot

No

Default memory double-data-rate 3 (DDR3) error-correction-code

(ECC) DRAM (Combined control/services/data planes)

4 GB

Flash Memory

8 GB

Power-supply options

External AC only

Rack height

1 RU

Dimensions (H x W x D)

1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)

Weight with AC PS (no modules)

7.1 lb (3.22 kg)

Cisco ISR4221/K9 Specification

Aggregate Throughput

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

No

Onboard ISC slot

No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

4 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

8 GB

Maximum flash memory

8 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

0

Serial console port - RJ45 (up to 115.2 kbps)

1 (combo CON/AUX port)

Serial auxiliary port - RJ45
(up to 115.2 kbps)

1 (combo CON/AUX port)

Power-supply options

External: AC Only

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

1.5 to 0.6A

AC input surge current

90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts)

24

Maximum power with AC power supply (watts)

90

Maximum power with PoE power supply (platform only) (watts)

NA (no PoE support)

Maximum endpoint PoE power available from PoE power supply (watts)

NA (no PoE support)

Items

Models

Description

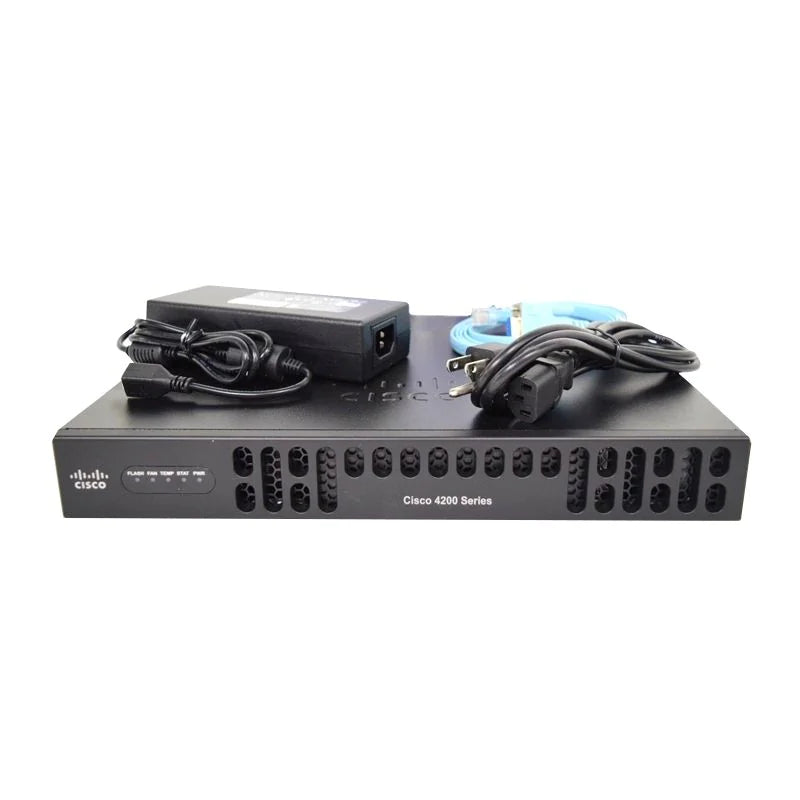

Console and Auxillary Cables

CAB-CONSOLE-RJ45

CiscoCAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-ES2-4

Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2

NIM-ES2-8

Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM

SFPs for On-Board GE Ports

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Technical Specifications

ISR4461/K9

ISR4451-X/K9

ISR4431/K9

ISR4351/K9

ISR4331/K9

ISR4321/K9

ISR4221/K9

Aggregate Throughput

1.5Gbps

1 Gbps to
2 Gbps

500 Mbps to
1 Gbps

200 Mbps to
400 Mbps

100 Mbps to
300 Mbps

50 Mbps to
100 Mbps

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

4

4

4

3

3

2

2

RJ-45-based ports

4

4

4

3

2

2

2

SFP-based ports

4

4

4

3

2

1

1

Enhanced service-module slots

3

2

0

2

1

0

0

Doublewide service-module slots

2

1 (assumes no singlewide SM-X modules installed)

0

1 (assumes no singlewide SM-X modules installed)

0

0

0

NIM slots

3

3

3

3

2

2

2

OIR (all I/O modules)

Yes

Yes

Yes

Yes

Yes

Yes

No

Onboard ISC slot

1

1

1

1

1

1

No
