InMax Manufacturer EN50155 railway network switch 16 port full Gigabit managed M12 Railway Ethernet Switch 58G switching capacity

InMax Manufacturer EN50155 railway network switch 16 port full Gigabit managed M12 Railway Ethernet Switch 58G switching capacity

SPECIFICATIONS

Brand Name: InMax

Item Type: Panel

High-concerned Chemical: None

Products Status: Stock

Ports: 16

Transmission Rate: 10/100/1000Mbps

Function: LACP, QoS, SNMP, Stackable, VLAN Support

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 58G

Brand Name: InMax

Model Number: M716B

M12 Railway Ethernet Switch: M12 Railway Ethernet Switch

M12 Switch: M12 Switch

M12 Metro Ethernet Switch: M12 Metro Ethernet Switch

Wide Temp. Models: -40 ~ +85°C

M12 8Pin: X-coded

Vehicle industrial switch: On-board industrial switch

M12 network switch: M12 network switch

industrial Ethernet switch: industrial Ethernet switch

M12 industrial Ethernet switch: car networking switches

industrial Ethernet switch PoE: M12 Railway Ethernet PoE Switch

Certification: FCC, ce, RoHS, En50155

Product Description

InMax Manufacturer EN50155 railway network switch 16 port full Gigabit managed M12 Railway Ethernet Switch 58G switching capacity

◎ Meet the EN50155 railway industry standard requirements. Designed for railway transportation         applications.
◎ With 16×10/100/1000M M12 BaseT  ports.and up to 16×PoE ports
◎ With 16 x M12 PoE ports, 15.4W/30W output power of each PoE port.
◎ Automatic recognition of power consumption and power supply mode of network equipment.
◎ Optional function: bypass function(1- 2 port) for power-off protection.
◎ Redundant dual 48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
◎ Support one-way relay alarm function.
◎ -40 to 85℃ operating temperature range (WT models).
◎ No fan, low consumption, industrial design standard, industrial grade electronic     components, environmental protection & lead-free production.
◎ High strength metal housing, support wall mounting.
◎ IP Rating up to IP40 (Optional IP67 waterproof housing).
◎ Without packet loss in 72 hours full load flow test.

Introduction

The EN516B series M12 managed railway PoE Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.

The EN516B Ethernet switches provide 16 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10/100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.

No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.

It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.

Specifications

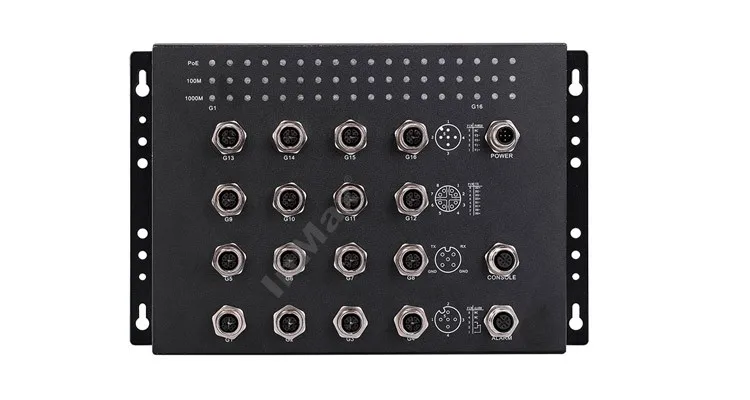

Product Show
