InMax M508B M12 8 Port Gigabit Railway Industrial Ethernet Switch railway bypass on-board system IP65 IP67 gigabit rugged ethernet switch

InMax M508B Manufacturer M12 switch 8 port railway bypass on-board system IP65 IP67 gigabit rugged industrial network ethernet switch

SPECIFICATIONS

Brand Name: InMax

High-concerned Chemical: None

Certification: CE

Private Mold: Yes

Products Status: Stock

Ports: ≤ 8

Transmission Rate: 10/100/1000Mbps

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 18G

Brand Name: InMax

Model Number: M508B

Product Name: Railway Industrial Ethernet Switch

Connector Type: X-code

Protections: IP40

Wide Temp. Models: -40 to +75°C

Vehicle industrial switch: On-board industrial switch

After-Sales Service: 3 Years

Certification: En50155 CE FCC RoHS

Model: M508B

Product Description

InMax M508B M12 8 Port Gigabit Railway Industrial Ethernet Switch railway bypass on-board system IP65 IP67 gigabit rugged ethernet switch

◎ Meet the EN50155 railway industry standard requirements. Designed for railway transportation applications
◎ With 8 × 10/100/1000M M12 gigabit ports
◎ Optional function: bypass function(1- 2 port) for power-off protection.
◎ Redundant dual 24/48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
◎ Support one-way relay alarm function.
◎ -40 to 75℃ operating temperature range (WT models)
◎ No fan, low consumption, industrial design standard, industrial grade electronic components,environmental protection & lead-free production
◎ High strength metal housing, support wall mounting.
◎ IP Rating up to IP40 (Optional IP67 waterproof housing).

◎ Without packet loss in 72 hours full load flow test.

Introduction

The M508B series M12 unmanaged Gigabit Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.

The M508B series Ethernet switches provide 8 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10 / 100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.
No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.

Technical Specifications

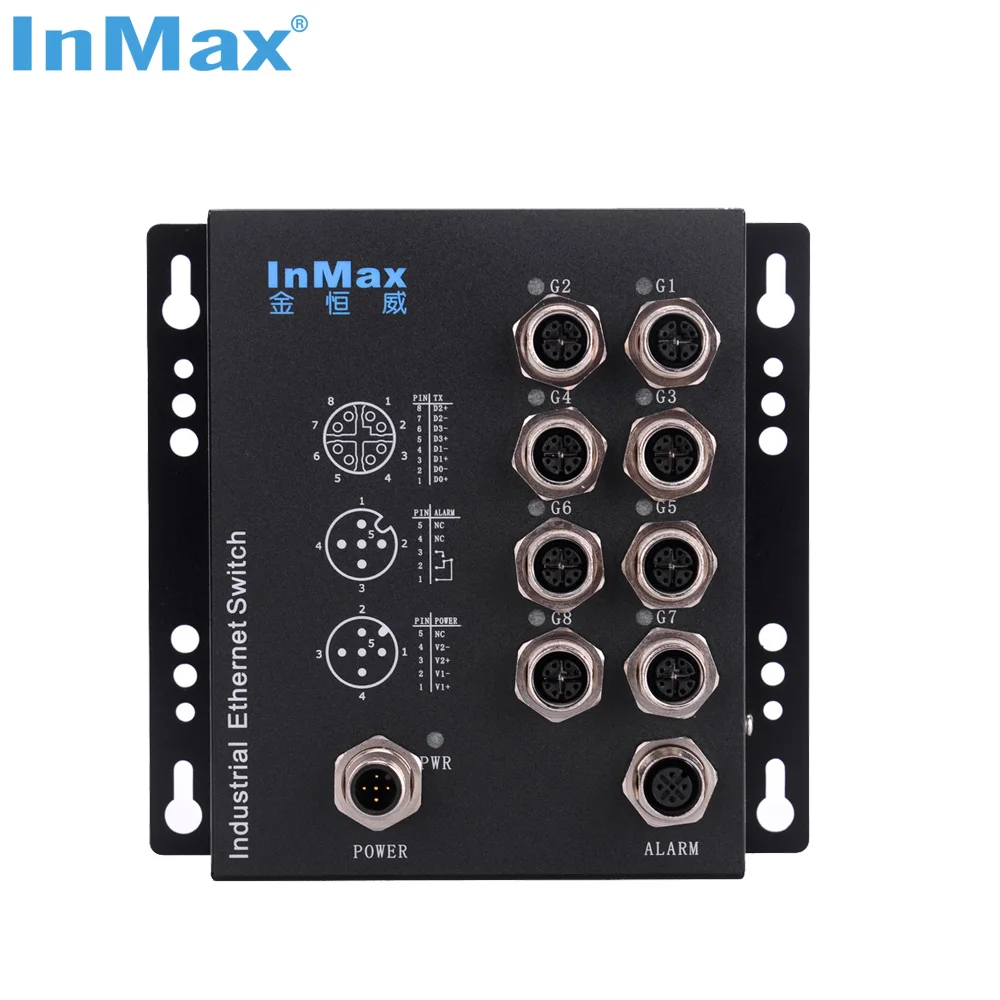

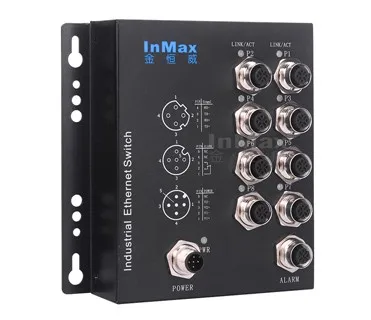

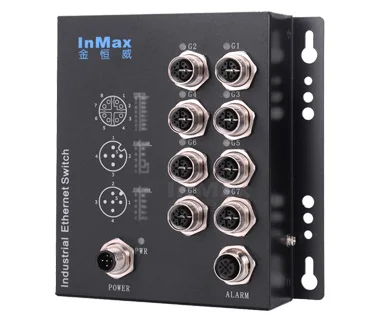

Product Show
