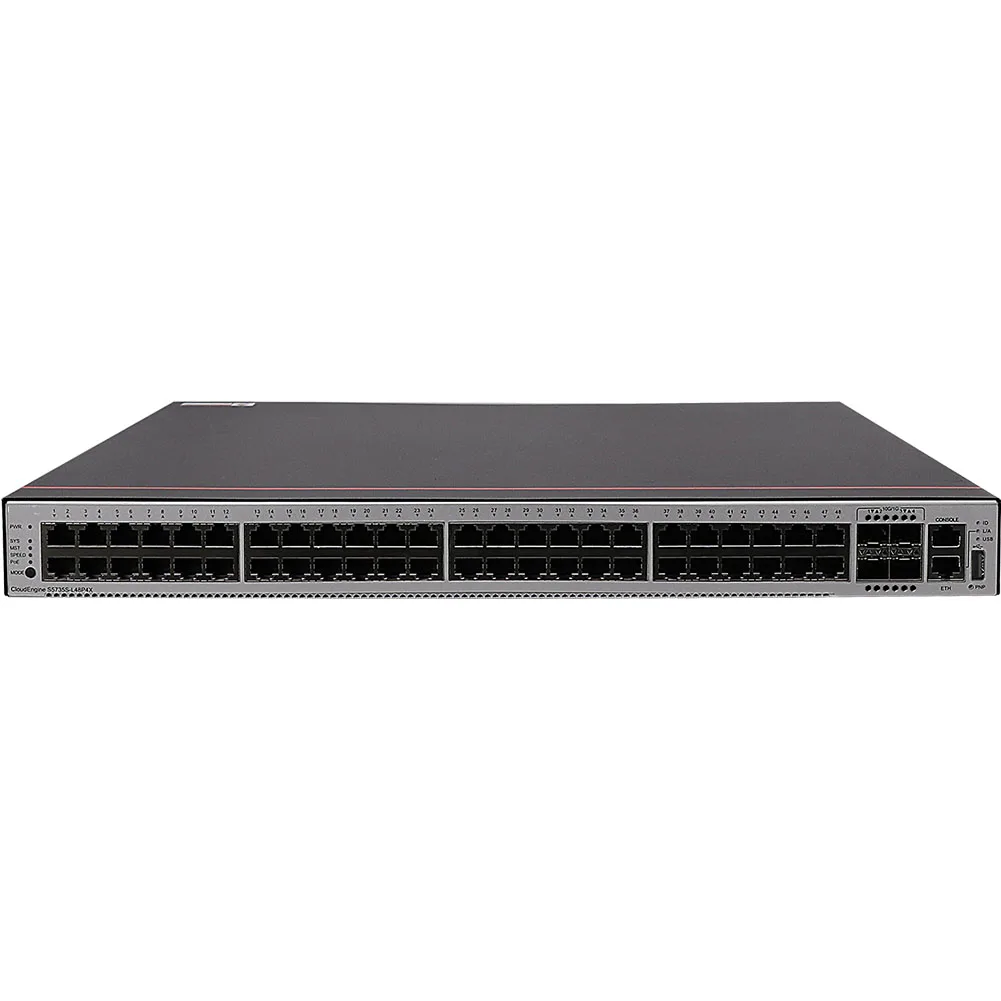

Huawei S5735-L Switch with 48*10/100/1000BASE-T ports, 4*10 GE SFP+ ports, PoE+, Distribution model Gigabit Switch S5735S-L48P4X-A

Description

S5735S-L48P4X-A - Huawei S5735 Series Switches

S5735S-L48P4X-A is the Huawei S5735-L switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, Distribution. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Spec

Product Model

 S5735S-L48P4X-A

Forwarding Performance

132 Mpps

Switching Capacity2

176 Gbit/s/432 Gbit/s

Fixed Ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

PoE+

Supported

Supported Transceivers

Model

Description
OMXD30000

Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OSXD22N00

Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM)
SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30009

Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
SFP-10G-LR

Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Compare to Similar Items

Product Model

S5735S-L12T4S-A

S5735S-L12P4S-A

S5735S-L24T4S-A

S5735S-L24P4S-A

S5735S-L24T4X-A

S5735S-L24P4X-A

S5735S-L48T4S-A

S5735S-L48T4X-A

S5735S-L48P4X-A

S5735S-L32ST4X-A

Forwarding Performance

24 Mpps

42 Mpps

96 Mpps

78 Mpps

132 Mpps

108 Mpps

Switching Capacity2

32 Gbit/s/336 Gbit/s

56 Gbit/s/336 Gbit/s

128 Gbit/s/336 Gbit/s

104 Gbit/s/432 Gbit/s

176 Gbit/s/432 Gbit/s

144 Gbit/s/432 Gbit/s

Fixed Ports

12 x 10/100/1000Base-T ports, 4 x GE SFP ports

24 x 10/100/1000Base-T ports, 4 x GE SFP ports

24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports

48 x 10/100/1000BASE-T ports, 4 x GE SFP ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

PoE+

CloudEngine S5735S-L12P4S-A: Supported
CloudEngine S5735S-L24P4S-A: Supported
CloudEngine S5735S-L24P4X-A: Supported
CloudEngine S5735S-L48P4X-A: Supported
Other: Not supported



Specifications

S5735S-L48P4X-A Specification

Forwarding Performance

132 Mpps

Switching Capacity2

176 Gbit/s/432 Gbit/s

Fixed Ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

PoE+

Supported

MAC Features

MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting

VLAN Features

4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping

IP Routing

Static route, RIP, RIPng, OSPF, OSPFv3

Super Virtual Fabric (SVF)

Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations

Interoperability

VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
The Huawei S5735-L switch with 48*10/100/1000BASE-T ports, 4*10 GE SFP+ ports, PoE+, Distribution model Gigabit Switch S5735S-L48P4X-A destined to impress, and priced at only R 60,680.95, for a limited time.
