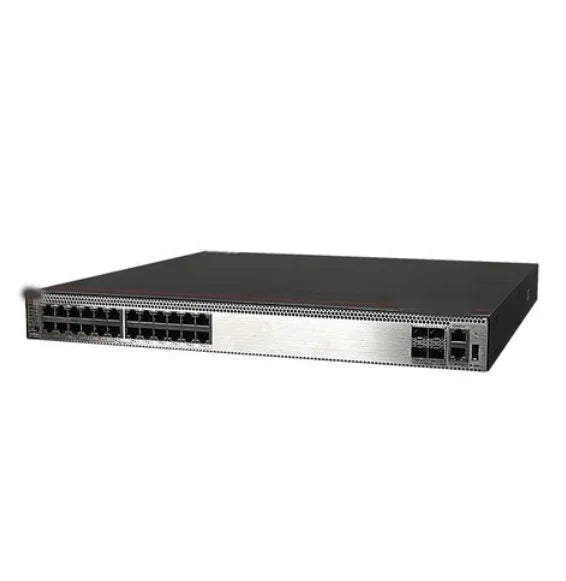

Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch
Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch
Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch
  • Load image into Gallery viewer, Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch
  • Load image into Gallery viewer, Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch
  • Load image into Gallery viewer, Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch

Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch

R 49,135.95
R 49,135.95
R 65,513.95
Sold out
Shipping calculated at checkout.

Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch

SPECIFICATIONS

Brand Name: HUAWEI

High-concerned Chemical: None

DIY Supplies: ELECTRICAL

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, QoS, SNMP, Stackable, VLAN Support

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 336 Gbps

Brand Name: HW

Model Number: S5731S-H24T4S-A, S5731S-H24T4S-A

PoE: Not Supported

Flash: 1 GB in total

Weight: 9.35 kg (20.61 lb)

Condition: 100% Original Brand New

Memory (RAM): 4 GB

Warranty: 1 Year

Certification: FCC CCC CE

Description

Huawei S5731S-H24T4S-A HW 24 electrical port 4 optical port all Gigabit enterprise-class three-layer core switch

CloudEngine S5731-H Series Switches
CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.

CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations. It also offers free mobility to deliver consistent user experience and VXLAN-based virtualization to create a multi-purpose network. With built-in security probes, CloudEngine S5731-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.



Specifictions

Main parameters
The product type Enterprise-class Ethernet switches Stacking support Can be stacked
The number of ports 28 pcs
Basic parameters
The product type Enterprise-class Ethernet switches Transfer Rate (Mbps) 10/100/1000Mbps
Interchange mode Store-forward Backplane bandwidth (Gbps) 758Gbps/7.58Tbps
Packet forwarding rate 51/126Mpps Address table size 288K
VLAN capability Support for 4K VLANs Support for Guest VLANs, VoiceVLANs support for GVRP protocol Support for MUX VLAN functions Support for MAC/protocol/IP subnet/policy/port-based VLANs support for VLAN mapping functions Multicast management Supports IGMP v1/v2/v3 Snooping and fast departure mechanism Supports multicast forwarding and multicast multi-VLAN replication within VLAN Supports multicast load sharing of bundled ports Supports controlled multicast traffic statistics Supports IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM support MSDP Support MVPN
Network management function Management and maintenance: Intelligent iStack stacking Support for Virtual Cable Test Support for SNMPv1/v2c/v3 Support for RMON Support for network management system, support for WEB network management features Support for system logs, hierarchical alarms Support for GVRP protocol Support for MUX VLAN function Support for 802.3az energy efficiency Ethernet EEE support for NetStream support for intelligent O&M Qos support Supports rate limiting of port inbound and outbound direction Supports packet redirection Support for port-based traffic supervision, support for two-speed three-color CAR function Support for 8 queues per port Support drUR, SP, DRR+SP queue scheduling algorithm Support WRED supports 802.1p and DSCP priority re-marking of messages Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering, providing source MAC address, destination MAC address, source IP address, Destination IP Address, TCP/UDP Protocol Source/Destination Port Number, Protocol, VLAN Packet Filtering Supports Queue Speed Limiting and Port Shaping Functions
Port parameters
The number of ports 28 pcs The port type 24 10/100/1000Base-T Ethernet ports, 4 Gigabit SFPs
Other parameters
Stacking support Can be stacked
Electrical parameters
Voltage(V) Rated Voltage: AC Input (150W AC): 100 to 240V AC, 50/60Hz AC Input (600W AC): 100 to 240V AC, 50/60Hz DC Input (1000W DC): -48 to -60V DC Power(W) 91W
Appearance parameters
Product size 442×420×43.6mm Weight (Kg) 9.35kg
Environment parameters
Operating Temperature(°C) Operating temperature: 0-1800m: -5 °C ~ 45 °C, 1800-5000 m: each elevation increase of 220 m temperature specifications reduce 1 °C storage temperature: -40 °C ~ 70 °C Relative humidity: 5% ~ 95% (non-condensing) Business port lightning protection: common mode ±6kV power port lightning protection: AC power port: differential mode ±6kV, common mode ± 6kV DC power port: differential mode
The Huawei S5731S-H24T4S-A 24*10/100/1000BASE-T port, 4*GE SFP+, 1*150W AC Power Supply Gigabit enterprise-class three-layer core switch is the product you didn't think you need, but once you have it, something you won't want to live without.
