Huawei S5720-28X-PWR-SI Bundle 24* 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4*10G SFP+, 500W AC power

Regular price: R 54,293.95
Sale price: R 54,293.95
Regular price: ~~R 55,337.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: HUAWEI

Installation Method: Assembly

High-concerned Chemical: None

Private Mold: NO

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, Stackable

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 336 Gbit/s

Brand Name: HUAWEI

Model Number: S5720-28X-PWR-SI-AC

Forwarding Performance: 496 Mpps

Switching Capacity: 336 Gbit/s

Fixed Port: 24 x 10/100/1,000 ports, 4 x 10 Gig SFP+

MAC Address Table: 16K

VLAN Features: 4094 VLANs

SVF: Plug-and-play SVF client

IP Routing: Static routing

Interoperability: VLAN-based Spanning Tree

Type: network switch/poe switch

Warranty: 12 Months

Product Description

S5720-28X-PWR-SI-AC

Huawei S5720-28X-PWR-SI Bundle (24 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4*10 Gig SFP+, with 500W AC power)

Huawei S5720-28X-PWR-SI-AC is a Layer 3 Ethernet switch. It supports twenty-four Ethernet 10/100/1,000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, and 4 x 10G SFP+. It offers double hot-swappable AC/DC power supplies, one AC power module is configured by default.

Quick Specs

Product Code	S5720-28X-PWR-SI-AC
Downlink Ports	24 × Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP
Uplink Interfaces	4 × 10 Gig SFP+
Forwarding Performance	96 Mpps
Switching Capacity	336 Gbit/s
Stack	Supported
Stack Ports	GE electrical ports and 10GE SFP+ optical ports except combo ports on the front panel
Memory (RAM)	512 MB
Flash	240 MB
Dimensions (W x D x H)	44.2 cm x 42 cm x 4.44 cm
Weight (Kg)	9.3 Kg

Product Details

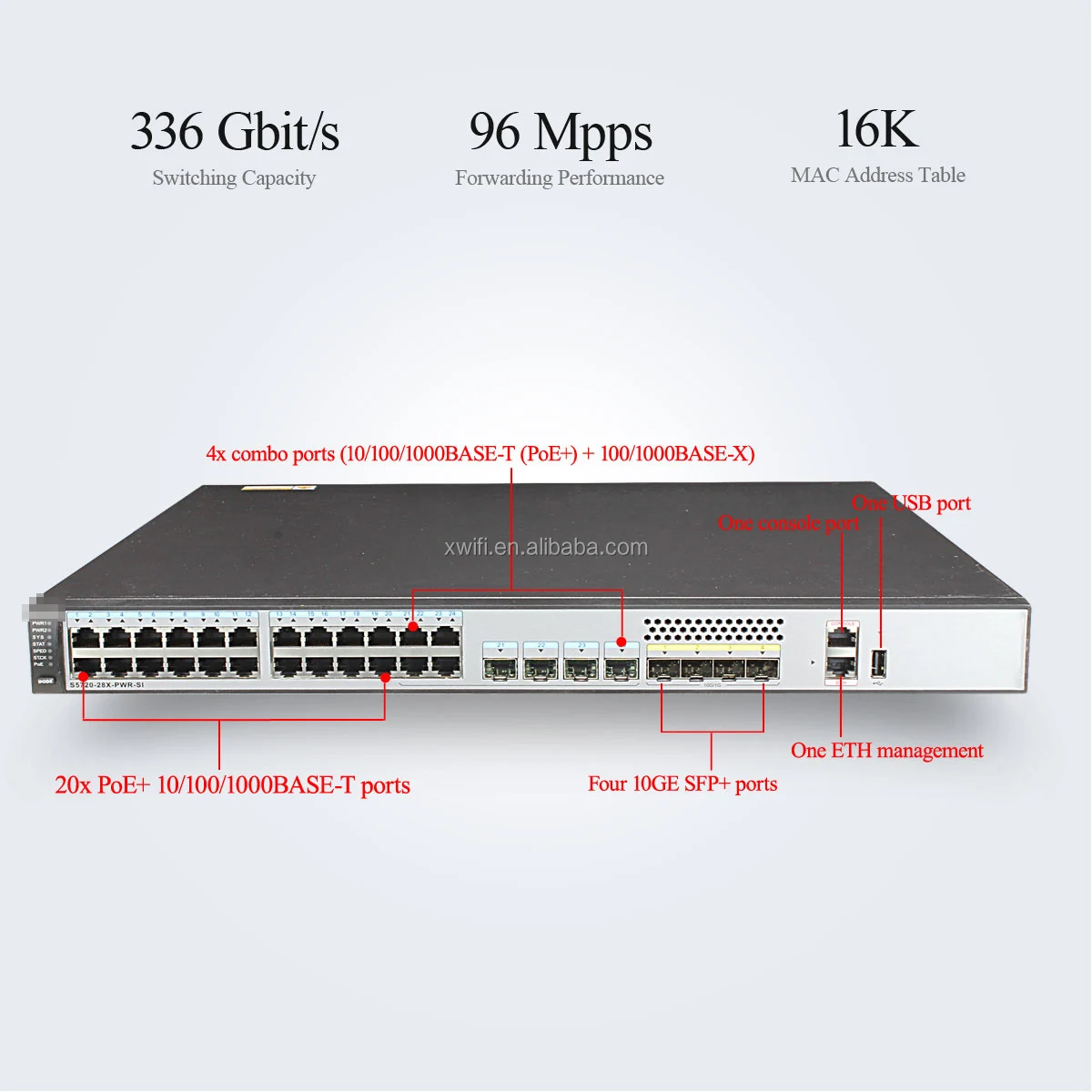

Figure 2 shows the front panel of Huawei S5720-28X-PWR-SI-AC switch.

S5720-28X-PWR-SI-AC Front Panel

Note:

①

20 × PoE+ 10/100/1000BASE-T ports

④

One console port

②

Four combo ports

(10/100/1000BASE-T (PoE+) + 100/1000BASE-X)

⑤

ETH management port

③

4 × 10GE SFP+ ports

⑥

One USB port

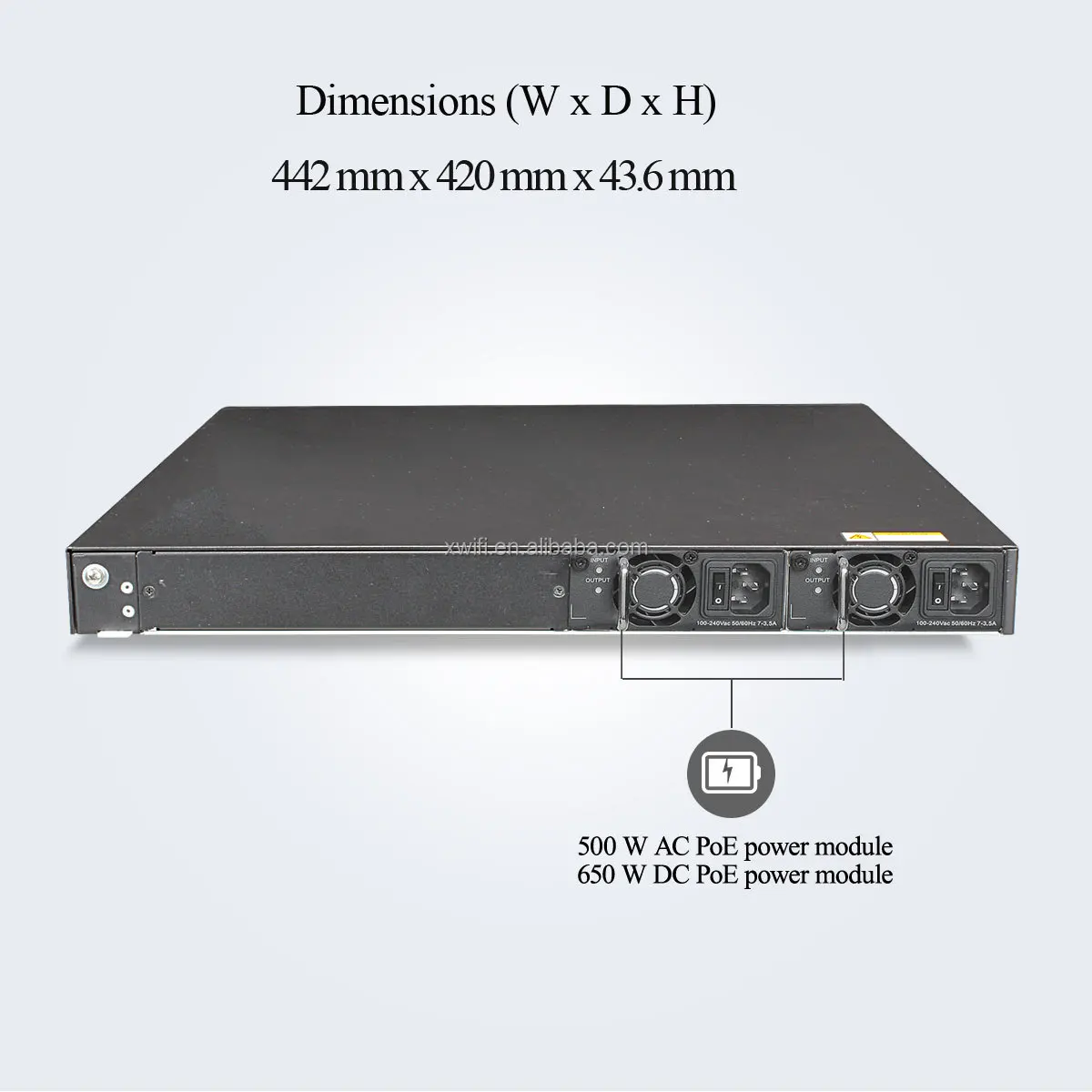

Figure 3 shows the back panel of Huawei S5720-28X-PWR-SI-AC switch.

S5720-28X-PWR-SI-AC Back Panel

Note:

①	Ground screw
②	Power module slot 2
③	Power module slot 1

· Double hot swappable AC/DC power supplies, one 500W AC or 650W DC power module is configured by default.

The Transceiver

Recommended transceivers.

Model	Description
GE-SFP Optical Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)
10GE SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

Compare to Similar Items

Comparison of Huawei S5720-52X-PWR-SI-AC and S5720-28X-PWR-SI-AC switches.

Models	S5720-52X-PWR-SI-AC	S5720-28X-PWR-SI-AC
Downlink Ports	48 x Ethernet 10/100/1,000 PoE+ ports	24 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP
Uplink Ports	4 x 10 Gig SFP+	4 x 10 Gig SFP+
Power Supply	AC Power Supply	AC Power Supply
PoE	Supported	Supported

Product Details

Technical Specifications

	24 ports Enterprise Layer 3 POE Switch S5720-28X-PWR-SI-AC with lower price
Switching Capacity	336 Gbit/s
Forwarding Performance	96 Mpps
Fixed Ports	24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+
MAC Address Table	16K IEEE 802.1d compliance 16k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running

24 ports Enterprise Layer 3 POE Switch S5720-28X-PWR-SI-AC with lower price

Flexible Gigabit Ethernet switches that provide resilient, high-density Layer 3 switching for data centers. Features include multiple-terminals, HD video surveillance, and video conferencing applications. Intelligent iStack clustering, 10 Gbit/s upstream ports and IPv6 forwarding enable use as aggregation switches in enterprise campus networks.Next-generation reliability, security, and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent source of low Total Cost of Ownership (TCO).

Product Highlights

Services

Layer 3 features such as OSPF, IS-IS, BGP, and VRRP provide services such as voice, video, and data.

iStack Properties

Intelligent Stack (iStack) virtualizes multiple switches into one, improving device reliability, simplifying configuration and
management, and providing configuration-free stacking.

SVF for Ultra-Simplified Network O&M

Huawei's Super Virtual Fabric (SVF) virtualizes the campus network architecture of 'Core / Aggregation Switches + Access Switches + APs' into a single network element for simplified network O&M. The S5720-SI also can work as an SVF plug-and-play client.

S5720-28X-PWR-SI-AC Specification
Fixed Port	24 × Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP
MAC address table	IEEE 802.1d compliance
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address entries: S5700-SI series - 16K
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
	SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
	BPDU Tunnel
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag)
	ITU-Y.1731
	DLDP
	LACP
	E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features	MPLS L3VPN
	MPLS L2VPN(VPWS/VPLS)
	MPLS-TE
	MPLS QoS
	Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing	Static routing
	RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)
	OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	WRED (supported by the S5710-EI and S5700-HI)
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	MFF
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance	Virtual cable test
	Port mirroring and RSPAN (remote port mirroring)
	Remote configuration and maintenance using Telnet
	SNMP v1/v2c/v3
	RMON
	Web NMS
	HGMP
	System logs and alarms of different levels
	802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
	Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)
	NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)
	sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0℃–50℃
Operating environment	Relative humidity: 10%–90% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
Dimensions (W x D x H)	44.2 cm x 42 cm x 4.44 cm

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Huawei S5720-28X-PWR-SI Bundle 24* 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4*10G SFP+, 500W AC power is for you.
