Huawei S5700 Series Switches CloudEngine S5735-L48T4X-A1 with 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, Enterprise-level Switch

Product Model

S5735-L48T4X-A1

Memory

512 MB

Flash memory

512 MB

Typical power consumption [W]

51.9 W

Typical heat dissipation [BTU/hour]

177.09 BTU/hour

Model

Description

OMXD30000

Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

OMXD30009

Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10

ESFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)

Product Model

S5735S-L12T4S-A

S5735S-L12P4S-A

S5735S-L24T4S-A

S5735S-L24P4S-A

S5735S-L24T4X-A

S5735S-L24P4X-A

S5735S-L48T4S-A

S5735S-L48T4X-A

S5735S-L48P4X-A

S5735S-L32ST4X-A

Forwarding Performance

24 Mpps

42 Mpps

96 Mpps

78 Mpps

132 Mpps

108 Mpps

Switching Capacity2

32 Gbit/s/336 Gbit/s

56 Gbit/s/336 Gbit/s

128 Gbit/s/336 Gbit/s

104 Gbit/s/432 Gbit/s

176 Gbit/s/432 Gbit/s

144 Gbit/s/432 Gbit/s

Fixed Ports

12 x 10/100/1000Base-T ports, 4 x GE SFP ports

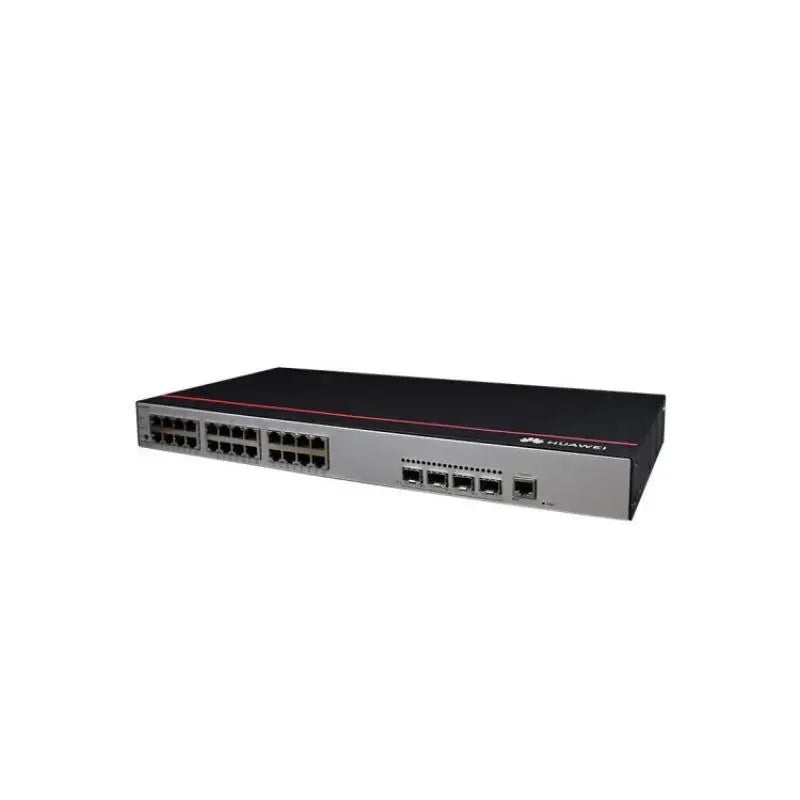

24 x 10/100/1000Base-T ports, 4 x GE SFP ports

24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports

48 x 10/100/1000BASE-T ports, 4 x GE SFP ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

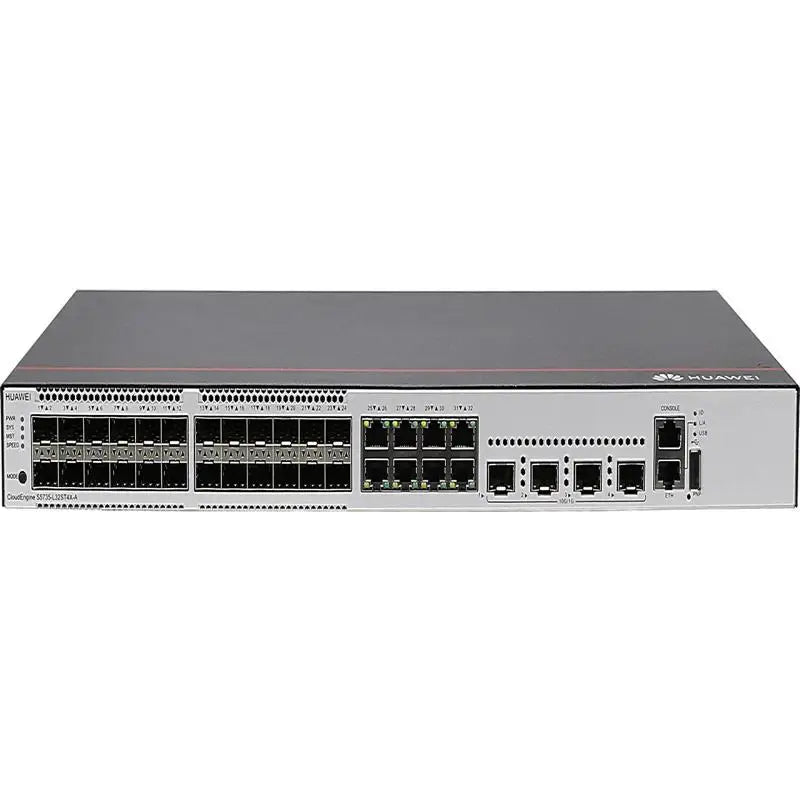

24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

PoE+

CloudEngine S5735S-L12P4S-A: Supported
CloudEngine S5735S-L24P4S-A: Supported
CloudEngine S5735S-L24P4X-A: Supported
CloudEngine S5735S-L48P4X-A: Supported
Other: Not supported

S5735-L48T4X-A1 Specification

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U]

1 U

Typical power consumption [W]

43.2 W

Typical heat dissipation [BTU/hour]

147.4 BTU/hour

Maximum power consumption [W]

51.9 W

Maximum heat dissipation [BTU/hour]

177.09 BTU/hour

MTBF [year]

53.67 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

48 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

36.2 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

1

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported

Certification

EMC certification

Safety certification

Manufacturing certification
