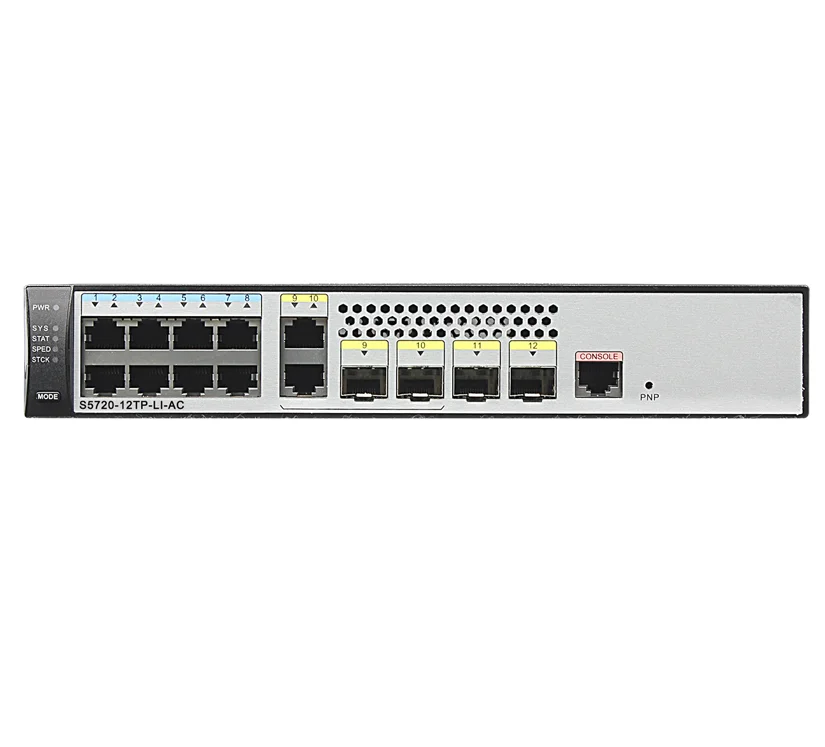

Huawei S5700 Series S5720-12TP-LI-AC with 8 Ethernet 10/100/1000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V

Memory (RAM)

512 MB

Flash

240 MB

Mean time between failures (MTBF)

23.8 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: 7 kV

Power supply surge protection

6 kV in differential mode, 6 kV in common mode

Dimensions (W x D x H)

250.0 mm x 180.0 mm x 43.6 mm (9.8 in. x 7.1 in. x 1.72 in.)

Weight (including packaging materials)

1.8 kg (3.97 lb)

Stack ports

Eight 10/100/1000BASE-T ports and two 1000BASE-X ports

RTC

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput)

12.85 W

Typical power consumption (30% of traffic load)

• ● Tested according to ATIS standard
• ● EEE enabled
• ● No PoE power consumption

10.39 W

Operating temperature

0°C to 45°C (32F to 113F) at an altitude of 0-1800 m (0-5096 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8F) every time the altitude increases by 220 m (722 ft.).

The operating temperature of the switch is 0°C to 40°C (32F to 104F) when it uses GE SFP optical modules with 40 km transmission distances.

Storage temperature

-40°C to +70°C (-40F to +158F)

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Memory (RAM)

512 MB

Flash

240 MB

Mean time between failures (MTBF)

23.8 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (W x D x H)

250.0 mm x 180.0 mm x 43.6 mm (9.8 in. x 7.1 in. x 1.72 in.)

Weight (including packaging materials)

1.8 kg (3.97 lb)

Stack ports

Eight 10/100/1000BASE-T ports and two 1000BASE-X ports

RTC

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput)

12.85 W

Typical power consumption (30% of traffic load)

• Tested according to ATIS standard
• EEE enabled
• No PoE power consumption

10.39 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The operating temperature of the switch is 0°C to 40°C (32°F to 104°F) when it uses GE SFP optical modules with 40 km transmission distances.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)
