Huawei S3700 Series S3700-28TP-EI-24S-AC 24*FE SFP, 2 Gb SFP, 2 dual-purpose 10/100/1000 or SFP, Optical Enterprise Ethernet Switch

Huawei S3700 Series S3700-28TP-EI-24S-AC 24*FE SFP, 2 Gb SFP, 2 dual-purpose 10/100/1000 or SFP, Optical Enterprise Ethernet Switch

SPECIFICATIONS

Brand Name: HUAWEI

Installation Method: Assembly

High-concerned Chemical: None

Private Mold: NO

Products Status: Stock

Ports: 24

Transmission Rate: 10/100Mbps

Function: LACP, POE, Stackable

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 32 Gbit/s

Brand Name: HUAWEI

Model Number: S3700-28TP-EI-24S-AC, S3700-28TP-EI-24S-AC

Device Type: Switch - 24 Ports - Managed

Flash Memory: 16 MB

Dimensions (H x W x D): 442.0 mm x 220.0 mm x 43.6 mm

Rated voltage range: 100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz

Typical power consumption: 50.1 W (without card)

Warranty: 1 Year

Condition: 100% new

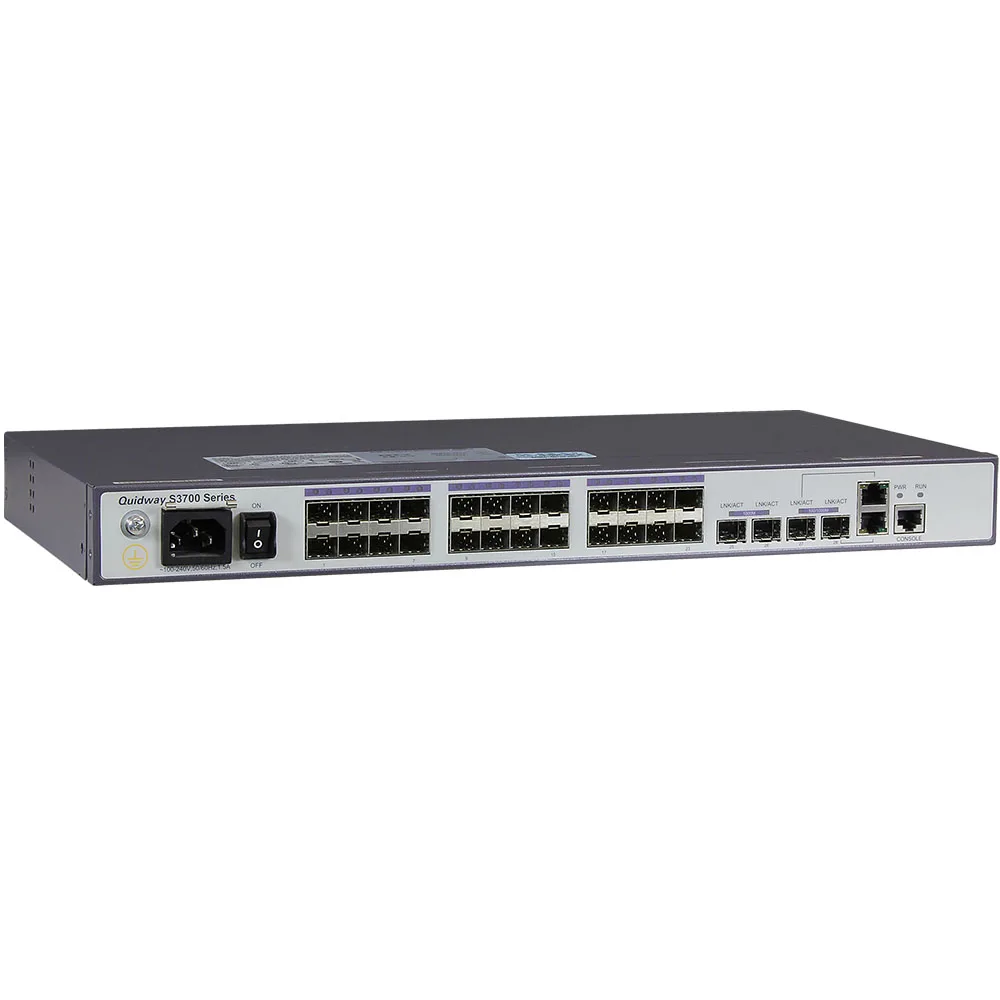

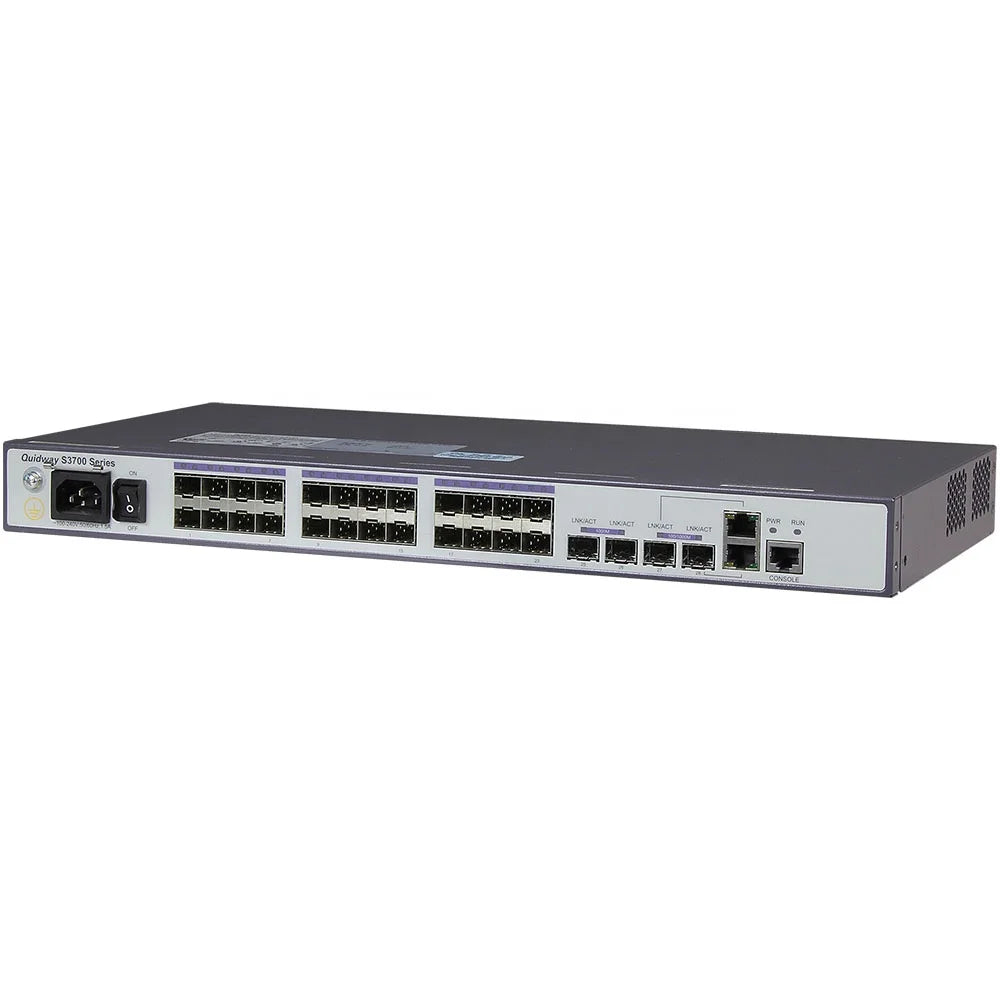

Product Images

Technical Specifications

Optical Ethernet Switch S3700-28TP-EI-24S-AC Enterprise Switch

The S3700 switch (S3700 for short) is an enterprise networks access device that provides access and data transport functions. The S3700 is developed by Huawei to meet the requirements for reliable access, aggregation, and high-quality transmission of multiple services on an enterprise networks. The S3700 functions as the access device of the enterprise networks. The S3700 provides large capacity, high port density, and cost-effective packet forwarding capabilities. The S3700 also provides multi-service access
capabilities, excellent extensibility, quality of service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build high-reliability ring topologies.

Product Highlights

Energy-Saving Design

* Some models adopt natural heat dissipation, so fans are not required.
* The interface chip switches to the power saving mode when an interface is idle, which means that no peer device is connected to the interface.
* It uses advanced highly-integrated and energy-saving chips. With the help of the intelligent device management system, the chips improve system performance and also reduce system power consumption.

Advanced Surge Protection Technique

The S3700 uses the Huawei patented built-in surge protection technique. This technique protects devices against lightning in
terrible weather and increases device security.

Convenient PoE Power Supply

The S3700 PoE model has the Power over Ethernet (PoE) function. It provides centralized power supply for IP phones, wireless access points (APs), portable device chargers, POS machines, cameras, and data collectors by using twisted pairs.
