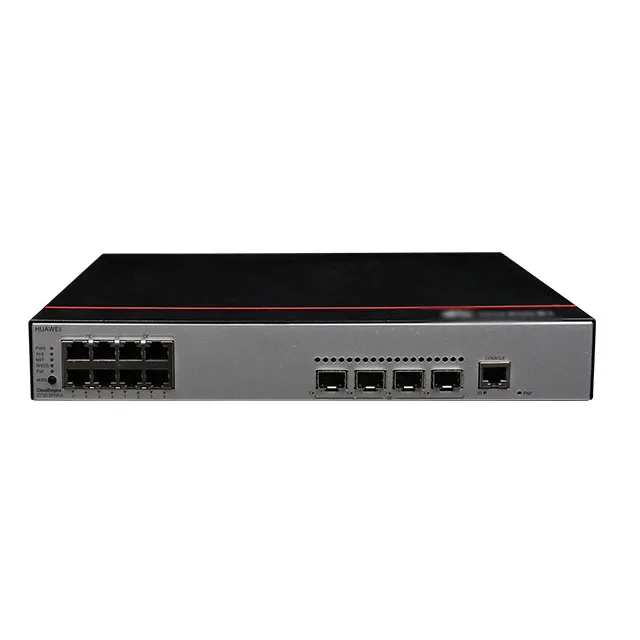

Huawei S2700 Series CloudEngine S2730S-S 4*10/100BASE-TX Ethernet ports, 4*10/100/1000BASE-T Ethernet ports, 4Gb SFP S2730S-S8FT4S-A

Product Code

S2730S-S8FT4S-A

Typical power consumption [W]

21.2 W

Typical heat dissipation [BTU/hour]

72.34 BTU/hour

Maximum power consumption [W]

26.3 W

Maximum heat dissipation [BTU/hour]

89.74 BTU/hour

Item

CloudEngine S2730S-S8FT4S-A

CloudEngine S2730S-S8FP4S-A

CloudEngine S2730S-S16FT4SA

CloudEngine S2730S-S16FP4SA

Fixed port

4 10 /100BASE-TX Ethernet ports, 4 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP

4 10 /100BASE-TX Ethernet ports, 4 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP

8 10 /100BASE-TX Ethernet ports, 8 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP

8 10 /100BASE-TX Ethernet ports, 8 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP

Basic Dimensions (WxDxH, unit: mm)

25018043.6

300220.043.6

300220.043.6

442x220x43.6

Chassis height

1U

1U

1U

1U

Maximum power consumption

29.7W

Without PoE: 38.6W

With PoE: 162.6W (PoE: 124W)

28.1W

Without PoE: 53.2W

With PoE: 433.2W (PoE: 380W)

S2730S-S8FT4S-A Specification

Item

Specification

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.)

Chassis height [U]

1 U

Typical power consumption [W]

21.2 W

Typical heat dissipation [BTU/hour]

72.34 BTU/hour

Maximum power consumption [W]

26.3 W

Maximum heat dissipation [BTU/hour]

89.74 BTU/hour

MTBF [year]

71.82 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

43 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

31.5 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

1

Redundant power supply

Not supported

Short-term operating temperature [°C(°F)]

Not supported

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz

Input voltage range [V]

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Maximum input current [A]

0.8 A

Memory

512 MB

Flash memory

512 MB

Console port

RJ45

Eth Management port

Not supported

USB

Not supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported
