Huawei S1700 Series S1720-28GWR-PWR-4TP Switch with 810/100/1000 Ethernet PoE+, 1610/100/1000 Ethernet port, Enterprise Web-managed

Regular price: R 29,461.95
Sale price: R 29,461.95
Regular price: ~~R 29,928.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Huawei S1700 Series S1720-28GWR-PWR-4TP Switch with 8*10/100/1000 Ethernet PoE+, 16*10/100/1000 Ethernet port, Enterprise Web-managed

SPECIFICATIONS

Brand Name: HUAWEI

Installation Method: Assembly

High-concerned Chemical: None

Private Mold: NO

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, Stackable

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 68 Gbit/s, 68 Gbit/s

Brand Name: HUAWEI

Model Number: S1720-28GWR-PWR-4TP

Fixed Port: 24 Ethernet 10/100/1,000 ports

Forwarding Performance: 42Mpps

MAC ADDRESS TABLE: 16K MAC

Operating temperature: 0℃~45℃

Input voltage: 100 V to 240 V AC 50/60 Hz

Uplink port: 4 Gig SFP,2 dual- purpose 10/ 100/ 1000 or SFP

Dimensions: 442*220*43.6

Power Consumption: with PD:165.528W (PoE:123.2W)

Condition: Origianl

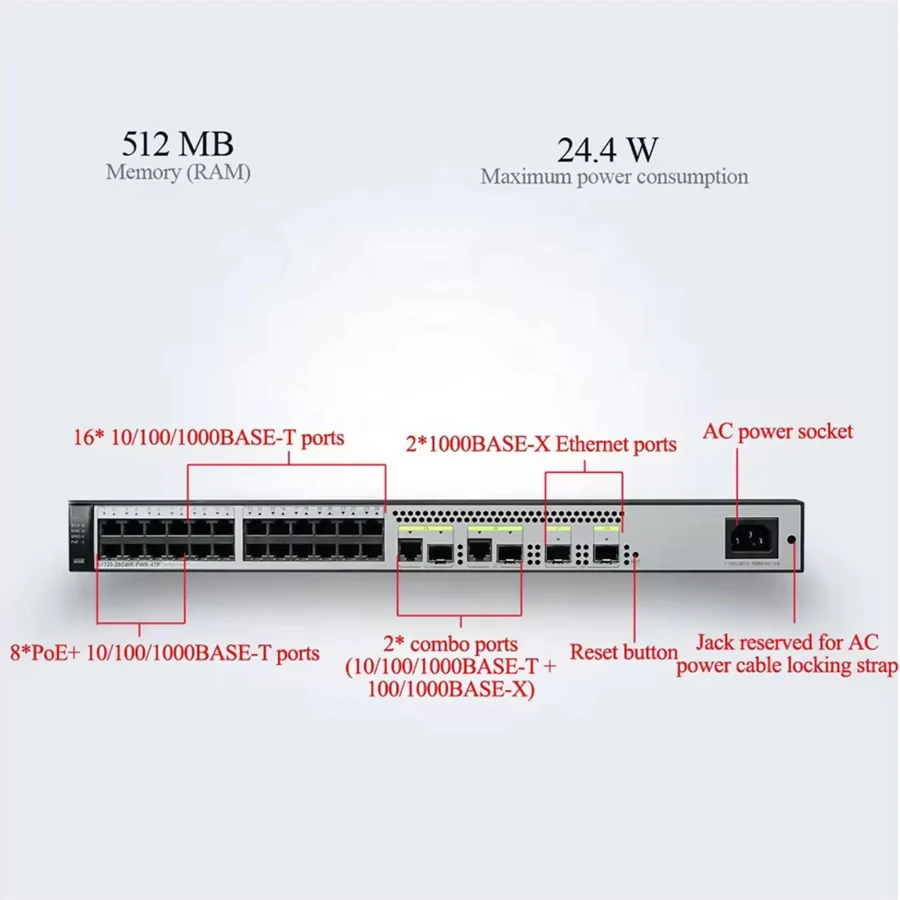

Product Images

Technical Specifications

	24 Ethernet ports Poe switch S1720-28GWR-PWR-4TP Enterprise Web-managed Switch
Function and Feature	Web-managed switch	Fully-managed switch
Security features	Packet filtering based on MAC addresses MAC address authentication Port-based 802.1x authentication RADIUS authentication Portal authentication Port isolation Storm suppression DHCP snooping	Hardware ACL Packet filtering based on MAC addresses MAC address authentication Port-based 802.1x authentication. RADIUS authentication Portal authentication Port isolation Storm suppression Attack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks DHCP snooping
VLAN	4K VLANs VLAN assignment based on access, trunk, and hybrid ports Management VLAN Voice VLAN	4K VLANs VLAN assignment based on access, trunk, and hybrid ports Management VLAN Voice VLAN
QoS	PQ and WRR Eight queues on each port Queue scheduling based on 802.1p or DSCP priorities	PQ and WRR Eight queues on each port Queue scheduling based on 802.1p or DSCP priorities
Routing Feature	IPv4 and IPv6 static routing	IPv4 and IPv6 static routing
Link Aggregation	64 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG Static LACP	64 LAGs with a maximum of eight ports in each LAG Static LACP
STP	STP (IEEE 802.1d) RSTP (IEEE 802.1w) MSTP (IEEE 802.1s)	STP (IEEE 802.1d) RSTP (IEEE 802.1w) MSTP (IEEE 802.1s)

24 Ethernet ports Poe switch S1720-28GWR-PWR-4TP Enterprise Web-managed Switch In Stock

S1700 series switches are ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and others. They are easy to install and maintain and provide rich services, helping customers build secure, reliable, and high-performance networks.

Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.

Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management.

Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).

Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.

Product Highlights

Various Models

Provide an extensive range of unmanaged, web-managed, and fully-managed switch models to meet customer needs in different
scenarios.

Noise-free and Energy-saving Design

Allow ports to enter the low-power idle state, which greatly reduces the power consumption; Adopt a fan-free design for quiet
operations and low power consumption of the entire device. Note: Only some models of the S1720 series have no fans.

Security and Non-Blocking Forwarding

Provide comprehensive security features, with multiple authentication modes such as 802.1x, Portal, and MAC address; Provide Layer 2 line-rate forwarding capabilities to ensure non-blocking packet forwarding on all ports.

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Huawei S1700 Series S1720-28GWR-PWR-4TP Switch with 8*10/100/1000 Ethernet PoE+, 16*10/100/1000 Ethernet port, Enterprise Web-managed is for you.

Inventory Last Updated: Apr 10, 2025
