Huawei NetEngine Router AR6300 integrated chassis,1SRU slot,4SIC slot,2WSIC slot,4XSIC slot,2*POWER slot enterprise Mult-WAN WiFi router

Regular price: R 257,944.95
Sale price: R 257,944.95
Regular price: ~~R 330,169.95~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

Huawei NetEngine Router AR6300 integrated chassis,1*SRU slot,4*SIC slot,2*WSIC slot,4*XSIC slot,2*POWER slot enterprise Mult-WAN WiFi router

SPECIFICATIONS

Brand Name: HUAWEI NetEngine

High-concerned Chemical: None

Max. LAN Data Rate: 150Mbps

With Modem Function: NO

Standards And Protocols: Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac

Wi-Fi Supported Frequency: 2.4G

Supports WDS: No

Wi-Fi Transmission Standard: 802.11b

Wired Transfer Rate: 10/100Mbps

Encryption Type: WPA2-Enterprise, WPA-Enterprise

Private Mold: NO

Products Status: New

Type: Wireless

Application: Home

LAN Ports: 8 * GE electric mouth

WAN Ports: 3 * GE GE Combo + 1 light

Product name: High-Speed Dual-Band Wi-Fi Router AR6300 Home office Multi-WAN router

Amount of machine: 300 set

Product status: Stock

Warranty: 1 Year

Weight: 4.6kg

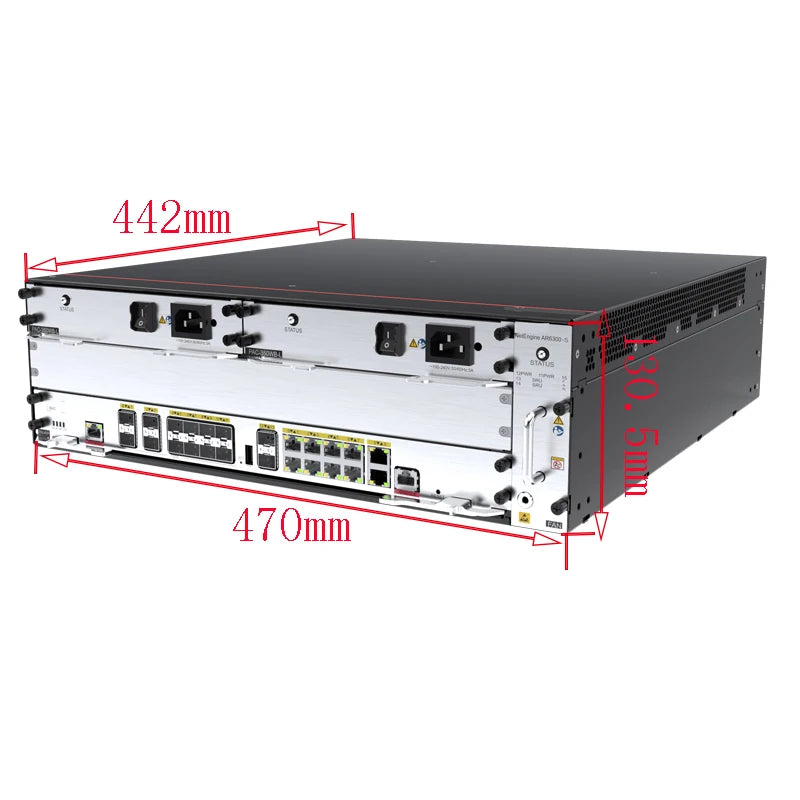

Size: 44.4mm*220.4mm*442.0mm

Connect: RJ45

Color: Black

Model: AR6300

WIFI: 802.11 A/b/g/n/ac/ax

Product Description

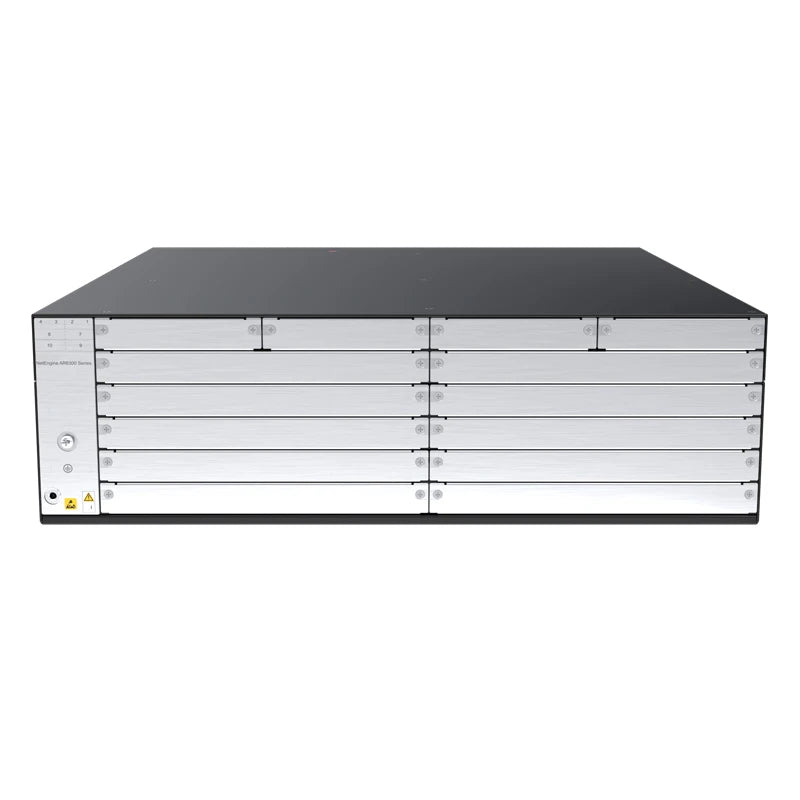

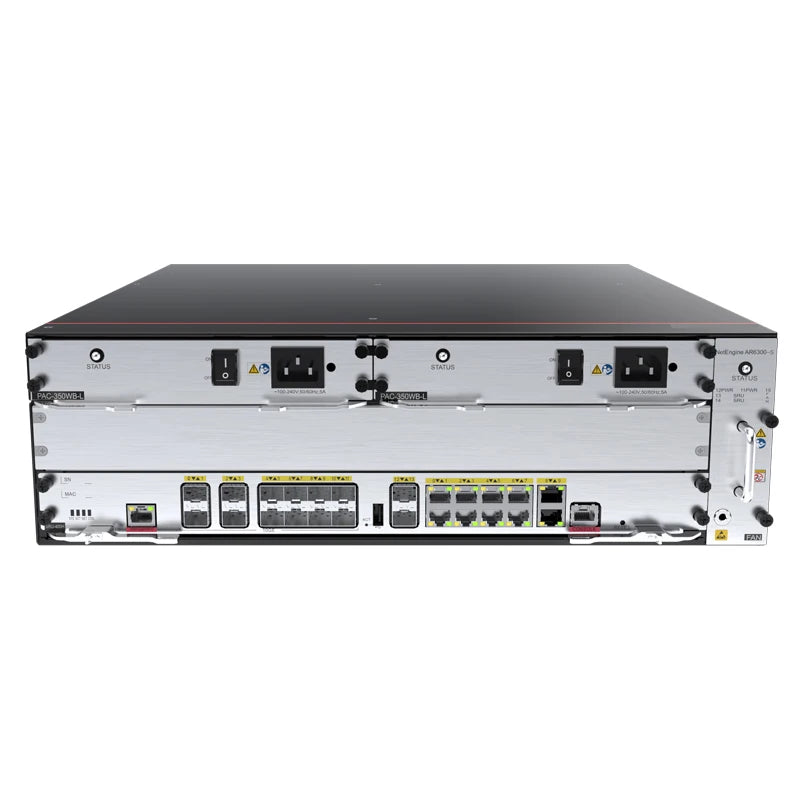

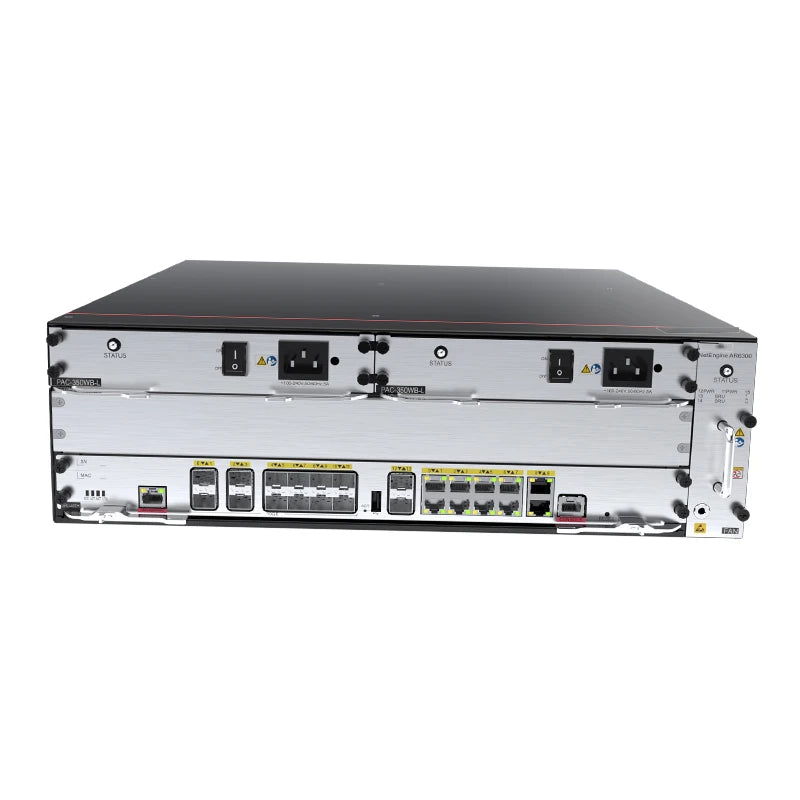

Huawei NetEngine AR6300 Series Routers

Huawei NetEngine AR6300 integrated chassis, 1*SRU slot, 4*SIC slot, 2*WSIC slot, 4*XSIC slot, 2*POWER slot

The NetEngine AR6100 series enterprise router is first enterprise-class AR router for the cloud era, with 3 times the industry forwarding performance, 5G ultra-wide uplink, and integration of SD-WAN, cloud management, VPN, MPLS, security, voice and other functions. Help customers around the world easily cope with the upsurge in enterprise traffic and future business diversification.

Huawei's next-generation NetEngine AR6000 series enterprise routers use high-performance multi-core processors and a nonblocking switching structure, helping to deliver higher forwarding performance than the industry average. The NetEngineAR6000 also integrates functions such as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring diversified andcloud-based services are fully supported.

Quick Specs

Product Code	AR6300
Processor	16-Core
ForwardingPerformance (LAN - >WAN + WAN - > LAN,NAT + ACL + QoS,IMIX)	SRU-400H: 10 Gbps SRU-600H: 12 Gbps
IPsec performance(IMIX)	SRU-400H: 6 Gbps SRU-600H: 7.5 Gbps
Fixed WAN ports	SRU-400H:WAN: 1410GESFP+(compatible withGE SFP) +10GE RJ45(All WAN ports can beconfigured as LAN) SRU-600H:WAN: 1410GESFP+(compatible withGE SFP) +10GE RJ45(All WAN ports can beconfigured as LAN)
Fixed LAN ports	\
SIC slots	4
WSIC slots	2 (default)/4(maximum)
XSIC slots	4 (default)/6(maximum)
USB port	1*USB2.0
Auxiliary or consoleport	1 x RJ45 console port
Memory	SRU-400H: 8 GB SRU-600H: 16 GB
Flash memory	SRU-400H: 2 GB SRU-600H: 4 GB
Hot swapping	Supported

Features

Product name	AR6300
Warranty	1 year
Amount of machine	300 set
Interface number	Number of WAN ports: 3 x GE Combo+1 x GE optical ports; Number of LAN ports: 8 x GE electrical ports
Weight	4.6kg
Size	44.4mm428.2mm442mm
Connect	RJ45
transmission performance	9Mpps-40Mpps
Machine exchange capacity	20Gbps-80Gbps
Fixed WAN interface	1 x 10GE optical (compatible with GE optical)+2 x GE Combo
Fixed LAN interface	8GE electrical +1GE Combo (can be switched to WAN port)
SIC slot	2
5G	Supports 5G-SIC service boards
Serial auxiliary/console port	1* RJ45 Console

Product Display

The Huawei NetEngine Router AR6300 integrated chassis,1*SRU slot,4*SIC slot,2*WSIC slot,4*XSIC slot,2*POWER slot enterprise Mult-WAN WiFi router is far and away, one of our most popular items. People can't seem to get enough of it.
