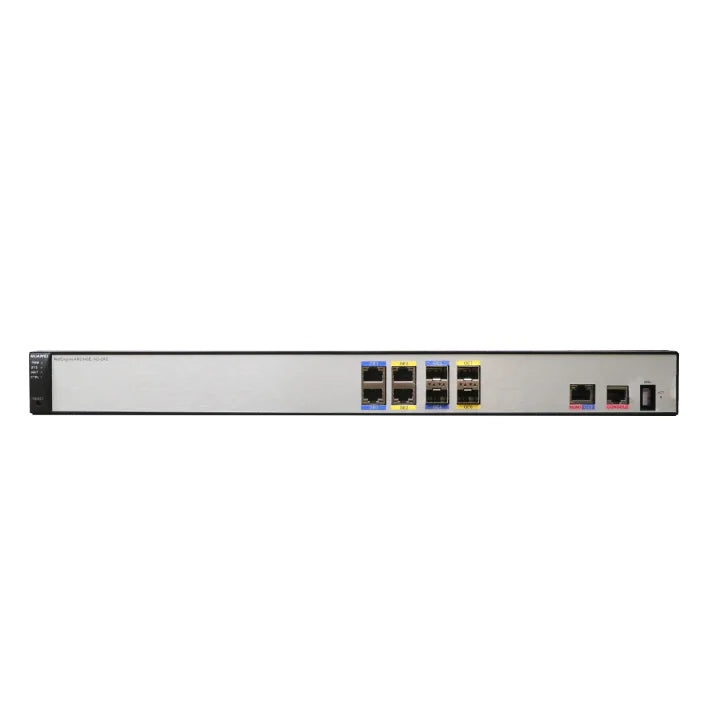

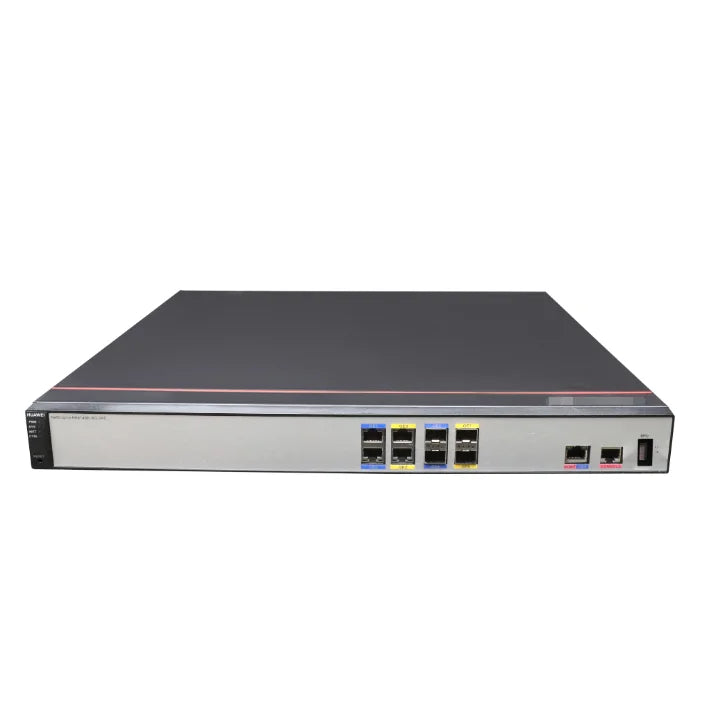

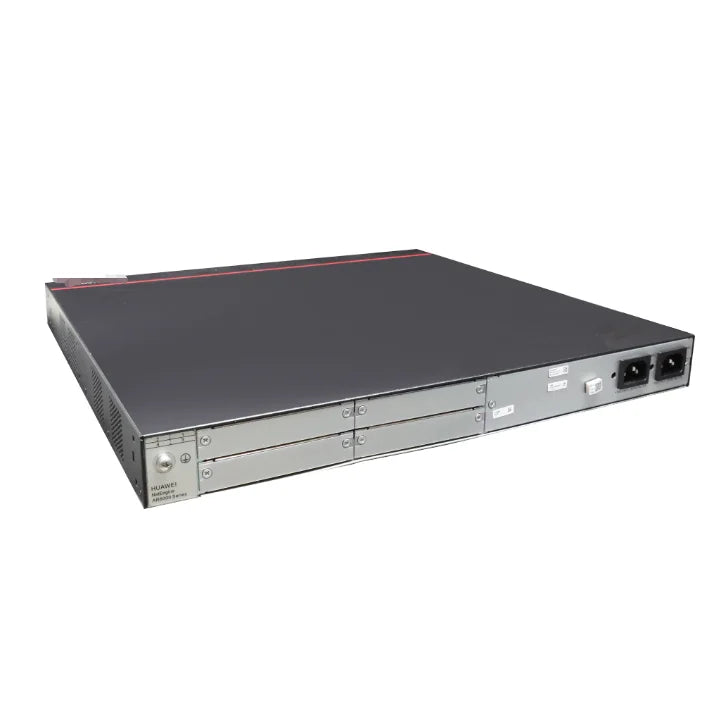

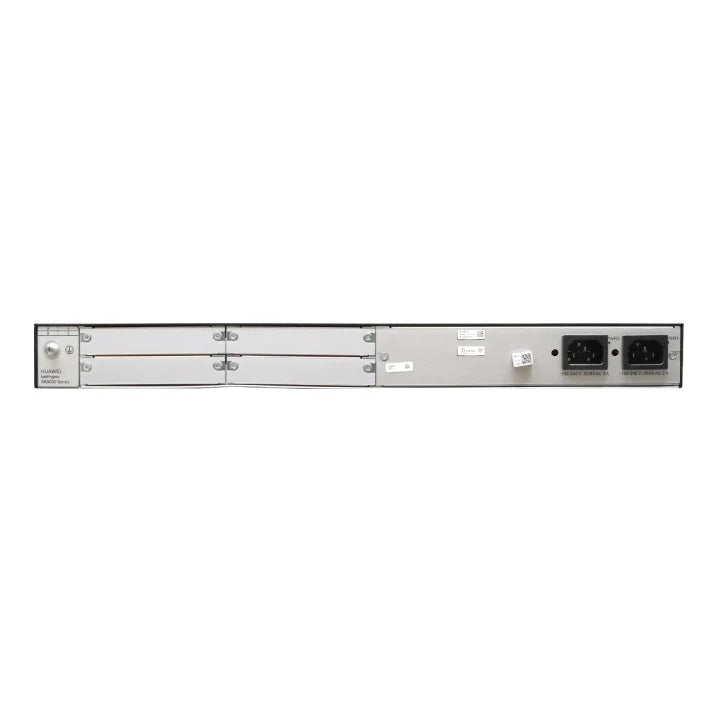

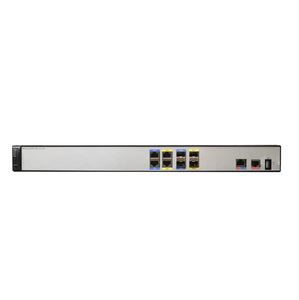

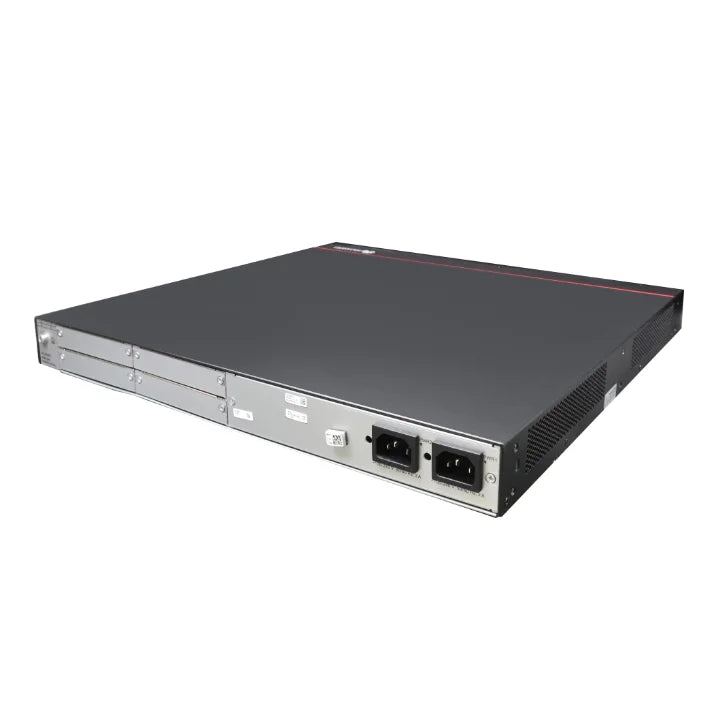

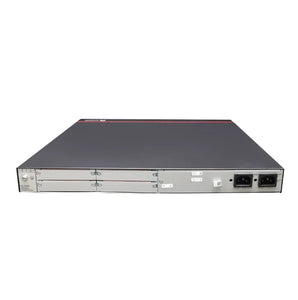

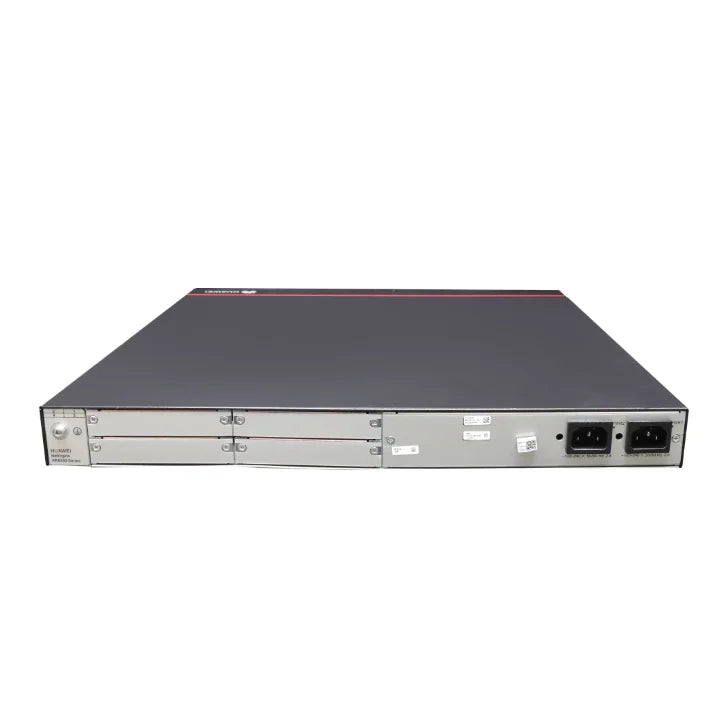

Huawei NetEngine AR6140-9G-2AC Enterprise Router with 5*GE RJ45, 4*GE SFP port High reliability Security Router with 4*SIC slots

NetEngine AR6140-9G-2AC

Forwarding Performance: 2 Gbps
Fixed WAN ports: 2*GE RJ45, 2*GE SFP
Fixed LAN ports: 2*GE SFP, 3*GE RJ45 (can be configured as WAN)
Dimensions (H x W x D): 44.5 mm x 442 mm x 420 mm

Item

NetEngine AR6000

Basic function

DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP/RSTP

WLAN (AC)

AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management)

IPv4 unicast routing

Routing policies, static routes, RIP, OSPF, IS-IS, BGP

IPv6 unicast routing

Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+

Basic IPv6 function

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6

IPv6 tunneling

Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP

Multicast

IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, Smart Application Control (SAC)

WAN Optimization

Multi-fed and Selective receiving, per-packet load balancing

Security

ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication, portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering

Management and
maintenance

Upgrade management, device management, web-based network management, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment, NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP Light, IP accounting, NQA

*** Note: V300R019C13 and later versions, NetEngine AR6000 support WAN Optimization features.

Item

NetEngine AR6140-9G-2AC
NetEngine AR6140E-9G-2AC

System Parameters

Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX)

2 Gbps

IPsec performance (IMIX)

2 Gbps

IPsec performance (1400 bytes)

4 Gbps

Fixed WAN ports

2 x GE RJ45, 2 x GE SFP

Fixed LAN ports

2 x GE SFP, 3 x GE RJ45 (can be configured as WAN)

5G uplink

Support 5G SIC

SIC slots

4

WSIC slots

0 (default)/2 (maximum)

XSIC slots

0 (default)/1 (maximum)

USB port

1 x USB

Auxiliary or console port

1 x RJ45 console port

Memory

NetEngine AR6140-9G-2AC: 2 GB
NetEngine AR6140E-9G-2AC: 4 GB

Flash memory

1 GB

Hot swapping

Supported

Dimensions and Weight

Router dimensions, With no mounting bracket installed (H x W x D)

44.5 mm x 442 mm x 420 mm

Router dimensions, With mounting bracket installed (H x W x D)

44.5 mm x 482.6 mm x 572.5 mm

Weight

5.0 kg

Rack

IEC

Occupied rack space

1U

Power Specifications, Power Consumption, and Heat Dissipation

Rated input voltage range (AC)

100 V to 240 V

Rated input frequency (AC)

50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V

Maximum input current (AC)

3A

Maximum output power (AC)

AR6140E-9G-2AC:70W
AR6140-9G-2AC:60W/70W

Typical power consumption

18 W

Maximum power consumption

AR6140E-9G-2AC:34W
AR6140-9G-2AC:32W

Power supply redundancy

Supported

Fan module

Built-in unpluggable fan modules

Airflow

Left to right

Noise level

54 dB

Environment Parameters

Operating temperature

0 ºC to 45 ºC

Operating humidity

5% to 95% (non-condensing)

Operating altitude

< 5000 m (16404.2 ft.)

Storage temperature

–40 ºC to +70 ºC

Storage altitude

< 5000 m (16404.2 ft.)
