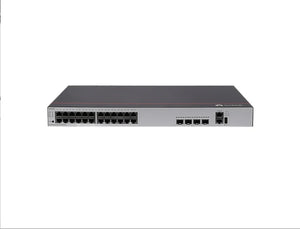

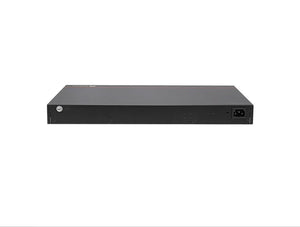

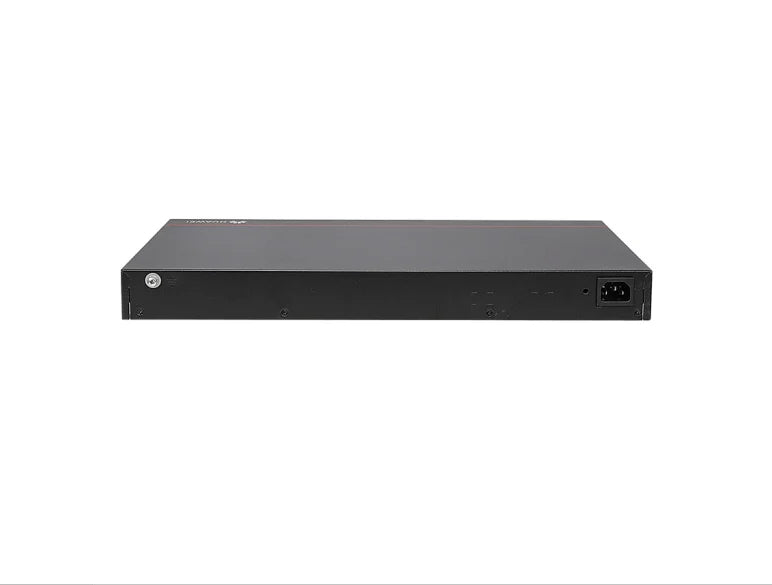

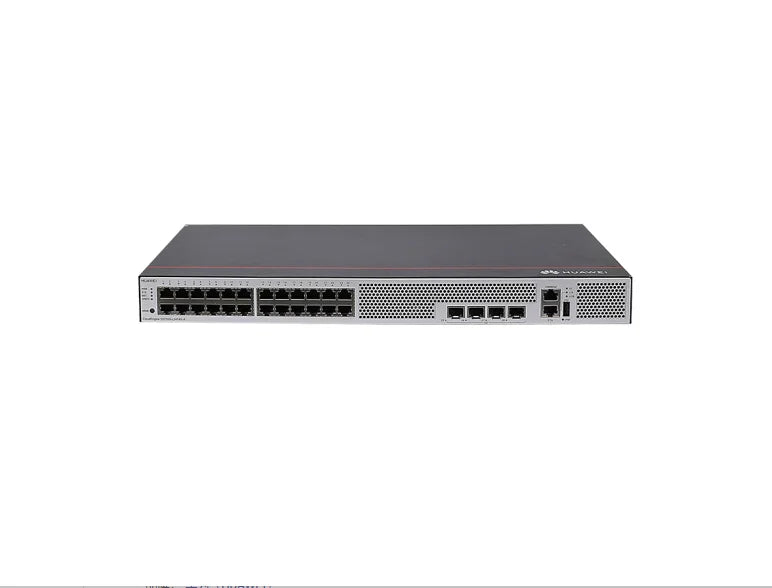

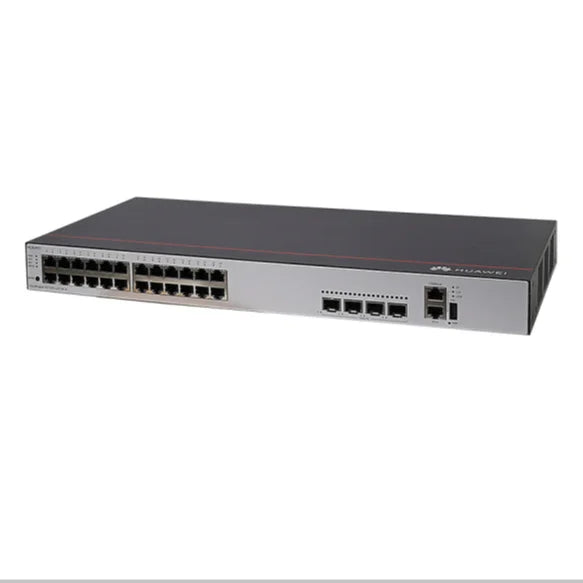

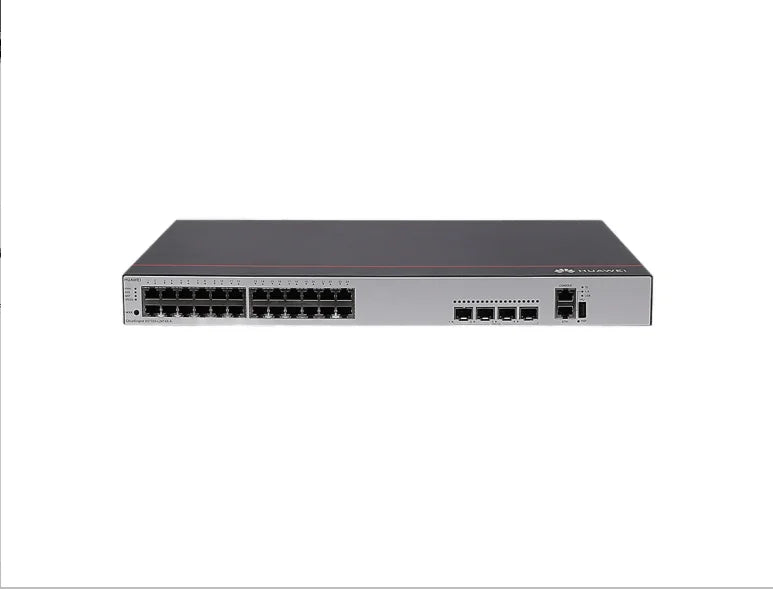

Huawei CloudEngine Switch 5735-L24P4X-A1 24-port 10/100/1000 POE Switch Stock 24 10/100/1000base-t Ethernet Ports, 4*10 Gigabit SFP+

Regular price: R 57,347.95
Sale price: R 57,347.95
Regular price: ~~R 58,449.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Huawei Cloudengine Switch 5735-L24P4X-A1 24-port 10/100/1000 POE Switch Stock 24 10/100/1000base-t Ethernet Ports, 4 x 10 Gigabit SFP+

Product Description

Huawei Cloudengine Switch 5735-L24P4X-A1 24-port 10/100/1000 POE Switch Stock 24 10/100/1000base-t Ethernet Ports, 4 x 10 Gigabit SFP+

Specifications

Product Model	S5735-L24P4X-A1
Memory	512 MB
Flash memory	512 MB
Typical power consumption [W]	42.4 W
Typical heat dissipation [BTU/hour]	144.67 BTU/hour

Supported Transceivers
Table 2 shows the recommended models.

Model	Description
OMXD30000	Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OMXD30009	Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
ESFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)

Compare to Similar Items
Table 3 shows the comparison.

Product Model	S5735S-L12T4S-A S5735S-L12P4S-A	S5735S-L24T4S-A S5735S-L24P4S-A	S5735S-L24T4X-A S5735S-L24P4X-A	S5735S-L48T4S-A	S5735S-L48T4X-A S5735S-L48P4X-A	S5735S-L32ST4X-A
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbit/s/336 Gbit/s	56 Gbit/s/336 Gbit/s	128 Gbit/s/336 Gbit/s	104 Gbit/s/432 Gbit/s	176 Gbit/s/432 Gbit/s	144 Gbit/s/432 Gbit/s
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735S-L12P4S-A: Supported CloudEngine S5735S-L24P4S-A: Supported CloudEngine S5735S-L24P4X-A: Supported CloudEngine S5735S-L48P4X-A: Supported Other: Not supported

Specification

S5735-L24P4X-A1 Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions: 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Typical power consumption [W]	42.4 W
Typical heat dissipation [BTU/hour]	144.67 BTU/hour
Maximum power consumption [W]	* Not providing the PoE function: 53.8 W * 100% PoE loads: 433.8 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	* Not providing the PoE function: 183.57 * 100% PoE loads: 1480.17
MTBF [year]	52.74 year
MTTR [hour]	2 hour
vailability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	38.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	* AC input: 100 V AC to 240 V AC, 50/60 Hz * High-Voltage DC input: 240 V DC
Input voltage range [V]	* AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz * High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	98011318: Common mode: ±7 kV 98011318-001: Common mode: ±2 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification

On the fence about this Huawei CloudEngine Switch 5735-L24P4X-A1 24-port 10/100/1000 POE Switch Stock 24 10/100/1000base-t Ethernet Ports, 4*10 Gigabit SFP+? Don't be. Let our satisfaction guarantee address your concerns.
