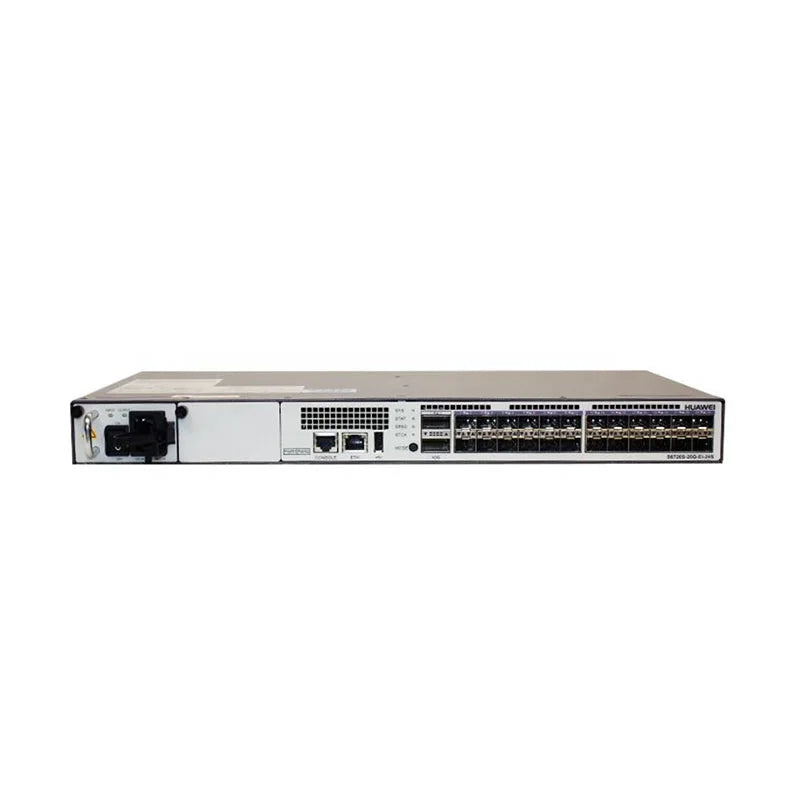

Huawei CloudEngine S6720S-26Q-EI-24S Bundle (2410 Gig SFP+, 240 Gig QSFP+, with 170W AC power supply) SFP+ Network Data Center Switch

Regular price: R 87,908.42
Sale price: R 87,908.42
Regular price: ~~R 111,042.21~~
Unit price: per

Shipping calculated at checkout.

color

Quantity must be 1 or more

Huawei CloudEngine S6720S-26Q-EI-24S Bundle (24*10 Gig SFP+, 2*40 Gig QSFP+, with 170W AC power supply) SFP+ Network Data Center Switch

Description

Huawei S6720S-26Q-EI-24S-AC switch is is a retail version. The Huawei S6720 series offers high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. It also provides optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks.

Quick Specs

Product Code	S6720S-26Q-EI-24S-AC
Ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Interface Slot	None
Power Supply	AC Power Supply
Forwarding Performance	480 Mpps
Switching Capacity	2.56 Tbit/s
Stack	Supported
Stack Ports	- Any 10GE SFP+ ports (a maximum of 16 physical ports) - Any 40GE QSFP+ ports (a maximum of 2 physical ports)
Memory (RAM)	2 GB
Flash	240 MB
Dimensions (W x D x H)	44.2 cm x 22 cm x 4.44 cm
Weight (Kg)	8.5 Kg

Compare to Similar Items

Models	S6720-30C-EI-24S-AC	S6720-54C-EI-48S-AC	S6720S-26Q-EI-24S-AC
Switching Capacity	2.56 Tbit/s	2.56 Tbit/s	2.56 Tbit/s
Forwarding Performance	720 Mpps	1,080 Mpps	480 Mpps
Fixed Ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports	48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot	One extended slot for 4 x 40 GE QSFP+ interface card	One extended slot for 4 x 40 GE QSFP+ interface card	Not supported
Power Supply	AC Power Supply	AC Power Supply	AC Power Supply

Product display

Specifications

S6720S-26Q-EI-24S-AC Specifications
Fixed Ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot	Not supported
MAC Address Table	288K MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ
IPv4 Routing	Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy
IPv6 Routing	Static route RIPng OSPFv3 BGP4+ ISISv6
IPv6 Features	Neighbor Discovery (ND) PMTU IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
Multicast	Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
MPLS	MPLS, MPLS VLL, L3VPN
VPLS	Martini VPLS
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS (G.8032v2) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM E-Trunk
Input Voltage	AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
Dimensions (W x D x H)	442 mm x 220 mm x 44.4 mm
Typical Power Consumption	AC: without subcard: 109W

The Huawei CloudEngine S6720S-26Q-EI-24S Bundle (24*10 Gig SFP+, 2*40 Gig QSFP+, with 170W AC power supply) SFP+ Network Data Center Switch is the yin, to your yang. You've found what you're looking for.

Inventory Last Updated: Oct 19, 2025
