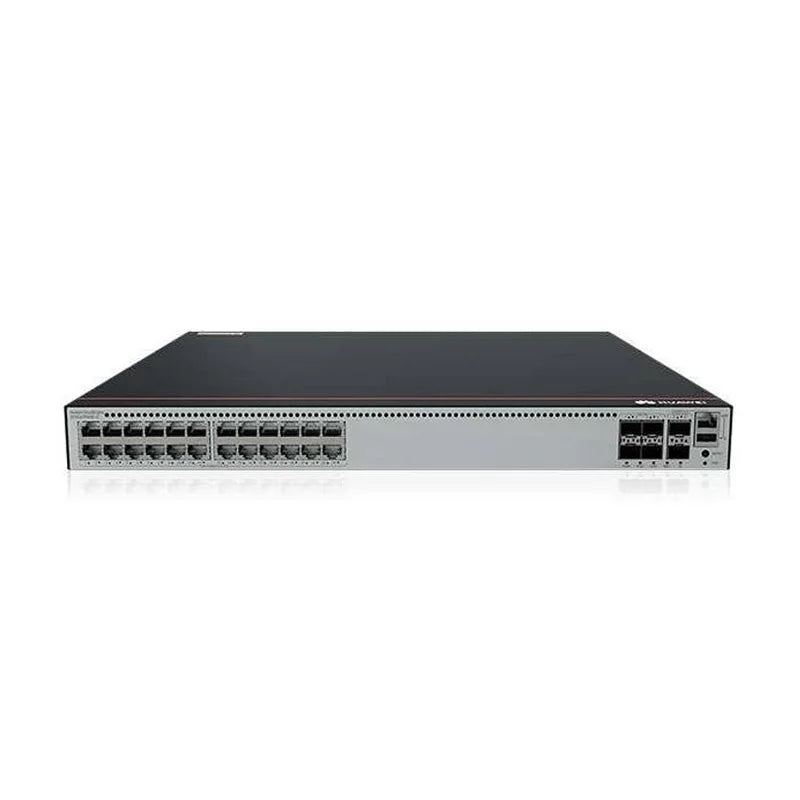

Huawei CloudEngine S5735-S24PN4XE-V2 2410/100/1000/2.5GBASE-T port(PoE+, 410GE SFP+ ports, 2*12GE stack ports, without power module

Regular price: R 42,986.95
Sale price: R 42,986.95
Regular price: ~~R 43,960.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Huawei CloudEngine S5735-S24PN4XE-V2 24*10/100/1000/2.5GBASE-T port(PoE+, 4*10GE SFP+ ports, 2*12GE stack ports, without power module

SPECIFICATIONS

Brand Name: HUAWEI

DIY Supplies: ELECTRICAL

Private Mold: NO

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, Stackable

Communication Mode: Full-Duplex & Half-Duplex

Model Number: S5735-S24PN4XE-V2

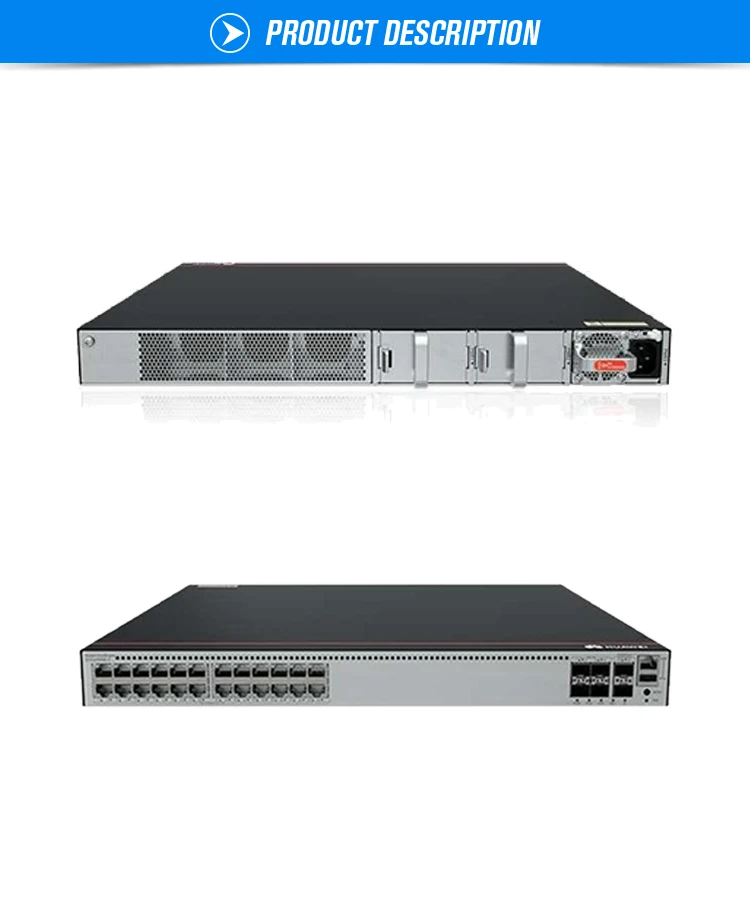

Description

Huawei CloudEngine S5735-S24PN4XE-V2 24*10/100/1000/2.5GBASE-T port(PoE+, 4*10GE SFP+ ports, 2*12GE stack ports, without power module

Overview

Basic information about the S5735-S24PN4XE-V2

Item	Details
Description	S5735-S24PN4XE-V2 (2410/100/1000/2.5GBASE-T ports(PoE+), 410GE SFP+ ports, 2*12GE stack ports, without power module)
Part Number	98012400
Model	S5735-S24PN4XE-V2
First supported version	V600R023C10

Ports

Maximum transmission distances of different cables on multi-GE ports

Cable Type (6-a-1 Bundle)	Multi-GE Port (Different Rates)
Cable Type (6-a-1 Bundle)	10M/100M/1000M	2.5GE
Category 5e unshielded twisted pair (Cat5e UTP)	100 m	100 m
Category 5e shielded twisted pair (Cat5e STP)	100 m	100 m
Category 6 unshielded twisted pair (Cat6 UTP)	100 m	100 m
Category 6 shielded twisted pair (Cat6 STP)	100 m	100 m
Category 6A unshielded twisted pair (Cat6A U/UTP)	100 m	100 m
Category 6A foiled/unshielded twisted pair (Cat6A F/UTP)	100 m	100 m
Category 6A shielded twisted pair (Cat6A STP)	100 m	100 m
Category 7 twisted pair (Cat7)	100 m	100 m

Ports on the S5735-S24PN4XE-V2

Port	Connector Type	Description	Available Components
10M/100M/1G/2.5GE BASE-T PoE+ port (multi-GE port)	RJ45	A 10M/100M/1G/2.5GE BASE-T PoE+ port (multi-GE port) sends and receives service data at 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s. The port supports the PoE function.	If the 2.5 Gbit/s speed is required, the port must use an Ethernet cable of Cat5e or higher category.
10GE SFP+ optical port	SFP+	A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.	GE eSFP optical modules GE-CWDM eSFP optical modules GE-DWDM eSFP optical modules GE SFP copper modules 10GE SFP+ optical modules 10GE-CWDM SFP+ optical modules 10GE-DWDM SFP+ optical modules 10GE SFP+ copper modules (V600R024C00 and later versions) PEN remote optical modules (V600R024C00 and later versions) 1 m and 3 m SFP+ high-speed copper cables 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
Stack port	SFP+	A stack port connects multiple switches through stack cables and virtualize them into one switch logically. It is used only in stacking scenarios and does not need to be configured. In a stack, the working rate of a single port is increased to 12 Gbit/s by default.	1 m SFP+ high-speed copper cables 0.5 m and 1.5 m SFP+ dedicated stack cables
Console port	RJ45	The console port is connected to a console for on-site configuration.	Console cable
USB port	USB 2.0 Type A	The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0. USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor.	USB flash drive

Technical Specifications

Technical specifications of the S5735-S24PN4XE-V2

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	4.84 kg (10.67 lb)
Weight with packaging [kg(lb)]	7.05 kg (15.54 lb)
Typical power consumption [W]	54.4 W
Typical heat dissipation [BTU/hour]	185.62 BTU/hour
Maximum power consumption [W]	- Without PoE: 79.70 W (with two 600 W AC power modules) 87.40 W (with two 1000 W AC power modules) 95.10 W (with two 1000 W DC power modules) - Full PoE load: 1070.85 W (PoE: 840 W, with three 1000 W AC power modules)
Maximum heat dissipation [BTU/hour]	- Without PoE: 271.94 (with two 600 W AC power modules) 298.22 (with two 1000 W AC power modules) 324.49 (with two 1000 W DC power modules) - Full PoE load: 3653.85 (PoE: 2866.16, with three 1000 W AC power modules)
Static power consumption [W]	33.1 W
MTBF [years]	60.68 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 50 dBA Three 1000 W AC PoE power modules with 30% load: 49.9 dBA Three 1000 W DC PoE power modules with 30% load: 48.5 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 38 dBA Three 1000 W AC PoE power modules with 30% load: 37.9 dBA Three 1000 W DC PoE power modules with 30% load: 36.5 dBA
Number of card slots	0
Number of power slots	3
Number of fans modules	2
Redundant power supply	1+1+1 Pluggable AC and DC power modules can be used together on the same device.
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	Physical space: 1 GB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification

The Huawei CloudEngine S5735-S24PN4XE-V2 24*10/100/1000/2.5GBASE-T port(PoE+, 4*10GE SFP+ ports, 2*12GE stack ports, without power module was built with people like you in mind. Something to keep you happy. Every. Single. Day.
