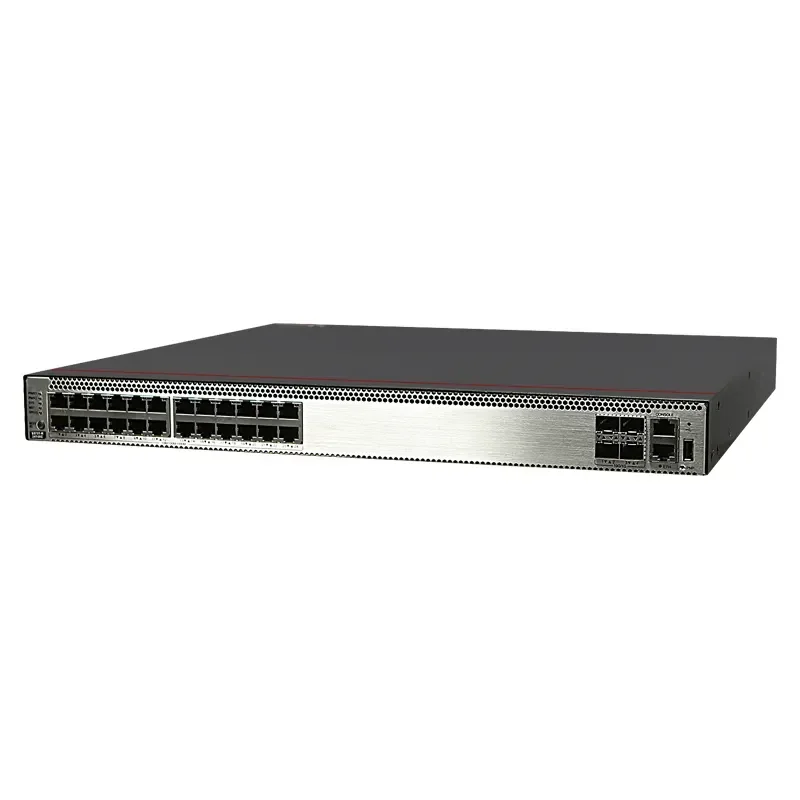

Huawei CloudEngine S5700 Series Switch S5731-S24T4X 2410/100/1000BASE-T ports, 410GE SFP+ ports, Industrial Ethernet Network Switch

Regular price: R 51,299.15
Sale price: R 51,299.15
Regular price: ~~R 64,798.93~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Huawei CloudEngine S5700 Series Switch S5731-S24T4X 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, Industrial Ethernet Network Switch

SPECIFICATIONS

Brand Name: HUAWEI

High-concerned Chemical: None

DIY Supplies: ELECTRICAL

Private Mold: NO

Products Status: Stock

Ports: 24

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 56 Gbps

Warranty: 1 Year

Applications: Telecommunication

Condition: NIB

Keywords: Managed Ethernet Switch

Uplink Interfaces: 4 * 1G SFP uplinks

CPU: 256MHZ ARM

Certification: FCC

Switching capacity: 56Gbps

Forwarding rate: 41.66Mpps

Products Description

Huawei CloudEngine S5700 Series Switch S5731-S24T4X 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, Industrial Ethernet Network Switch

The Huawei CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

Product Specs

Product Code	S5731-S24T4X
Fixed port	24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height	1 U
Power supply type	150 W AC (pluggable) 600 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range	AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range	AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption	114 W

Product Details

The Huawei S5731-S series switches provides these features and highlights:

* Powerful Service Processing Capability and Multiple Security Control Mechanisms

* Easy O&M

* Multiple Reliability Mechanisms

* Mature IPv6 Technologies

* Intelligent Stack (iStack)

* VXLAN Features

* PoE Power Supply

* Intelligent O&M

* Intelligent Upgrade

* Big Data Security Collaboration

* OPS

Technical Specifications

item	value
Transmission Rate	10/100/1000
Switch Capacity	672Gbps/6.72Tbps
Model Number	S5731-S24T4X
Place of Origin	N/A
Product Name	Ethernet switch
Use	Network communication
Color	Black
Material	Iron shell
Characteristic	MAC address table, WLAN, ring protection, MPLS, IPV6, multicast
Height of case	1U
Exchange capacity	672Gbps/6.72Tbps
Packet forwarding rate	108/126Mpps
Port rate	10/100/1000
Port description	24 10/100/1000 base_x005f T Ethernet ports, four Wan Zhao SFP +
IP routing	Static route, RIP V1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy

Life is too short to live without the Huawei CloudEngine S5700 Series Switch S5731-S24T4X 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, Industrial Ethernet Network Switch. Be happy. Be Content. Be Satisfied.

Inventory Last Updated: Oct 28, 2025
