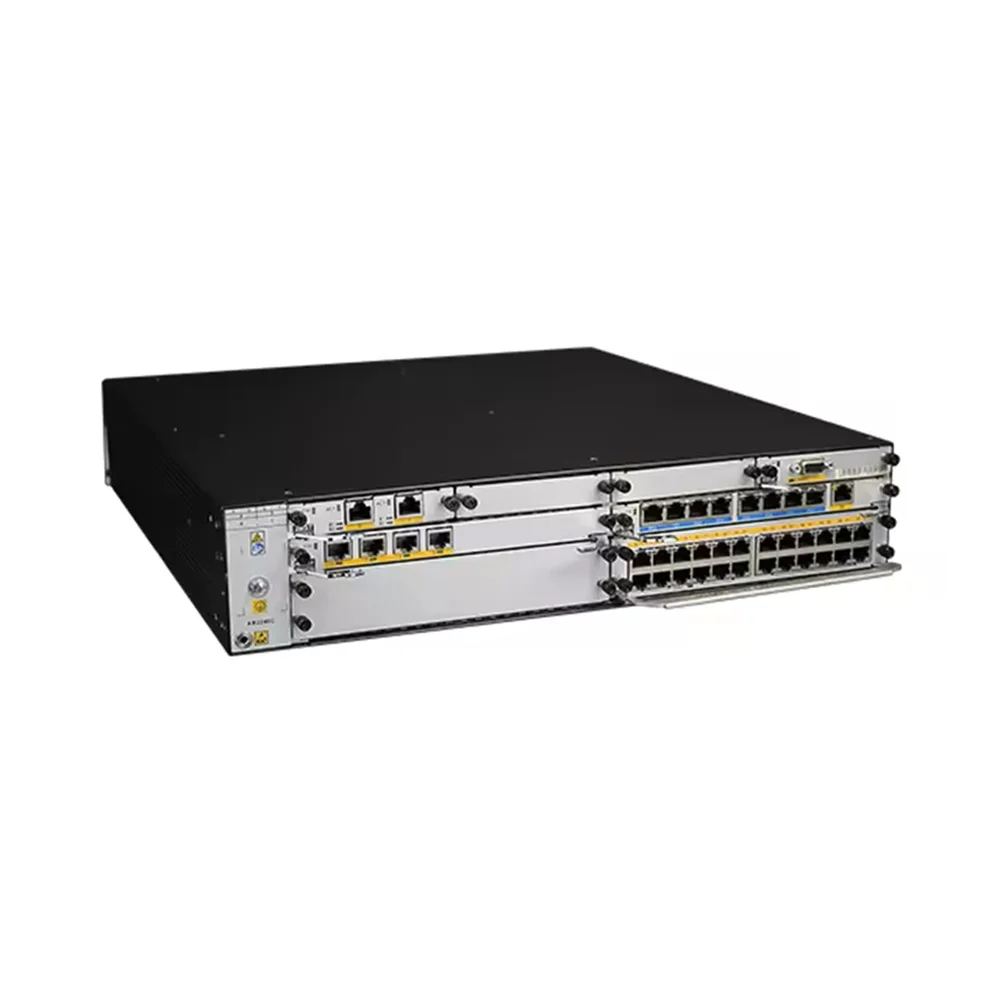

Huawei AR2200 Series Enterprise 4G WiFi Router AR2204-27GE support PoE, with 3*GE WAN(1*GE Combo), 24*GE, 1*USB, 4*SIC, 60W AC Power

R 46,966.95
R 46,966.95
R 47,869.95
Sold out
Shipping calculated at checkout.

Huawei AR2200 Series Enterprise 4G WiFi Router AR2204-27GE support PoE, with 3*GE WAN(1*GE Combo), 24*GE, 1*USB, 4*SIC, 60W AC Power

Product Description

Huawei AR2204-27GE Enterprise Router is a scalable and secure router for medium-sized enterprise headquarters and branch offices. Gbit/s routing and switching are integrated into a single device, reducing TCO.Native WLAN support combined with non-blocking switching fabric architecture provides comprehensive security features.

Product Images


Specifications

AR2204-27GE Specification

WAN Speed with Services***

200 Mbit/s

Firewall Performance (large packets)

1.2 Gbit/s

Device Switching Capacity

30 Gbit/s

Number of recommended users

150

Fixed WAN Ports

3 x GE (1 x combo port)

Fixed LAN Ports

24 x GE

SIC Slots

4

WSIC Slots (default/max**)

0

XSIC Slots (default/max**)

0

USB 2.0 Ports

1

Mini-USB Ports

-

Console Port

1

Memory

512 MB

Flash (default/max**)

512 MB

Maximum Power

60W

Redundant Power Supply

-

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC Power

-

Dimensions (H x W x D)

44.5 mm x 442 mm x 420 mm

Weight

4.95 kg (without power module and interface card)

Ambient Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and Subinterface management

3G

3G Interface card (WCDMA)

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TEFRR

VPN

IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedent LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

(interface/DSCP-based WRED), congestion management (LAN interface: SP, WRR, SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), and Hard QoS (SRU80 Main Boards support)

Security

ACL, firewall, 802.1x authentication, MAC address authentication, Web Authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, and IP source tracing

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

Specifications

AR2204-27GE/
AR2204-27GE-P

AR2204-51GE-P

AR2204E

AR2204XE

AR2220E

AR2240C

AR2240

WAN Speed with Services

400 Mbit/s

400 Mbit/s

400 Mbit/s

1.8 Gbit/s

1.6 Gbit/s

2 Gbit/s

2 Gbit/s
(with SRU40*)
4 Gbit/s
(with SRU80*)
2 Gbit/s
(with SRU100E*)
9 Gbit/s
(with SRU200*)

Fixed WAN Ports

3 x GE (1 x Combo)

3 x GE (1 x Combo)

3 x GE (1 x Combo port)

2 x 10 GE SFP+, 10 x GE SFP, 8 x GE RJ45 WAN

3 x GE (1 x Combo port)

4 x GE + 4 x GE SFP + 2 x GE Combo

SRU40: 3 x GE (2 x Combo)
SRU80: 3 x GE (2 x Combo)
SRU100E: 4 x GE Combo + 2 x GE SFP
SRU200: 4 x GE Combo + 2 x 10 GE SFP+

Fixed LAN Ports

24 x GE/24 x GE (8 x GE ports support PoE)

48 x GE (8 x GE ports support PoE)

-

-

-

-

-

SIC Slots

4

4

4

4

4

4

4

WSIC Slots (default/max.)

0

0

0/2

0/2

2/4

2/4

2/4

XSIC Slots (default/max.)

0

0

0

0

0/2

2/4

2/4

Wireless Controller

Wireless Controller is integrated in software













Maintenance

All interface cards support hot-swapping U-disk deployment supported

All interface cards support hot-swapping
U-disk deployment supported

All interface cards support hot-swapping U-disk deployment supported

All interface cards support hot-swapping U-disk deployment supported

All interface cards support hot-swapping U-disk deployment supported

All interface cards support hot-swapping
U-disk deployment supported

All interface cards support hot-swapping
U-disk deployment supported

Memory

512 MB

512 MB

512 MB

4 GB

1 GB

2 GB

2 GB/4 GB

Flash
(default/max.)

512 MB

512 MB

512 MB

512 MB

512 MB/4 GB

2 GB/8 GB

2 GB/8 GB

Hard Disk

-

-

-

2 x HDD

-

-

-

Power Supply

AC: 100V to 240V, 50 Hz/60 Hz

AC: 100V to 240V, 50 Hz/60 Hz

AC: 100V to 240V, 50 Hz/60 Hz
DC: -48V to -60V

AC: 100V to 240V, 50 Hz/60 Hz

AC: 100V to 240V, 50 Hz/60 Hz

AC: 100V to 240V, 50 Hz/60 Hz
DC: -48V to -60V

AC: 100V to 240V, 50 Hz/60 Hz
DC: -48V to -60V

Redundant Power Supply

Internal: AC (only AR2204-27GE-P)

Internal: AC

Internal: AC, DC

Internal: AC

RPS

Internal: AC, DC

Internal: AC, DC

Rack Height

1 RU

1 RU

1 RU

1 RU

1 RU

2 RU

2 RU

Dimensions
(W x D x H)

442 mm x 420 mm x 44.5 mm

442 mm x 420 mm x 44.5 mm

442 mm x 420 mm x 44.5 mm

442 mm x 420 mm x 44.5 mm

442 mm x 420 mm x 44.5 mm

442 mm x 470 mm x 88.1 mm

442 mm x 470 mm x 88.1 mm
Life is too short to live without the Huawei AR2200 Series Enterprise 4G WiFi Router AR2204-27GE support PoE, with 3*GE WAN(1*GE Combo), 24*GE, 1*USB, 4*SIC, 60W AC Power. Be happy. Be Content. Be Satisfied.
