Huawei 3 Layers Gigabit Switch, 28 Gig SFP, 410/100/1000 or SFP, 410 Gig SFP+, 1 interface slot, 150W DC PSU, S5720-36C-EI-28S-DC

Regular price: R 144,477.95
Sale price: R 144,477.95
Regular price: ~~R 147,309.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Huawei 3 Layers Gigabit Switch, 28 Gig SFP, 4*10/100/1000 or SFP, 4*10 Gig SFP+, 1 interface slot, 150W DC Power Supply, S5720-36C-EI-28S-DC

Description

Huawei S5720-36C-EI-28S-DC is one of the S5720-EI switches. Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.

Compare to Similar Items

Comparison of S5720-36C-EI-28S-DC, S5720-32P-EI-AC and S5720-32X-EI-24S DC.

Product Code	S5720-36C-EI-28S-DC	S5720-32P-EI-AC	S5720-32X-EI-24S-DC
Switching Capacity	598 Gbit/s	598 Gbit/s	598 Gbit/s
Forwarding Performance	132 Mpps	48 Mpps	102 Mpps
Fixed Interfaces	28 x 100/1,000 Base-X SFP ports, 4 x combo 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports	24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 Gig SFP	24 x 100/1,000 Base-X SFP ports, 4 x 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports
Extended Slot	One extended slot supporting a service subcard or stack card	No	No
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm	442 mm x 220 mm x 43.6 mm	442.0 mm x 220.0 mm x 43.6 mm
Front Power Input	Yes	Yes	No

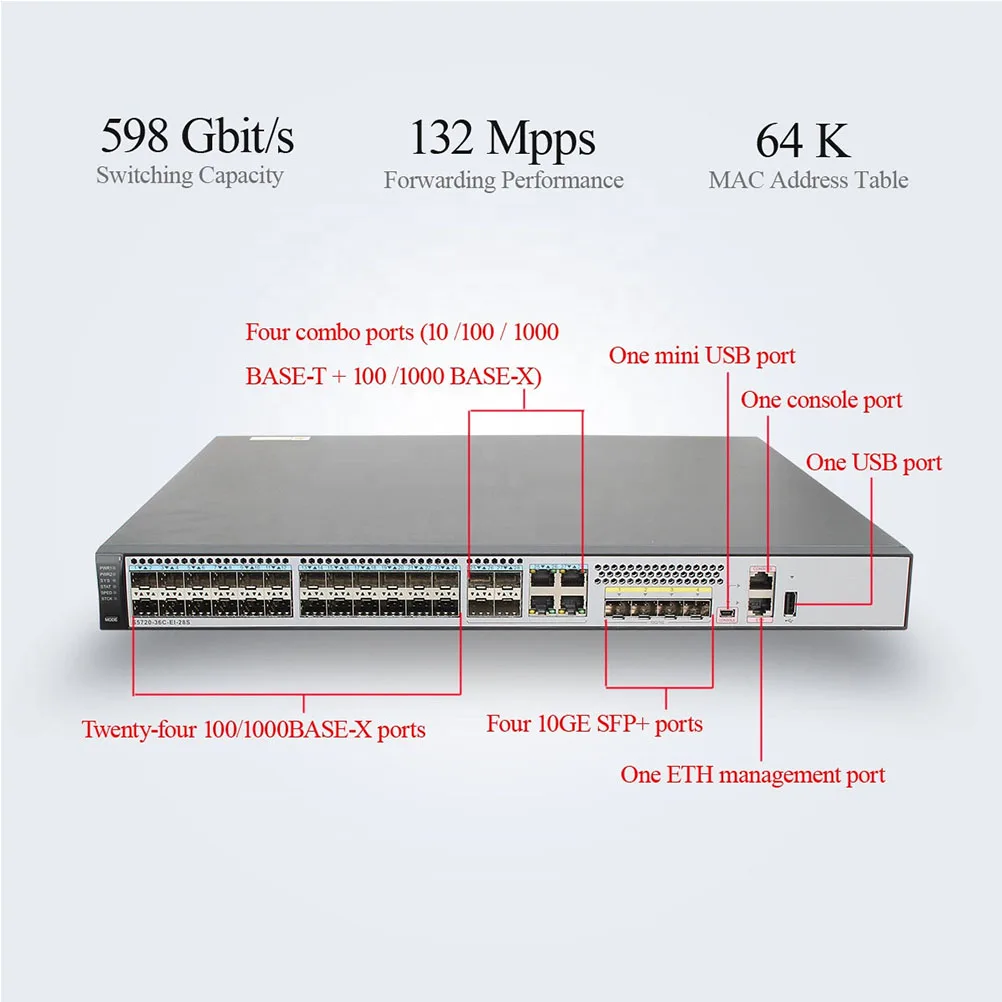

Product Images

S5720-EI Series 3 Layers Enhanced Gigabit Switch S5720-36C-EI-28S-DC

Huawei S5720-EI series switches provide flexible all-gigabit access and enhanced 10GE uplink port scalability. They are widely used as access / aggregation switches in enterprise campus networks or gigabit access switches in data centers.

Product Highlights

High Scalability

Provides flexible gigabit (optical, electrical, and combo) port access and enhanced 10 GE uplink port scalability.

High Reliability

Provides device-level and link-level reliability protection, iStack, and various ring protection technologies. Faster failover is
also achieved.

SVF for Ultra-Simplified Network O&M

Uses energy-saving technologies such as port sleep and automated port power adjustment, and provides various fan-free models to enable noise-free gigabit to the desktop.

Specifications

S5720-36C-EI-28S-DC Specification
Switching Capacity	598 Gbit/s
Forwarding Performance	132 Mpps
Fixed Ports	28 x 100/1,000 Base-X SFP (4 GE Combo), 4 x 10 Gig SFP+
Extended Slot	One extended slot supporting a service subcard or stack card
DRAM and Flash Memory	SDRAM: 2 GB Flash: 340 MB
MAC Address Table	64k
Jumbo Frame	12K
VLAN	4k
IP Routing	Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
Security	Hierarchical user management and password protection AAA authentication DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI Port isolation, port security, and sticky MAC NAC and user management based on user groups Limit on the number of learned MAC addresses CPU defense Blacklist and whitelist MACSec ready
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software and patching on the client One-click and automatic delivery of service configurations Independent running clients
Interoperability	VBST (Compatible with PVST/PVST+/RPVST) LNP (Similar to DTP) VCMP (Similar to VTP)
Front Power Input	NA
Energy saving	802.3az Energy Efficient Ethernet (EEE) supported
Typical Power Consumption	47.9W
Input Voltage	Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V
Management and Maintenance	iStack Virtual cable test SNMPv1/v2c/v3 RMON/RMON2 Web-based network management system System logs and multi-level alarms sFlow LLDP/LLDP-MED Secure Copy Protocol (SCP), TFTP, FTP Store dual software images and configuration files 802.3az Energy Efficient Ethernet (EEE)
Surge Protection	Surge protection capability of service ports: 6 kV
Interoperability	VLAN-based Spanning Tree (working with PVST/PVST+/RPVST) Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP) VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)
Operating Environment	Operating temperature: Zero to 1,800m altitude: 0°C to 45°C 1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m. Relative humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm

The Huawei 3 Layers Gigabit Switch, 28 Gig SFP, 4*10/100/1000 or SFP, 4*10 Gig SFP+, 1 interface slot, 150W DC PSU, S5720-36C-EI-28S-DC is the product you didn't think you need, but once you have it, something you won't want to live without.
