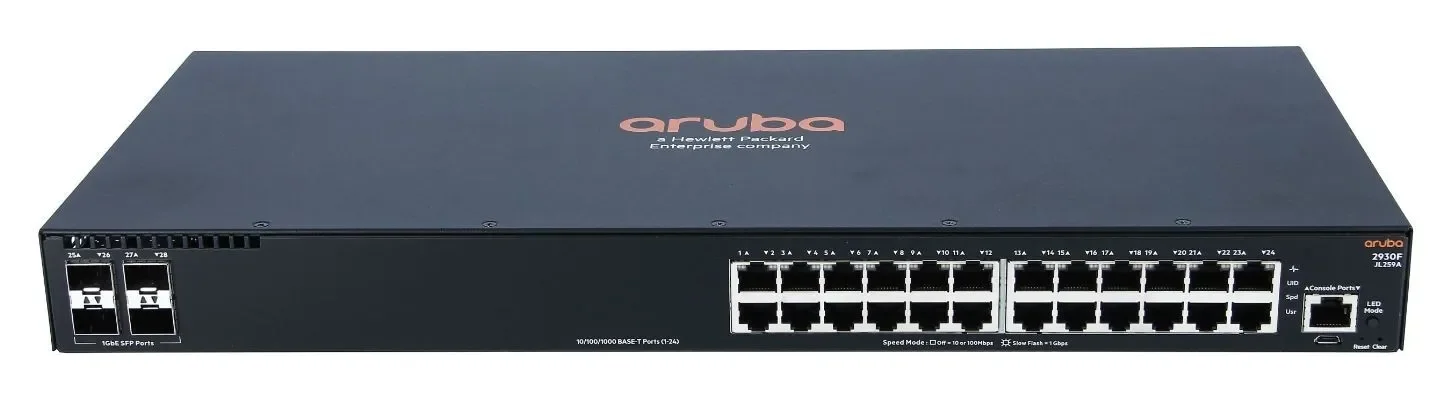

HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps
HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps
  • Load image into Gallery viewer, HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps
  • Load image into Gallery viewer, HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps

HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps

R 51,066.95
R 51,066.95
R 52,048.95
Sold out
Shipping calculated at checkout.

HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps

Specifications

Brand Name: ARUBA

High-concerned Chemical: None

DIY Supplies: ELECTRICAL

Private Mold: NO

Products Status: Stock

Ports: 24, (24) RJ-45 autosensing 10/100/1000 ports

Transmission Rate: 10/100/1000Mbps

Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode: Full-Duplex & Half-Duplex

Switch Capacity: 56 Gbps

Brand Name: Aruba

Model Number: JL259A

Product name: network Switch

Part Number: JL259A

Switching capacity: 56 Gbps

Throughput: 41.7 Mpps

Warranty: 1year

Products Description

Aruba JL259A Overview:

The Aruba 2930F Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can
quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow’s applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing,
Tunnel node, robust QoS, RIP routing, and IPv6 with no software licensing required.

The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust basic Layer 3 feature set includes a limited lifetime warranty.

HPE Aruba JL259A Key Features:

  • Aruba Basic Layer 3 switch series with VSF stacking, static, Rip and Access OSPF Routing, ACLs, and robust QoS
    * Consistent wired/wireless experience with Aruba AirWave and Aruba ClearPass Policy Manager
    * Convenient built-in 1GbE or 10GbE uplinks and up to 370 W PoE+
    * Ready for innovative SDN applications with OpenFlow support
    * Simple deployment with Zero Touch Provisioning and cloud-based Aruba Central support

Compare to Similar Items

Product Code

JL258A

JL259A

JL260A

JL261A

JL262A

Type

Aruba 2930F 8G PoE+ 2SFP+ Switch

Aruba 2930F 24G 4SFP Switch

Aruba 2930F 48G 4SFP Switch

Aruba 2930F 24G PoE+ 4SFP Switch

Aruba 2930F 48G PoE+ 4SFP Switch

I/O ports and slots

· 8 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full
1000BASE-T: full only

· 24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full
1000BASE-T: full only
· 4 SFP

· 48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full
1000BASE-T: full only
· 4 SFP

· 24 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full
1000BASE-T: full only

· 48 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full
1000BASE-T: full only

Throughput

up to 41.7 Mp/s

up to 41.7 Mp/s

up to 77.4 Mp/s

up to 41.7 Mp/s

up to 77.4 Mp/s

Switching capacity

56 Gb/s

56 Gb/s

104 Gb/s

56 Gb/s

104 Gb/s

Aruba JL258A Specifications



Product Model

Aruba JL259A

Product Name

Aruba 2930F 24G 4SFP Switch

Processor Brand

128 Gbps

Processor Type

Cortex-A9

Flash Memory Installed

4 GB

Memory Technology

DDR3 SDRAM

RAM Installed

1 GB

Form Factor

Rack-mountable

MAC Address Table Size

32K entries

Manageable

Yes

Ports

24

Product Type

Switch

Port Type

10/100/1000

Ports Type (2nd)

Gigabit SFP (uplink)

Power Consumption

29.3 watt

Dimensions (W x D x H)

17.4 x 7.9 x 1.7 inch

Operating Humidity

15 - 95% (non-condensing)

Max Operating Temperature

113 degree Fahrenheit
The HPE Aruba 2930F 24Port Gigabit Managed L3 Switch with 4*SFP ports JL259A 24*Gigabit Ethernet PoE Switch, 56Gbps switching, 41.7 Mpps is far and away, one of our most popular items. People can't seem to get enough of it.
