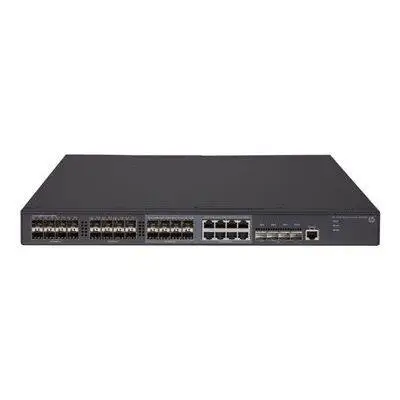

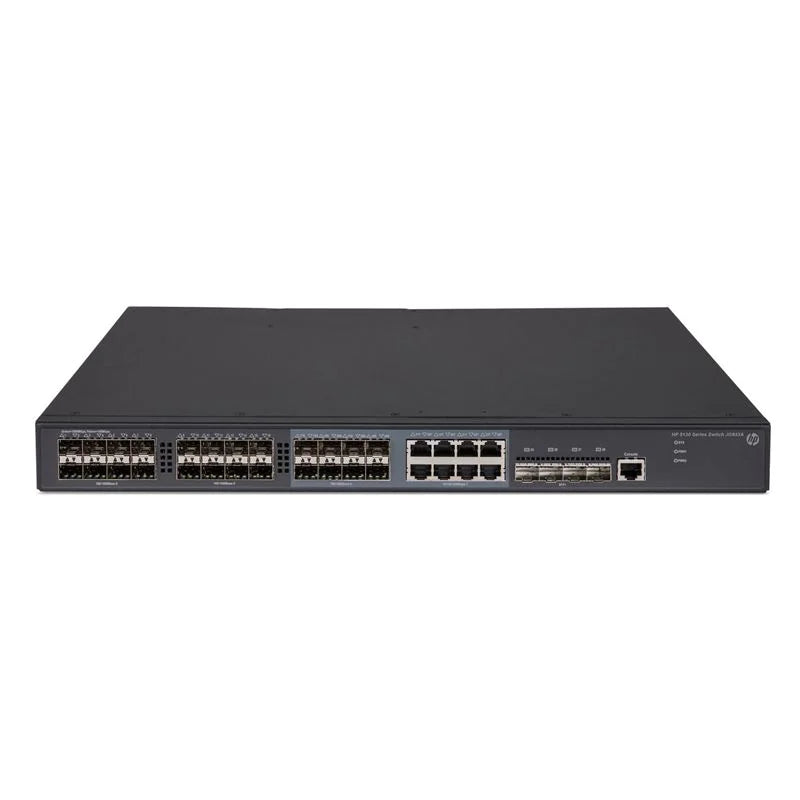

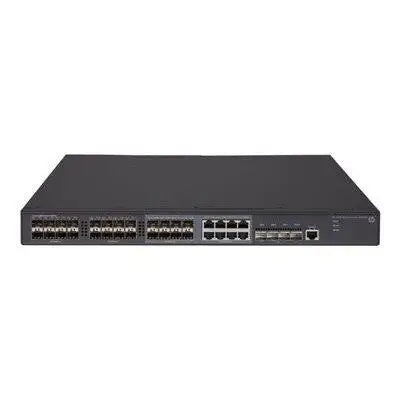

HP 5130-24G-SFP-4SFP+ EI Switch JG933A with 24 x 100/1000 SFP ports 4 x 1GbE / 10GbE SFP+ ports for high speed 10 Gigabit or Fiber

Product Code

JG933A

Type

HPE FlexNetwork 5130-24G-SFP-4SFP+ EI Switch

I/O ports and slots

Additional ports and slots

1 x RJ-45 serial console port

Power supplies

Memory and processor

Dimensions

4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in)

Weight

8 kg (17.64 lb)

JG933A Specifications

Type

HPE FlexNetwork 5130-24G-SFP-4SFP+ EI Switch

System specifications

I/O ports and slots

·16 x SFP 100/1000 Mbps ports

·8 x SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports

·4 x SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 x RJ-45 serial console port

Power supplies

·2 x power supply slots

·1 x minimum power supply required (ordered separately)

Memory and processor

·1 GB SDRAM

·512 MB flash

·packet buffer size: 1.5 MB

Reliability

MTBF (years) 52.79

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager

Physical specifications

Dimensions (H x W x D)

4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in)

Weight

8 kg (17.64 lb)

Environmental specifications

Acoustic

Low-speed fan: 47.1 dB, High-speed fan: 50.7 dB; ISO 7779

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°C to 70°C (-40°F to 158°F)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Electrical specifications

Frequency

50/60 Hz

Maximum heat dissipation

102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130BTU/hr min, 232BTU/hr max.

AC voltage

100 - 240 V ac

DC voltage

-48 to -60 VDC

Current

5 A

Maximum power rating

60 W

Idle power

30 W

PoE power

None

Safety certifications

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Standard and protocols

Device management

RFC 1157 SNMPv1/v2c

RFC 1305 NTPv3

RFC 2573 (SNMPv3 Applications)

RFC 2819 (RMON groups Alarm, Event, History and Statistics only)

RFC 3416 (SNMP Protocol Operations v2)

HTML and telnet management

Multiple Configuration Files

SNMP v3 and RMON RFC support

SSHv1/SSHv2 Secure Shell

TACACS/TACACS+

Web UI
